Seat Temperature Switch: Service and Repair

SEAT HEATER SWITCH

Seat Heater System:

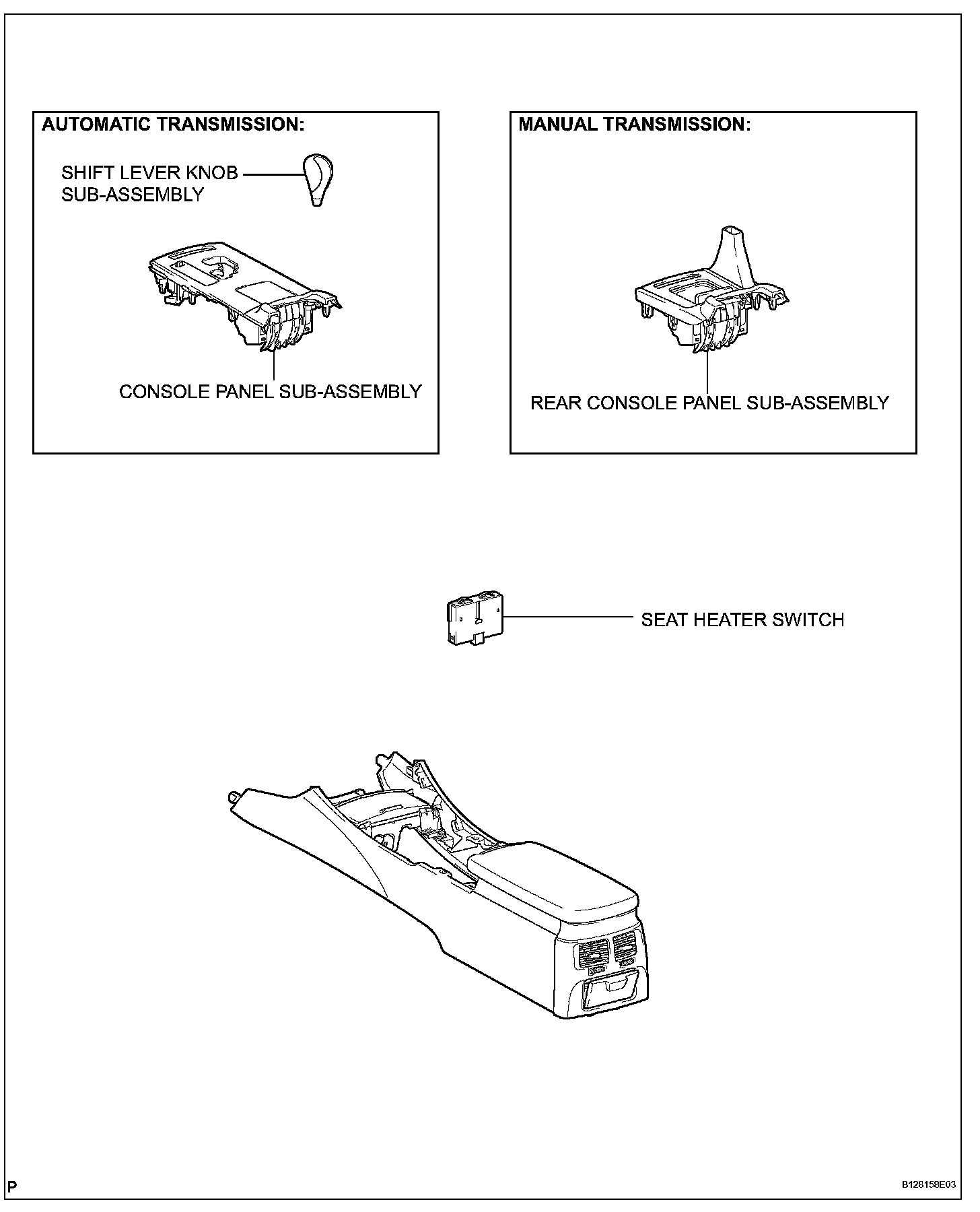

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
3. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
4. REMOVE SEAT HEATER SWITCH

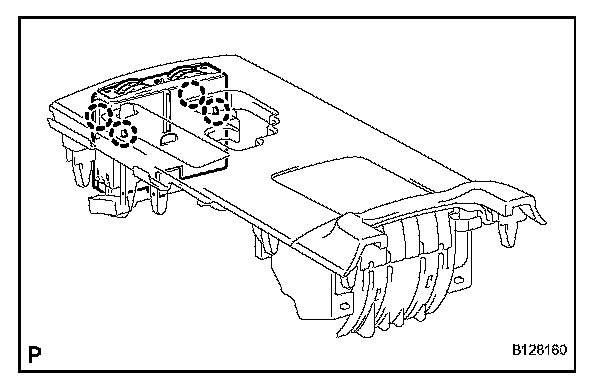

a. Release the 4 claws and remove the seat heater switch.

INSTALLATION

1. INSTALL SEAT HEATER SWITCH

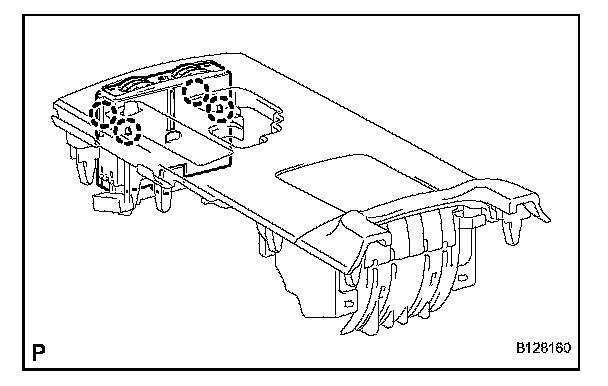

a. Install the seat heater switch with the 4 claws.

2. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
3. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
