Power Mirror Switch: Service and Repair

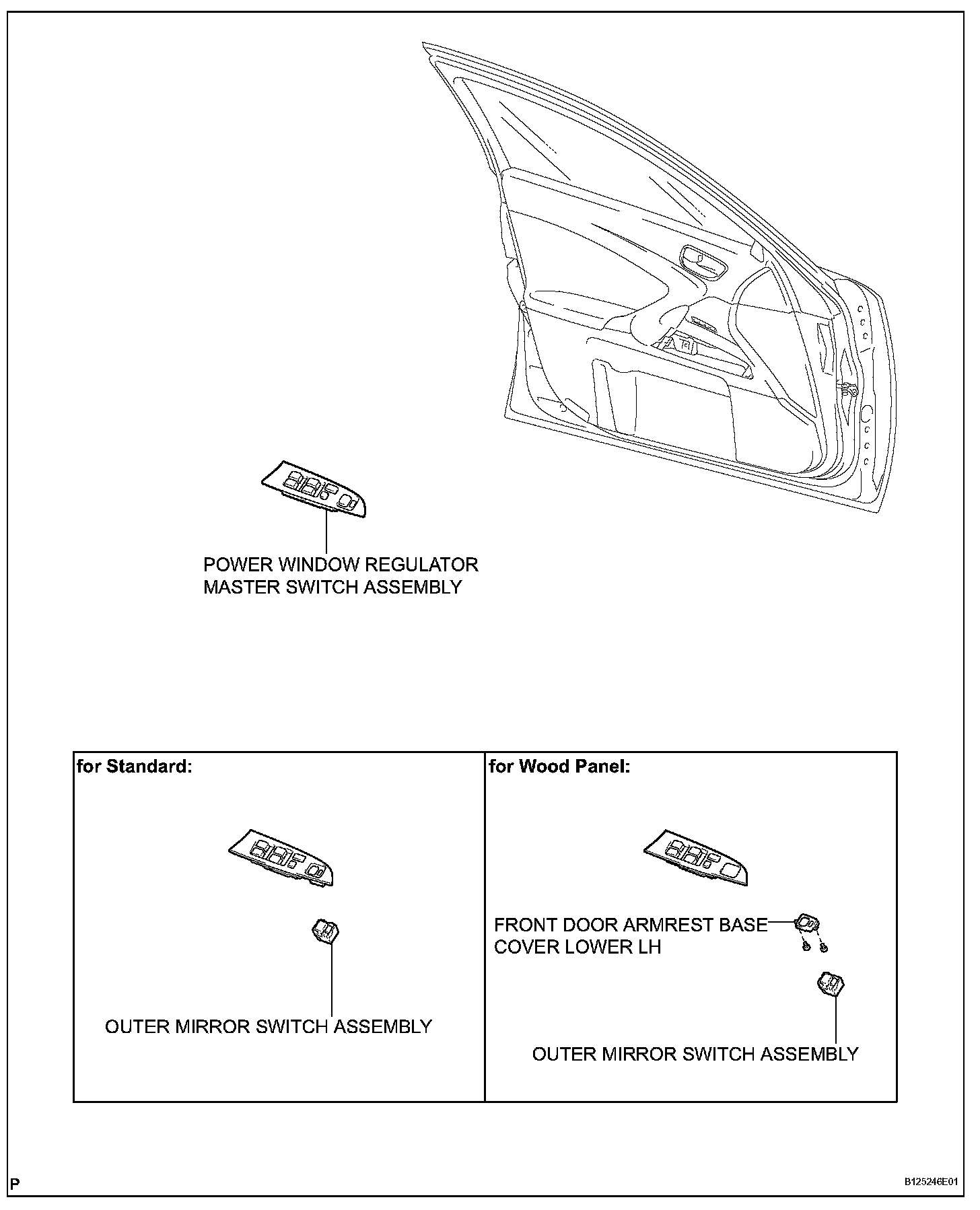

OUTER MIRROR SWITCH

Outer Mirror Switch:

REMOVAL

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (for Standard)

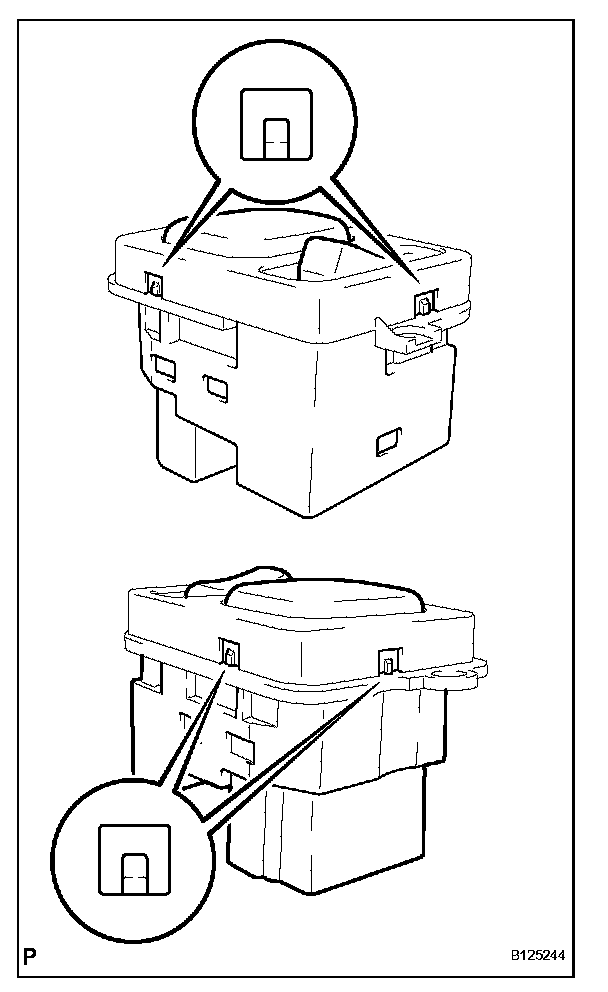

a. Disengage the 4 claws and remove the outer mirror switch assembly.

3. REMOVE OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)

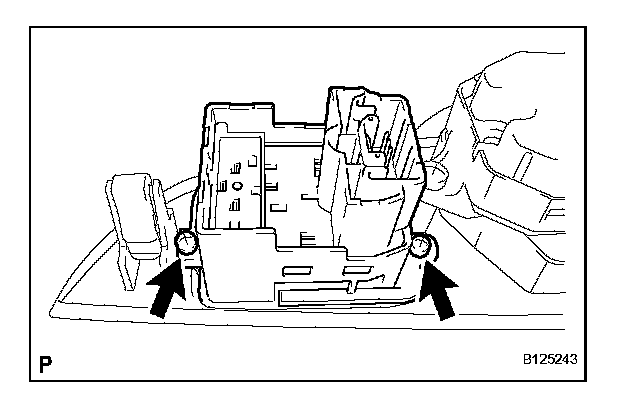

a. Remove the 2 screws and the outer mirror switch assembly with the front door armrest base cover lower LH.

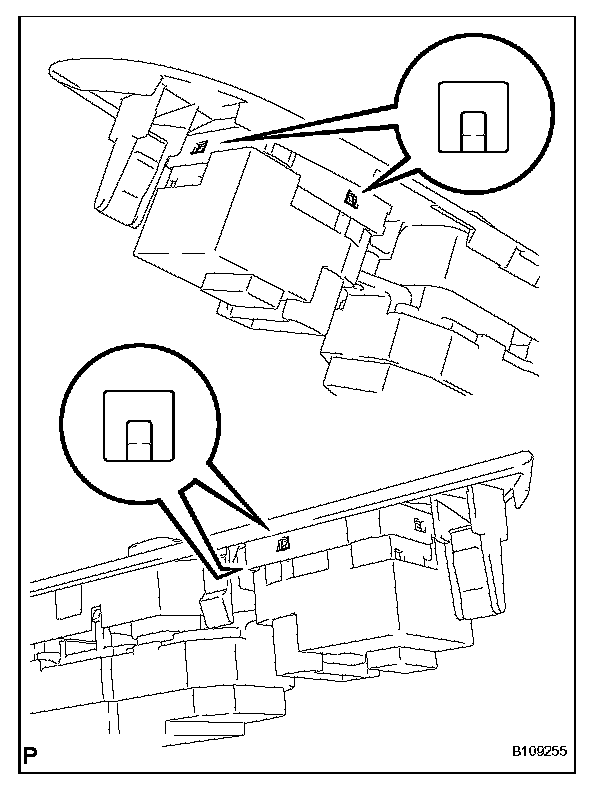

b. Disengage the 4 claws to remove the outer mirror switch assembly.

INSTALLATION

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Standard)

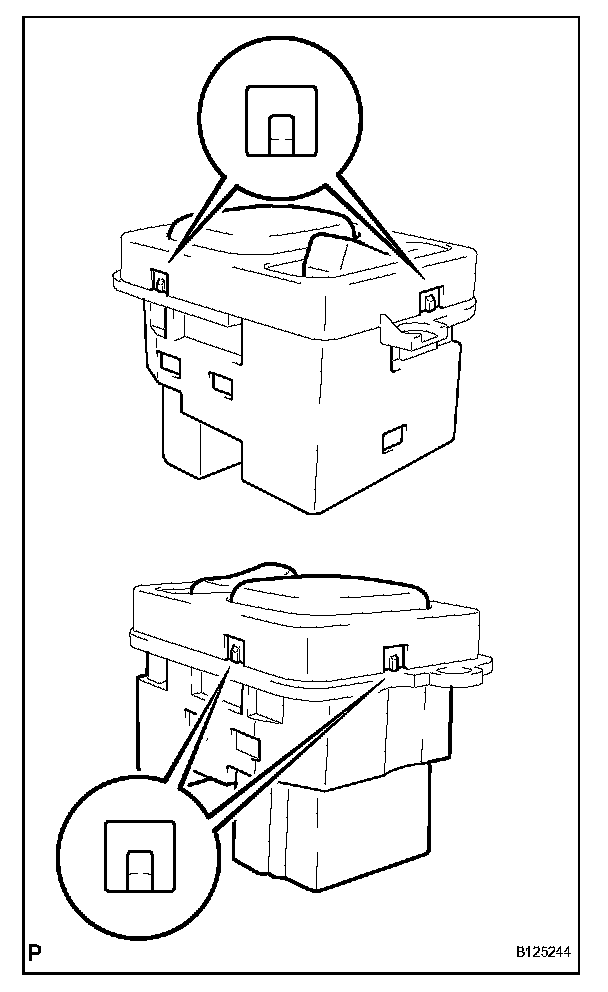

a. Engage the 4 claws to install the outer mirror switch assembly.

2. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)

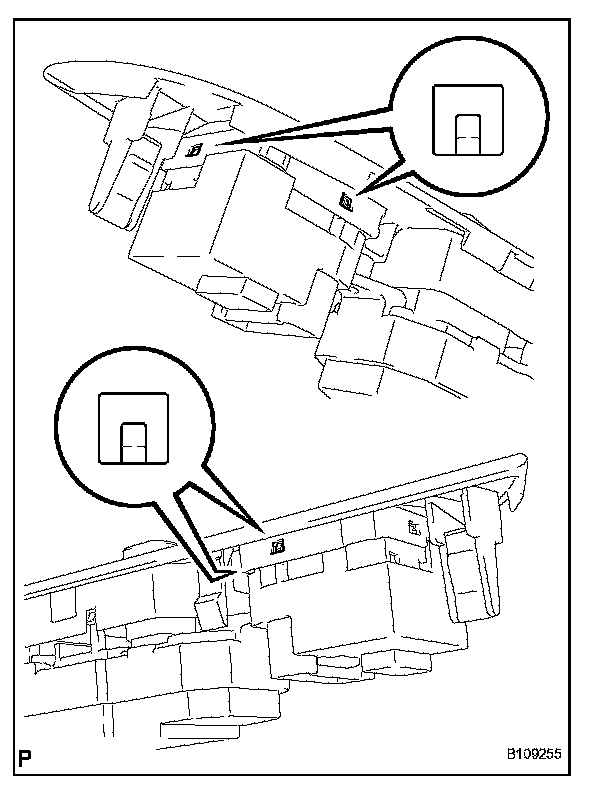

a. Engage the 4 claws to install the outer mirror switch assembly.





b. Install the outer mirror switch assembly with the front door armrest base cover lower LH with the 2 screws.

3. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
4. INITIALIZE POWER WINDOW CONTROL SYSTEM
