Hood Sensor/Switch (For Alarm): Service and Repair

Engine Hood Courtesy Switch:

Engine Hood Courtesy Switch:

Engine Hood Courtesy Switch

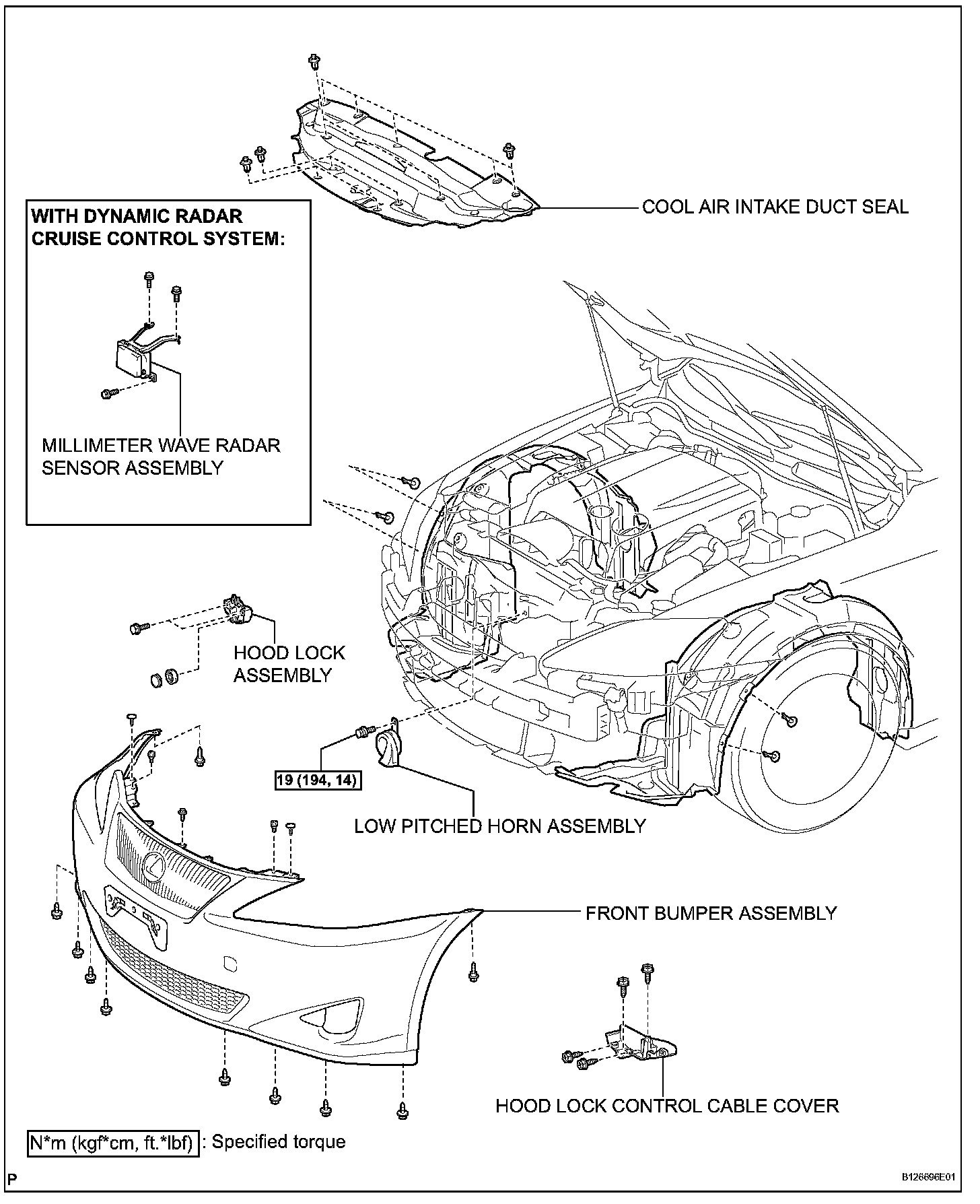

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE FRONT BUMPER ASSEMBLY
3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
4. REMOVE LOW PITCHED HORN ASSEMBLY
5. REMOVE HOOD LOCK CONTROL CABLE COVER

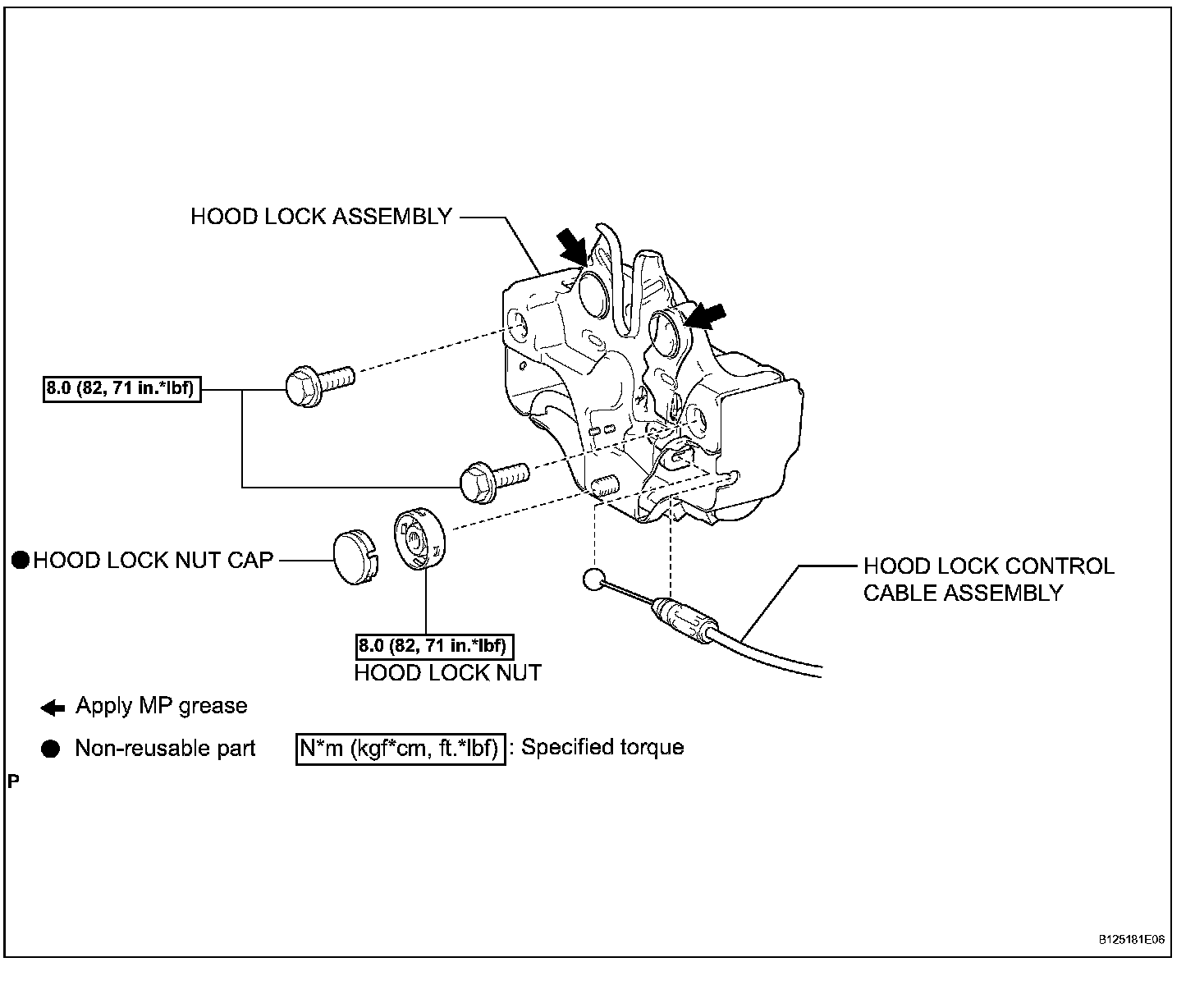

6. REMOVE HOOD LOCK ASSEMBLY

INSTALLATION

1. INSTALL HOOD LOCK ASSEMBLY
2. INSTALL HOOD LOCK CONTROL CABLE COVER
3. INSTALL LOW PITCHED HORN ASSEMBLY
4. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
5. INSTALL FRONT BUMPER ASSEMBLY
6. INSTALL COOL AIR INTAKE DUCT SEAL
7. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
8. VEHICLE PREPARATION FOR FOG LIGHT AIM
9. PREPARATION FOR FOG LIGHT
10. FOG LIGHT AIMING INSPECTION
11. FOG LIGHT AIMING ADJUSTMENT
