Fuel Door Switch: Testing and Inspection

INSPECTION

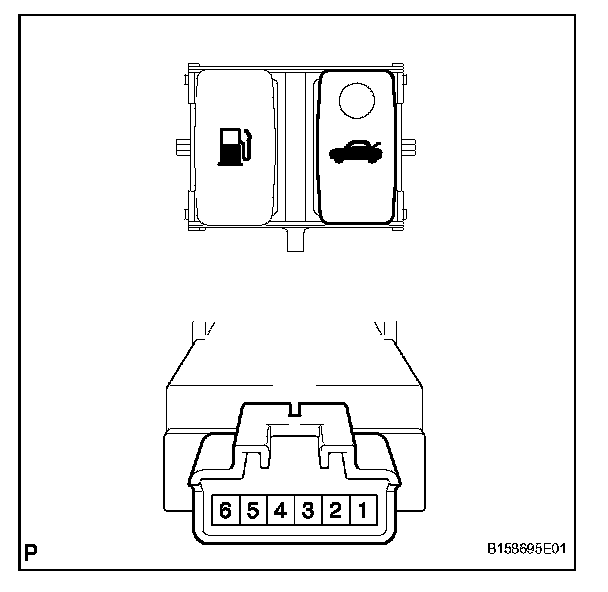

1. INSPECT FUEL LID OPENER SWITCH

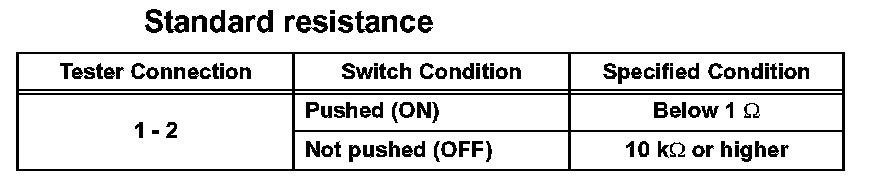

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the switch.
