Remote Switch: Testing and Inspection

INSPECTION

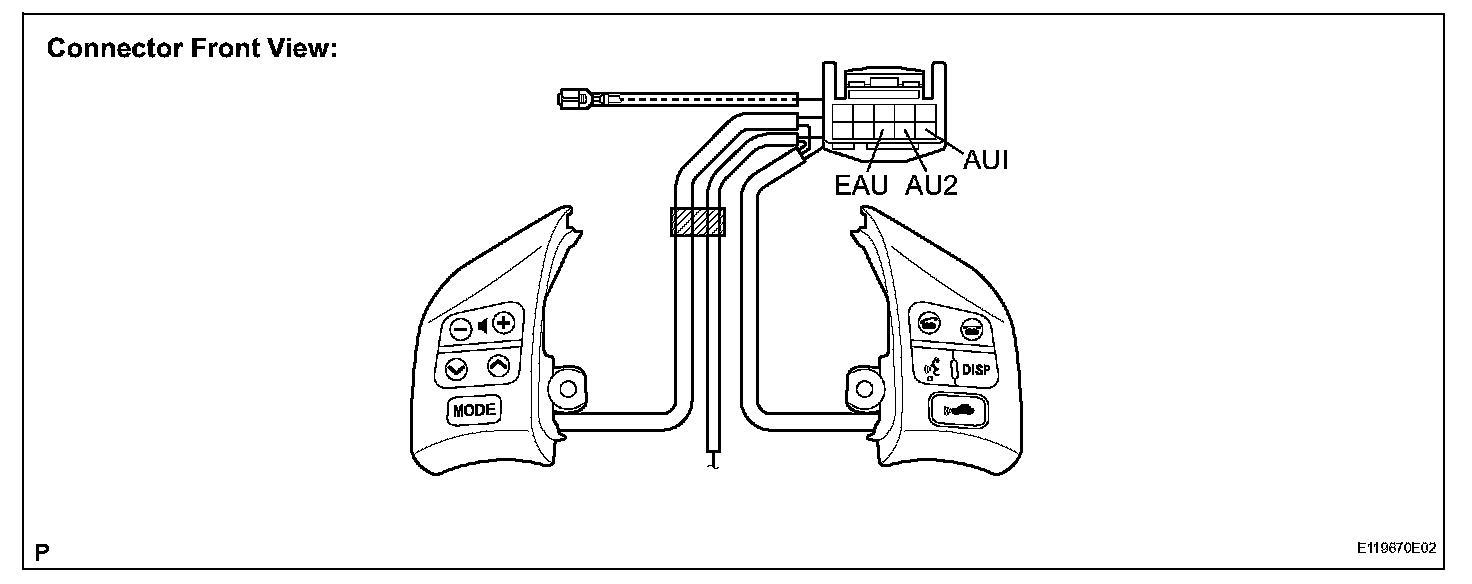

1. INSPECT STEERING PAD SWITCH (w/ Navigation System)




a. Disconnect the steering pad switch assembly connector.

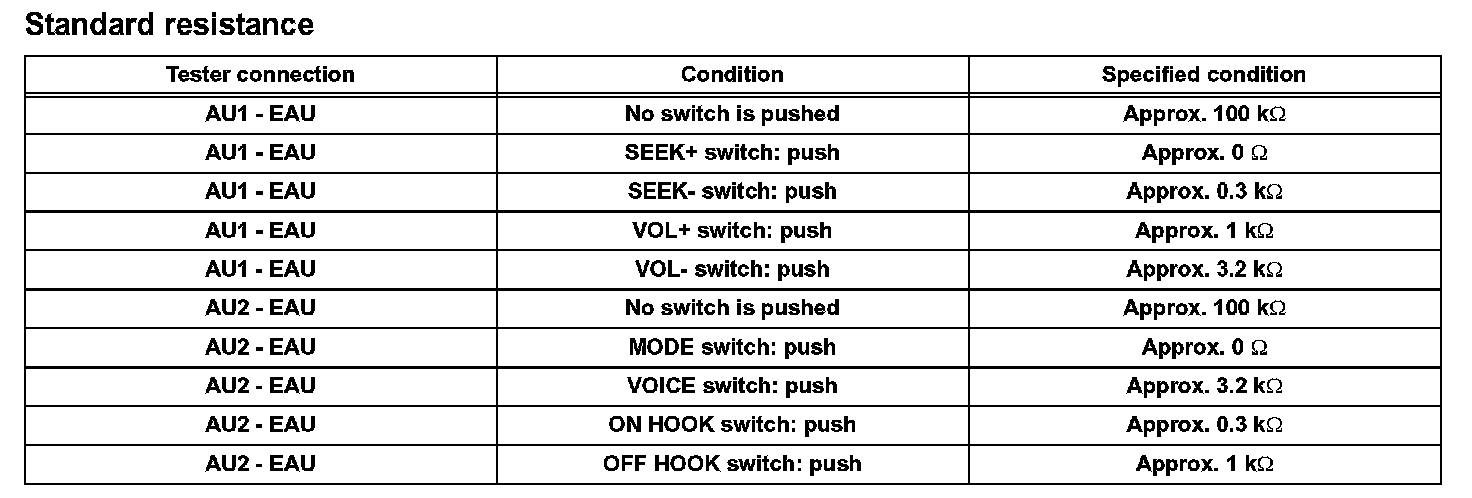

b. Measure the resistance according to the values in the table.

If the result is not as specified, replace the steering pad switch.

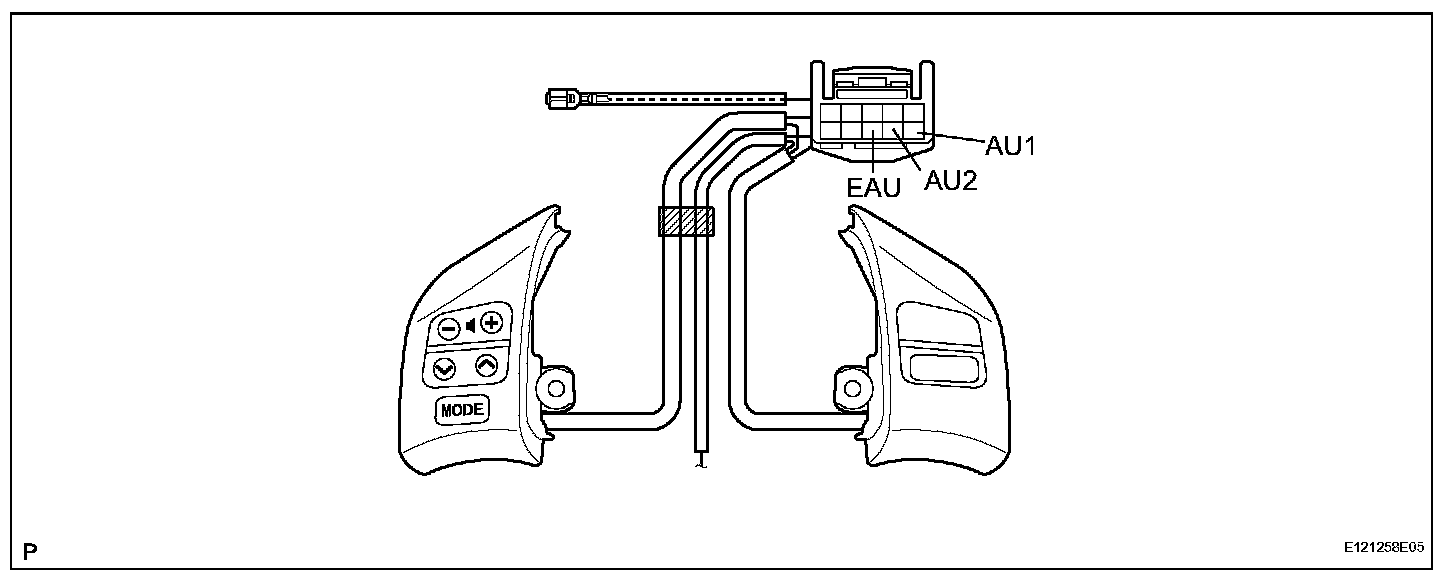

2. INSPECT STEERING PAD SWITCH (w/o Navigation System)




a. Disconnect the steering pad switch assembly connector.

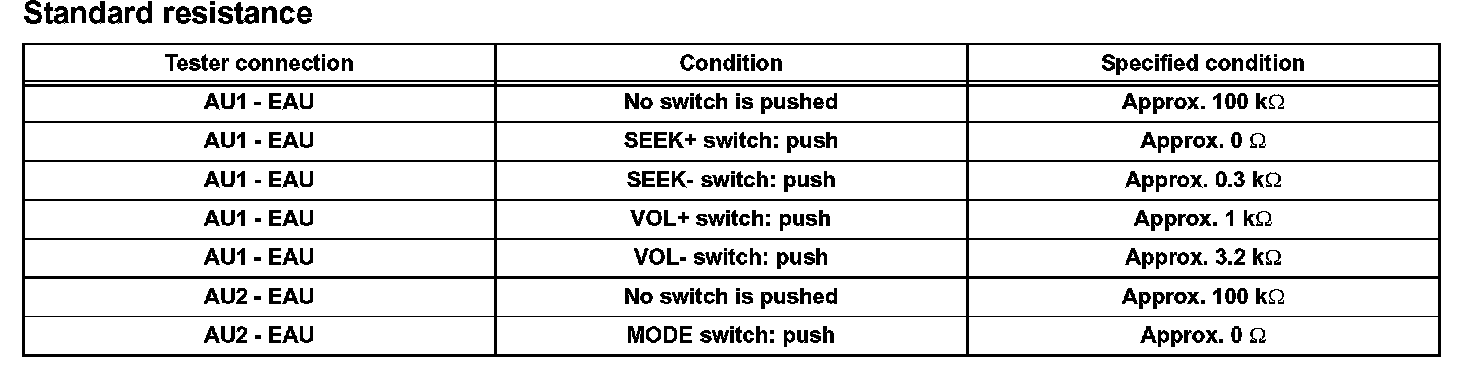

b. Measure the resistance according to the values in the table.

If the result is not as specified, replace the steering pad switch.
