Parking Assist Distance Sensor: Service and Repair
REMOVAL1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE FRONT BUMPER ASSEMBLY
3. REMOVE NO.1 ULTRASONIC SENSOR
a. Disconnect the sensor connector.

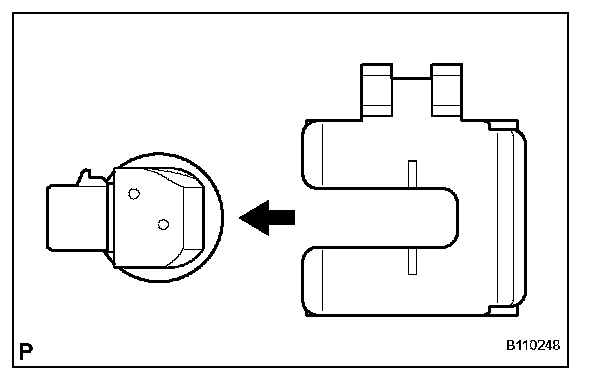

b. Remove the sensor retainer as shown in the illustration.
c. Remove the No. 1 ultrasonic sensor from the front bumper.
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER
5. REMOVE DECK SIDE TRIM BOX LH
6. REMOVE DECK SIDE TRIM BOX RH
7. REMOVE ROPE HOOK ASSEMBLY
8. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
9. REMOVE ROOM LIGHT ASSEMBLY
10. REMOVE ROPE HOOK
11. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
12. REMOVE LUGGAGE COMPARTMENT TRIM HOOK
13. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER
14. DISCONNECT LUGGAGE ROOM WIRE
15. REMOVE REAR BUMPER PLATE
16. REMOVE REAR BUMPER ASSEMBLY
17. REMOVE NO. 2 ULTRASONIC SENSOR
a. Disconnect the sensor connector.

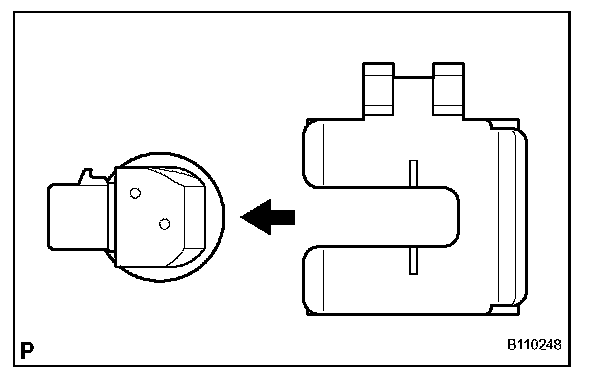

b. Remove the sensor retainer as shown in the illustration.
c. Remove the No.2 ultrasonic sensor from the rear bumper.
18. REMOVE NO.1 ULTRASONIC SENSOR
a. Disconnect the sensor connector.
b. Remove the sensor retainer as shown in the illustration.
c. Remove the No.1 ultrasonic sensor from the rear bumper.
INSTALLATION
1. INSTALL NO.1 ULTRASONIC SENSOR
a. Install the No.1 ultrasonic sensor to the rear bumper.

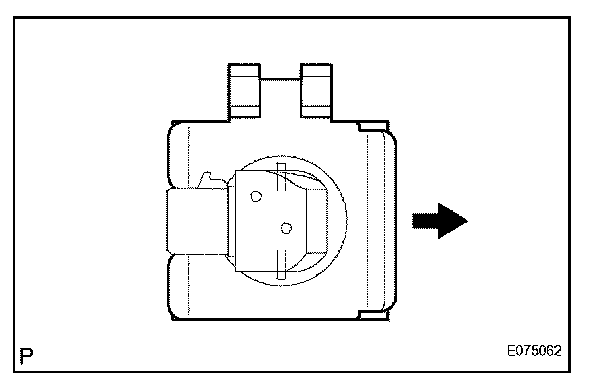

b. Install the sensor retainer as shown in the illustration.
c. Connect the sensor connector.
2. INSTALL NO. 2 ULTRASONIC SENSOR
a. Install the No.2 ultrasonic sensor to the rear bumper.

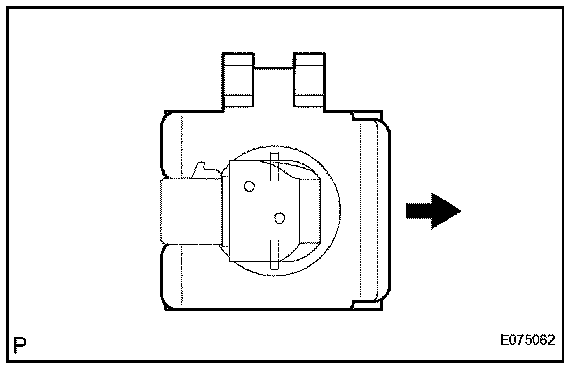

b. Install the sensor retainer as shown in the illustration.
c. Connect the sensor connector.
3. INSTALL REAR BUMPER ASSEMBLY
4. INSTALL REAR BUMPER PLATE
5. CONNECT LUGGAGE ROOM WIRE
6. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
7. INSTALL LUGGAGE COMPARTMENT TRIM HOOK
8. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
9. INSTALL ROPE HOOK
10. INSTALL ROOM LIGHT ASSEMBLY
11. INSTALL ROPE HOOK ASSEMBLY
12. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
13. INSTALL DECK SIDE TRIM BOX RH
14. INSTALL DECK SIDE TRIM BOX LH
15. INSTALL LUGGAGE COMPARTMENT TRIM COVER
16. INSTALL NO.1 ULTRASONIC SENSOR
a. Install the No.1 ultrasonic sensor to the front bumper.

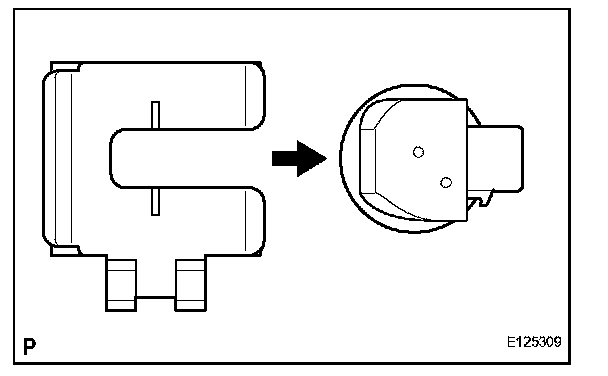

b. Install the sensor retainer as shown in the illustration.
c. Connect the sensor connector.
17. INSTALL FRONT BUMPER ASSEMBLY
18. INSTALL COOL AIR INTAKE DUCT SEAL
19. VEHICLE PREPARATION FOR FOG LIGHT AIM
20. PREPARATION FOR FOG LIGHT AIMING
21. FOG LIGHT AIMING INSPECTION
22. FOG LIGHT AIMING ADJUSTMENT
