Occupant Detection Sensor (For Power Seat)

INSPECTION




1. INSPECT OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

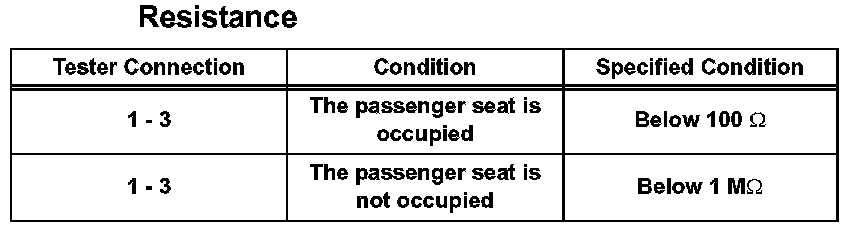

a. Measure the resistance according to the value(s) in the table.
