Front Passenger Side Seat Belt Warning Light Malfunction

Front Passenger Side Seat Belt Warning Light Malfunction

DESCRIPTION

with Navigation System:
The combination meter assembly detects the state of the front seat inner belt assembly RH when the front passenger seat is occupied with the engine switch on (IG). If the front passenger seat belt is not fastened, the front seat belt warning light on the multi-media module display blinks. If the seat belt is fastened, the warning light goes off.

without Navigation System:
The combination meter assembly detects the state of the front seat inner belt assembly RH when the front passenger seat is occupied with the engine switch on (IG). If the front passenger seat belt is not fastened, the front seat belt warning light on the integration control & panel assembly blinks. If the seat belt is fastened, the warning light goes off.

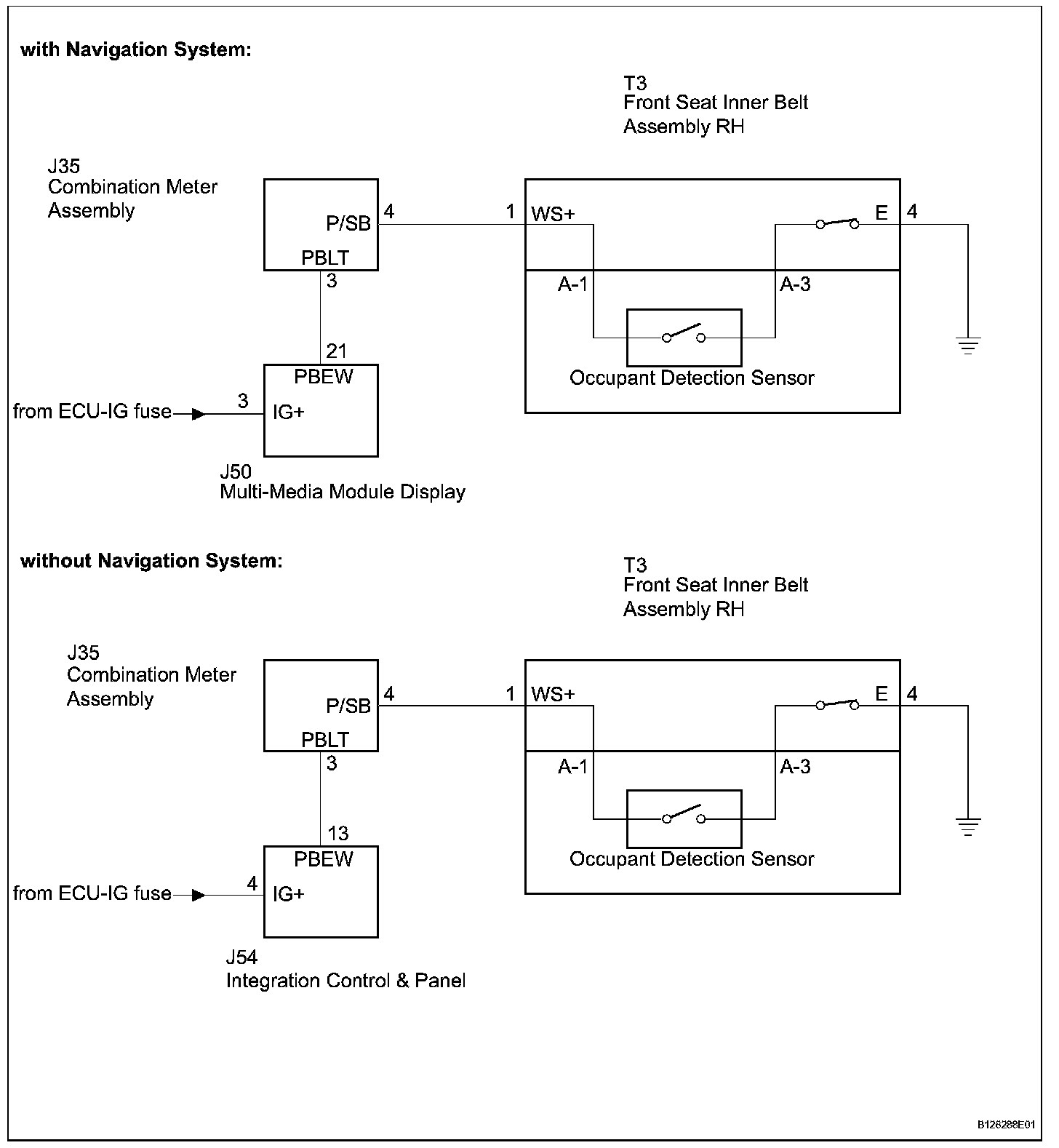

Wiring Diagram:

Step 1:

Step 1 (Continued)-3:

Step 4-5:

Step 6-7:

Step 8-10:

Step 10 (Continued):

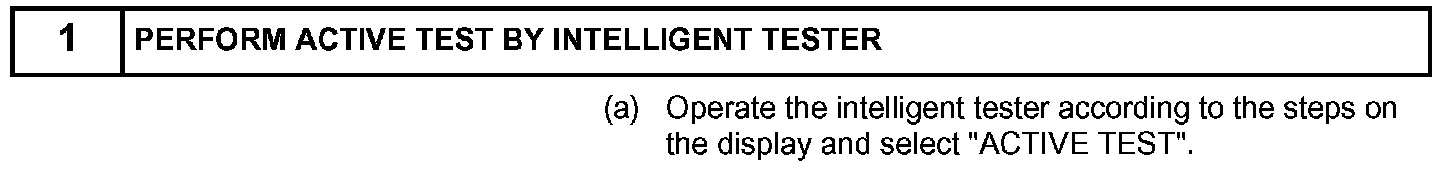

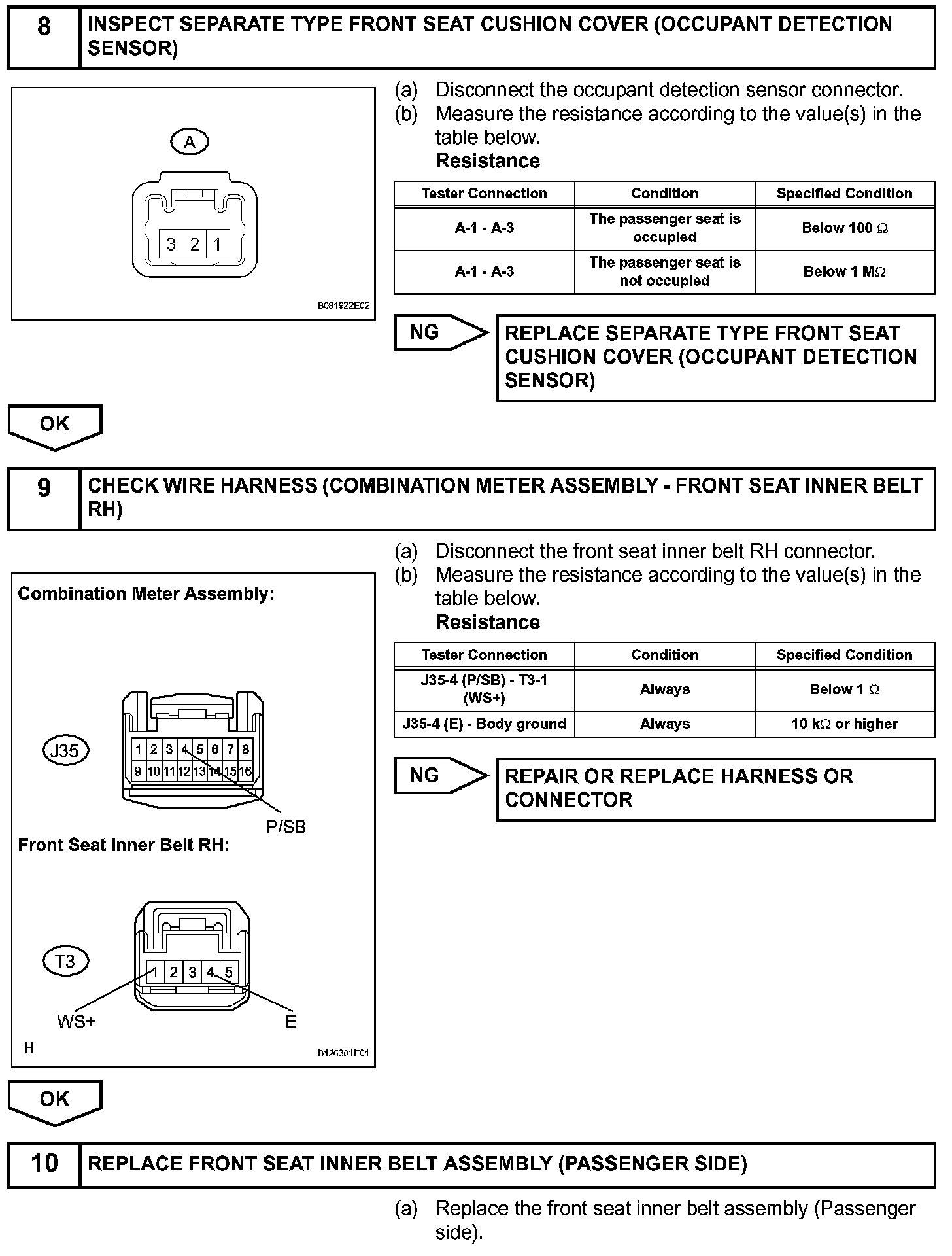

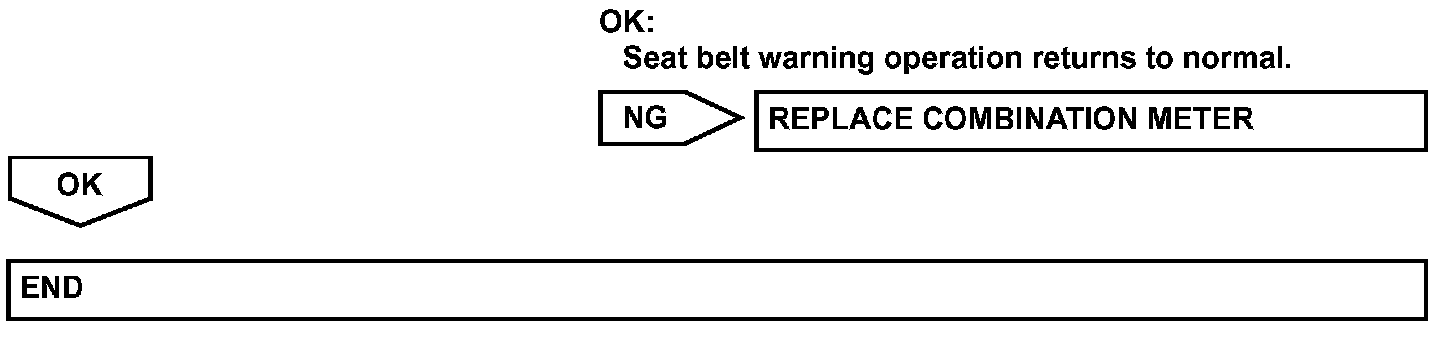

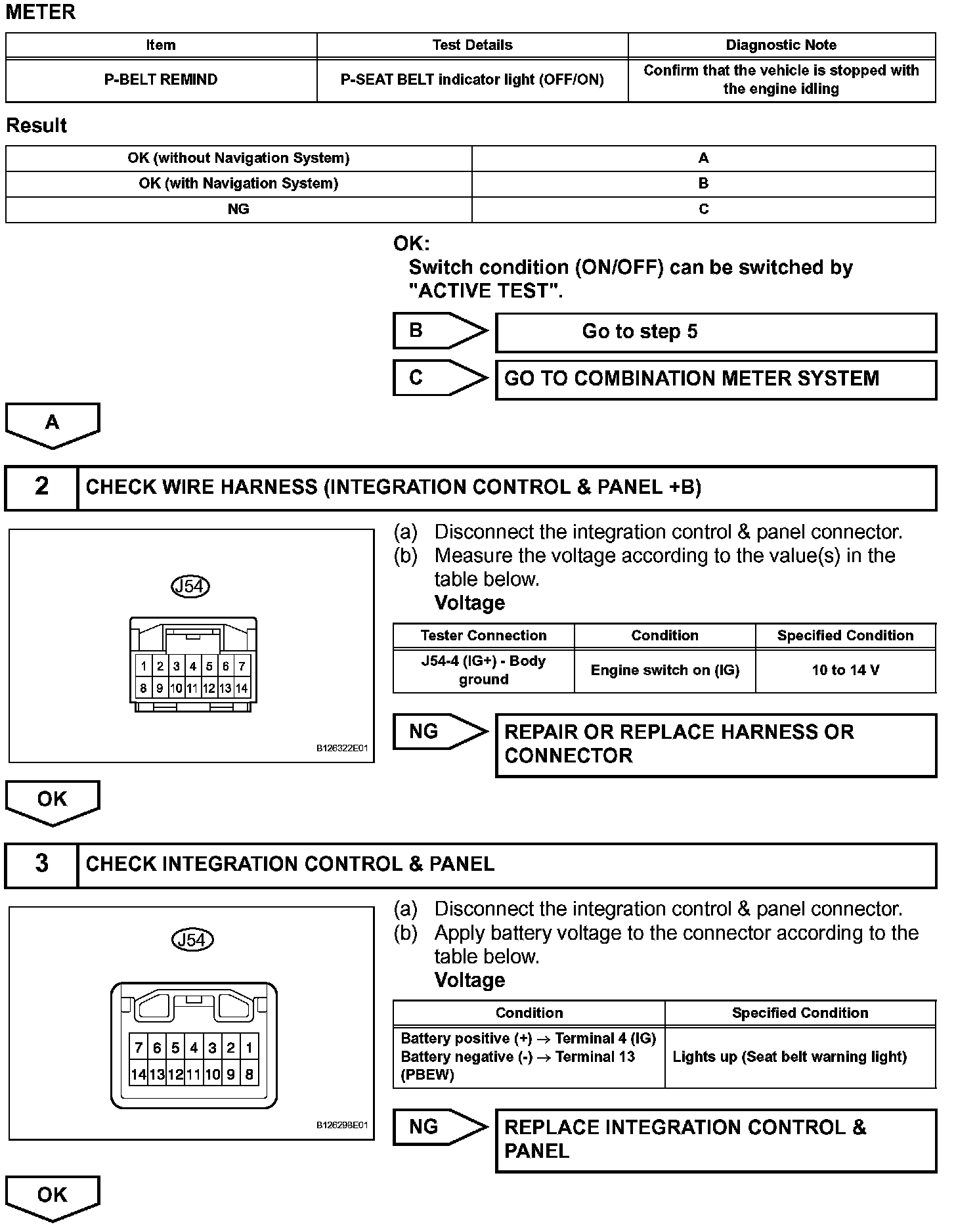

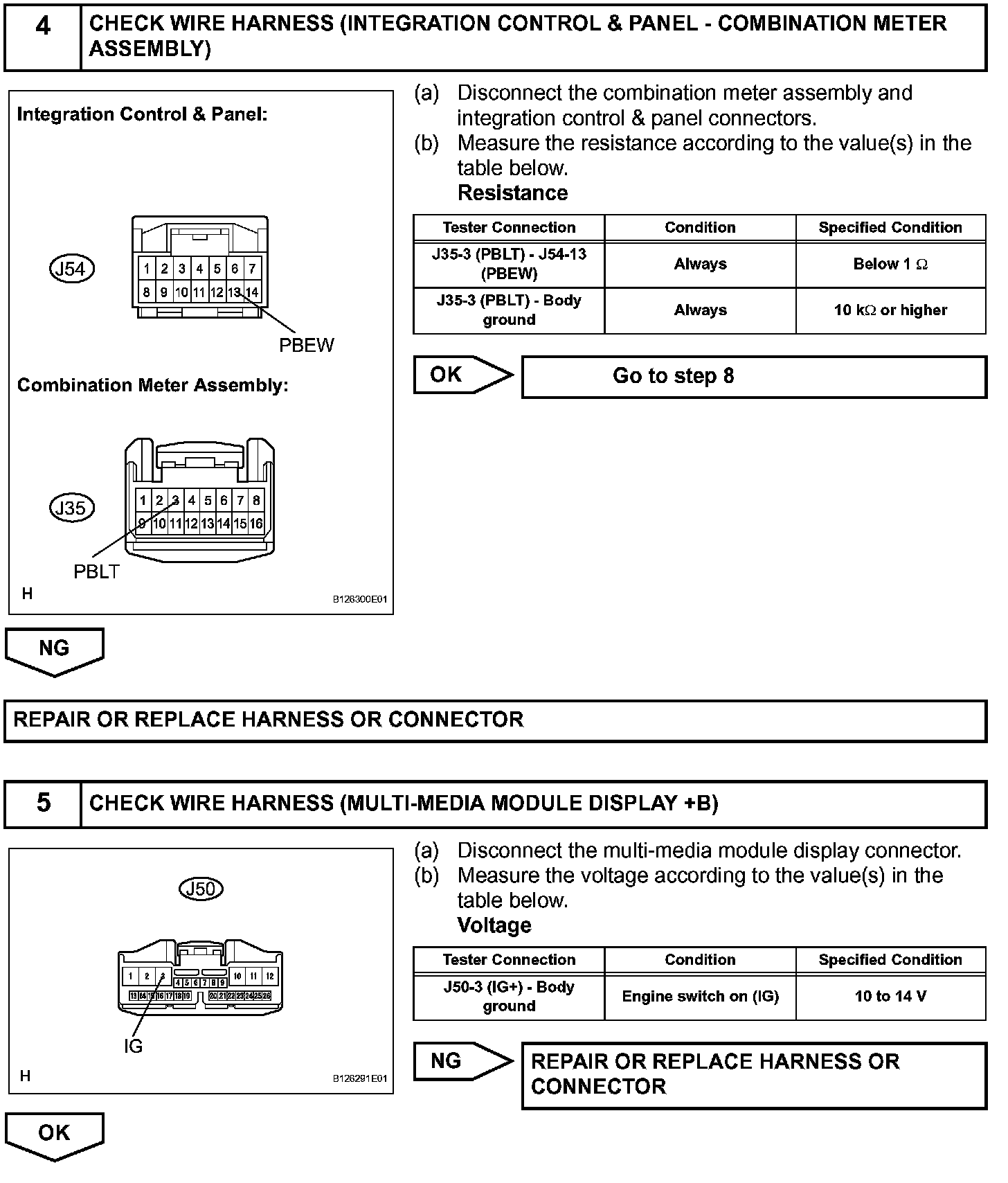

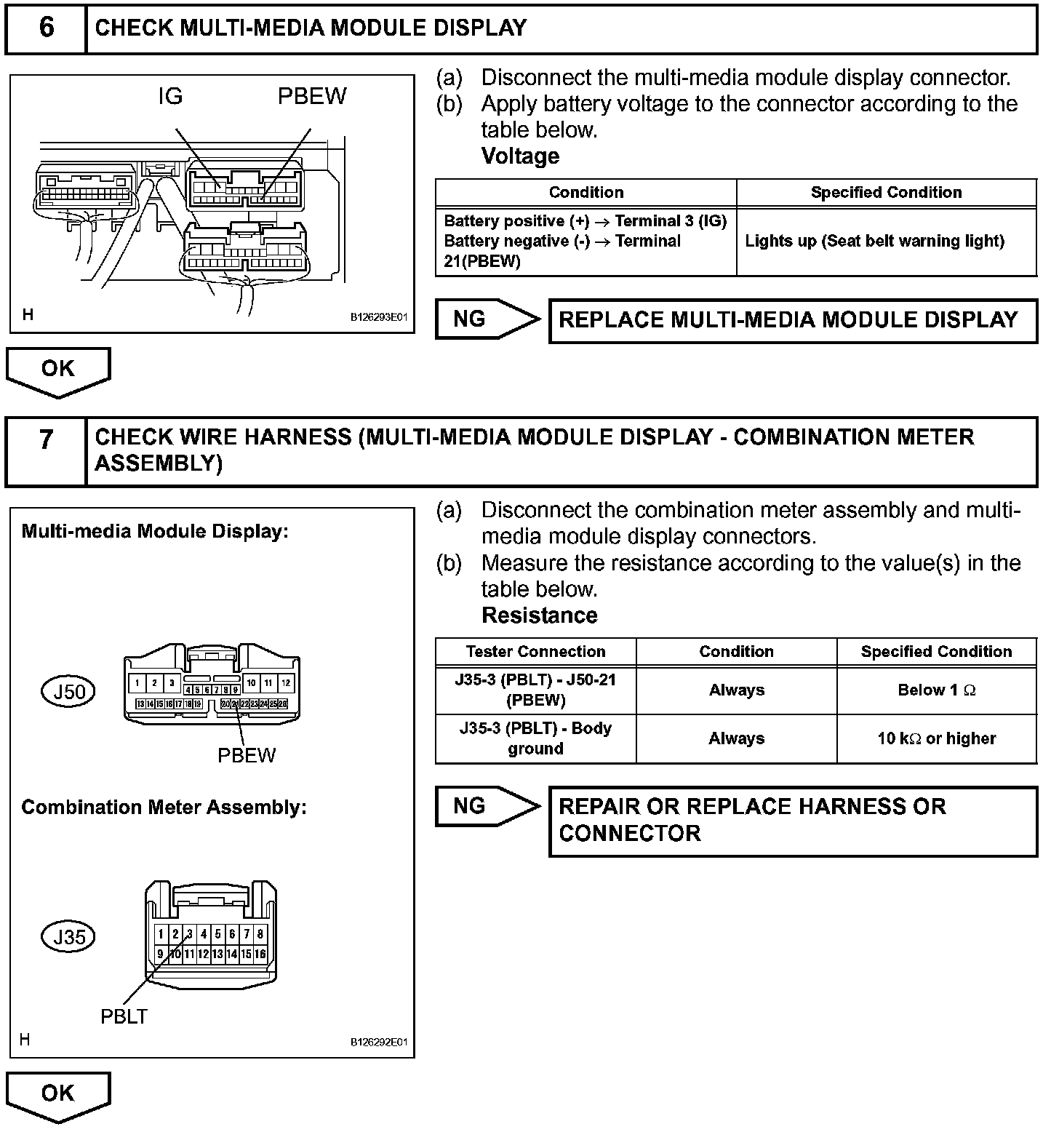

INSPECTION PROCEDURE
