Front Passenger Side Seat Belt Warning Light Malfunction

Front Passenger Side Seat Belt Warning Light Malfunction

DESCRIPTION

w/o Navigation system:
The combination meter detects the state of the front seat inner belt RH when the front passenger seat is occupied with the engine switch on (IG). If the front passenger seat belt is not fastened, the front seat belt warning light on the integration control and panel blinks. If the seat belt is fastened, the warning light goes off.

w/ Navigation system:
The combination meter detects the state of the front seat inner belt RH when the front passenger seat is occupied with the engine switch on (IG). If the front passenger seat belt is not fastened, the front seat belt warning light on the clock blinks. If the seat belt is fastened, the warning light goes off.

Wiring Diagram:

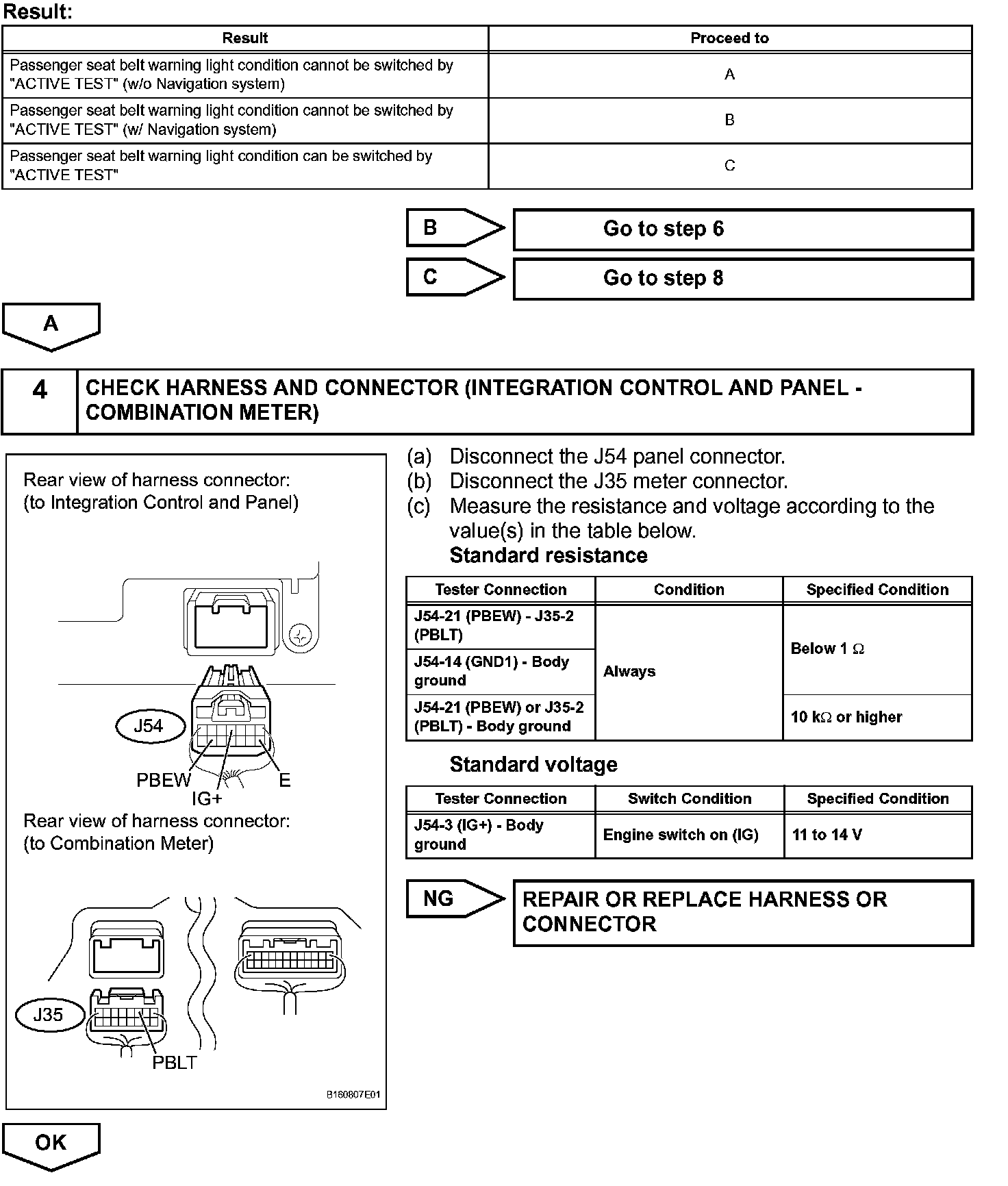

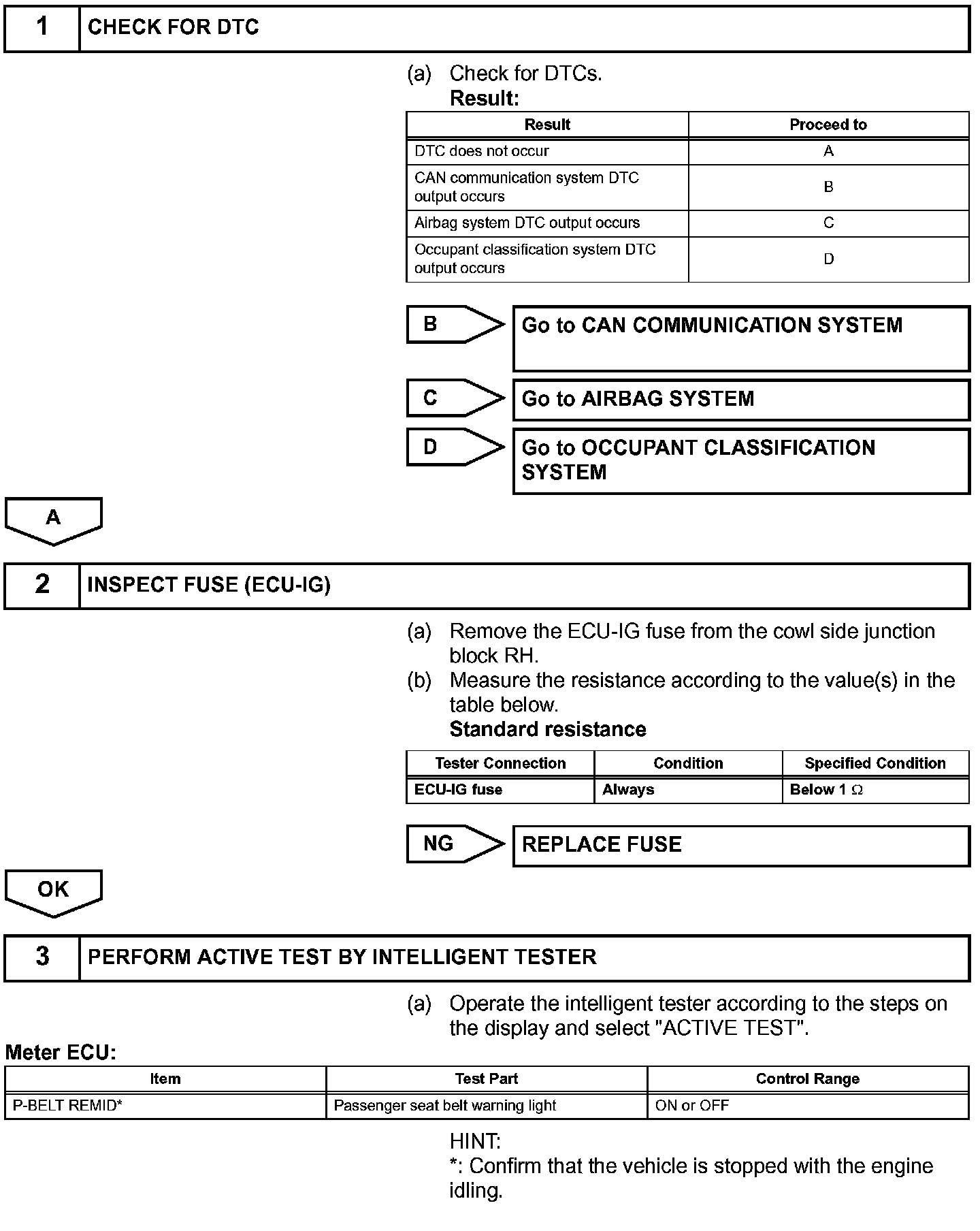

Step 1-3:

Step 3 (Continued)-4:

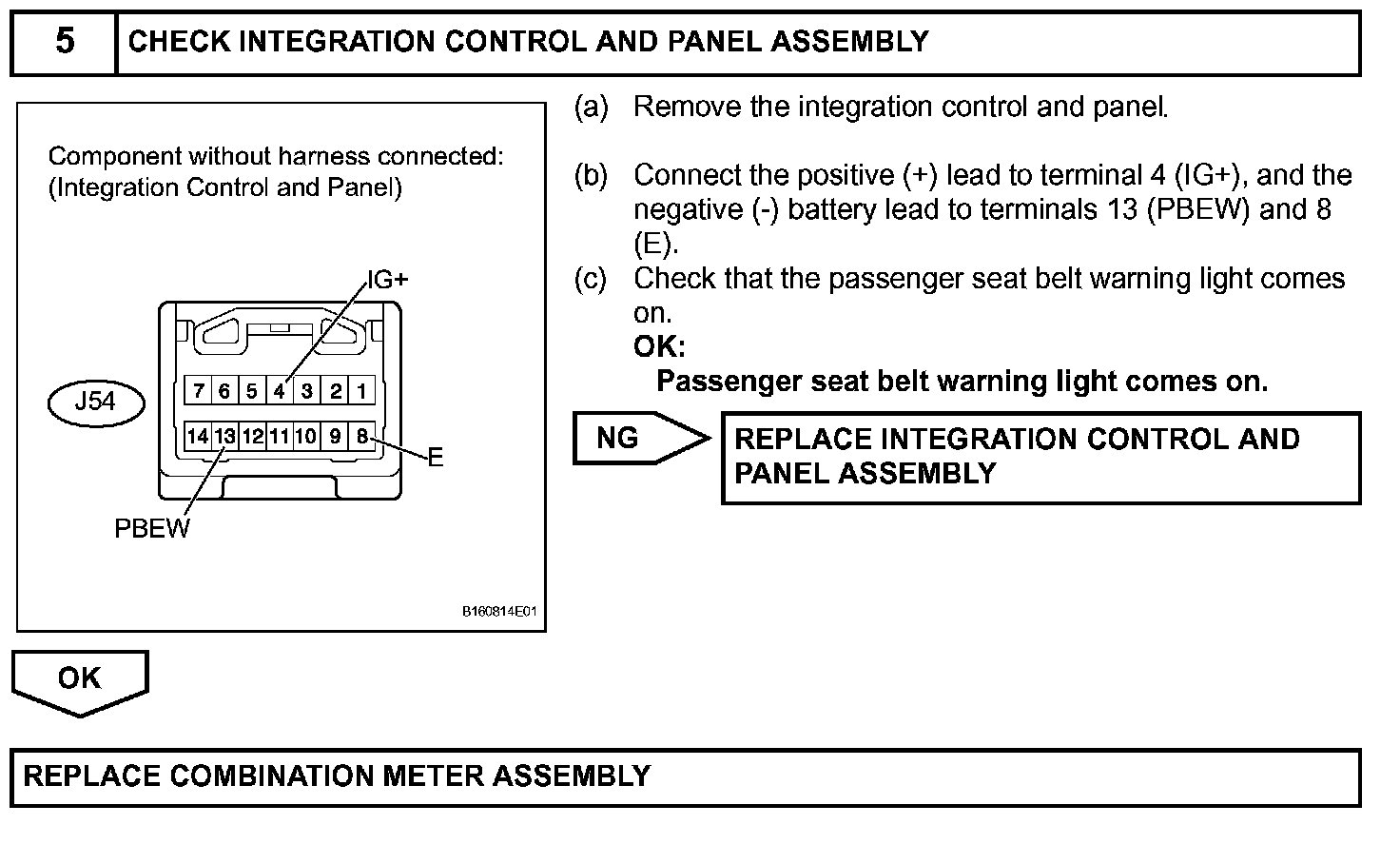

Step 5:

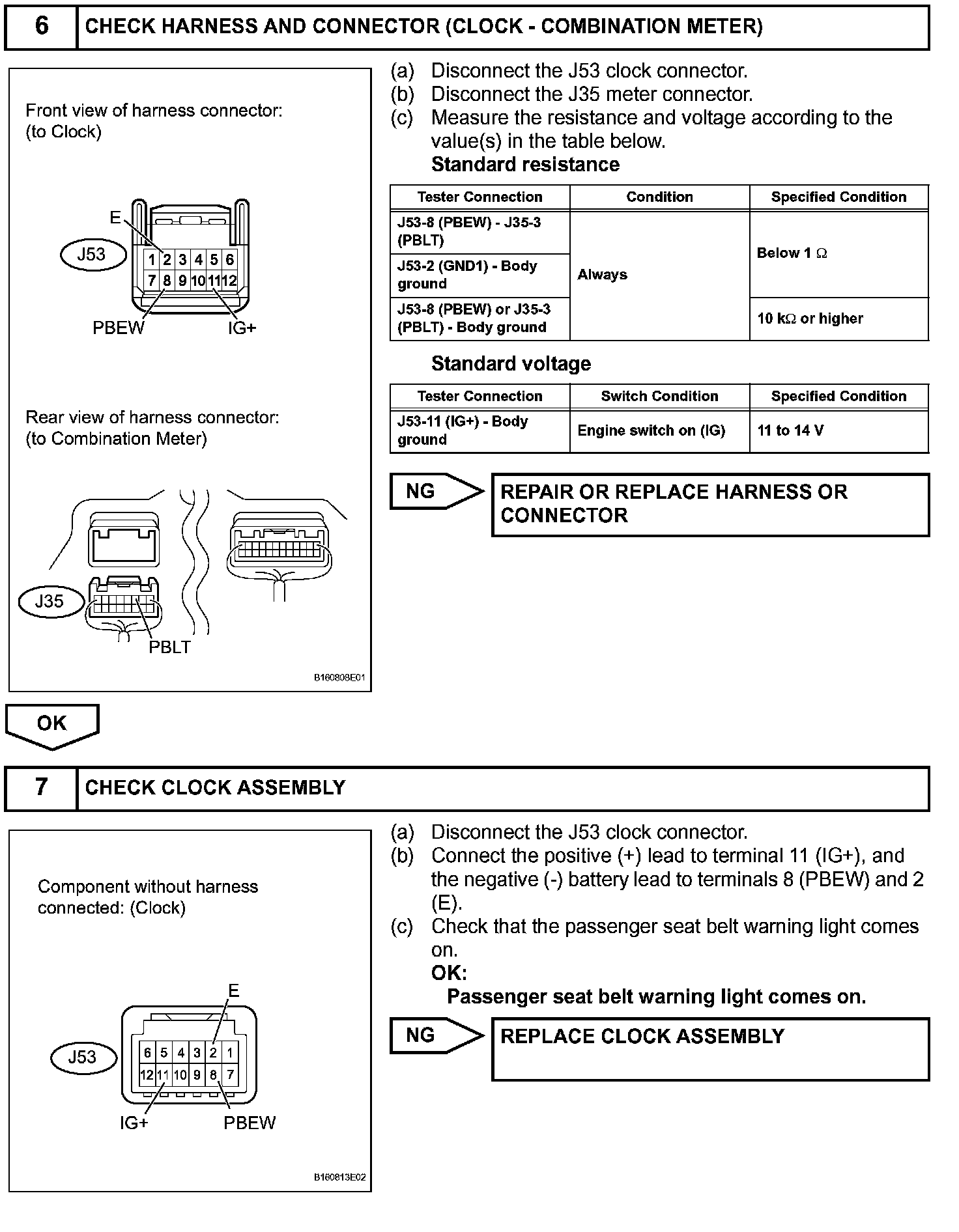

Step 6-7:

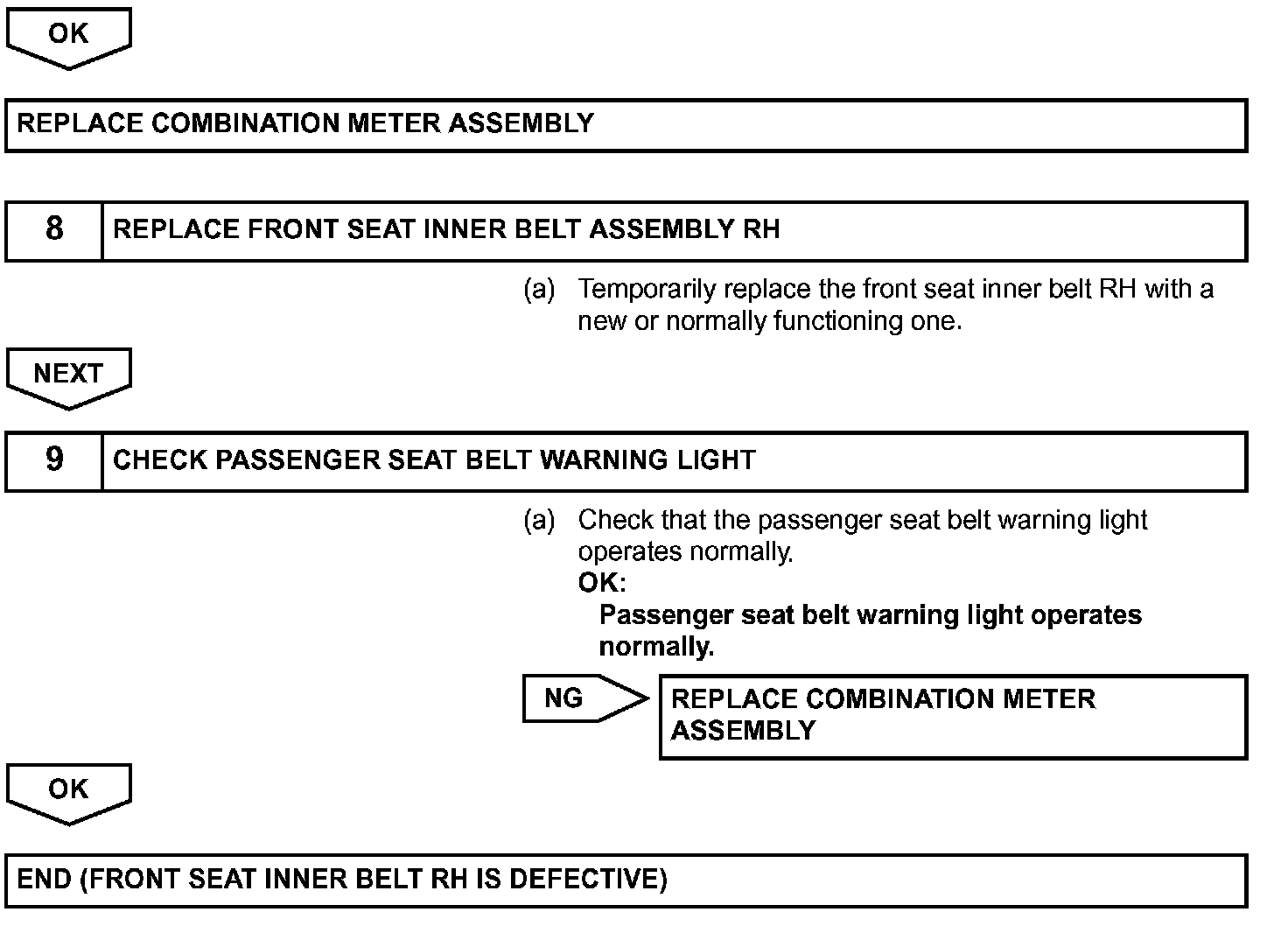

Step 7 (Continued)-9:

INSPECTION PROCEDURE
