Seat Belt Warning System (W/O Occupant Classification System)

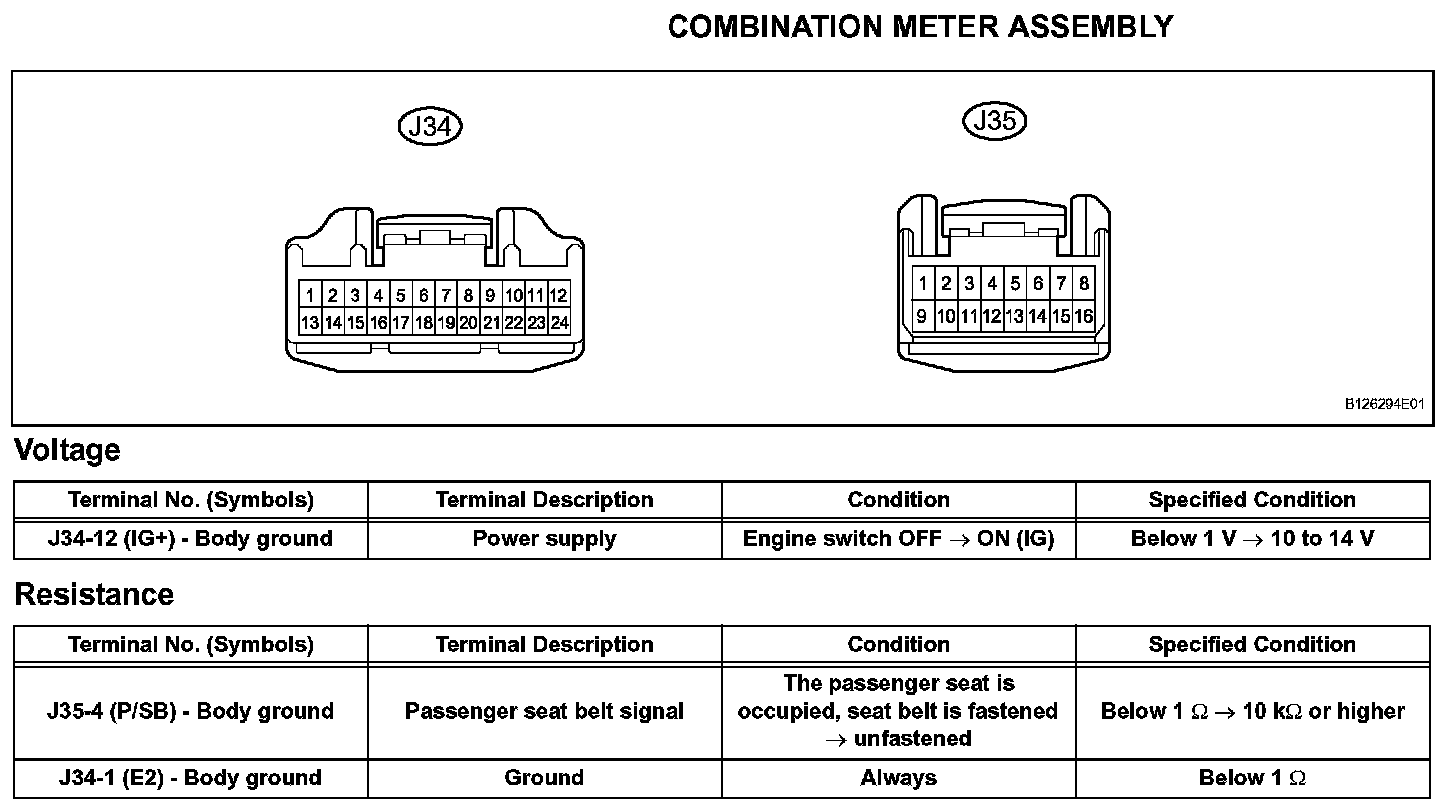

Terminals Of Control Module/Pinouts - Combination Meter Assembly:

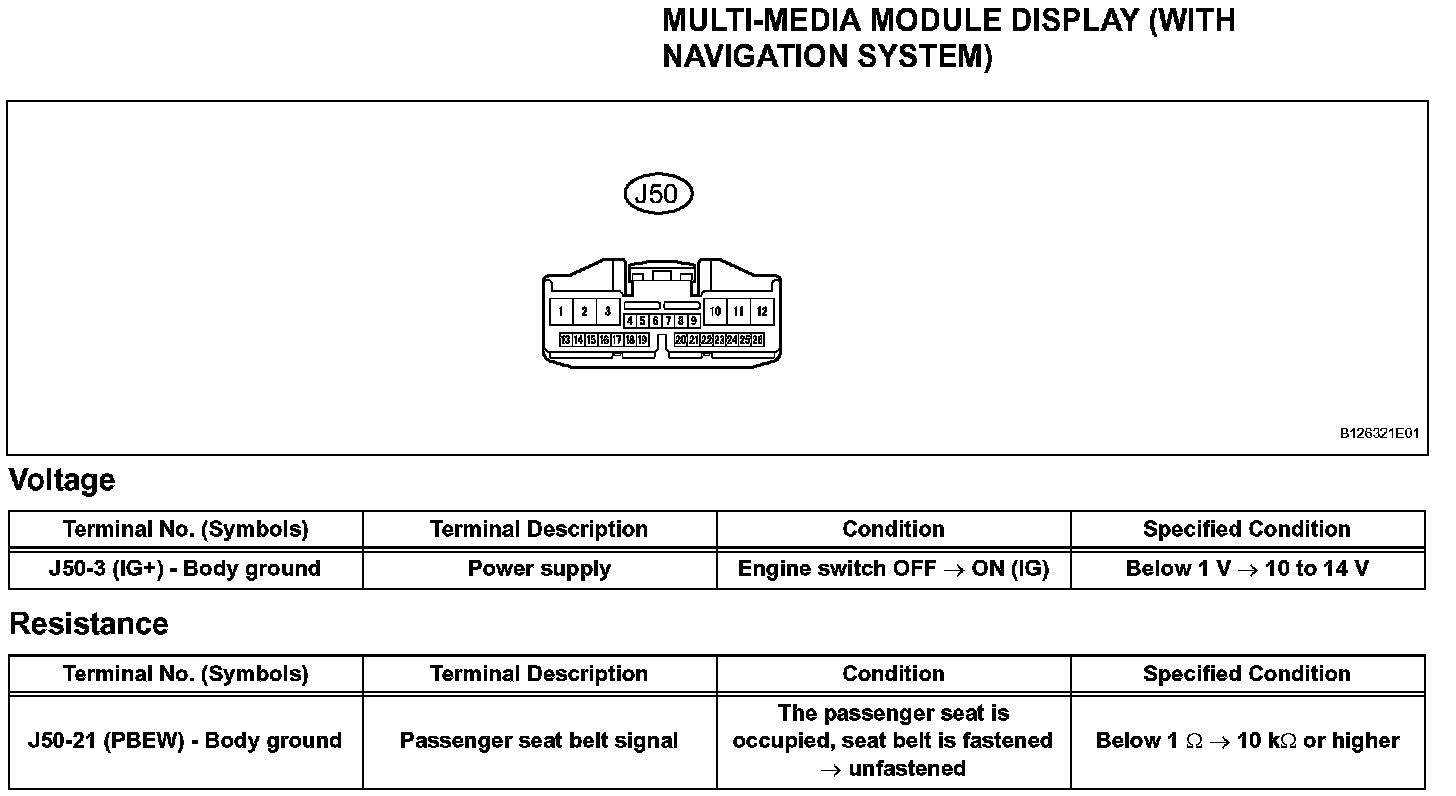

Terminals Of Control Module/Pinouts - Multi-Media Module Display (With Navigation System):

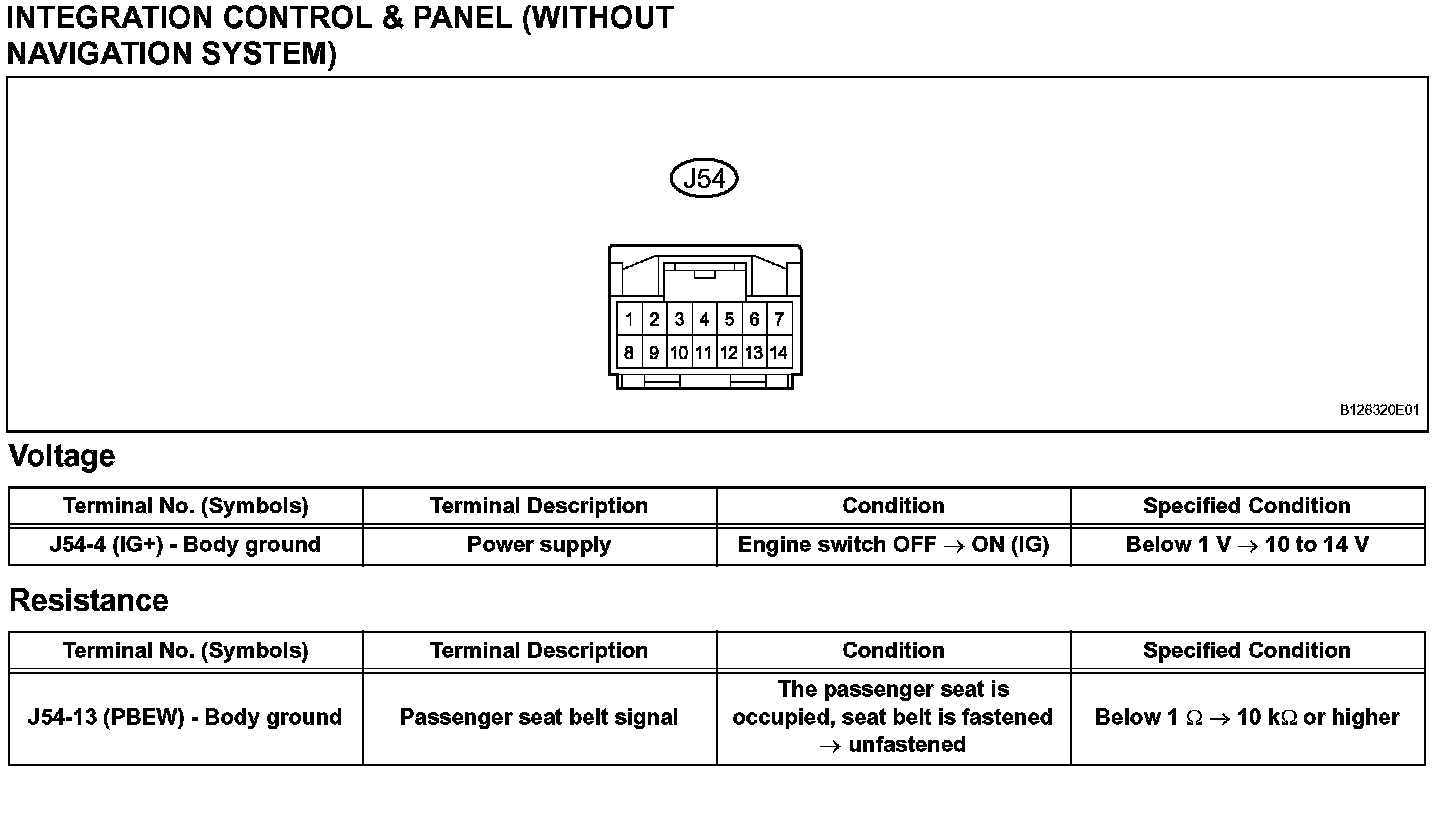

Terminals Of Control Module/Pinouts - Integration Control & Panel (Without Navigation System):
