Seat Belt Warning System (W/ Occupant Classification System)

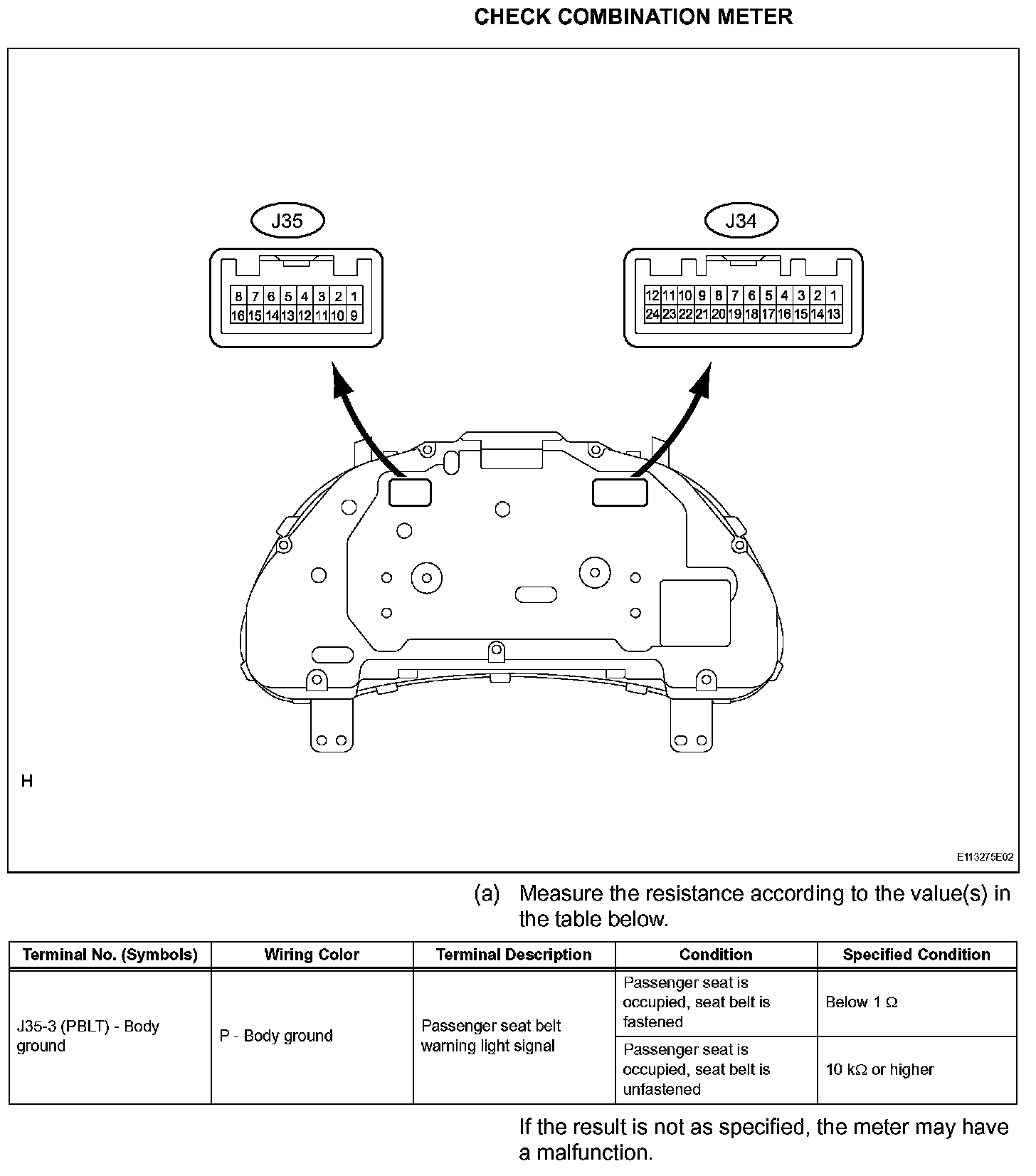

Terminals Of Control Module/Pinouts - Check Combination Meter:

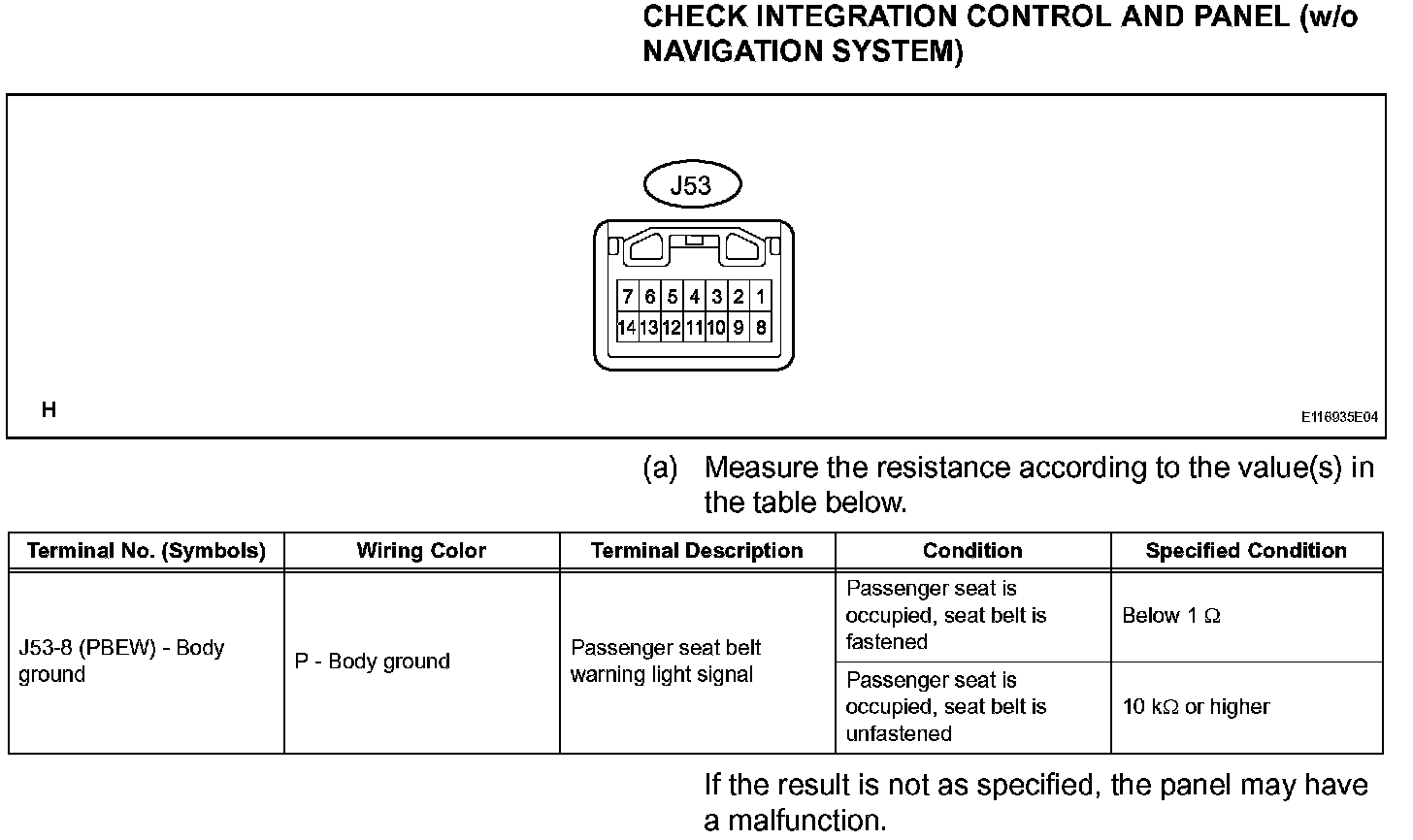

Terminals Of Control Module/Pinouts - Check Integration Control And Panel (w/o Navigation System):

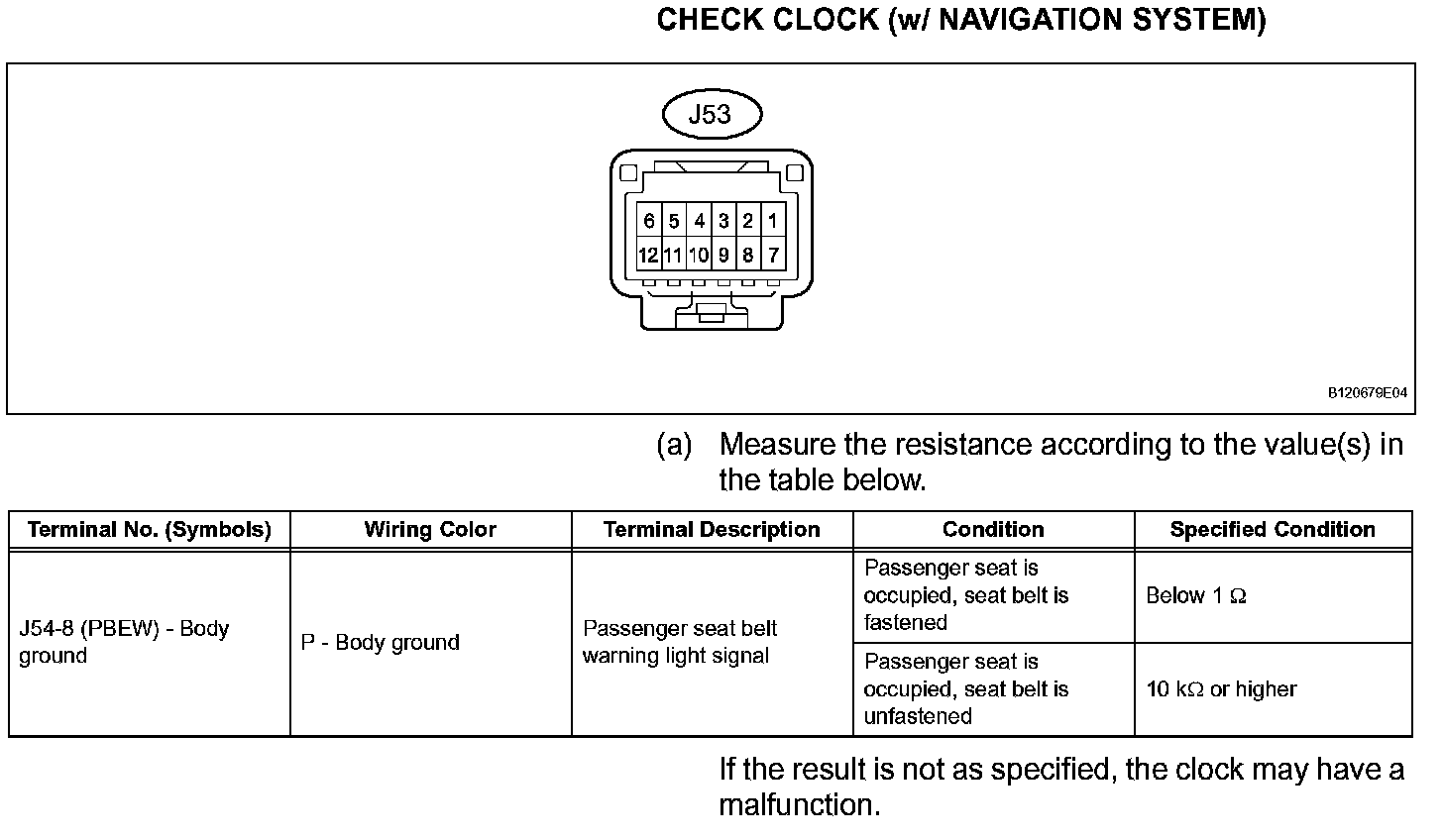

Terminals Of Control Module/Pinouts - Check Clock (w/ Navigation System):

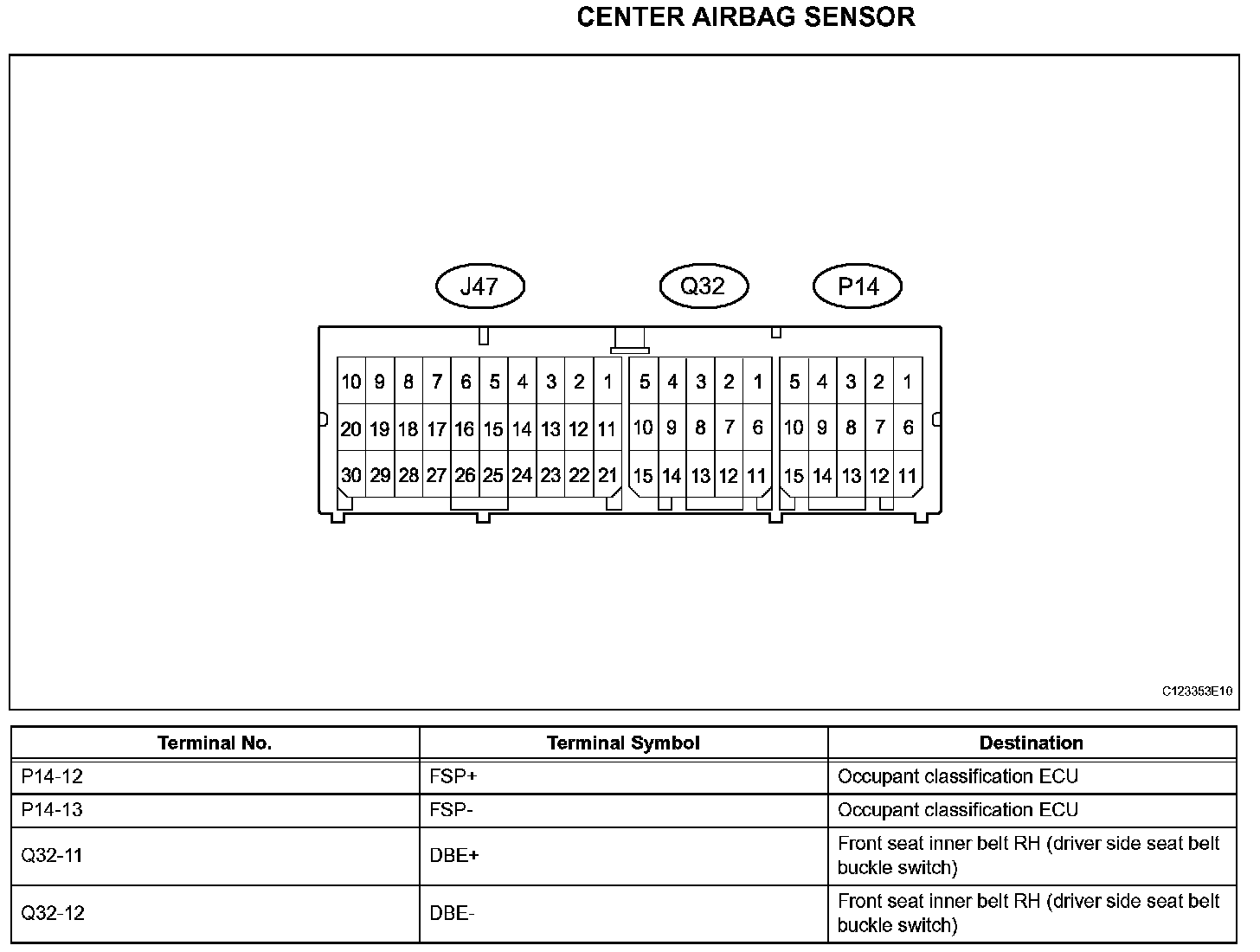

Terminals Of Control Module/Pinouts - Center Airbag Sensor:

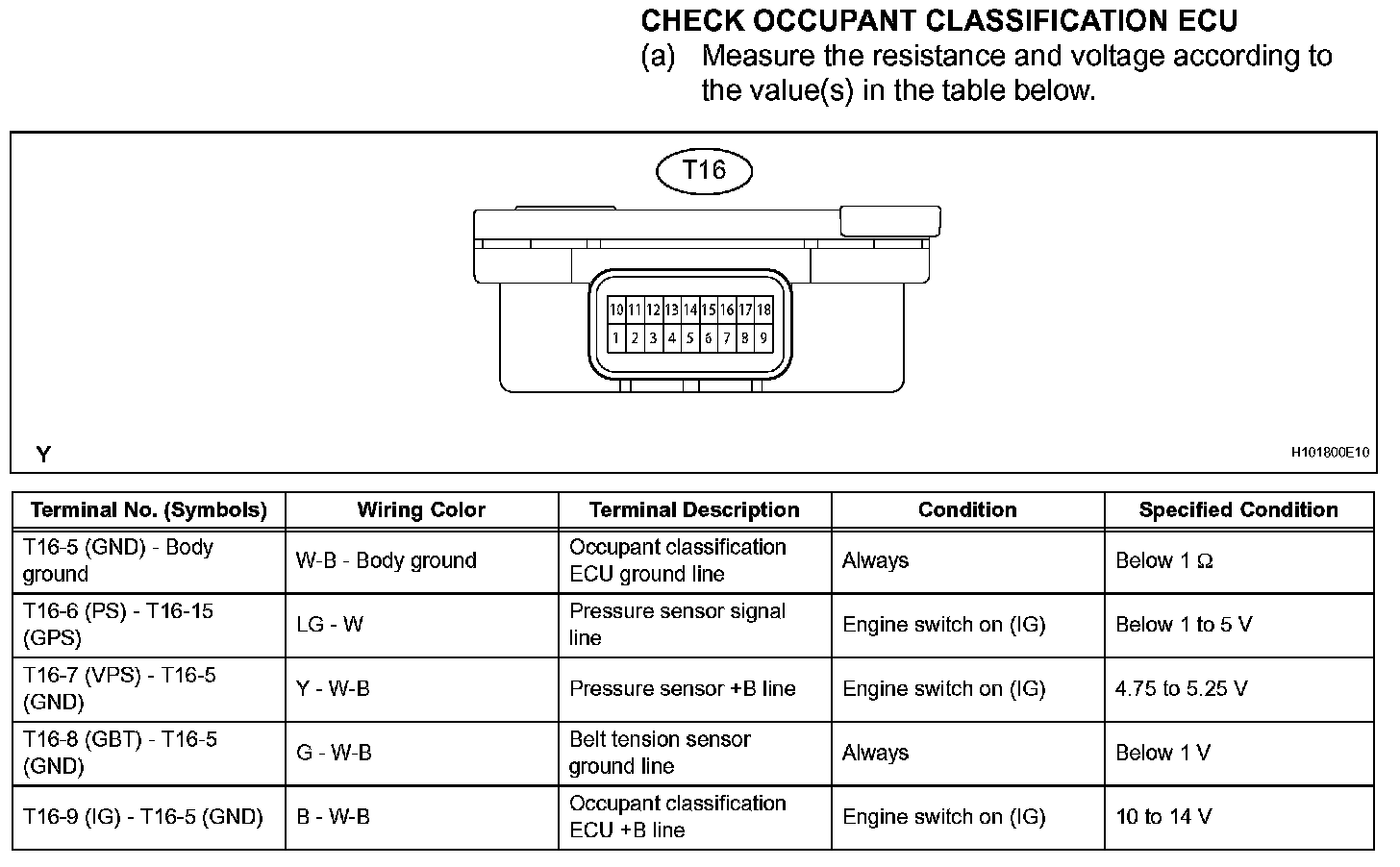

Terminals Of Control Module/Pinouts - Check Occupant Classification ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Occupant Classification ECU (Part 2):
