Front Seat Inner Belt Assembly

INSPECTION

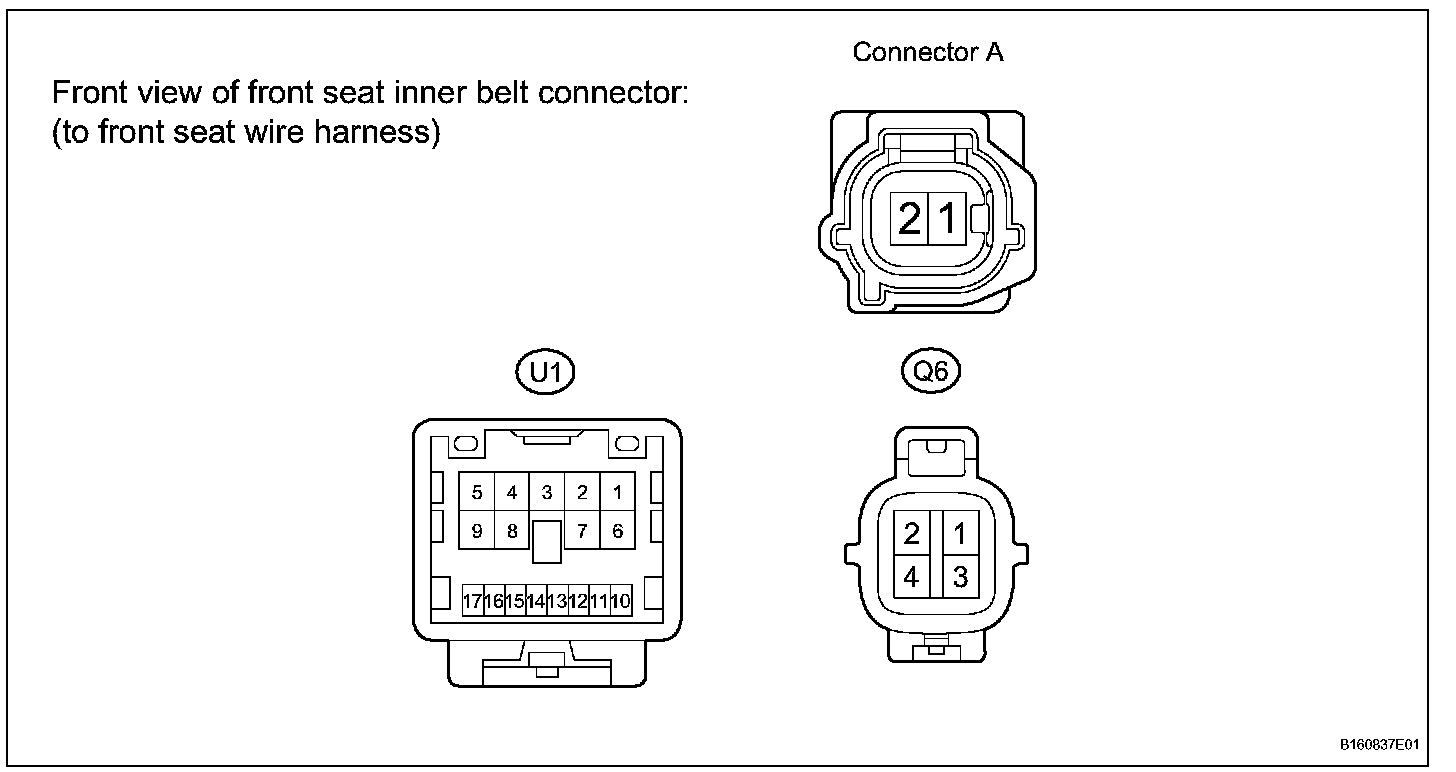

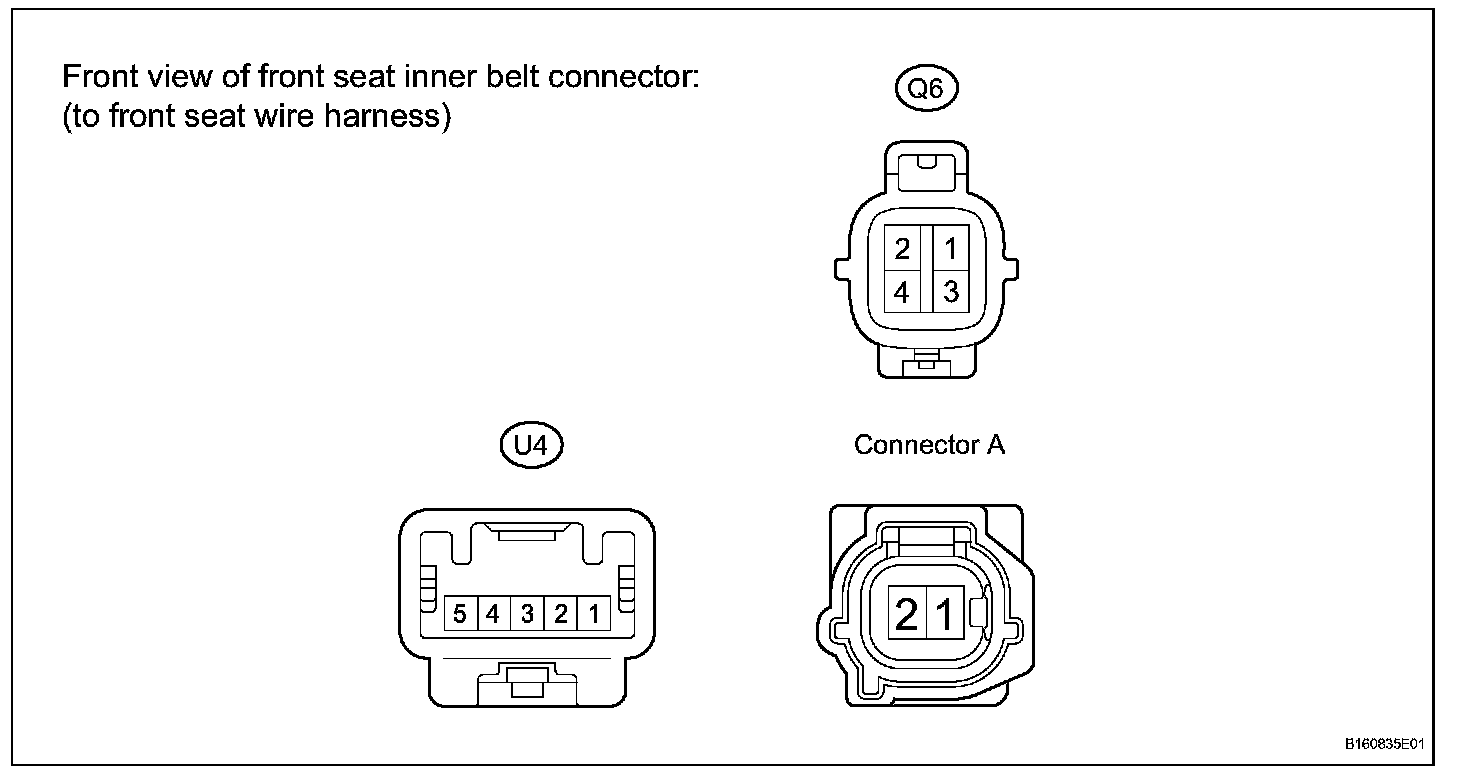

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Power Seat)
a. w/ Occupant Classification System:

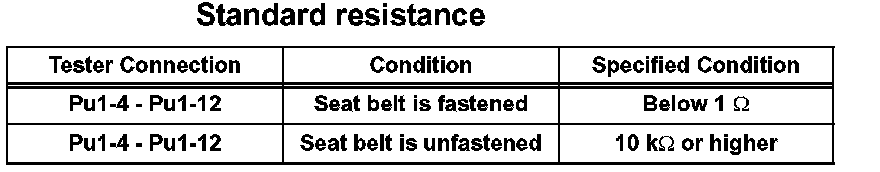

1. Measure the resistance between the terminals of the switch when the switch is operated.




b. w/o Occupant Classification System:

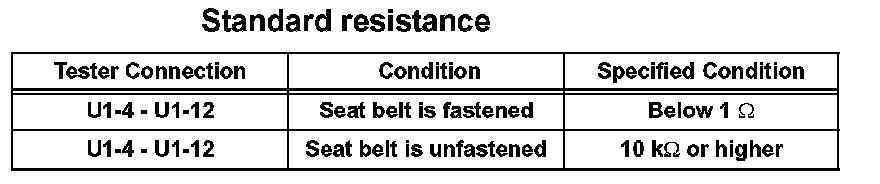

1. Measure the resistance between the terminals of the switch when the switch is operated.

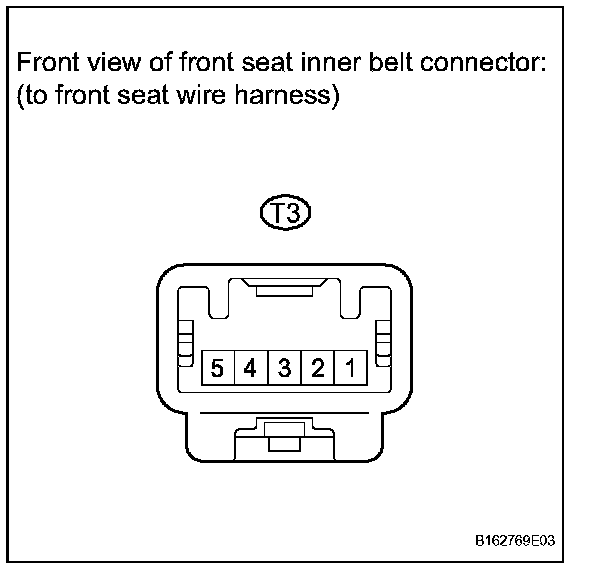

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Manual Seat)

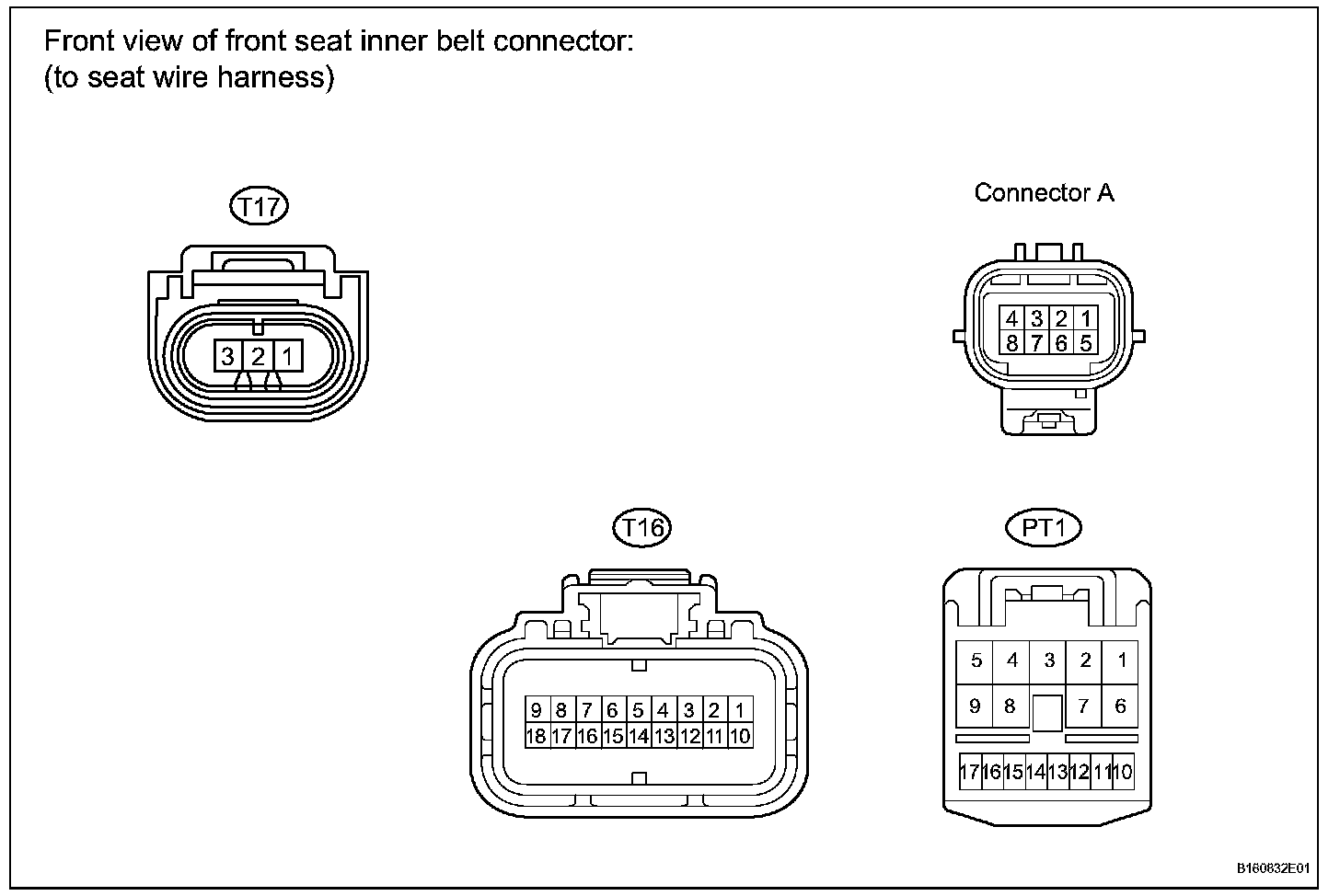

a. w/ Seat Heater System:

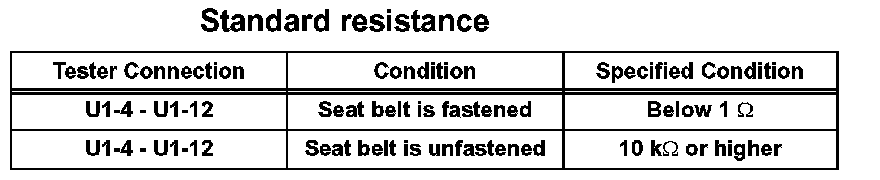

1. Measure the resistance between the terminals of the switch when the switch is operated.

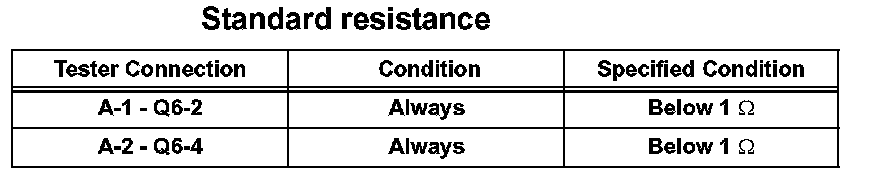

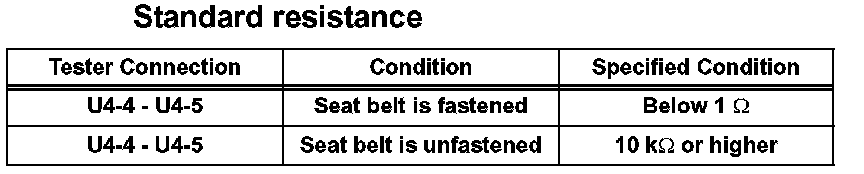

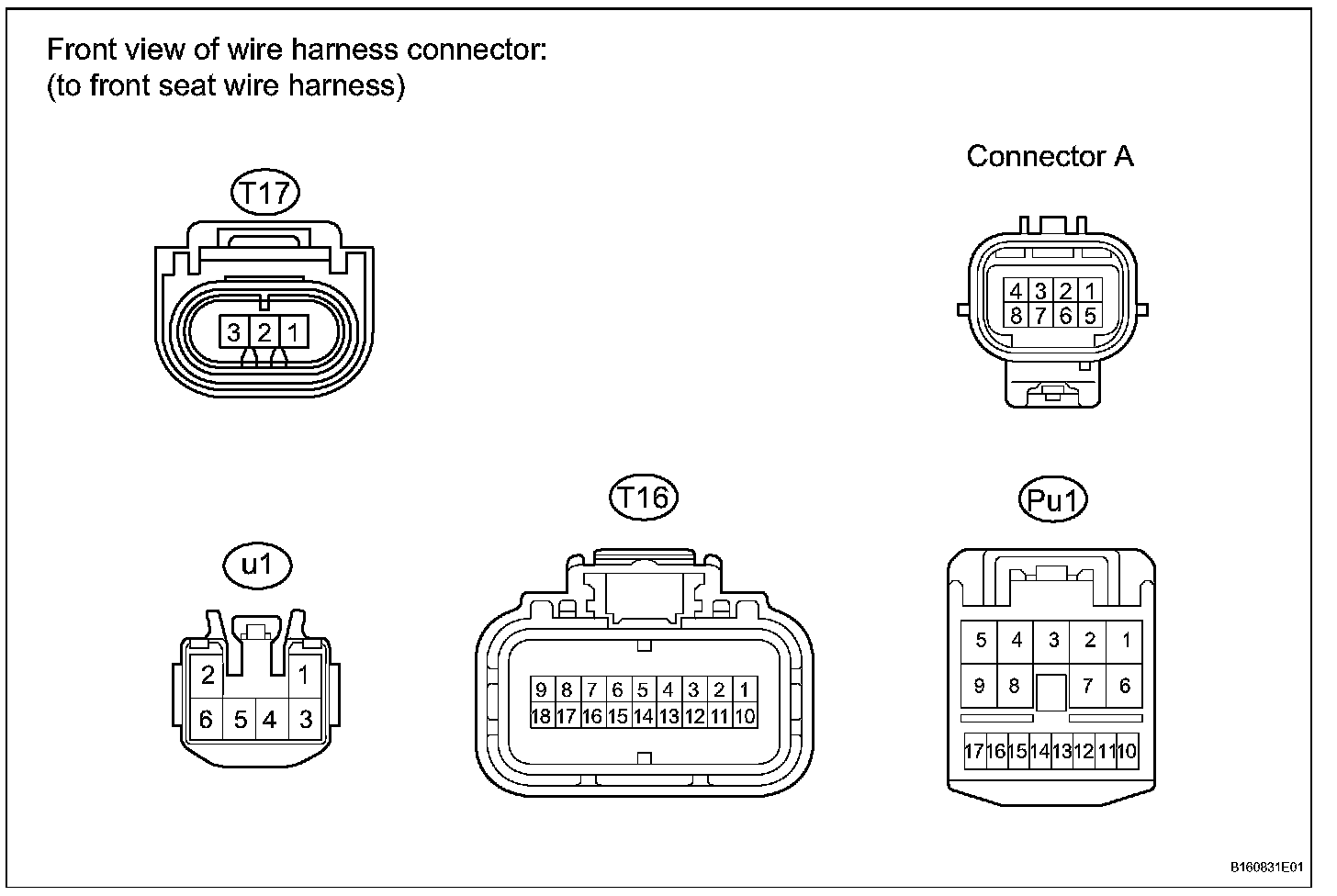

2. Measure the resistance between the terminals of the front seat inner belt assembly.

b. w/o Seat Heater System:

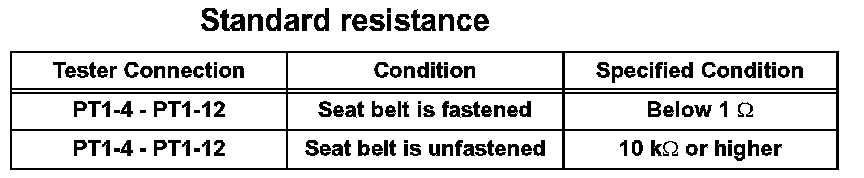

1. Measure the resistance between the terminals of the switch when the switch is operated.

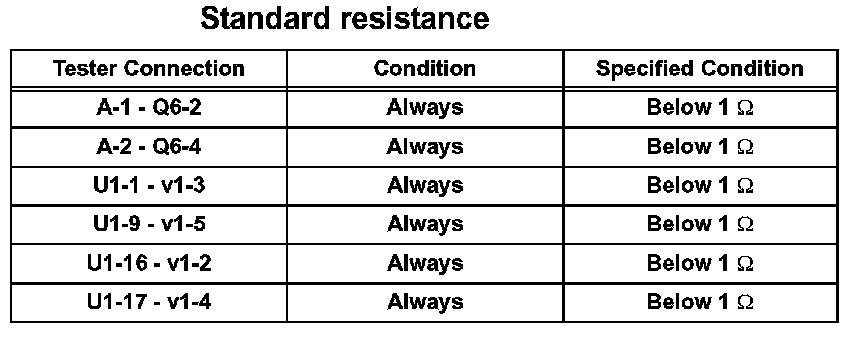

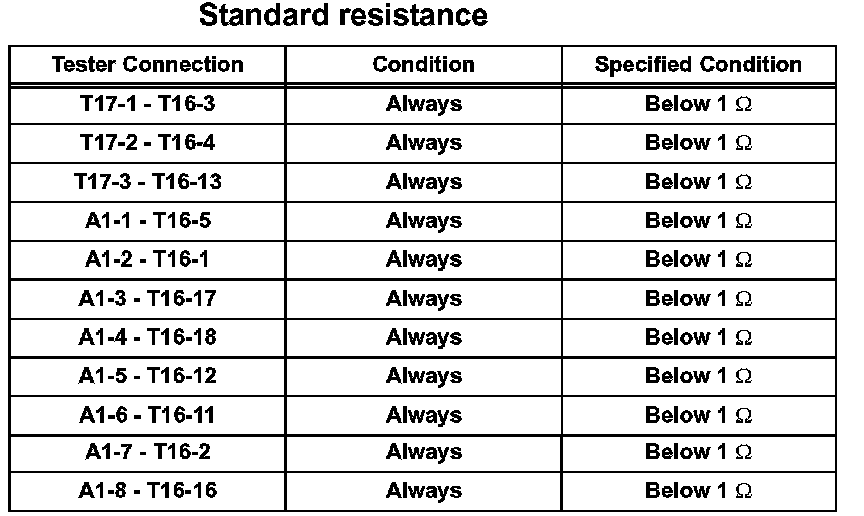

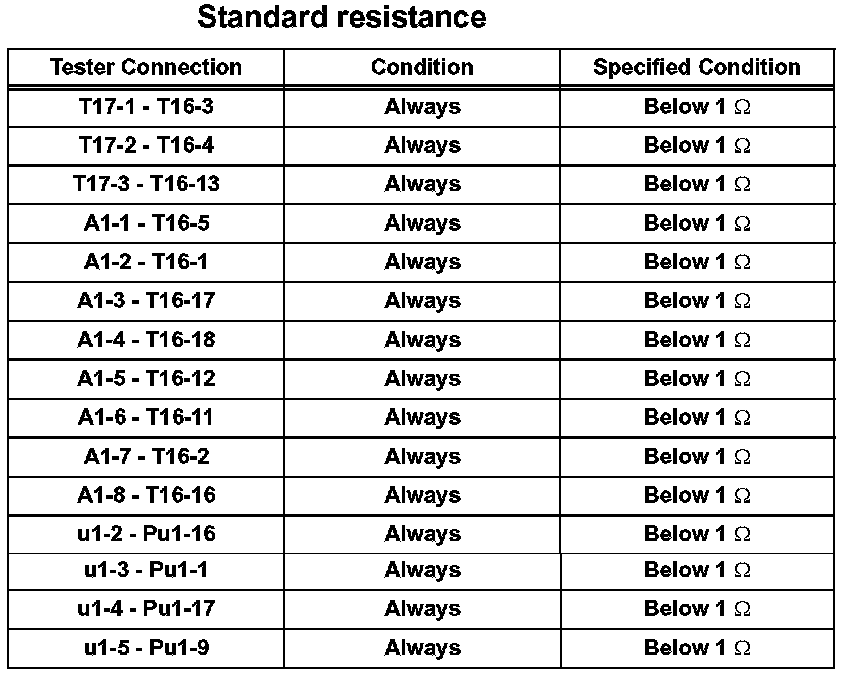

2. Measure the resistance between the terminals of the front seat inner belt assembly. Standard resistance

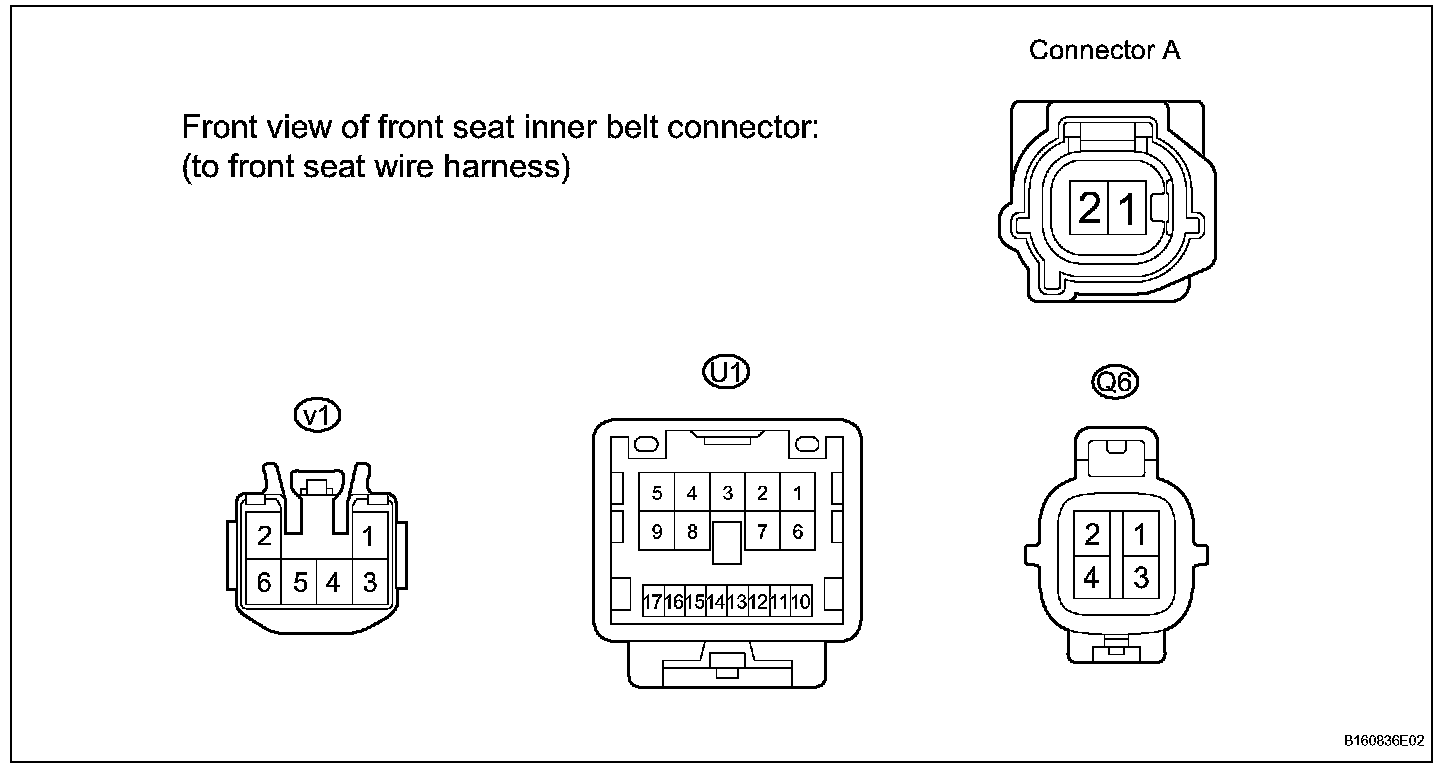

3. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Power Seat)

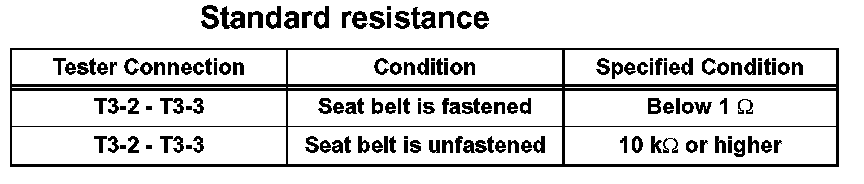

a. Measure the resistance between the terminals of the switch when the switch is operated.




b. Measure the resistance between the terminals of the front seat inner belt assembly.

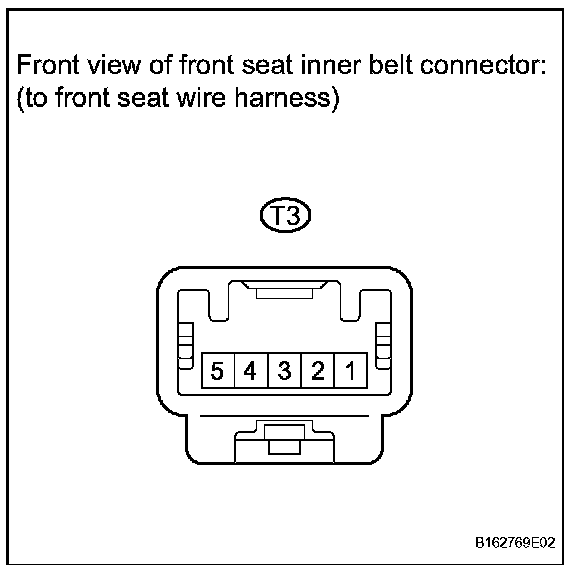

4. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Manual Seat)
a. w/ Seat Heater System:

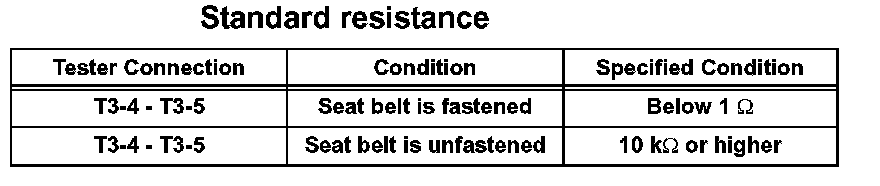

1. Measure the resistance between the terminals of the switch when the switch is operated.




2. Measure the resistance between the terminals of the front seat inner belt assembly.

b. w/o Seat Heater System:







1. Measure the resistance between the terminals of the switch when the switch is operated.




2. Measure the resistance between the terminals of the front seat inner belt assembly.
