Seat Belt Systems: Service and Repair

Front Seat Inner Belt Assembly:

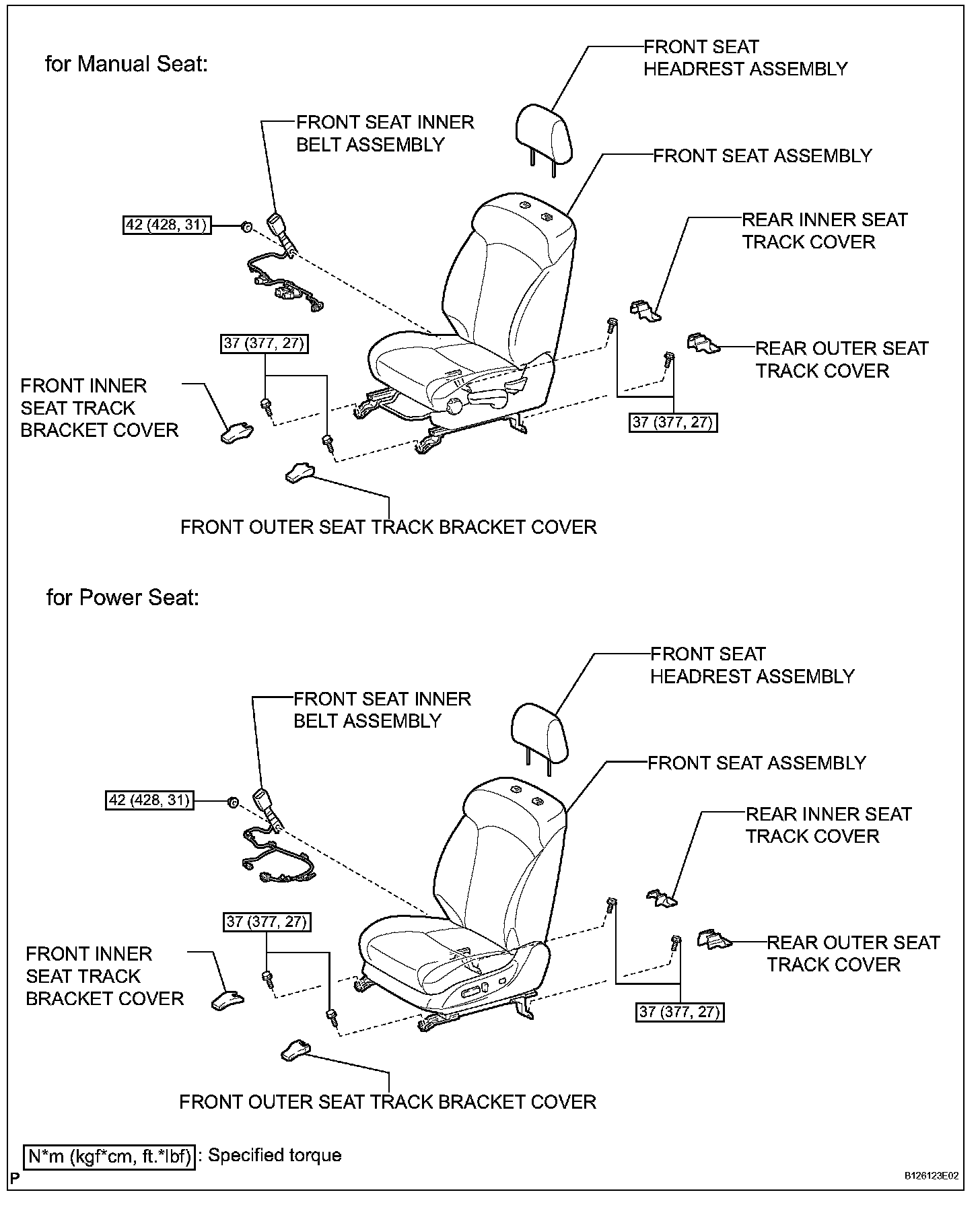

FRONT SEAT INNER BELT ASSEMBLY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag and seat belt pretensioner deployment.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY
3. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat)
4. REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat)
5. REMOVE REAR OUTER SEAT TRACK COVER (for Manual Seat)
6. REMOVE REAR INNER SEAT TRACK COVER (for Manual Seat)
7. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)
8. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat)
9. REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
10. REMOVE REAR OUTER SEAT TRACK COVER (for Power Seat)
11. REMOVE REAR INNER SEAT TRACK COVER (for Power Seat)
12. REMOVE FRONT SEAT ASSEMBLY (for Power Seat)

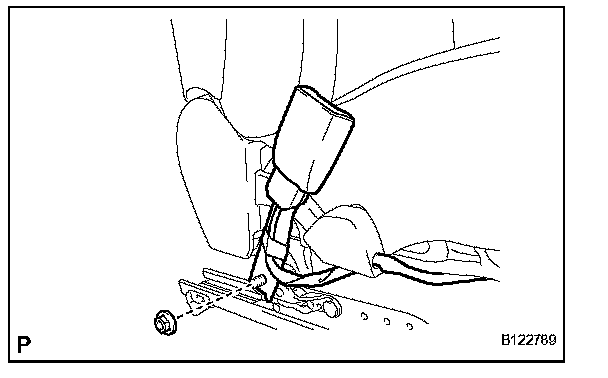

13. REMOVE FRONT SEAT INNER BELT ASSEMBLY
a. Disconnect the connectors and detach the clamps.




b. Remove the nut and front seat inner belt assembly.

INSTALLATION




1. INSTALL FRONT SEAT INNER BELT ASSEMBLY
a. Install the front seat inner belt assembly with the nut.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

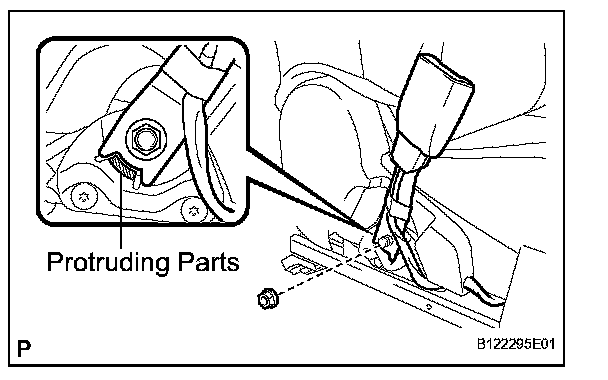

NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

b. Connect the connectors and attach the clamps.

2. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)
3. INSTALL REAR INNER SEAT TRACK COVER (for Manual Seat)
4. INSTALL REAR OUTER SEAT TRACK COVER (for Manual Seat)
5. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat)
6. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat)
7. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
8. INSTALL REAR INNER SEAT TRACK COVER (for Power Seat)
9. INSTALL REAR OUTER SEAT TRACK COVER (for Power Seat)
10. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
11. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat)
12. INSTALL FRONT SEAT HEADREST ASSEMBLY
13. PERFORM INITIALIZATION

HINT: Some systems need initialization after reconnecting the cable to the negative battery terminal.

14. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
15. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)
16. INSPECT SRS WARNING LIGHT
Inspect the SRS warning light.
