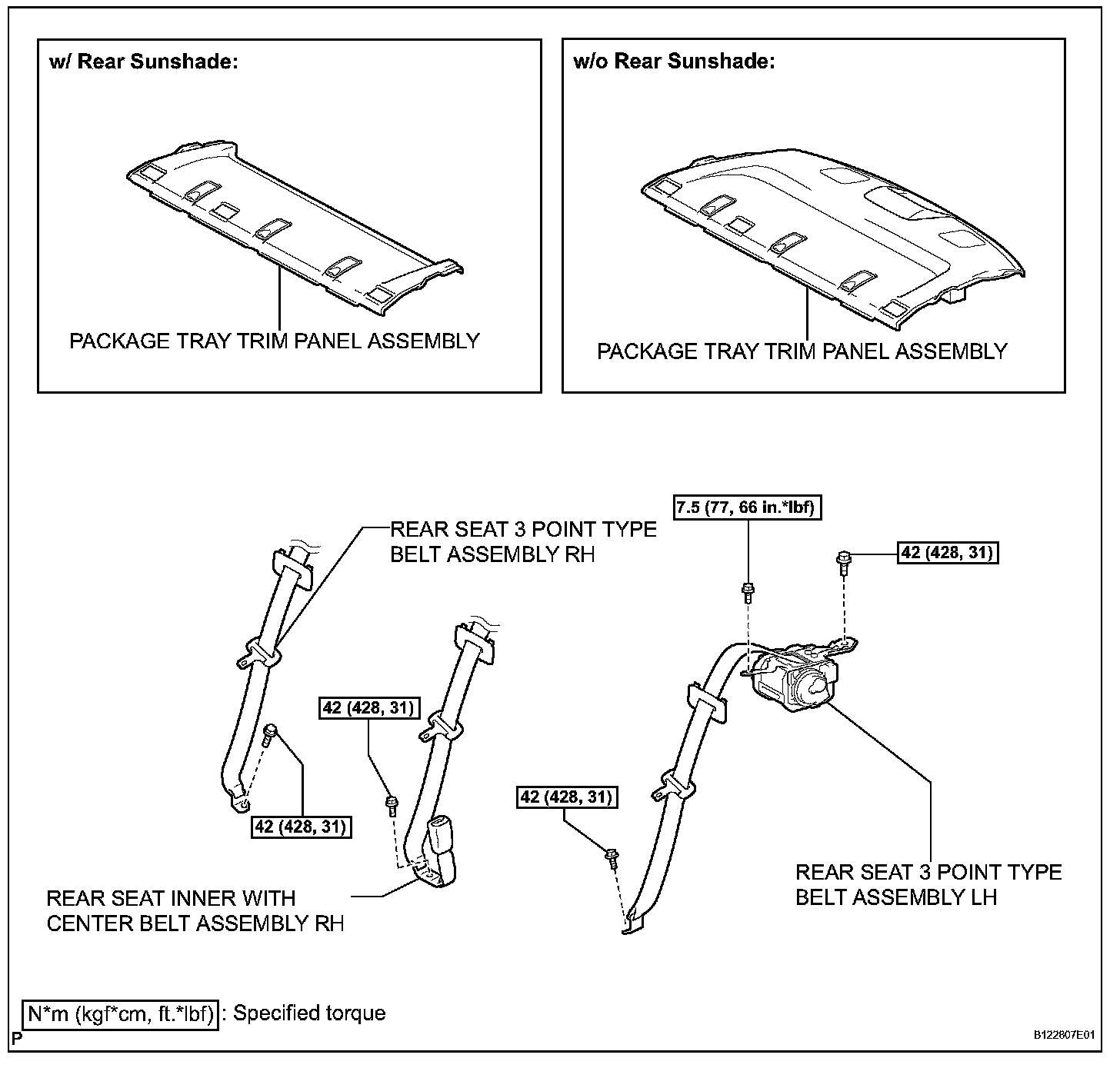

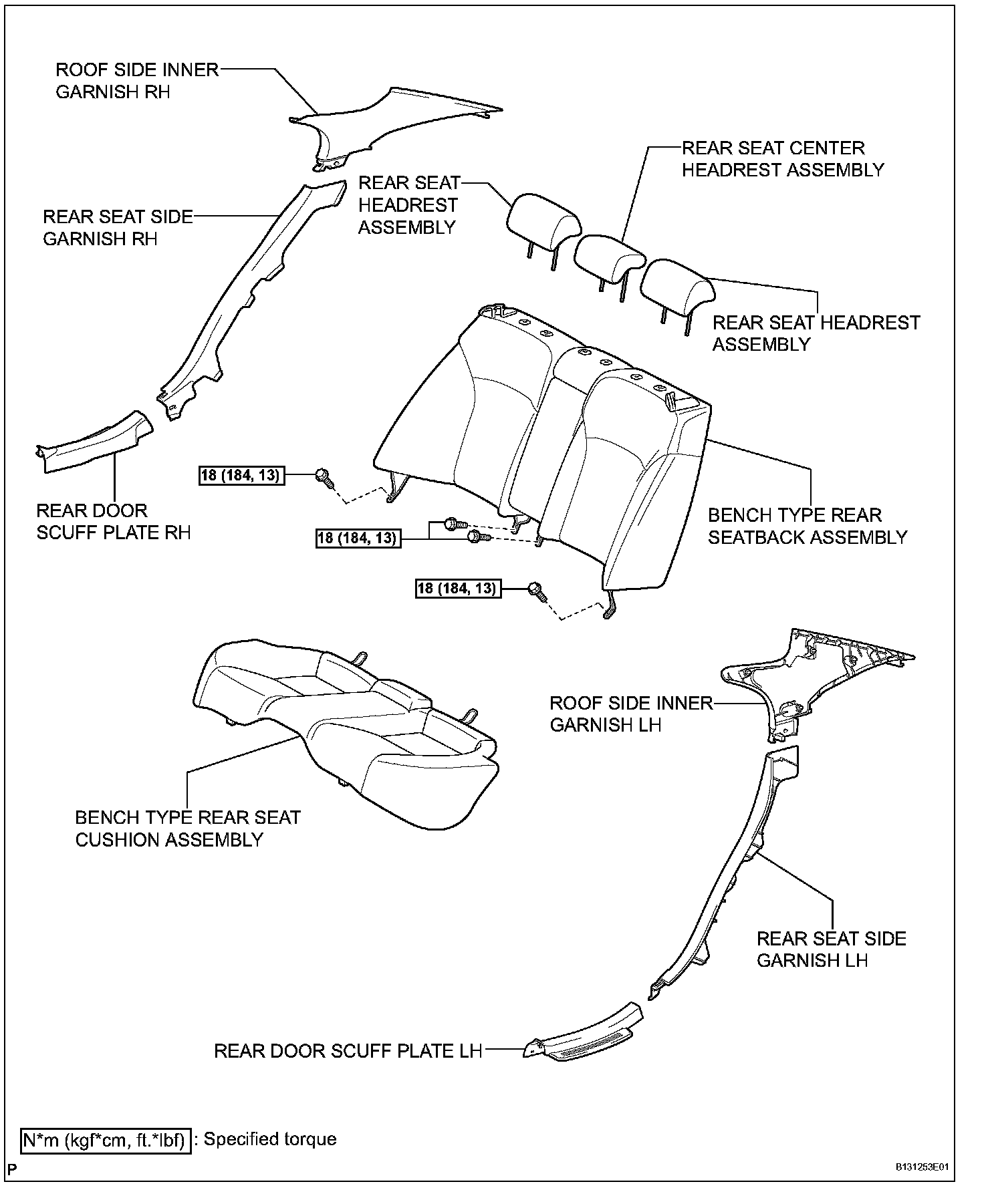

REAR SEAT OUTER BELT ASSEMBLY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
5. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE REAR DOOR SCUFF PLATE RH
8. REMOVE REAR SEAT SIDE GARNISH LH
9. REMOVE REAR SEAT SIDE GARNISH RH
10. REMOVE ROOF SIDE INNER GARNISH LH
11. REMOVE ROOF SIDE INNER GARNISH RH
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

14. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY

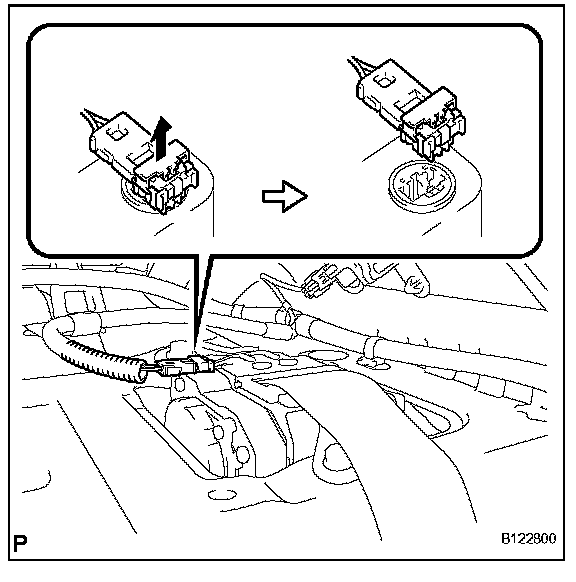

a. Using a screwdriver, pull out the locking button in the direction shown by the arrow to release the lock, and disconnect the pretensioner connector as shown in the illustration.

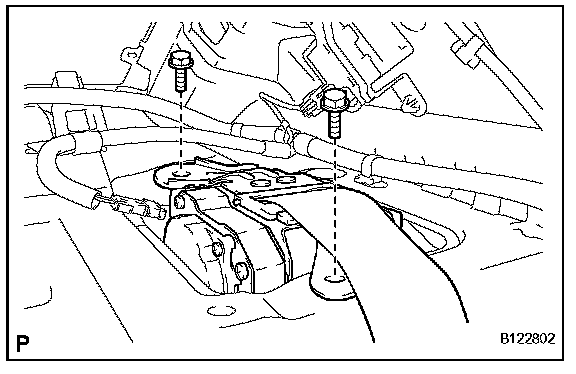

b. Remove the 2 bolts and the rear seat 3 point type belt assembly.

INSTALLATION

1. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY
a. Check the degree of the tilt when the ELR begins to lock.

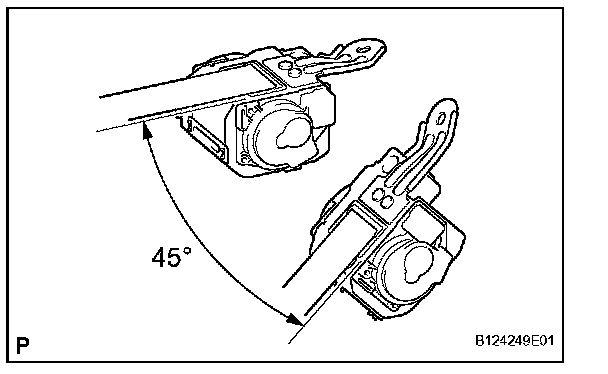

1. Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.

NOTE: Do not disassemble the retractor.

b. Temporarily install the rear seat 3 point type belt assembly with the 2 bolts.
c. Fully tighten the rear side bolt first, then the front side bolt to install the rear seat 3 point type belt assembly.

Torque:
For front bolt: 7.5 N.m (77 kgf.cm, 66 in.lbf)
For rear bolt: 42 N.m (428 kgf.cm, 31 ft.lbf)

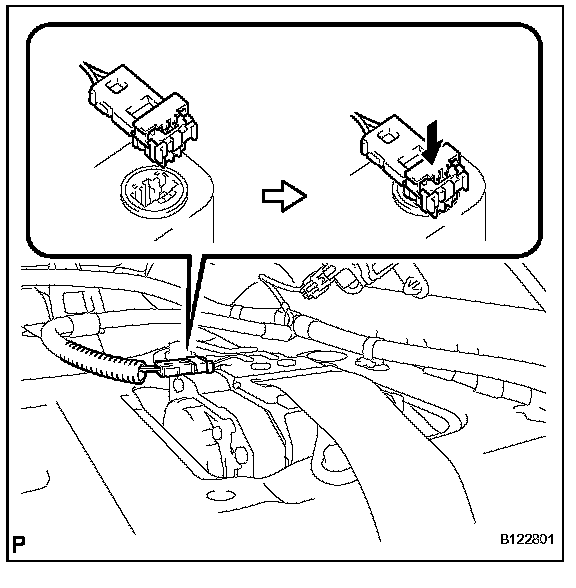

d. Connect the pretensioner connector and lock the locking button as shown in the illustration.

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
4. INSTALL ROOF SIDE INNER GARNISH LH
5. INSTALL ROOF SIDE INNER GARNISH RH
6. INSTALL REAR SEAT SIDE GARNISH LH
7. INSTALL REAR SEAT SIDE GARNISH RH
8. INSTALL REAR DOOR SCUFF PLATE LH
9. INSTALL REAR DOOR SCUFF PLATE RH
10. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY
11. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
12. INSTALL REAR SEAT HEADREST ASSEMBLY
13. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION

HINT: Some systems need initialization after reconnecting the cable to the negative battery terminal.

16. INSPECT SRS WARNING LIGHT
Inspect the SRS warning light.
