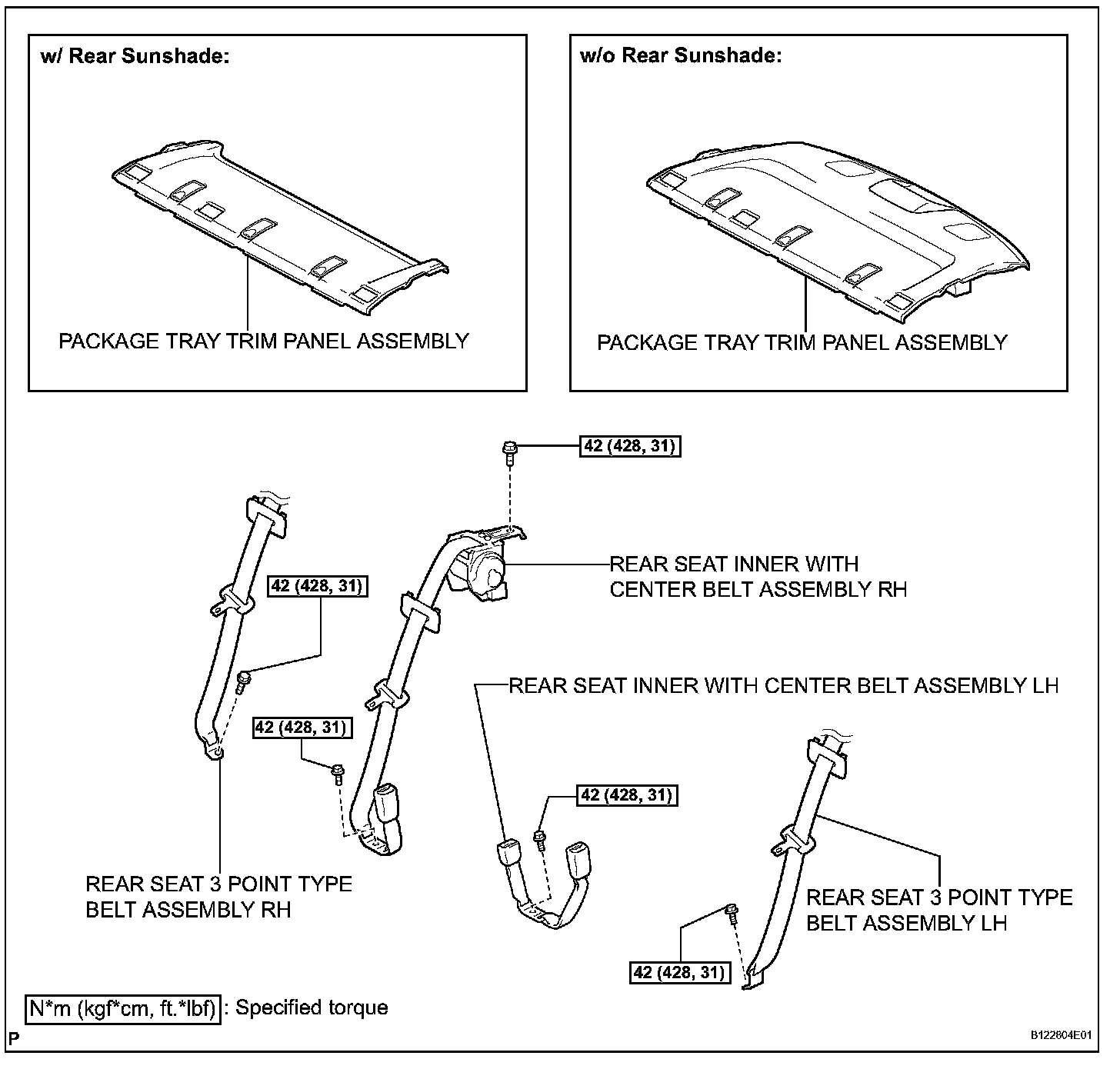

REAR SEAT INNER BELT ASSEMBLY
REMOVAL

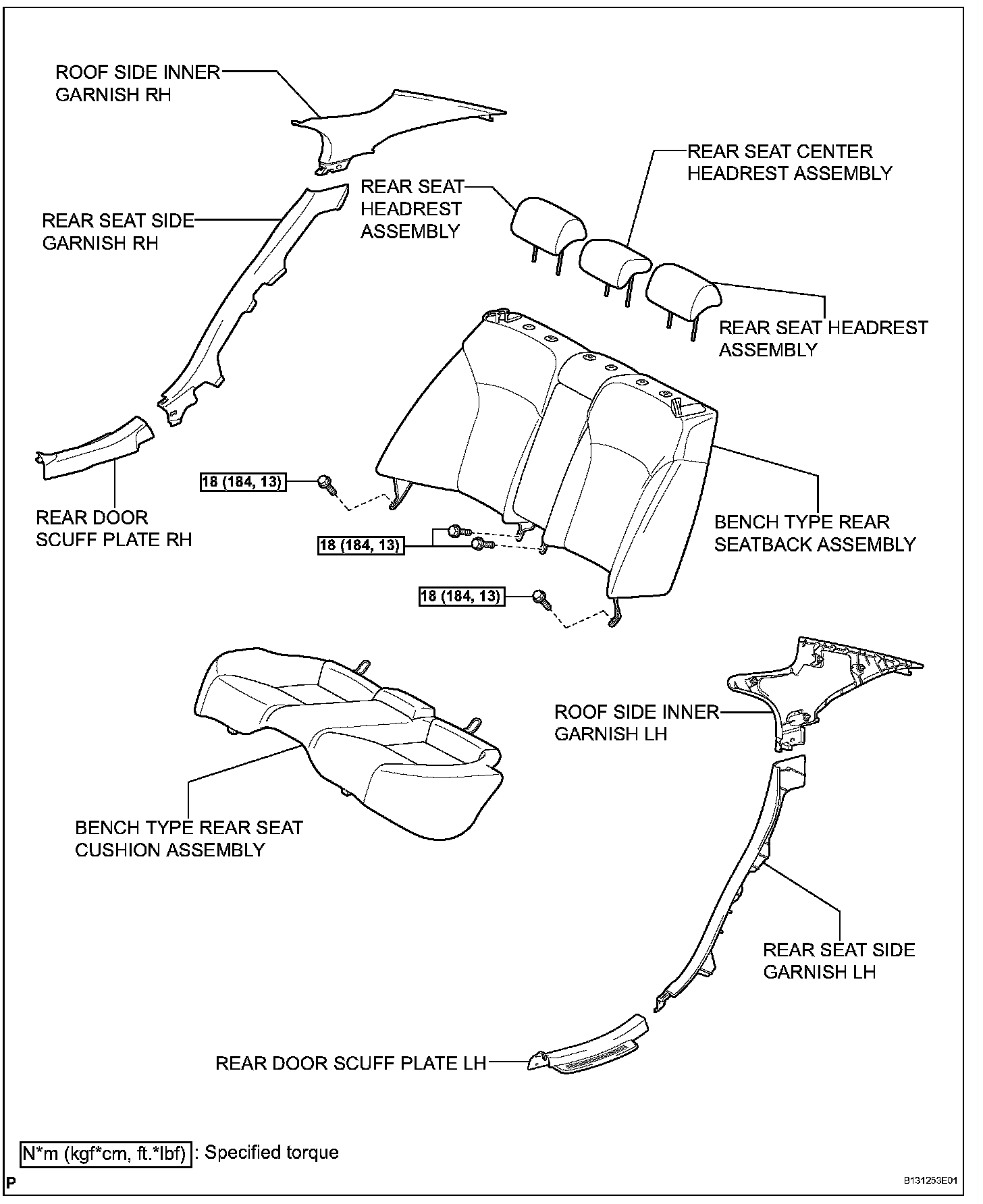

1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

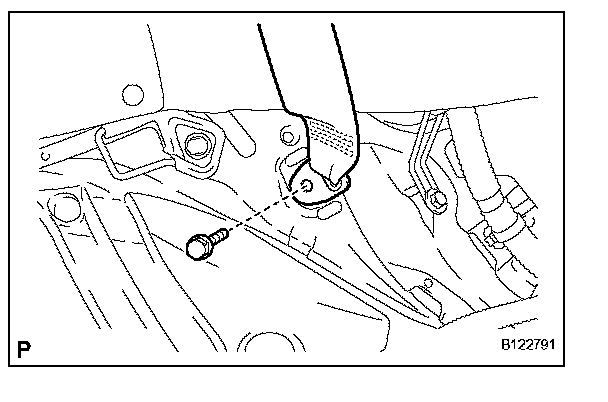

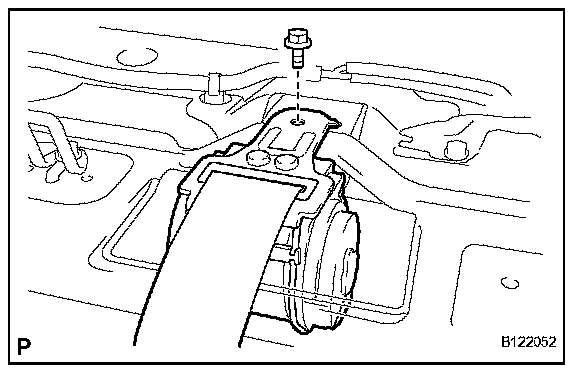

a. Remove the bolt and the rear seat inner with center belt assembly LH.
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
5. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE REAR DOOR SCUFF PLATE RH
8. REMOVE REAR SEAT SIDE GARNISH LH
9. REMOVE REAR SEAT SIDE GARNISH RH
10. REMOVE ROOF SIDE INNER GARNISH LH
11. REMOVE ROOF SIDE INNER GARNISH RH
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)

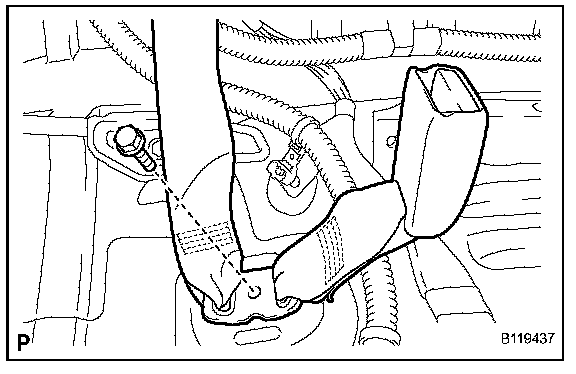

a. Remove the bolt and disconnect the floor end of the rear seat 3 point type belt assembly LH.
HINT: Use the same procedures for the RH side and the LH side.

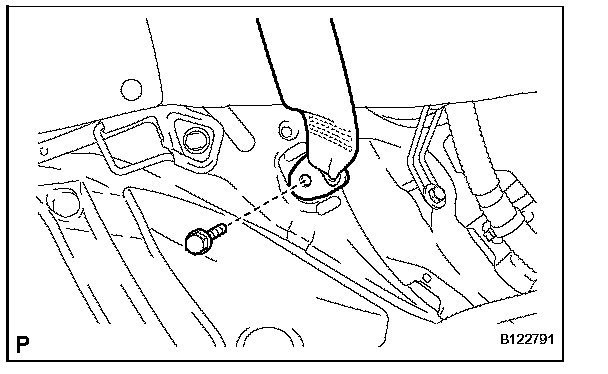

b. Remove the bolt and disconnect the floor end of the rear seat inner with center belt assembly RH.

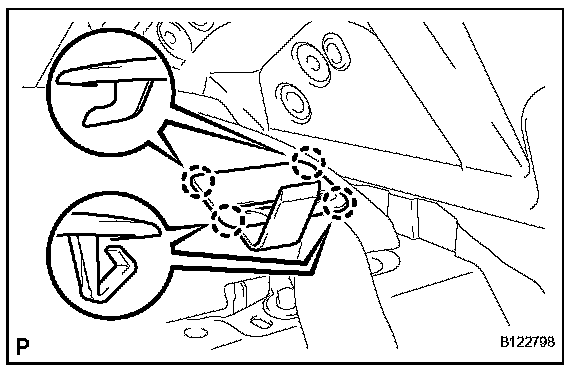

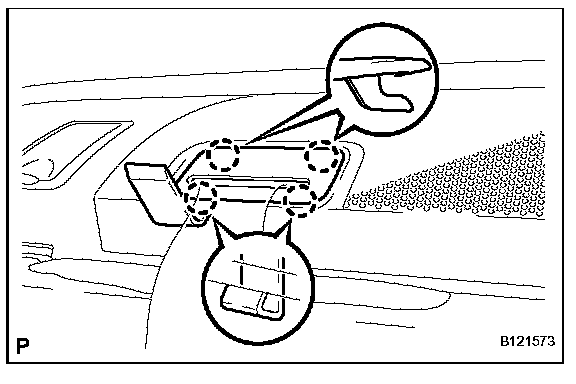

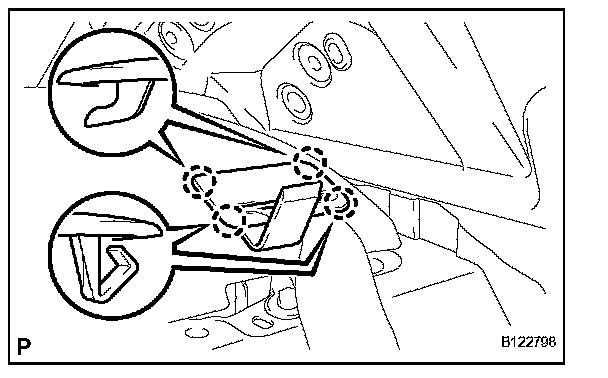

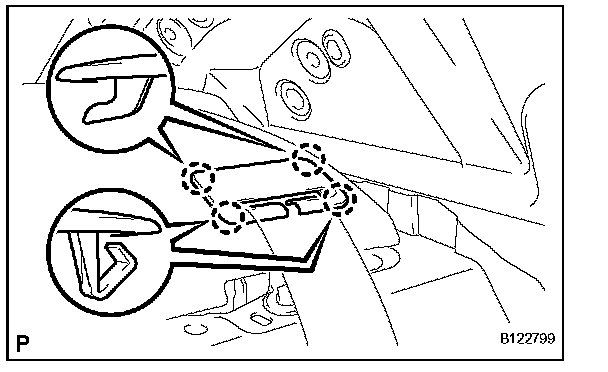

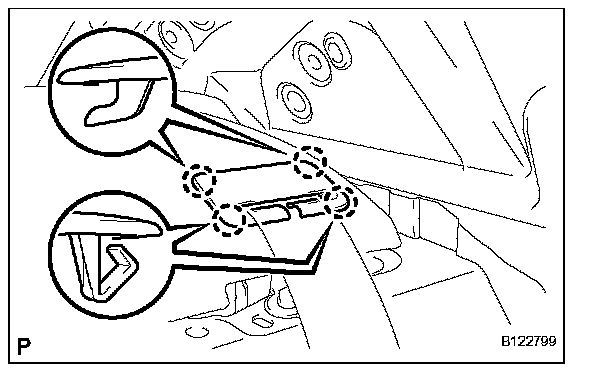

c. Using a moulding remover, disengage the 4 claws and remove the rear seat shoulder belt cover LH.
HINT: Use the same procedures for the RH side and LH side.

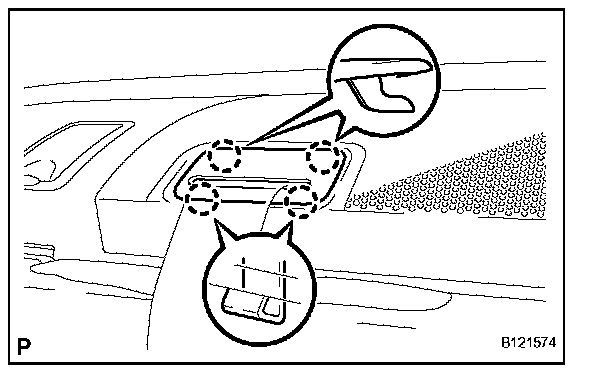

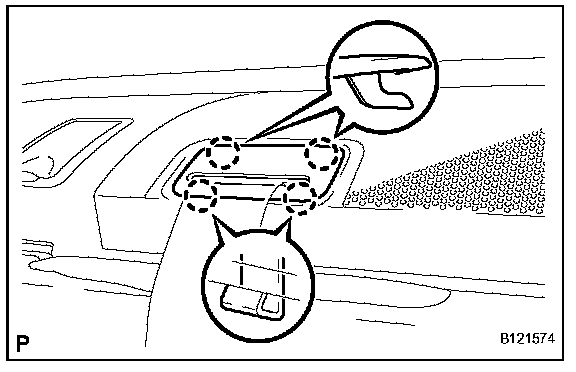

d. Using a moulding remover, disengage the 4 claws and remove the rear seat shoulder belt cover center.

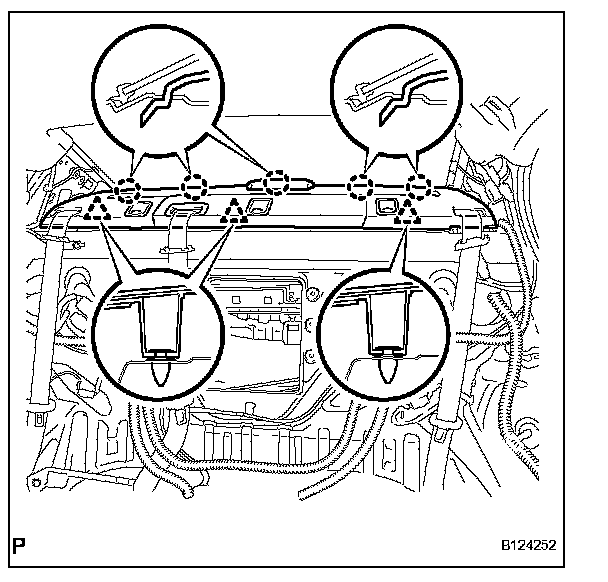

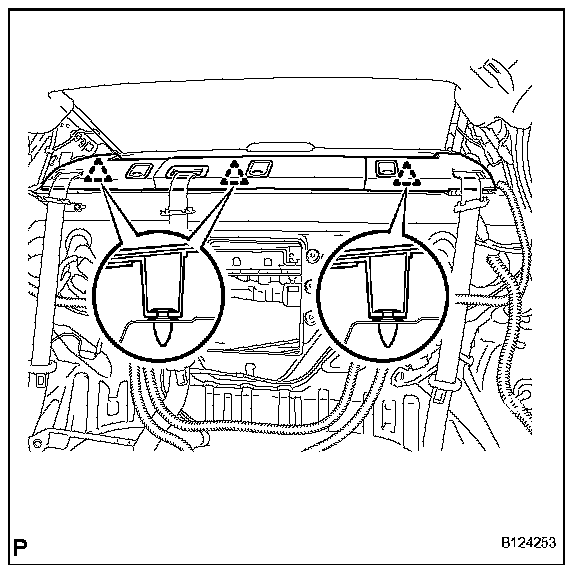

e. Disengage the 3 clips and raise the front portion of the package tray trim panel assembly.
f. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
g. Disconnect the connector from the center stop light assembly.
h. Disengage the 5 claws and remove the package tray trim panel assembly and the center stop light assembly as a unit.
13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
a. Remove the bolt and disconnect the floor end of the rear seat 3 point type belt assembly LH.
HINT: Use the same procedures for the RH side and the LH side.
b. Remove the bolt and disconnect the floor end of the rear seat inner with center belt assembly RH.
c. Using a moulding remover, disengage the 4 claws and remove the rear seat shoulder belt cover LH.
HINT: Use the same procedures for the RH side and LH side.
d. Using a moulding remover, disengage the 4 claws and remove the rear seat shoulder belt cover center.
e. Disengage the 3 clips.

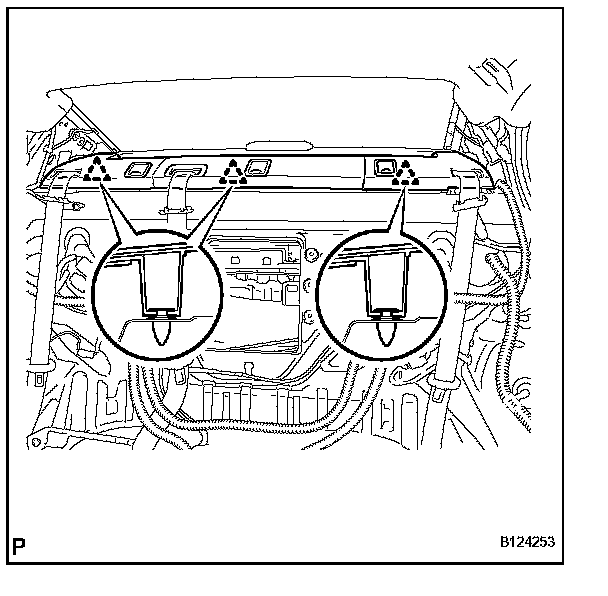

f. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
g. Remove the package tray trim panel assembly.
14. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
a. Remove the bolt and the rear seat inner with center belt assembly RH.
INSTALLATION
1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

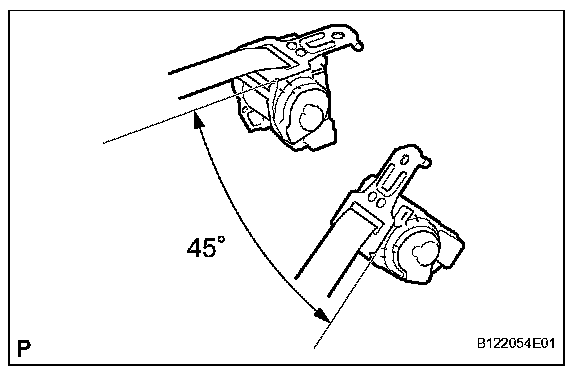

a. Check the degree of the tilt when the ELR begins to lock.
1. Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.
NOTE: Do not disassemble the retractor.

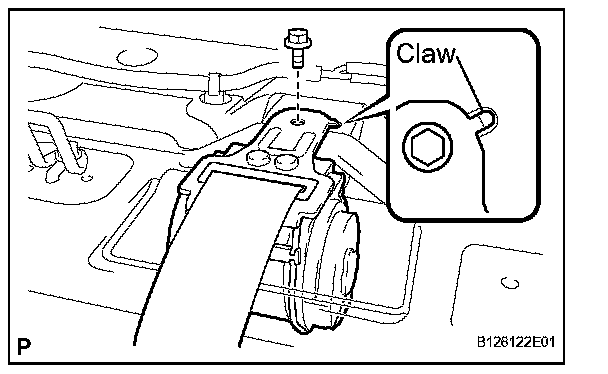

b. Align the claw with the seat belt positioning hole and install the rear seat inner with center belt assembly RH with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
a. Connect the connector to the center stop light assembly.
b. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

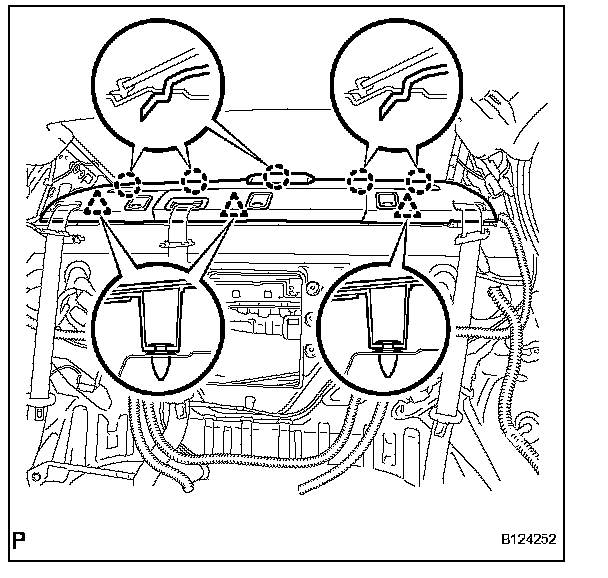

c. Engage the 3 clips and 5 claws to install the package tray trim panel assembly and the center stop light assembly as a unit.
d. Engage the 4 claws to install the rear seat shoulder belt cover center.
e. Engage the 4 claws to install the rear seat shoulder belt cover LH.
HINT: Use the same procedures for the RH side and the LH side.

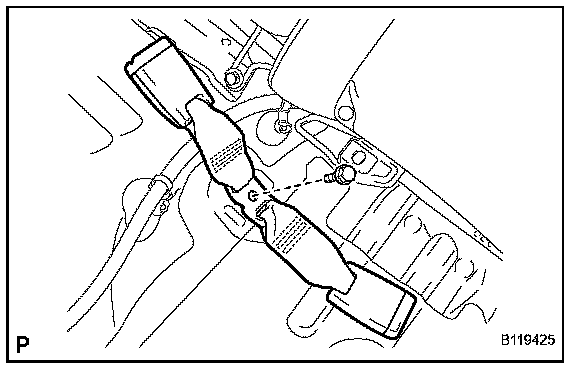

f. Install the floor end of the rear seat inner with center belt assembly RH with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

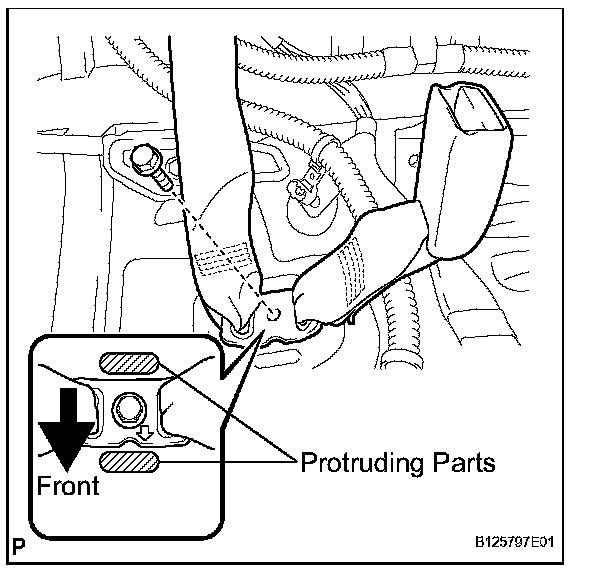

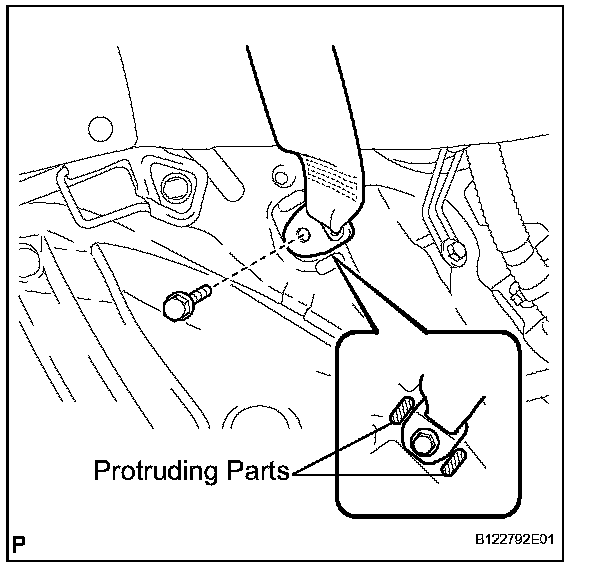

NOTE: Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.
g. Check if the ELR locks.
NOTE: The check should be performed with the outer belt assembly installed.
1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

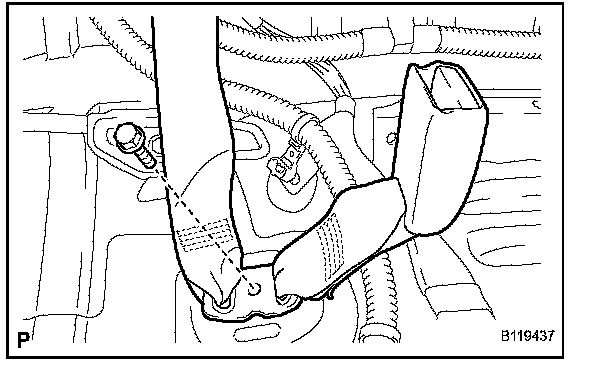

h. Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

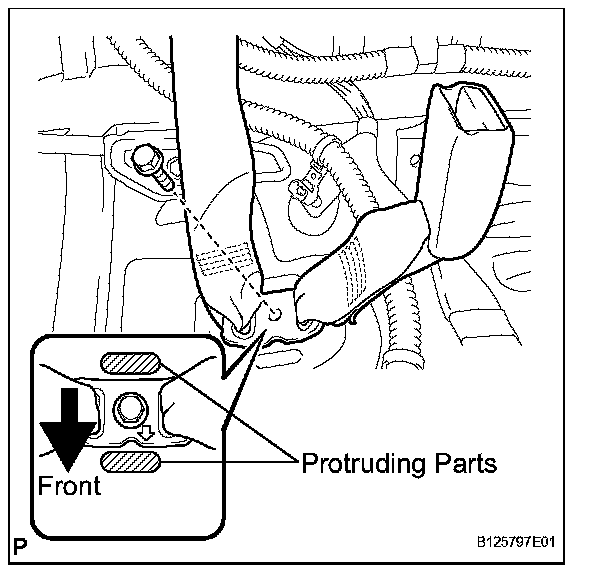

NOTE: Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap protruding parts of the floor panel.
HINT: Use the same procedures for the RH side and the LH side.
i. Check if the ELR locks.
NOTE: The check should be performed with the outer belt assembly installed.
1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
a. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
b. Engage the 3 clips to install the package tray trim panel assembly.
c. Engage the 4 claws to install the rear seat shoulder belt cover center.
d. Engage the 4 claws to install the rear seat shoulder belt cover LH.
HINT: Use the same procedures for the RH side and the LH side.
e. Install the floor end of the rear seat inner with center belt assembly RH with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
NOTE: Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.
f. Check if the ELR locks.
NOTE: The check should be performed with the outer belt assembly installed.
1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
g. Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
NOTE: Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap the protruding parts of the floor panel.
HINT: Use the same procedures for the RH side and the LH side.
h. Check if the ELR locks.
NOTE: The check should be performed with the outer belt assembly installed.
1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
4. INSTALL ROOF SIDE INNER GARNISH LH
5. INSTALL ROOF SIDE INNER GARNISH RH
6. INSTALL REAR SEAT SIDE GARNISH LH
7. INSTALL REAR SEAT SIDE GARNISH RH
8. INSTALL REAR DOOR SCUFF PLATE LH
9. INSTALL REAR DOOR SCUFF PLATE RH
10. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY
11. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
12. INSTALL REAR SEAT HEADREST ASSEMBLY
13. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
a. Install the rear seat inner with center belt assembly LH with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

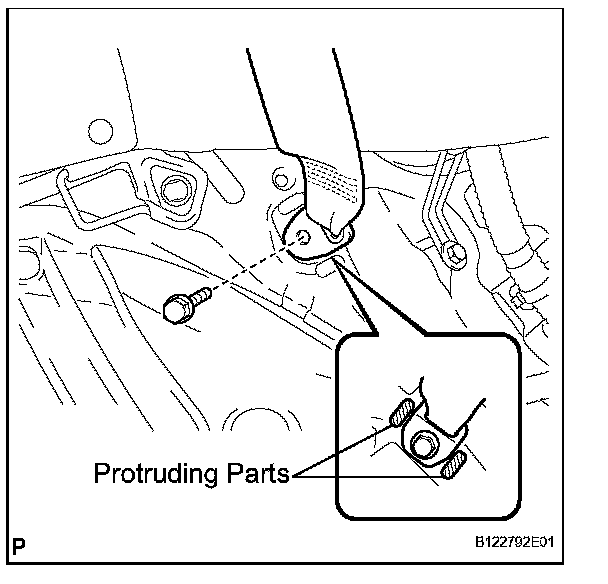

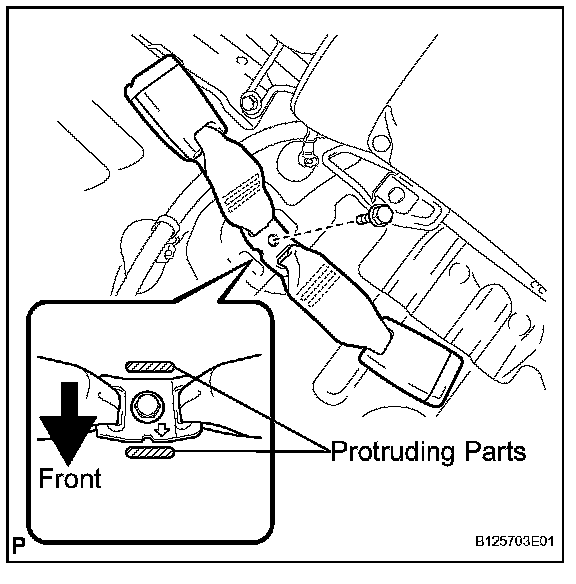

NOTE: Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding parts of the floor panel.
14. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
