Symptom Index

PROBLEM SYMPTOMS TABLE

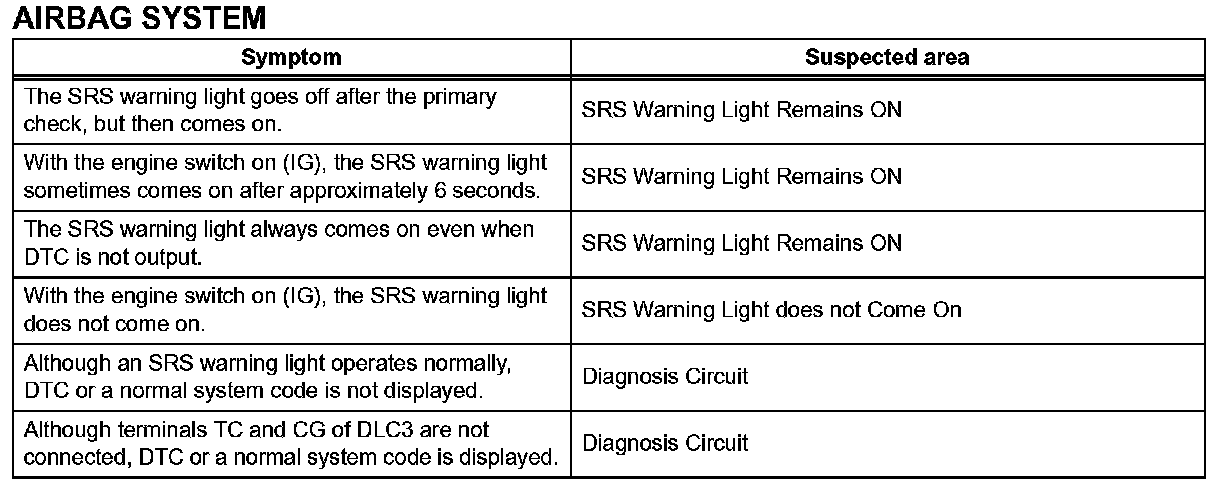

Problem Symptoms Table - Airbag System:






HINT: Proceed to the troubleshooting for each circuit in the table given.
