DTC Check

DTC CHECK




a. Check the DTCs.

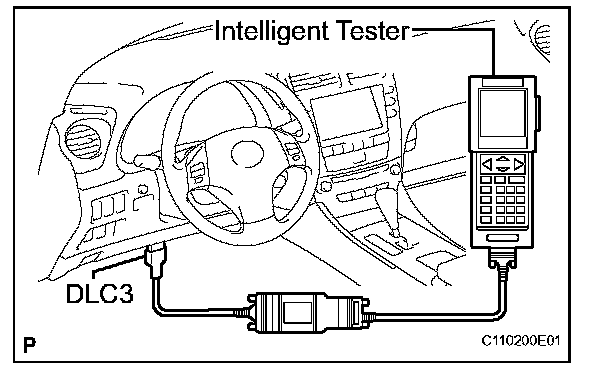

1. Connect the intelligent tester to the DLC3.
2. Turn the engine switch on (IG).
3. Check the DTCs by following the prompts on the tester screen.

HINT: Refer to the intelligent tester operator's manual for further details.
