Front Passenger Airbag Assembly
Front Passenger Airbag Assembly:

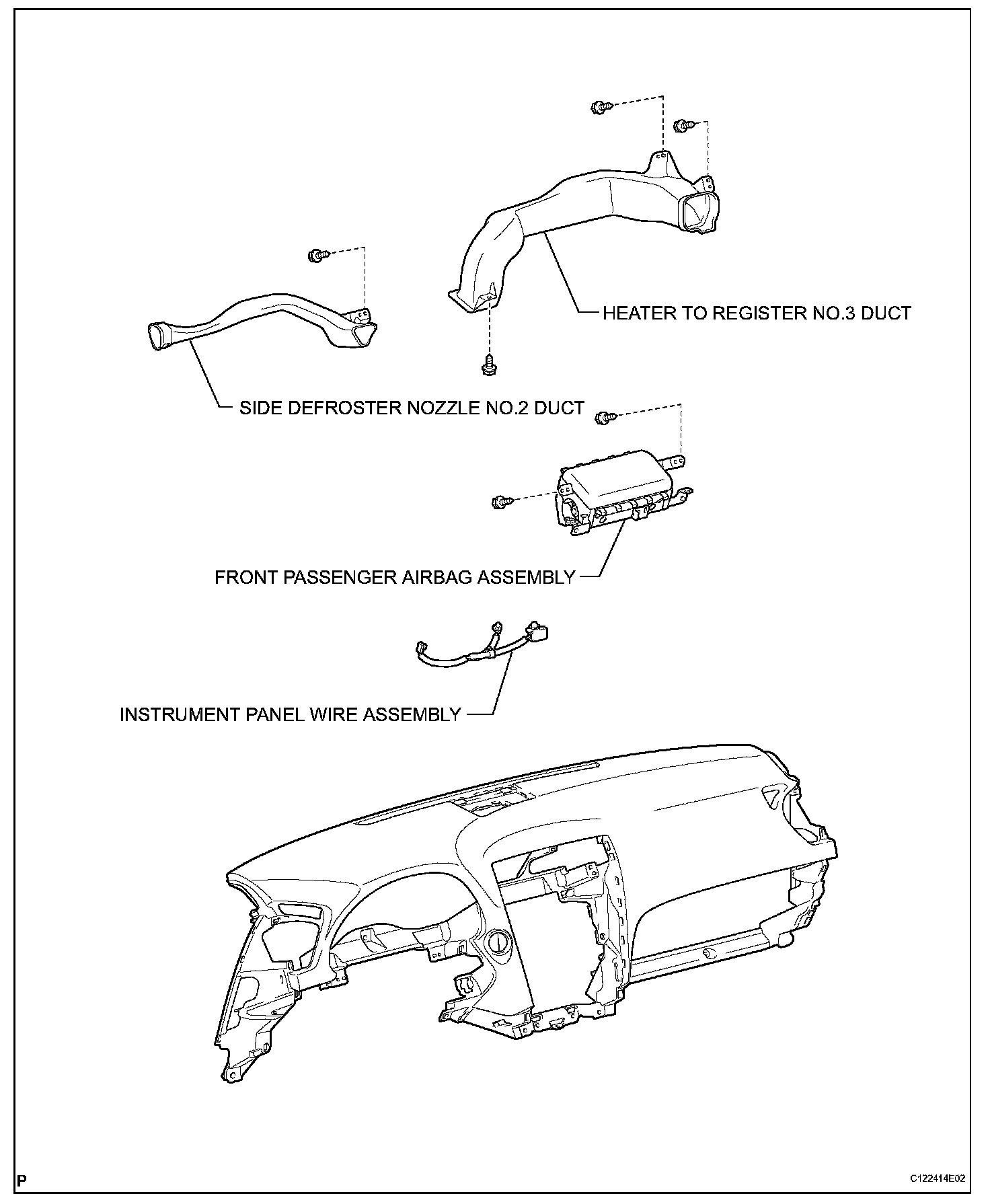

FRONT PASSENGER AIRBAG ASSEMBLY
REMOVAL
1. PRECAUTION
CAUTION: Be sure to read the Restraint Systems Service Precautions thoroughly before servicing.
2. DISCONNECT BATTERY NEGATIVE TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
3. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination)
4. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination)
5. REMOVE FRONT DOOR OPENING TRIM COVER RH
6. REMOVE INSTRUMENT SIDE PANEL RH
7. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
8. REMOVE FRONT PASSENGER SIDE AIRBAG ASSEMBLY
9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

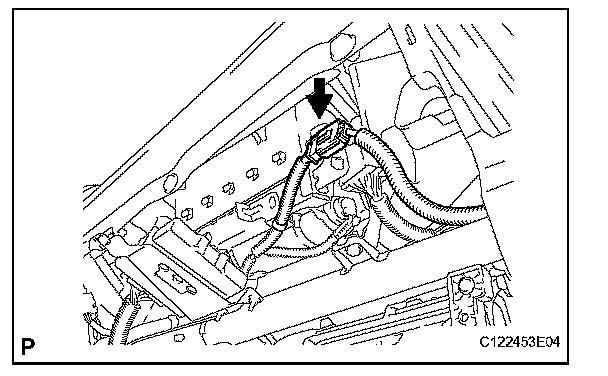

10. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY
a. Disconnect the connector.
11. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT: Refer to the procedures up to "REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY".
12. REMOVE HEATER TO REGISTER NO.3 DUCT
13. REMOVE SIDE DEFROSTER NOZZLE NO.2 DUCT
14. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
a. Remove the 2 screws.

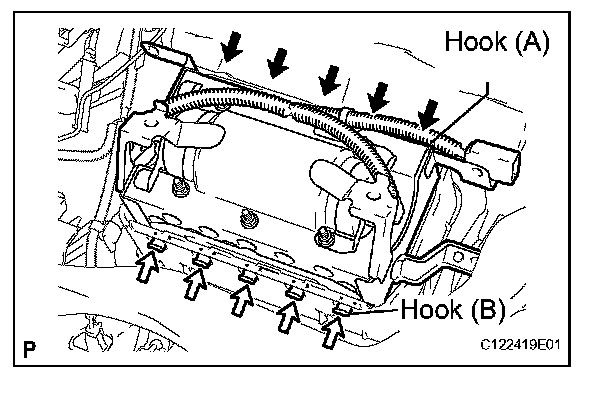

b. Disengage the 5 hooks (A).
c. Disengage the 5 hooks (B) and remove the front passenger airbag assembly from the instrument panel.

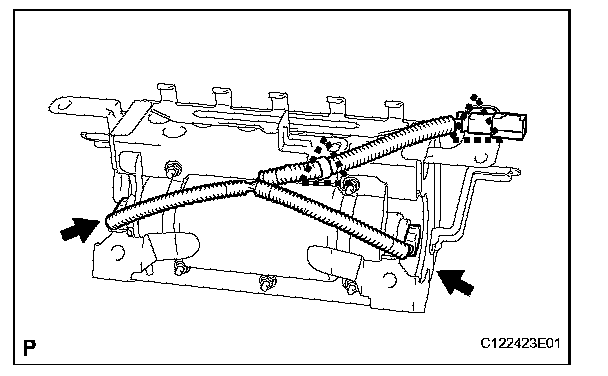

d. Disconnect the 2 connectors and remove the 2 clamps.
e. Remove the instrument panel wire assembly from the front passenger airbag assembly.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
INSTALLATION
1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

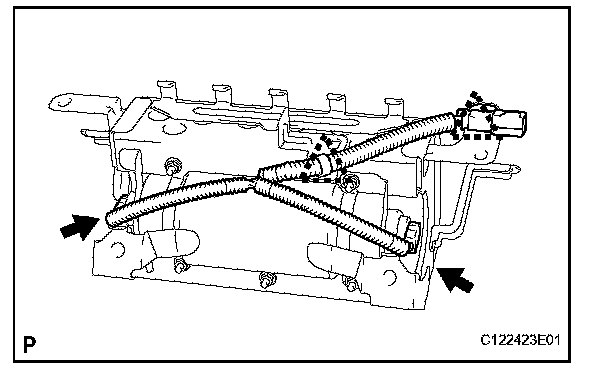

a. Connect the 2 connectors and the 2 clamps to the front passenger airbag assembly.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
b. Engage the 5 hooks (A).
c. Engage the 5 hooks (B) and install the front passenger airbag assembly on the instrument panel.

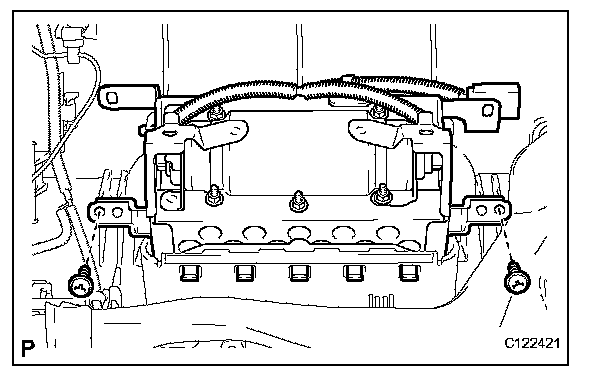

d. Install the 2 screws.
2. INSTALL SIDE DEFROSTER NOZZLE NO.2 DUCT
3. INSTALL HEATER TO REGISTER NO.3 DUCT
4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT: Refer to the procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY".

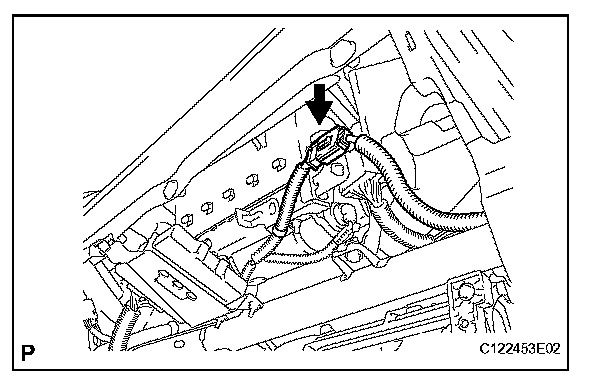

5. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
a. Connect the connector.
6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
7. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
8. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
9. INSTALL INSTRUMENT SIDE PANEL RH
10. INSTALL FRONT DOOR OPENING TRIM COVER RH
11. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination)
12. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination)
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. PERFORM INITIALIZATION
a. Perform initialization.
HINT: Some systems need initialization after reconnecting the cable to the negative battery terminal.
15. INSPECT SRS WARNING LIGHT
a. Inspect the SRS warning light.
