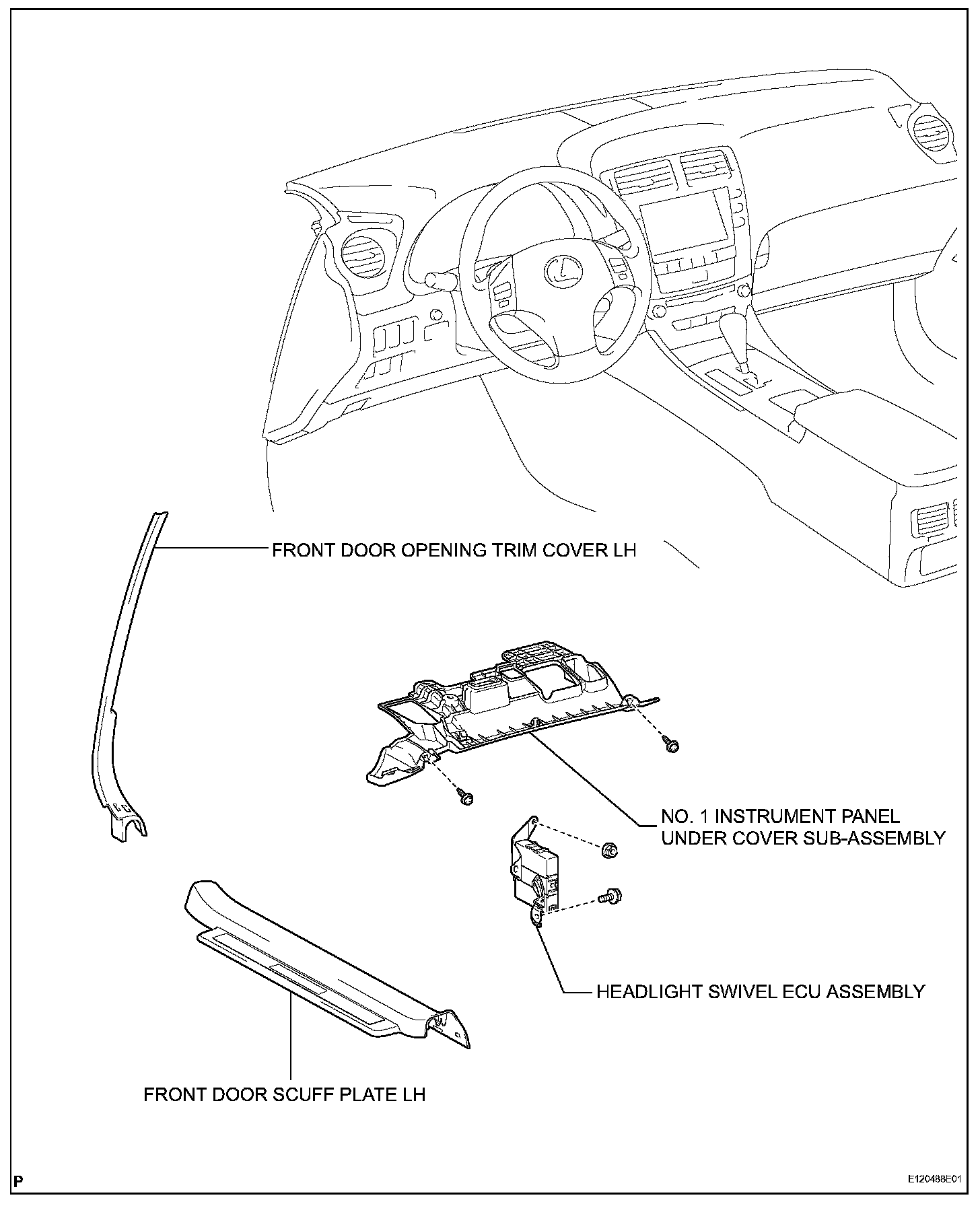

Headlamp Control Module: Service and Repair

AFS ECU:

AFS ECU

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
3. REMOVE FRONT DOOR OPENING TRIM COVER LH
4. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY




5. REMOVE HEADLIGHT SWIVEL ECU ASSEMBLY

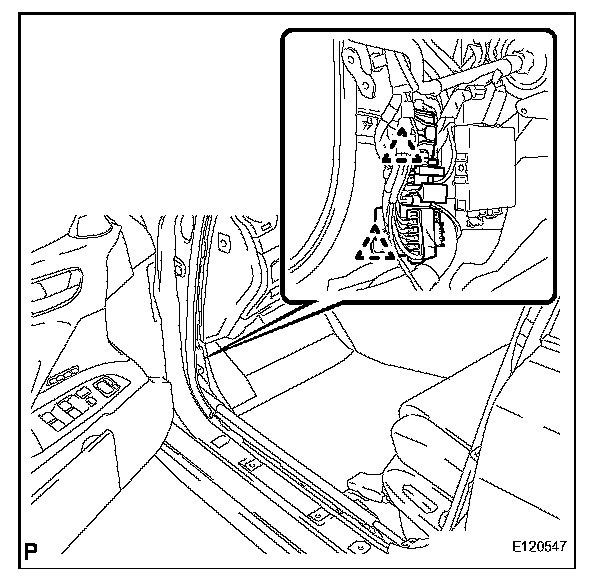

a. Disengage the 2 clips and disconnect the connector holder.

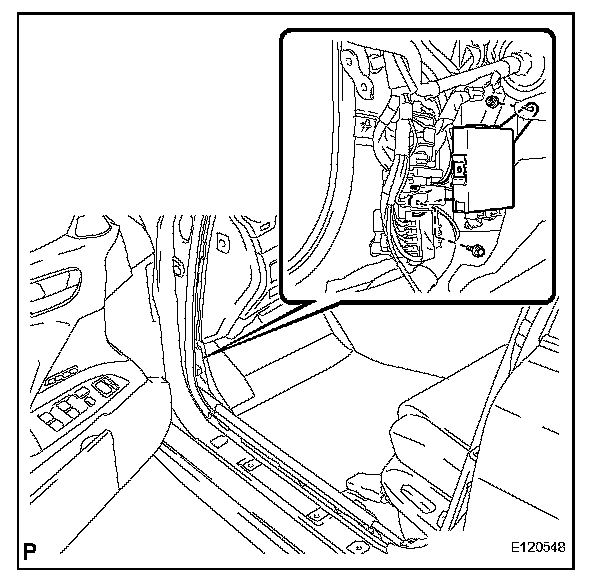

b. Remove the bolt and nut.

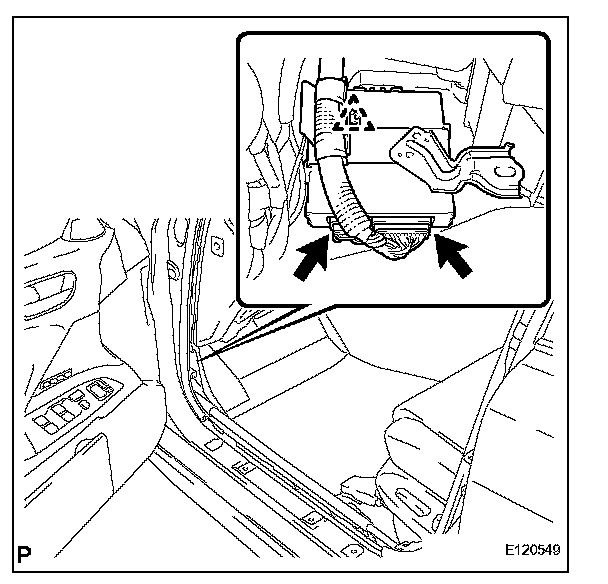

c. Disconnect the connectors.
d. Disengage the clamp and remove the headlight swivel ECU assembly.

INSTALLATION




1. INSTALL HEADLIGHT SWIVEL ECU ASSEMBLY

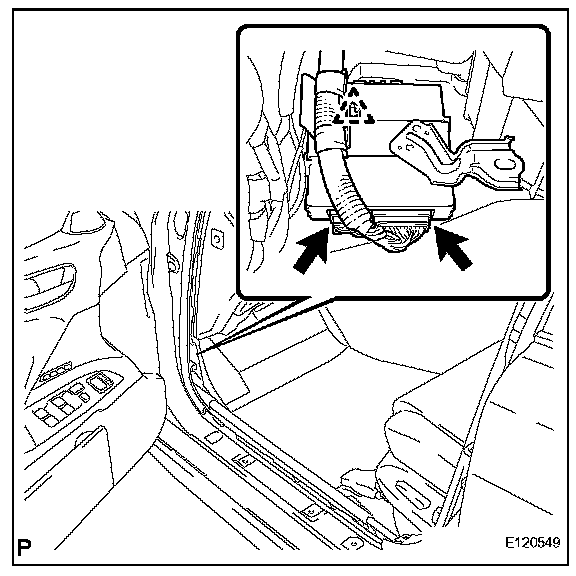

a. Install the clamp.
b. Connect the connector.

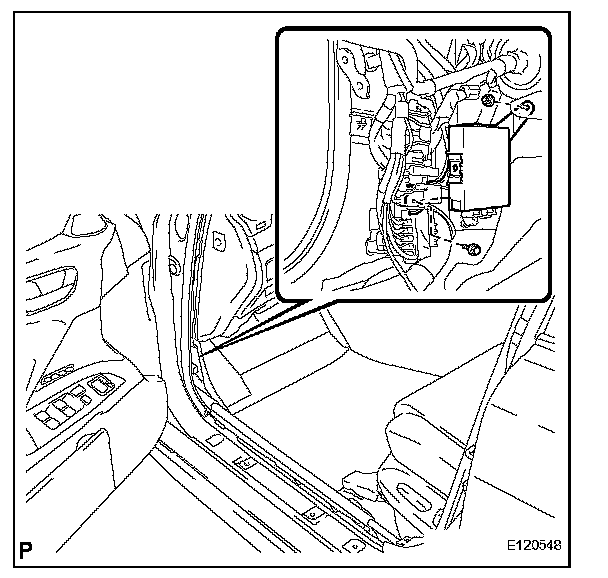

c. Install the headlight swivel ECU assembly with the bolt and nut.

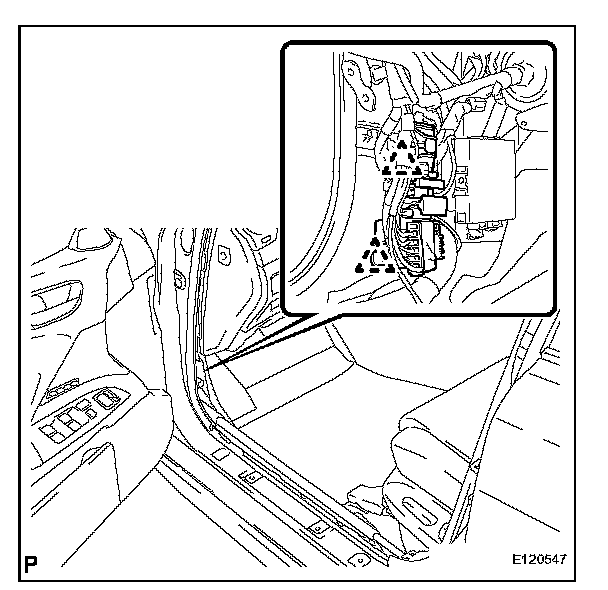

d. Install the connector holder with the 2 clips.

2. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
3. INSTALL FRONT DOOR OPENING TRIM COVER LH
4. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
5. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
