Electronic Brake Control Module: Service and Repair

REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY




2. REMOVE SKID CONTROL ECU

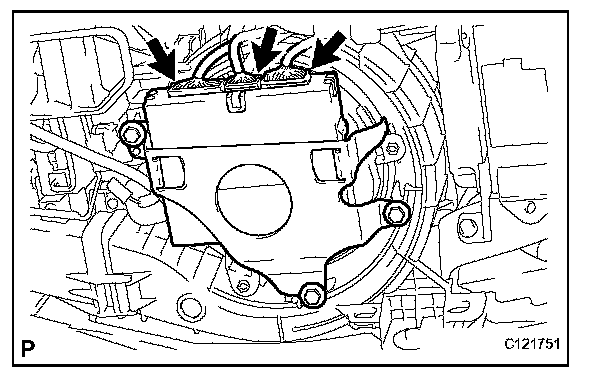

a. Disconnect the 3 connectors from the skid control ECU.

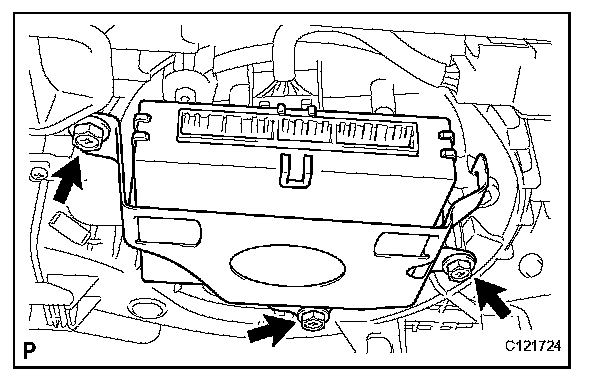

b. Remove the 3 screws and skid control ECU.

INSTALLATION




1. INSTALL SKID CONTROL ECU

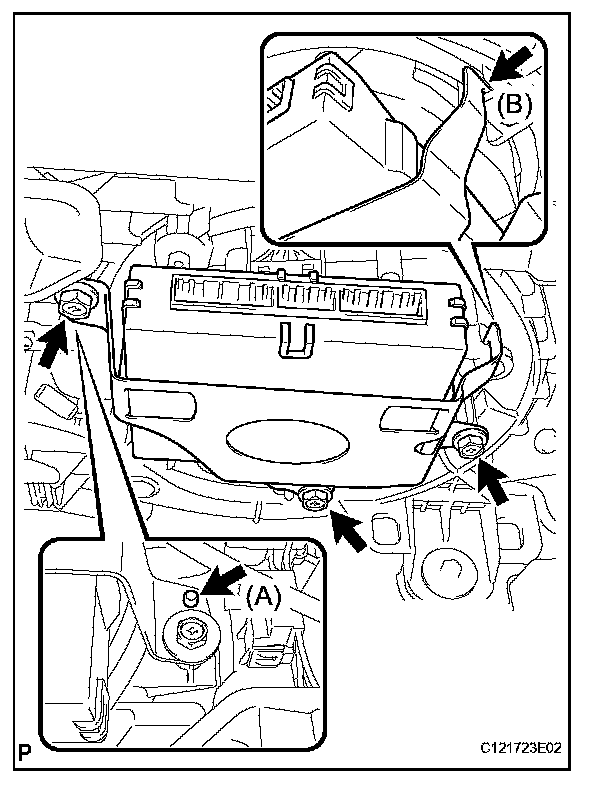

a. Install the skid control ECU with the 3 screws.

Torque:4.8 N.m (49 kgf.cm, 42 in.lbf)

HINT:
- Align positioning boss (A) of the blower assembly with the hole of the skid control ECU.
- Securely engage the hook (B) of the skid control ECU with the blower assembly.

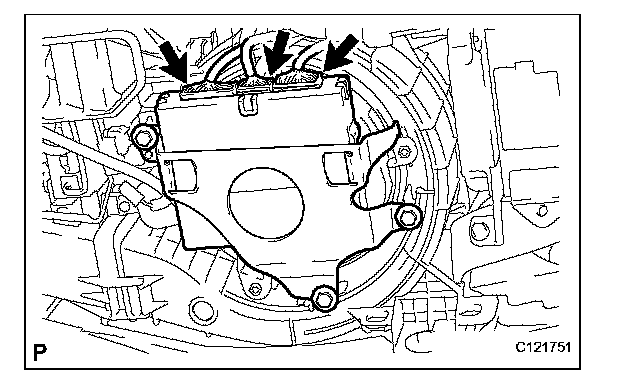

b. Connect the 3 connectors to the skid control ECU.

2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
3. CHECK AND CLEAR DTC
