Home >> Lexus >> 2007 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

Ignition System: Locations

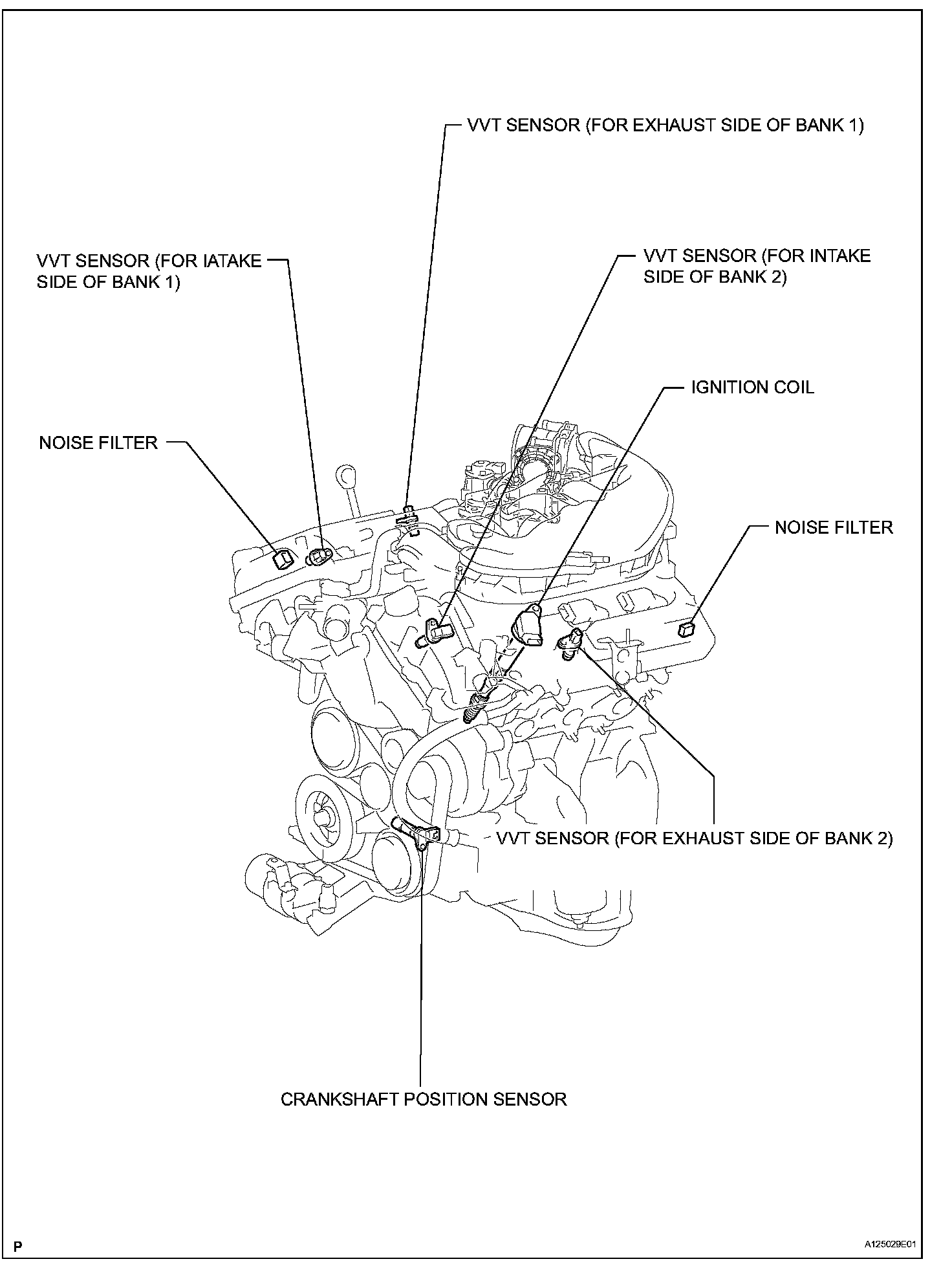

Ignition System (Part 1):

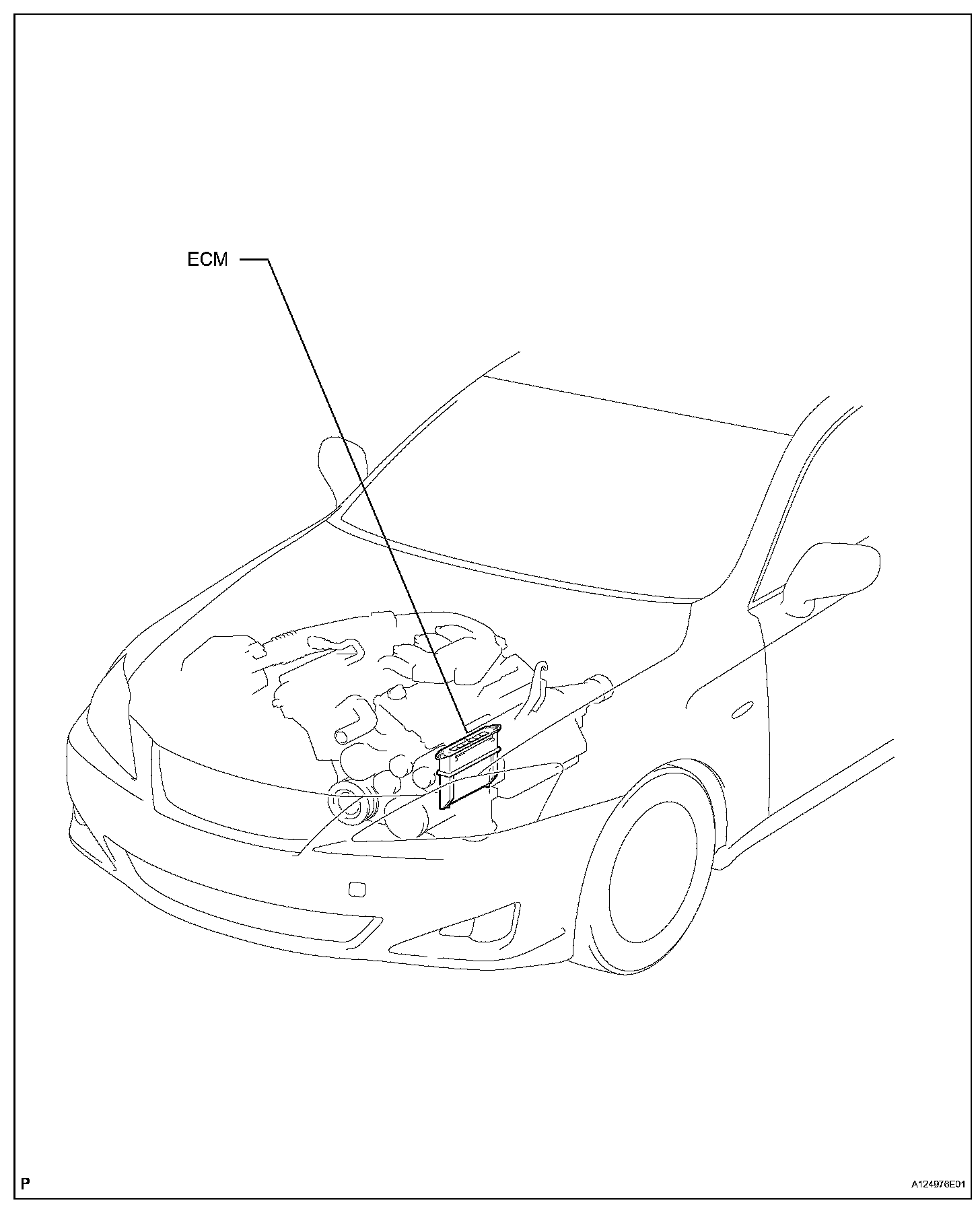

Ignition System (Part 2):
