Cold Start Injector: Service and Repair
REMOVAL1. DISCHARGE FUEL SYSTEM PRESSURE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE V-BANK COVER SUB-ASSEMBLY
4. REMOVE COLD START INJECTOR
a. Disconnect the cold start injector connector.

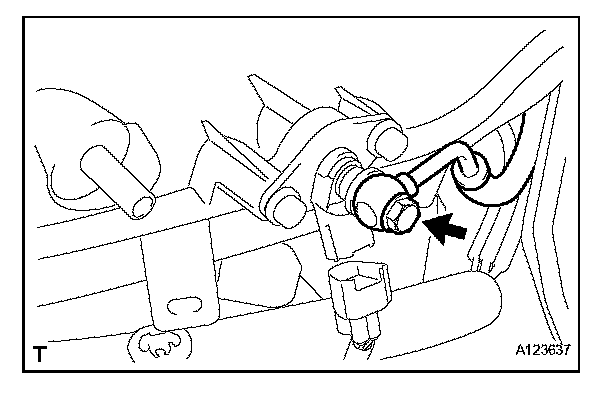

b. Remove the bolt and 2 gaskets, and disconnect the fuel tube from the cold start injector.
NOTE: Do not fold or bend the hose.

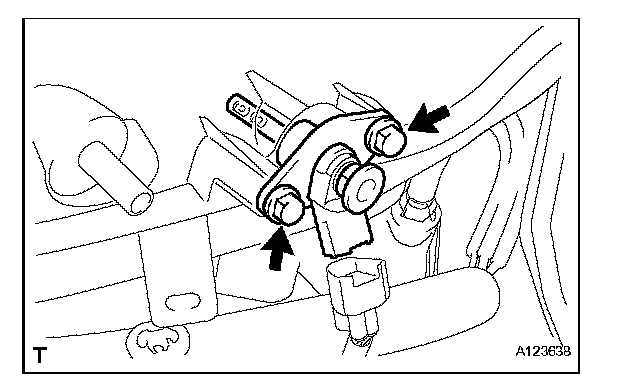

c. Remove the 2 bolts, gasket and cold start injector from the surge tank.
INSTALLATION
1. INSTALL COLD START INJECTOR

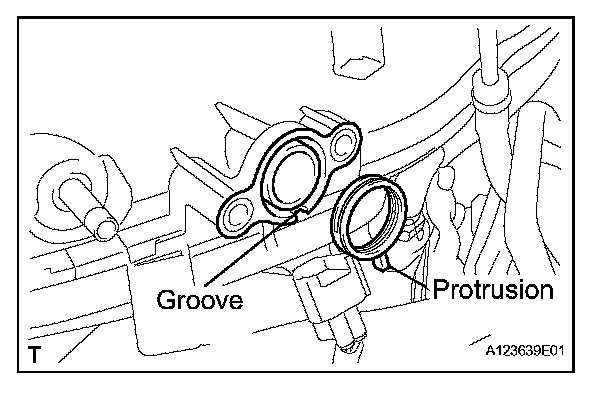

a. Install a new gasket to the intake air surge tank.
HINT: Align the protrusion of the gasket on the intake air surge tank.
b. Install the cold start injector with the 2 bolts.
Torque: 10 N.m(102 kgf.cm, 7 ft.lbf)

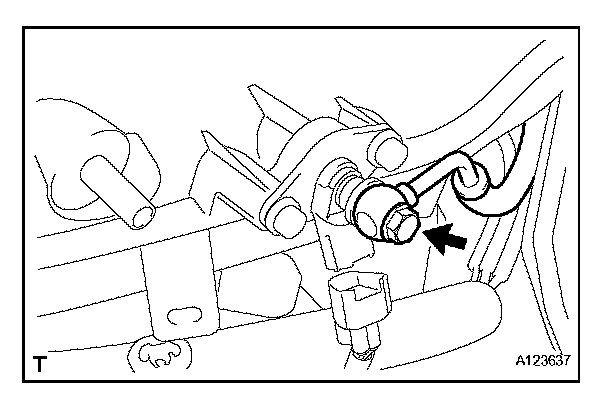

c. Install 2 new gaskets and the hose to the cold start injector with the bolt.
Torque: 15 N.m(153 kgf.cm, 11 ft.lbf)
NOTE
- Be careful not to damage the gasket.
- Do not fold or bend the hose.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. CHECK FOR FUEL LEAKAGE
4. INSTALL V-BANK COVER SUB-ASSEMBLY
5. PERFORM INITIALIZATION
a. Perform initialization
HINT: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
