Accelerator Pedal: Service and Repair

REMOVAL

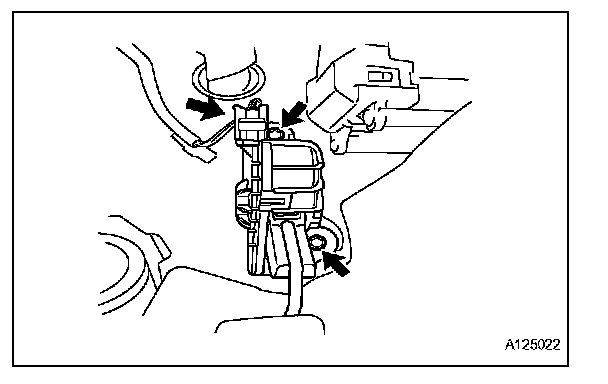

1. REMOVE ACCELERATOR PEDAL
a. Disconnect the accelerator pedal position sensor connector.
b. Remove the 2 bolts and accelerator pedal.

NOTE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.

INSTALLATION

NOTE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.

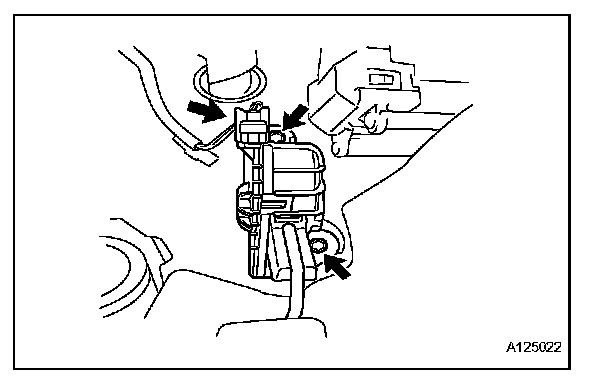

1. INSTALL ACCELERATOR PEDAL
a. Install the accelerator pedal with the 2 bolts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

b. Connect the accelerator pedal position sensor connector.
