EVAP System
EVAP SystemRELATED DTCS
Monitoring Item:

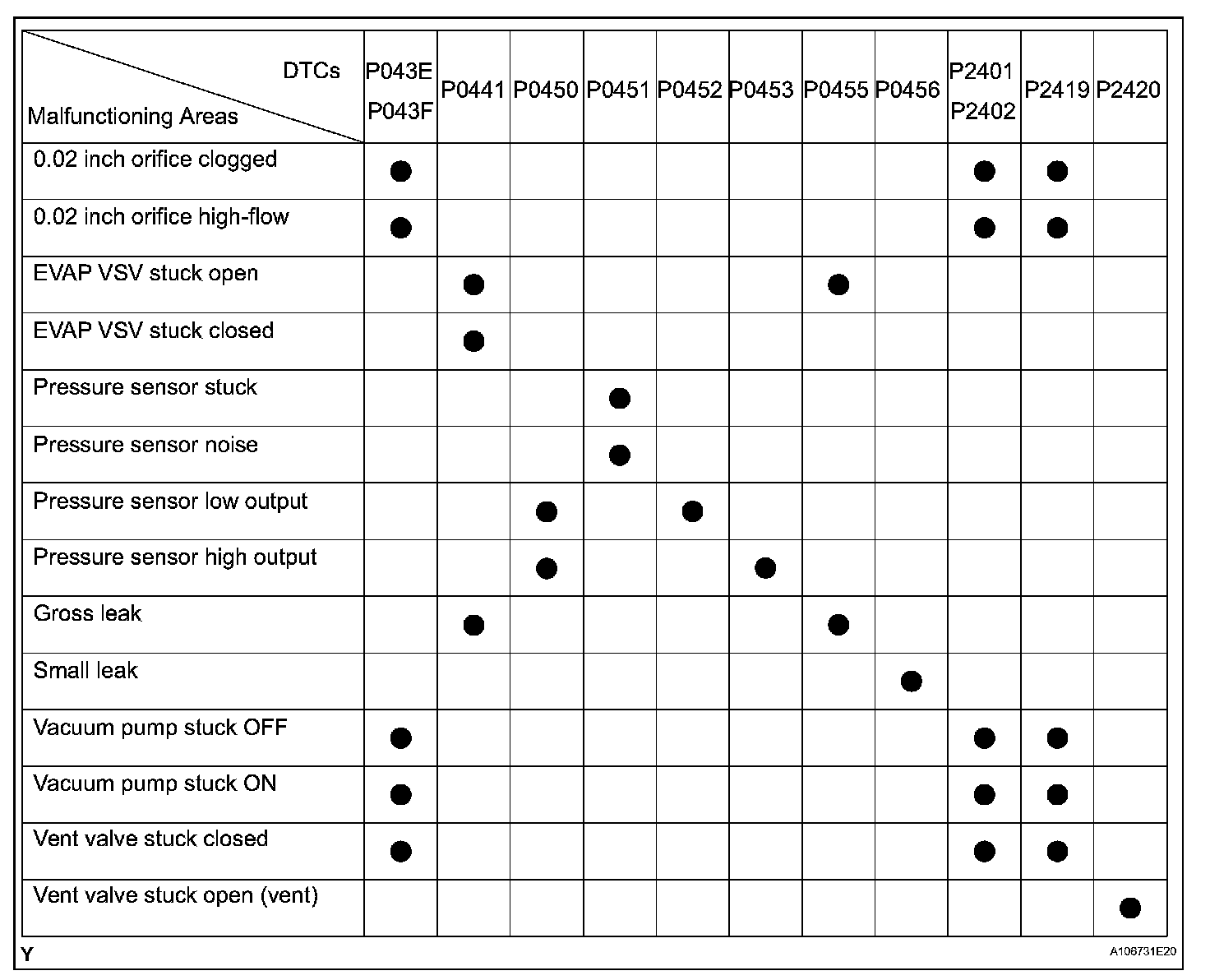

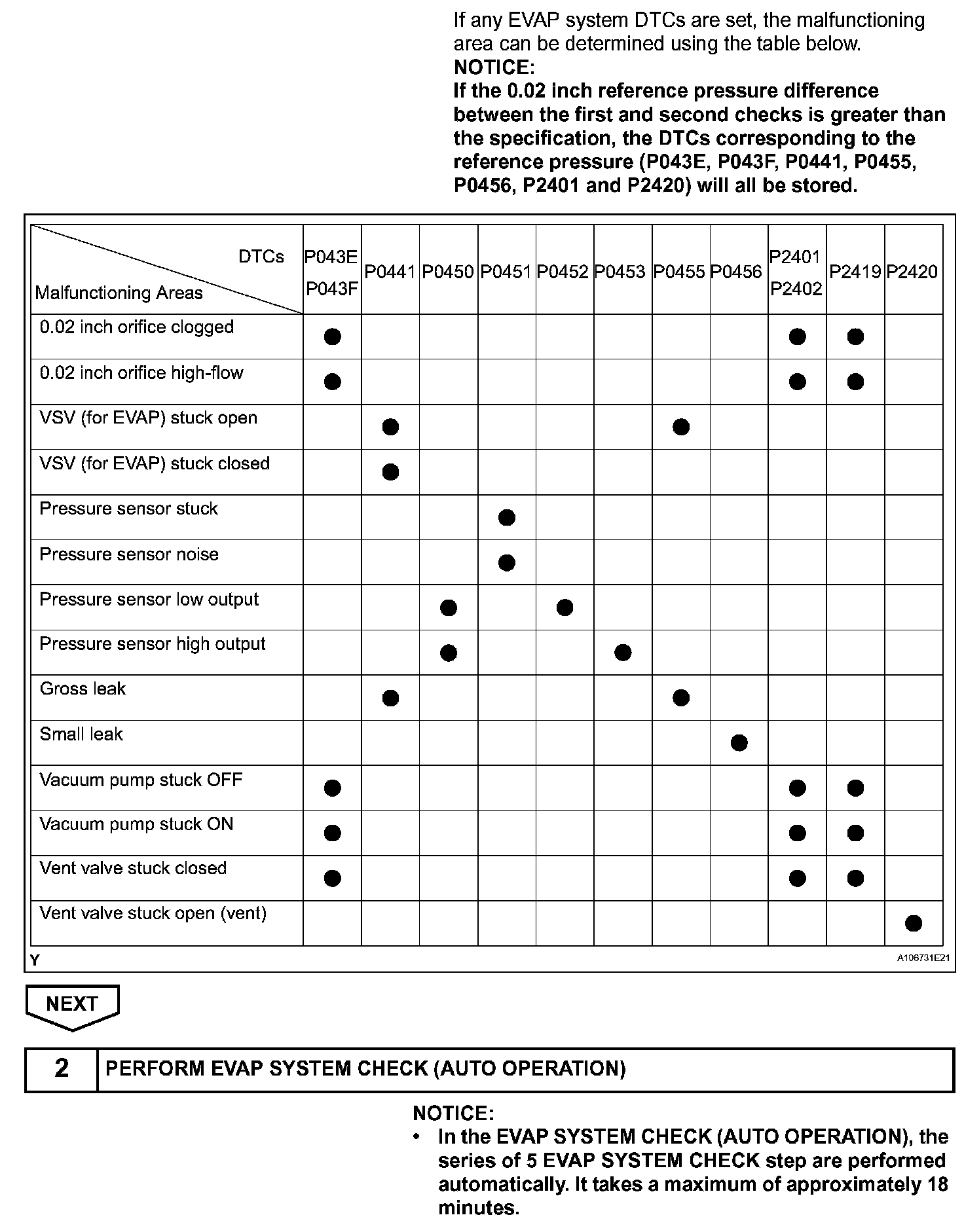

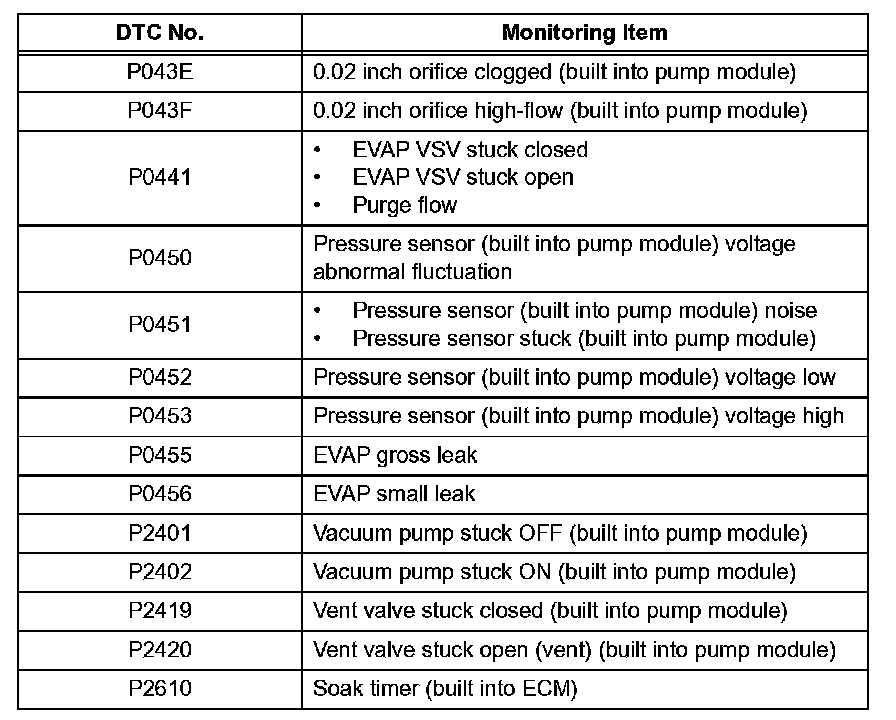

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
NOTE: If the 0.02 inch reference pressure difference between the first and second checks is greater than the specification, the DTCs corresponding to the reference pressure (P043E, P043F, P0441, P0455, P0456, P2401 and P2420) will all be stored.
DESCRIPTION

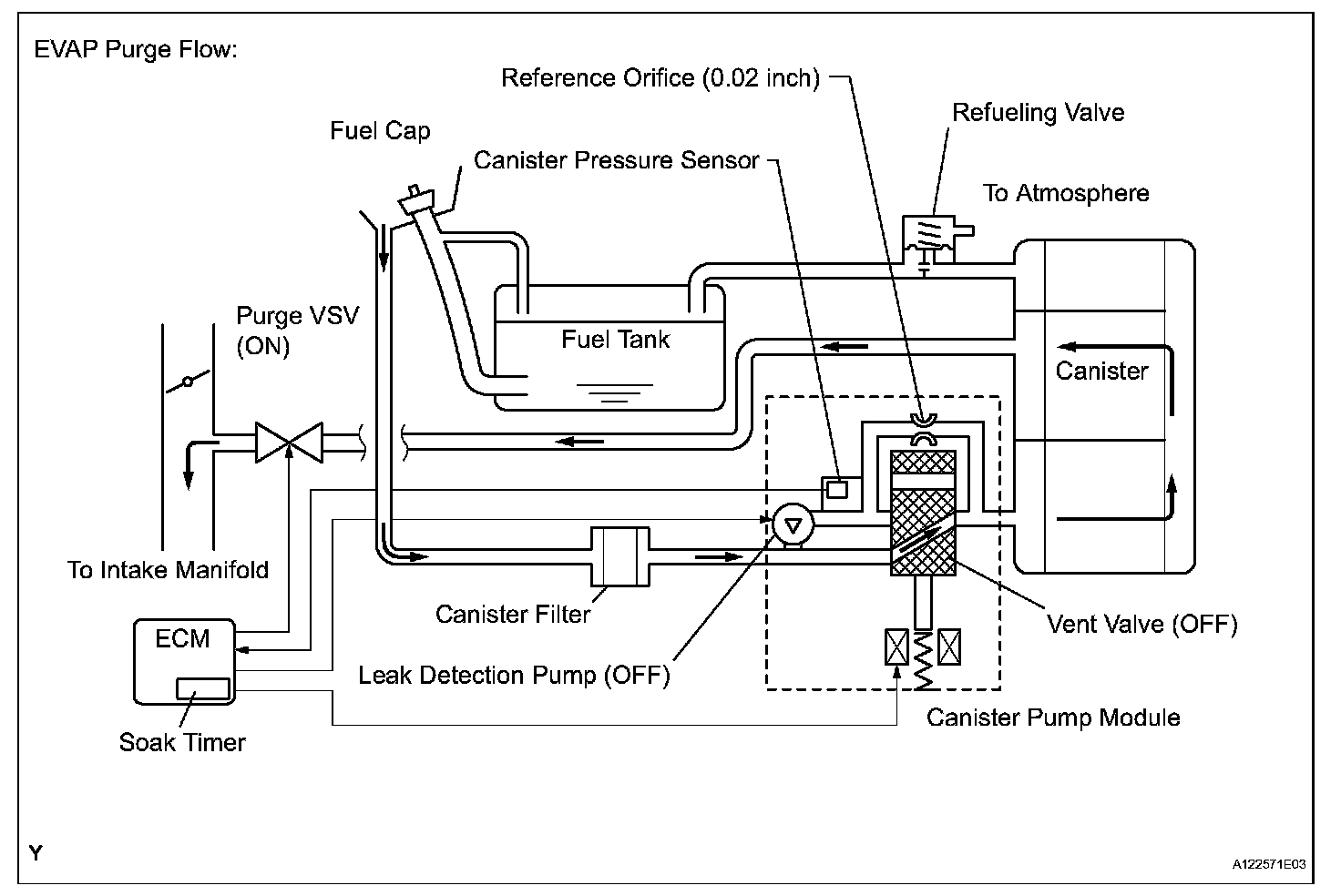

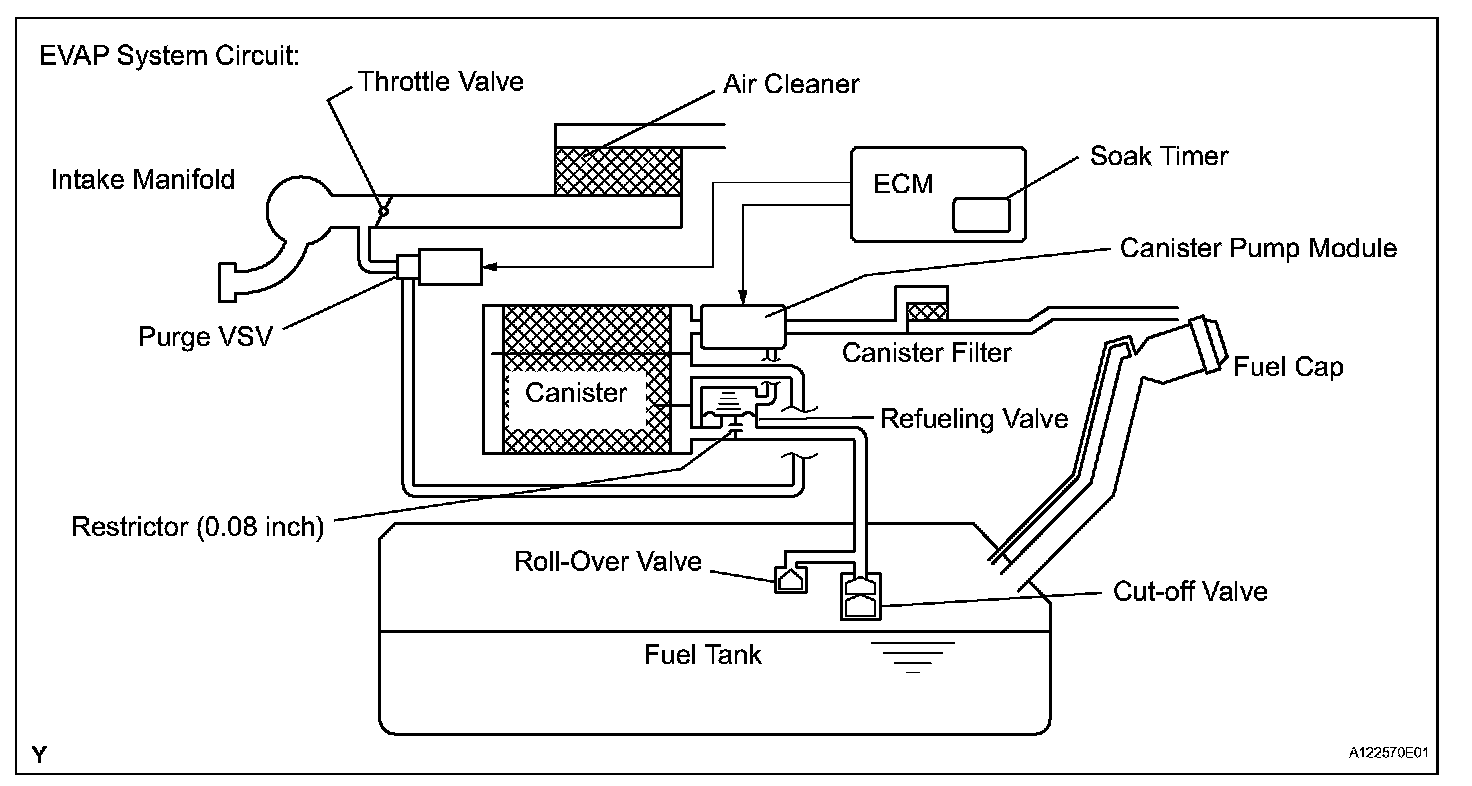

While the engine is running, if a predetermined condition (closed- loop etc.) is met, the EVAP VSV is opened by the ECM and stored fuel vapors in the canister are purged to the intake manifold. The ECM changes the duty cycle ratio of the EVAP VSV to control purge flow volume.

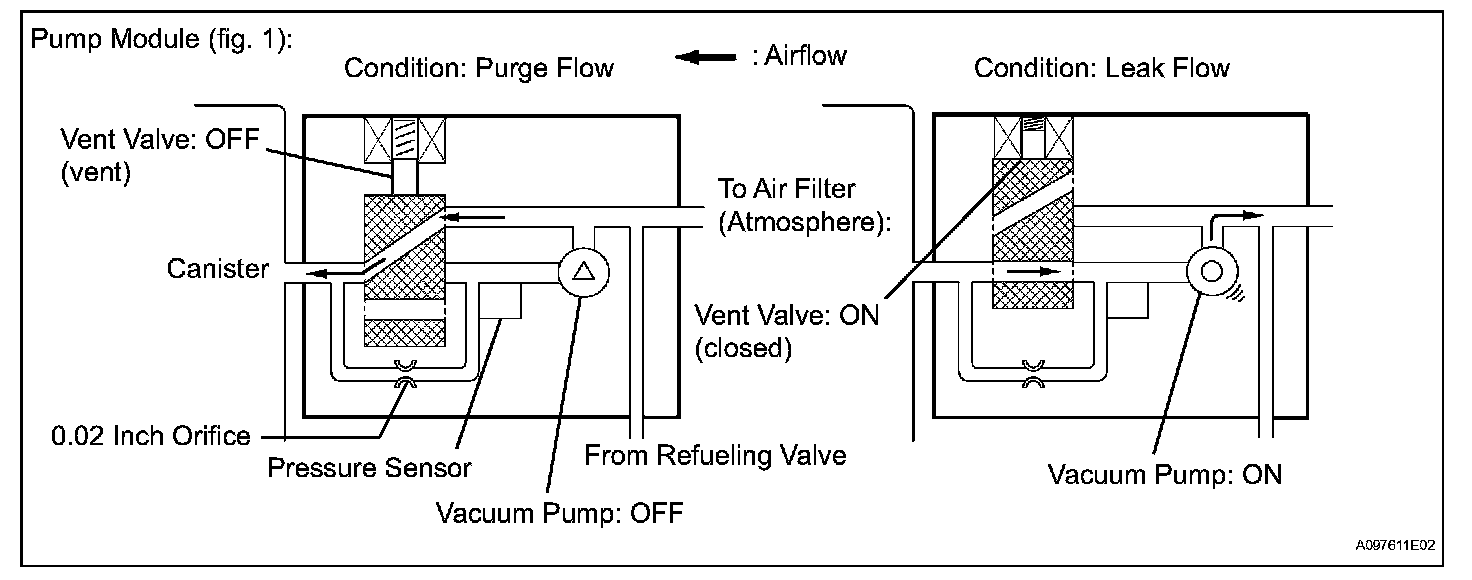

The purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve to ensure that the purge flow is maintained when the negative pressure (vacuum) is applied to the canister. The given two monitors run to confirm appropriate EVAP system operation.
1. Key-off monitor

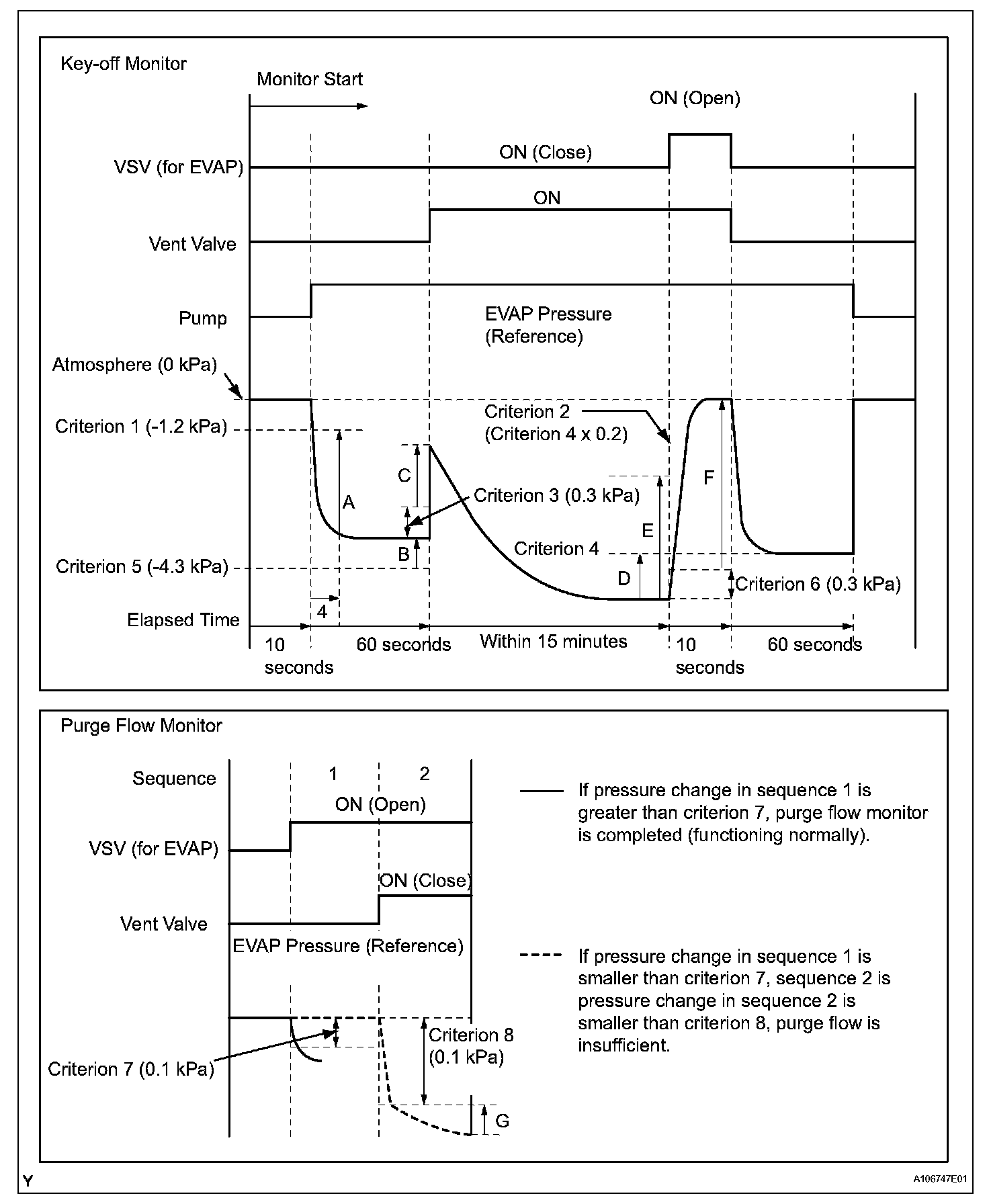

This monitor checks for Evaporative Emission (EVAP) system leaks and pump module malfunctions. The monitor starts 5 hours* after the engine switch is turned off. More than 5 hours are required to allow the fuel to cool down to stabilize the Fuel Tank Pressure (FTP), thus making the EVAP system monitor more accurate.

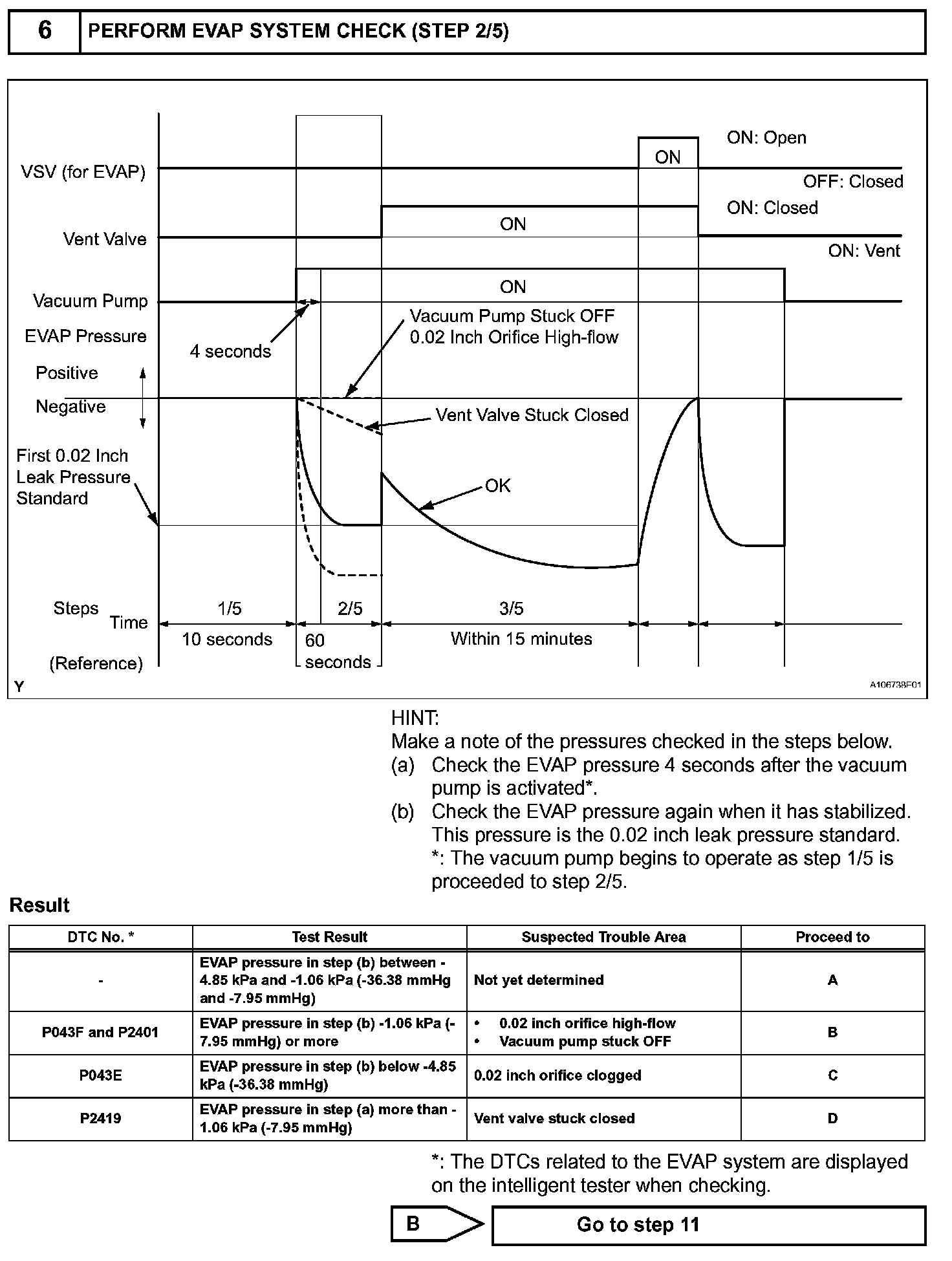

The electric vacuum pump creates negative pressure (vacuum) in the EVAP system and the pressure is measured. Finally, the ECM monitors for leaks from the EVAP system and malfunctions in both the pump module and EVAP VSV, based on the EVAP pressure.
HINT: *If the engine coolant temperature is not below 35 °C 5 hours after the engine switch is turned off, the monitor check starts 2 hours later. If it is still not below 35 °C 7 hours after the engine switch is turned off, the monitor check starts 2.5 hours later.
2. Purge flow monitor
The purge flow monitor consists of the two monitors. The 1st monitor is conducted every time and the 2nd monitor is conducted if necessary.
- The 1st monitor
While the engine is running and the purge Vacuum Switching Valve (VSV) is ON (open), the ECM monitors the purge flow by measuring the EVAP pressure change.
If negative pressure is not created, the ECM begins the 2nd monitor.
- The 2nd monitor
The vent valve turned OFF (open) and the EVAP pressure is then measured. If the variation in the pressure is less than 0.5 kPa (3.75 mmHg), the ECM interprets this as the EVAP VSV being stuck closed, and illuminates the MIL and sets DTC P0441 (2 trip detection logic).

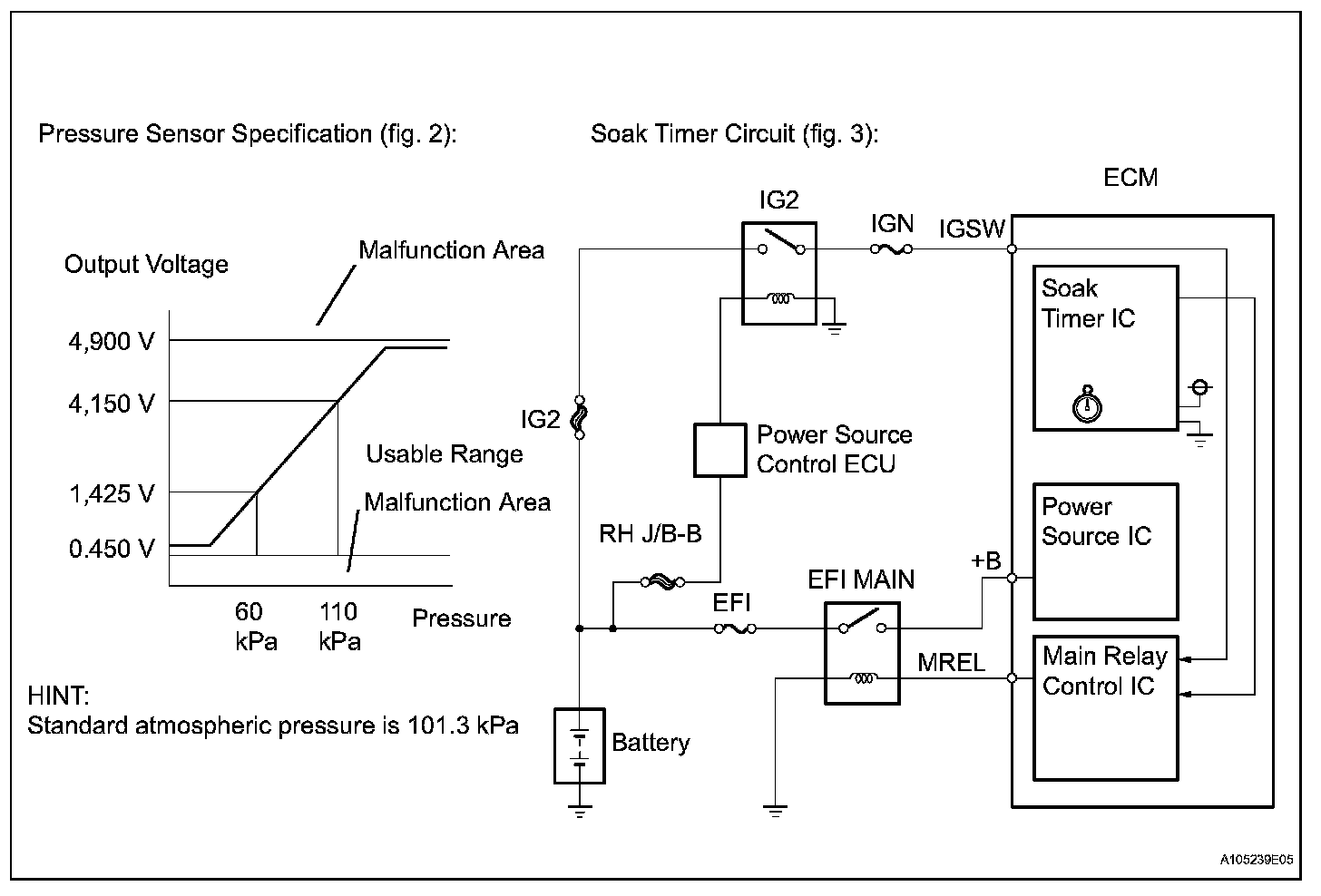

Atmospheric pressure check: In order to ensure reliable malfunction detection, the variation between the atmospheric pressures, before and after conduction of the purge flow monitor, is measured by the ECM.

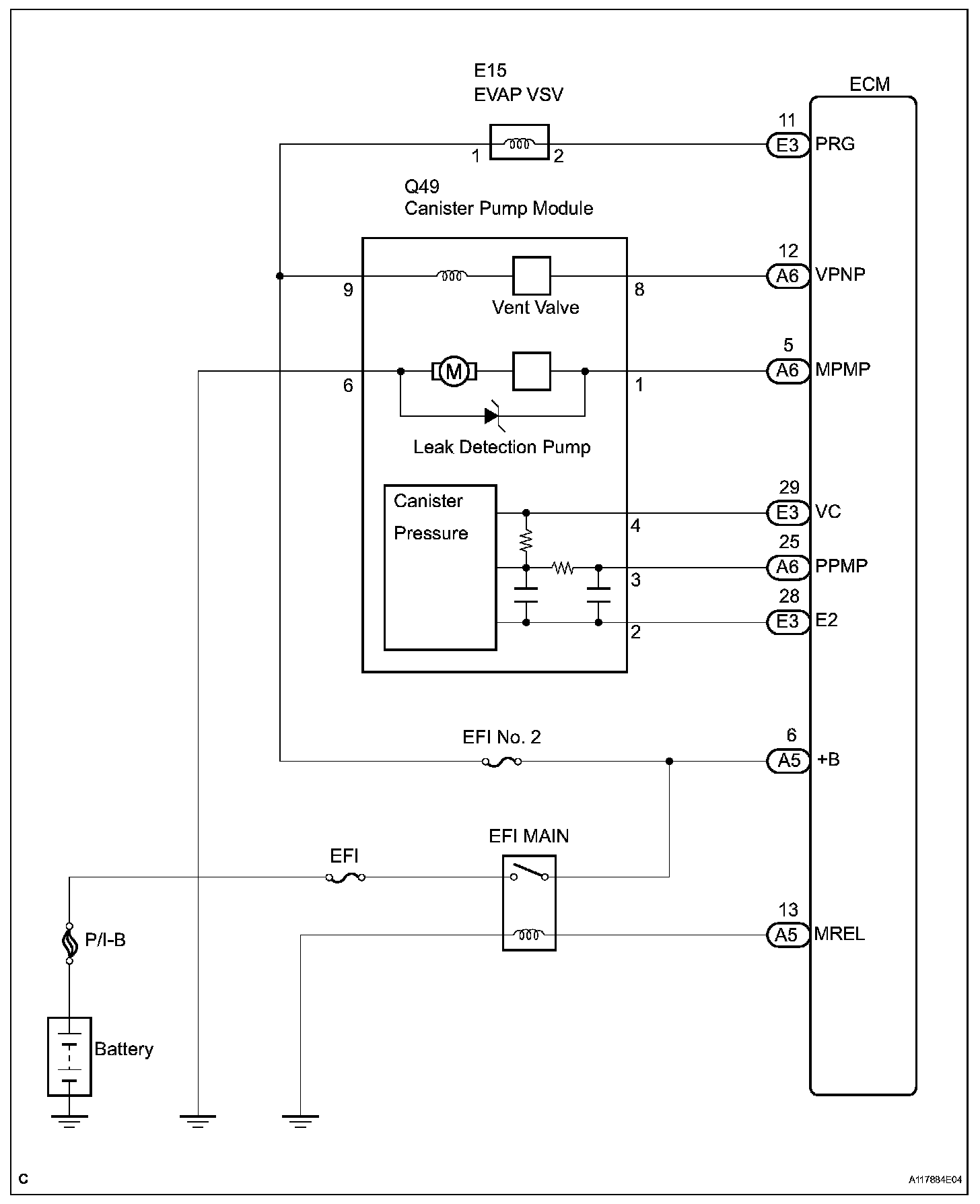

Wiring Diagram:

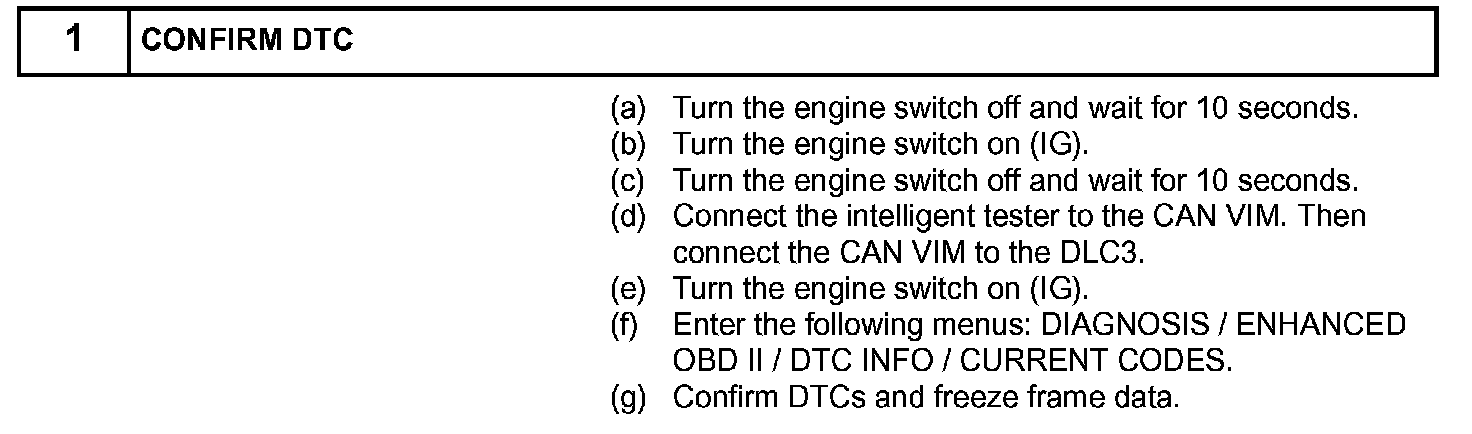

Step 1:
Step 1(Continued)-2:
Step 2(Continued):

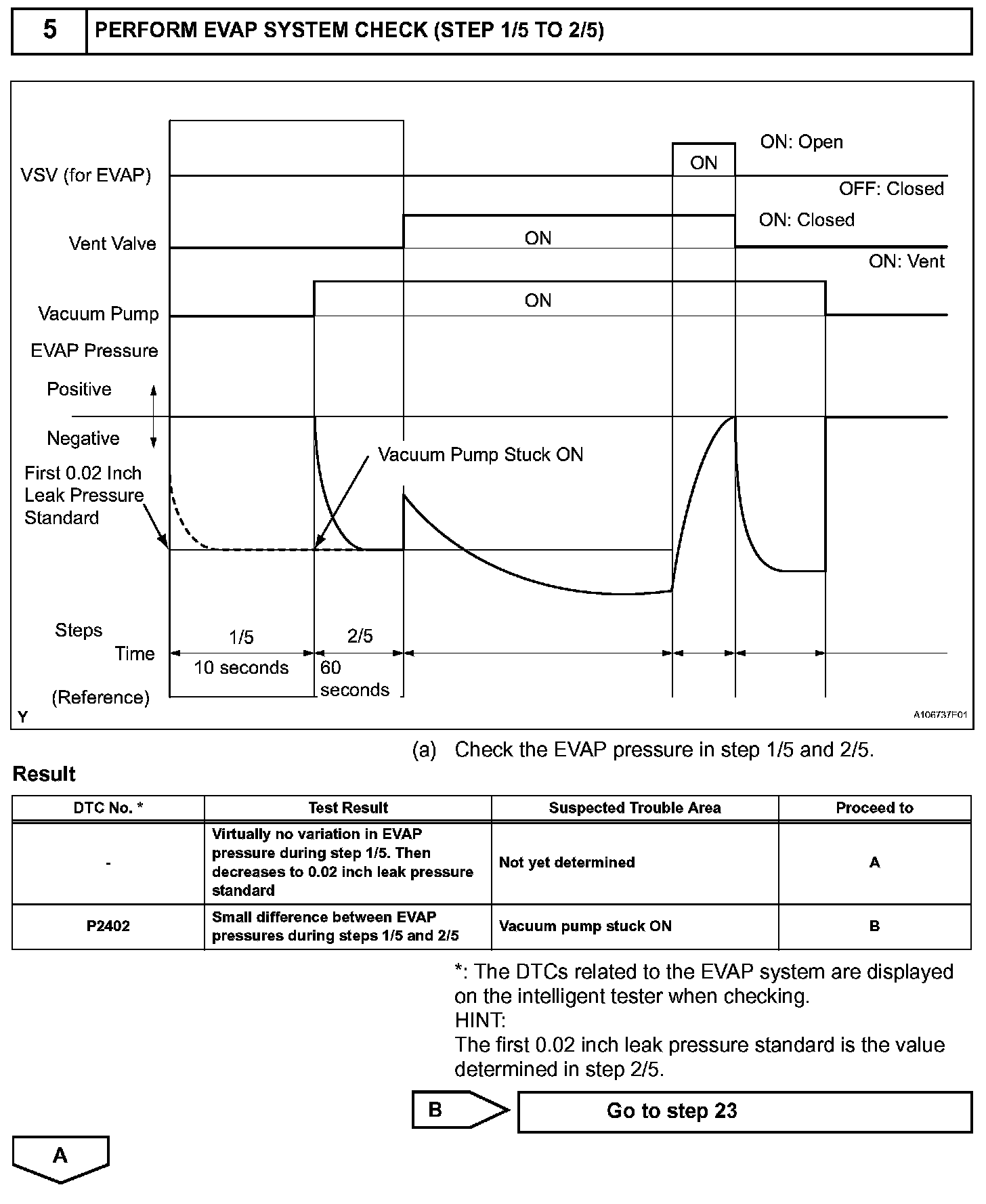

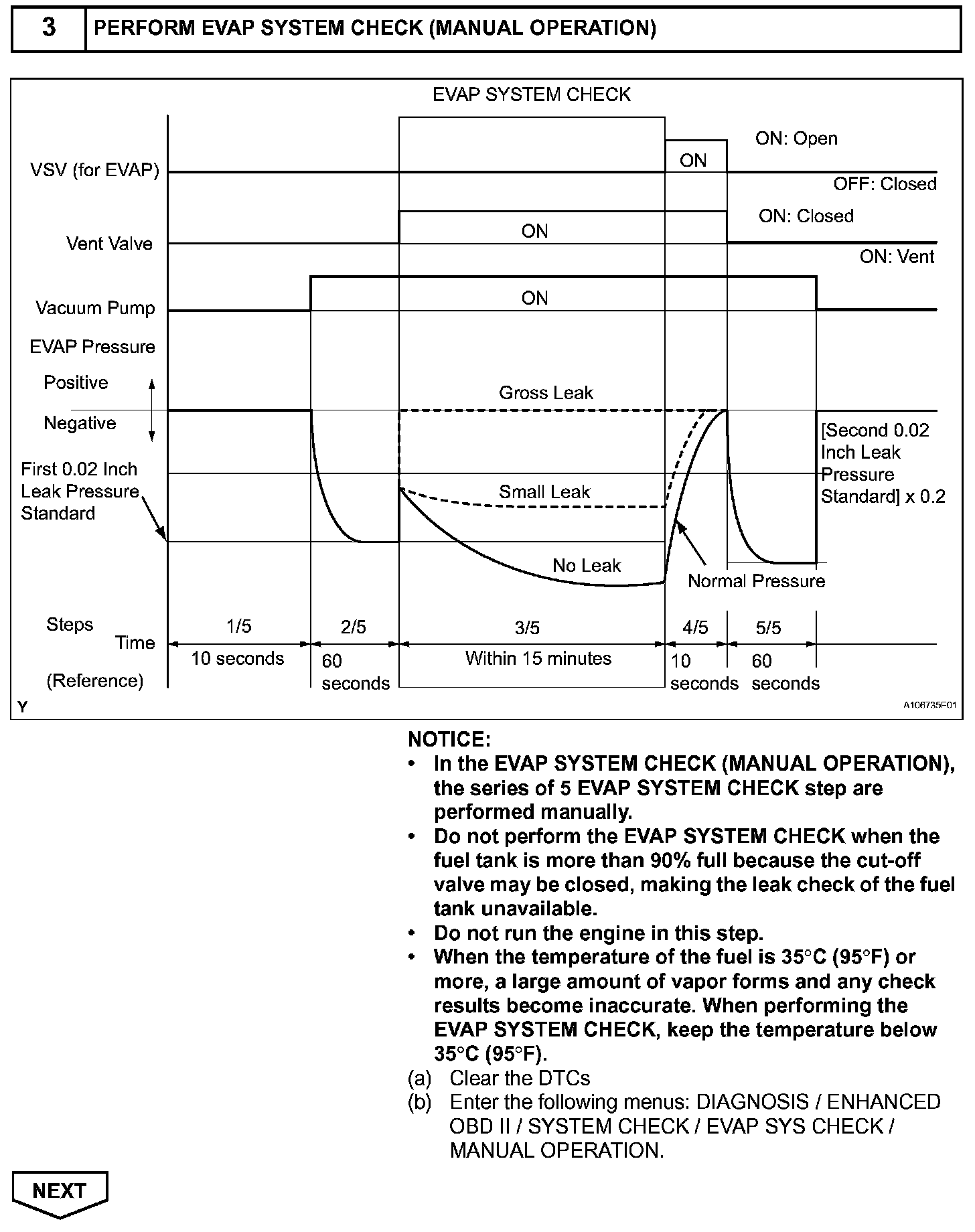

Step 3:

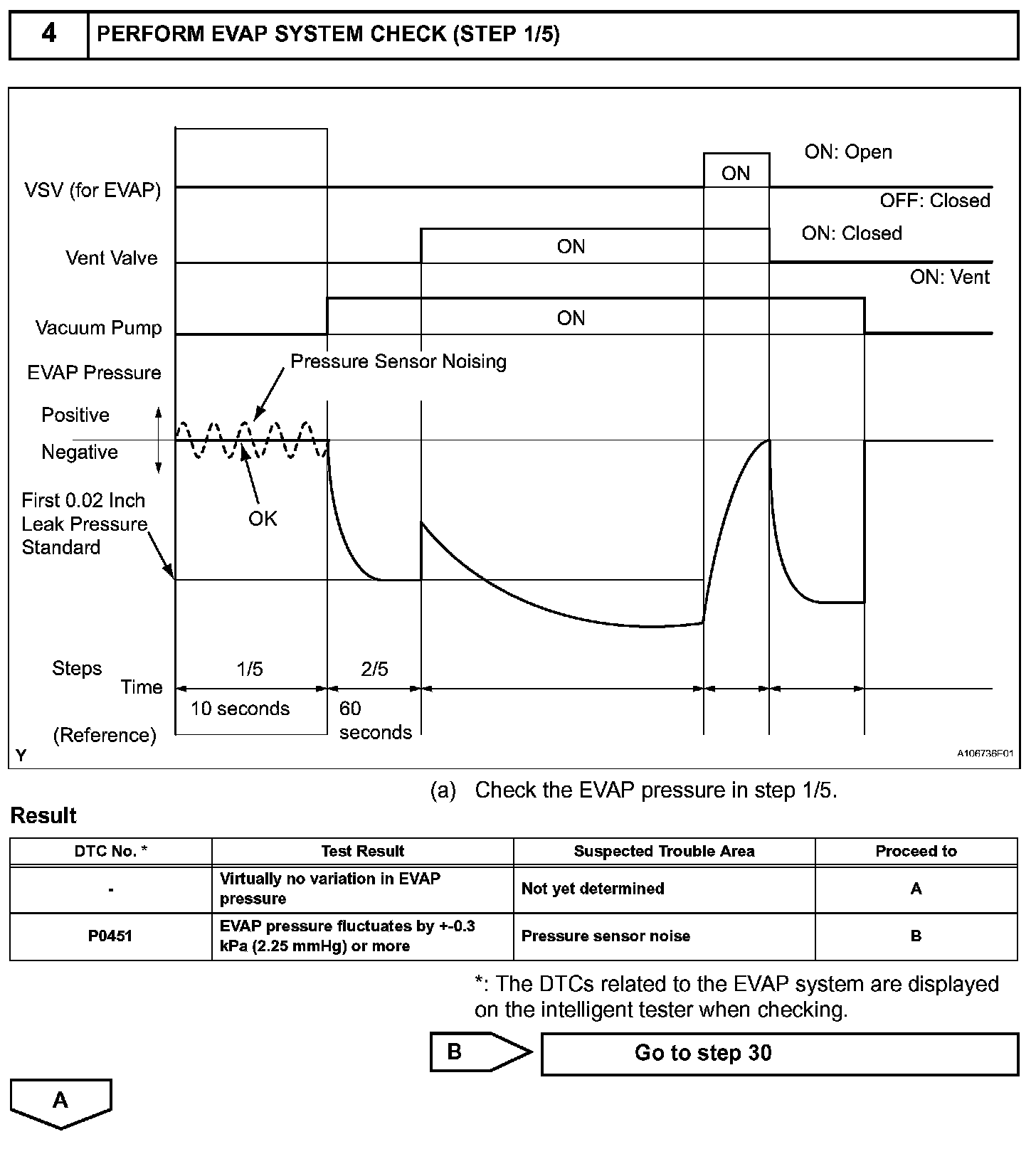

Step 4:
Step 5:
Step 6:

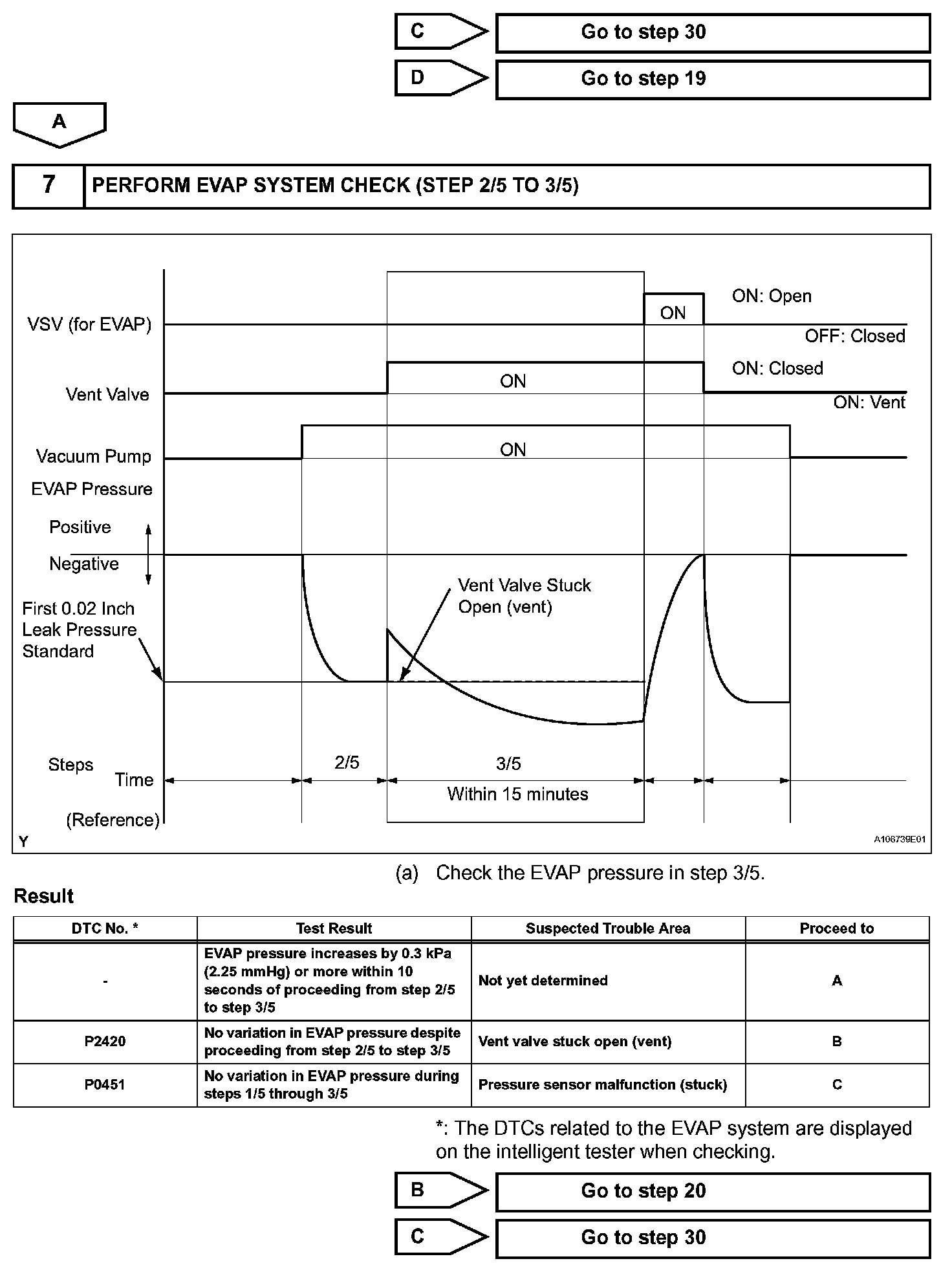

Step 6(Continued)-7:

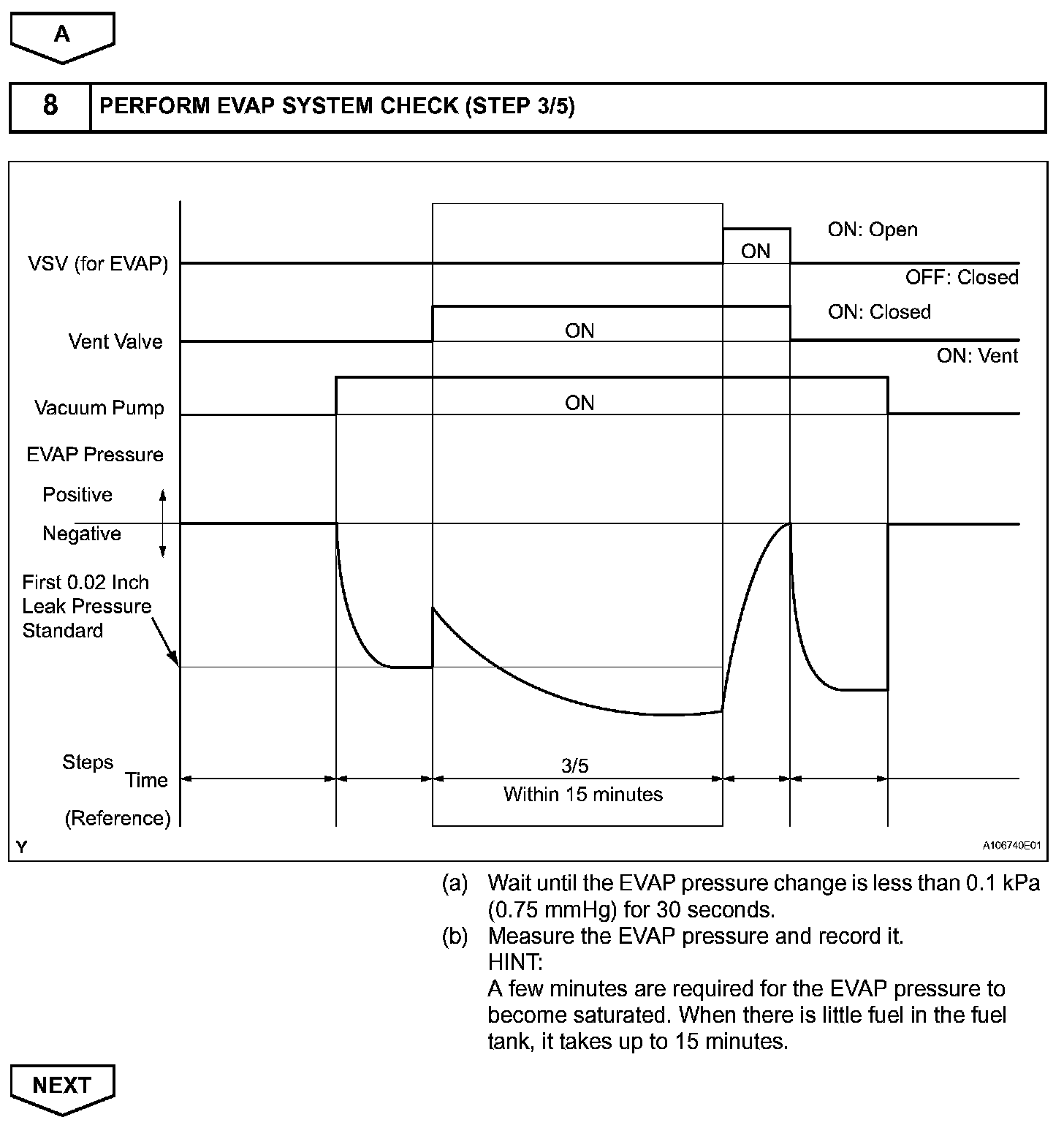

Step 7(Continued)-8:

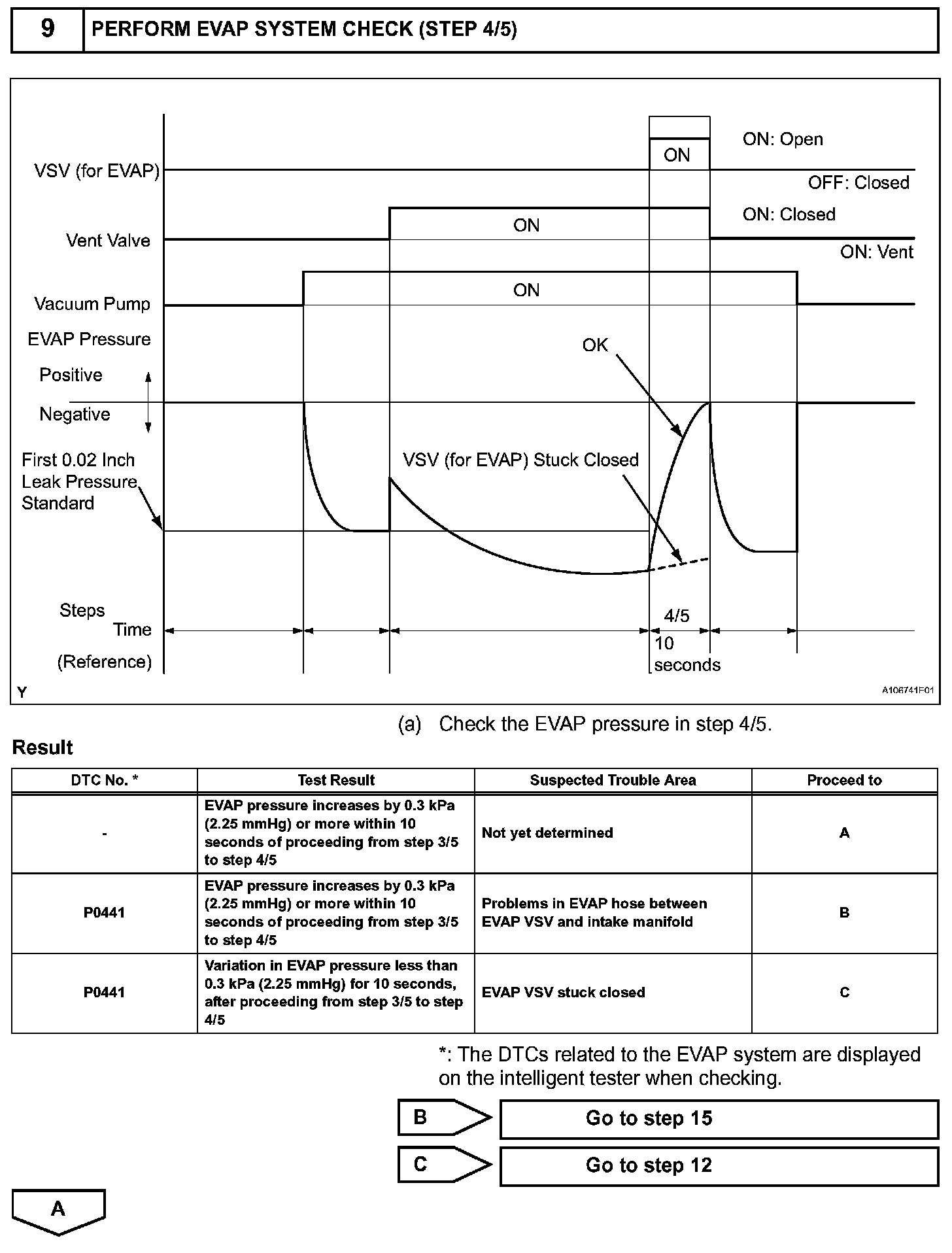

Step 9:

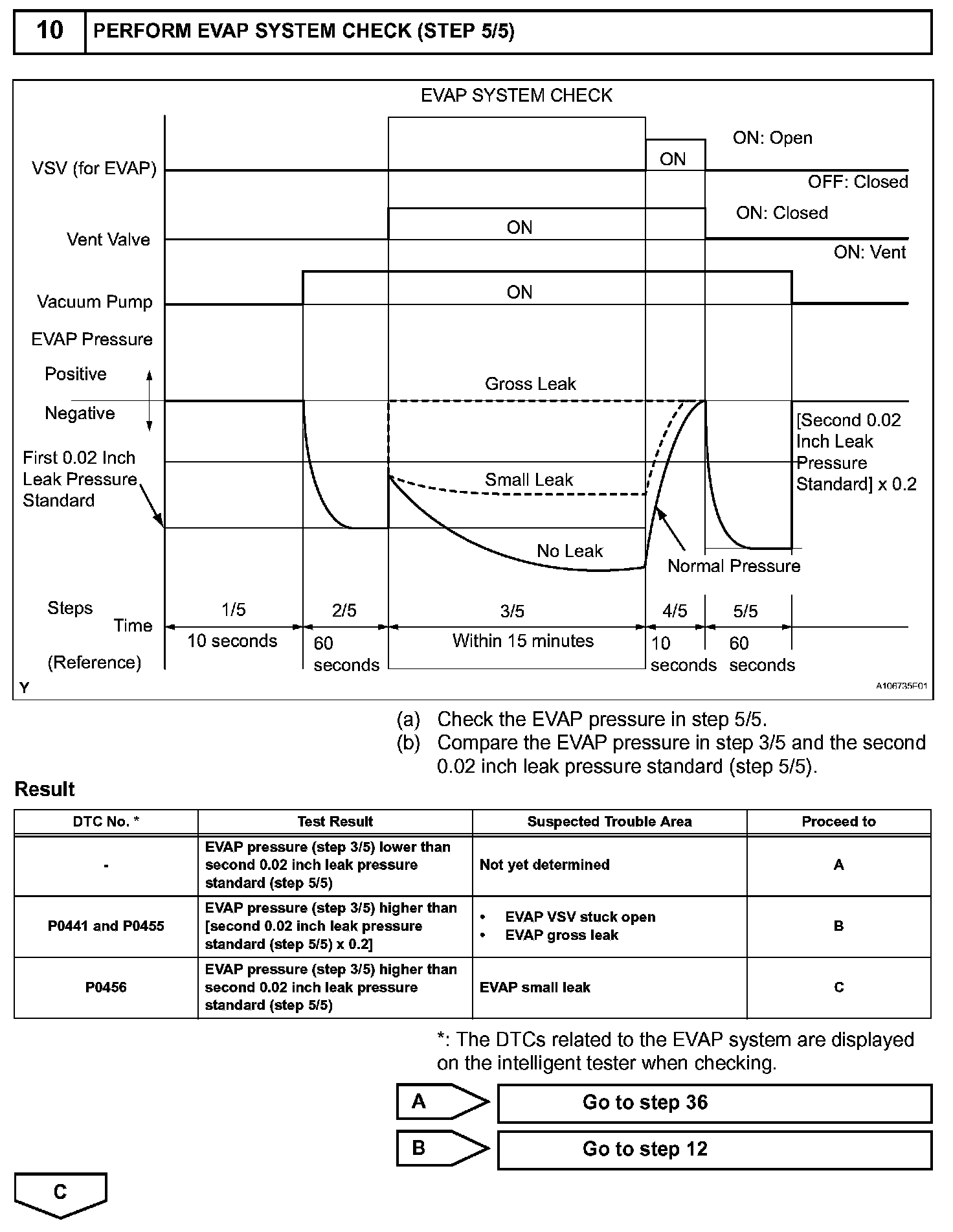

Step 10:

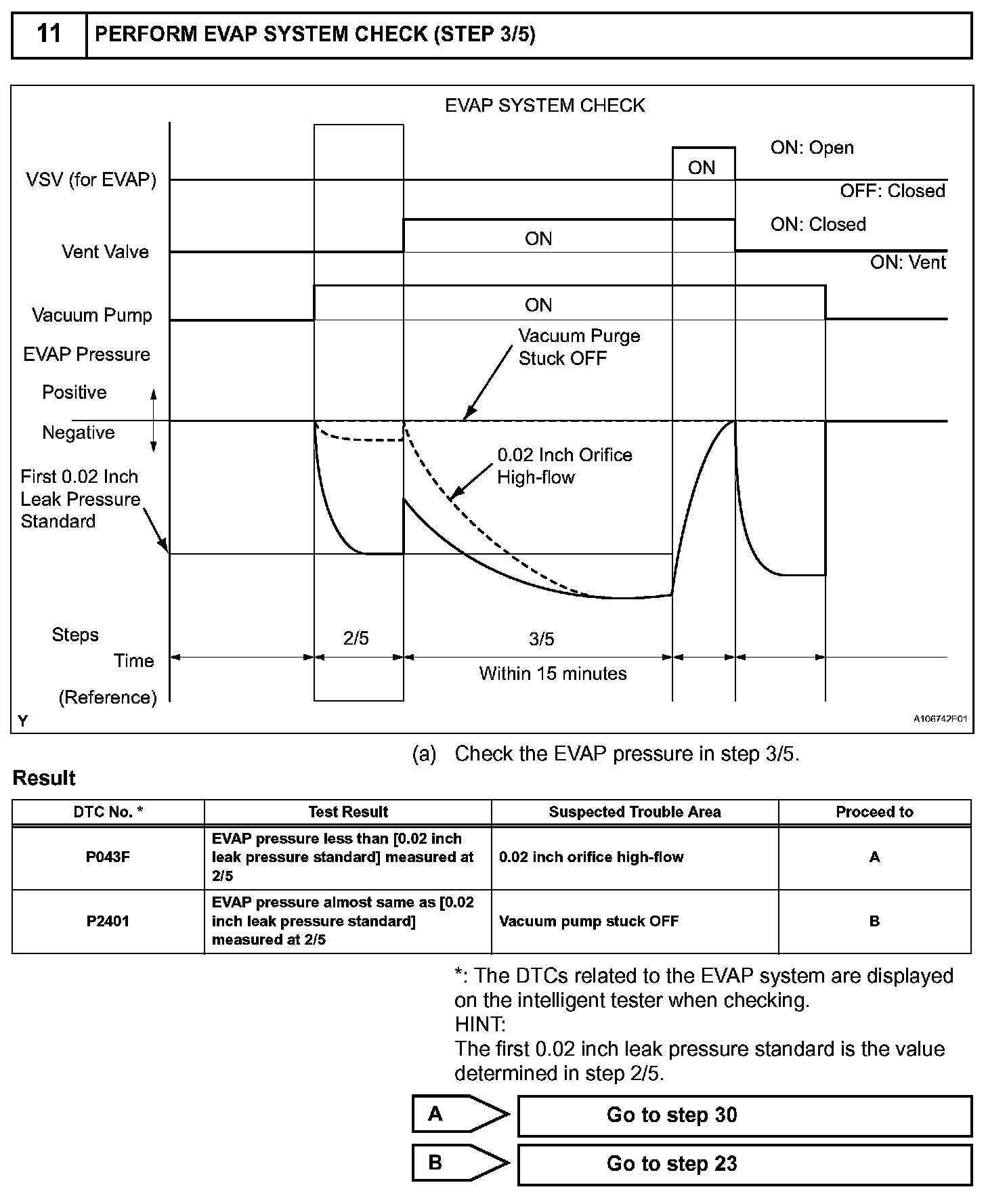

Step 11:

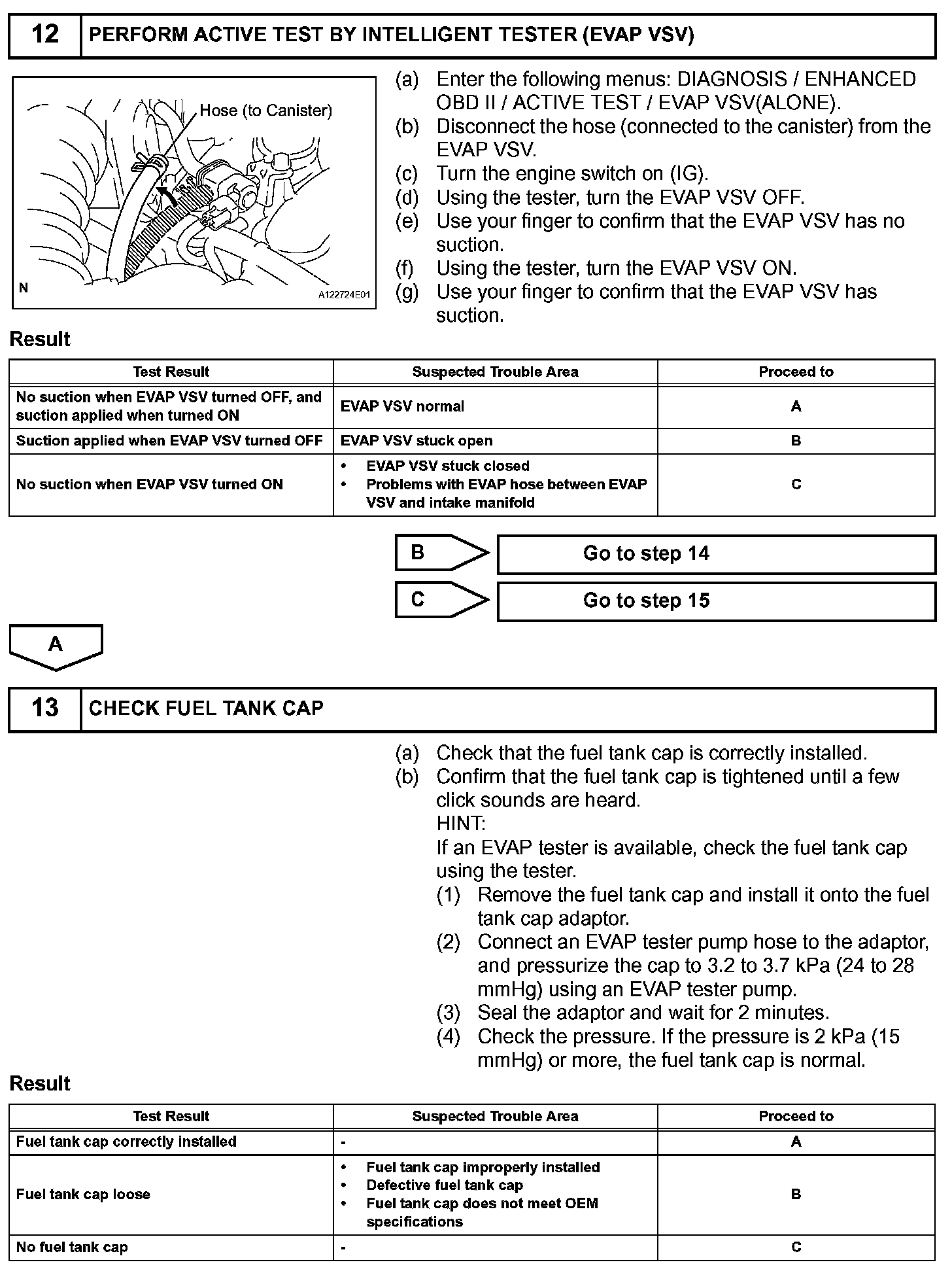

Step 12-13:

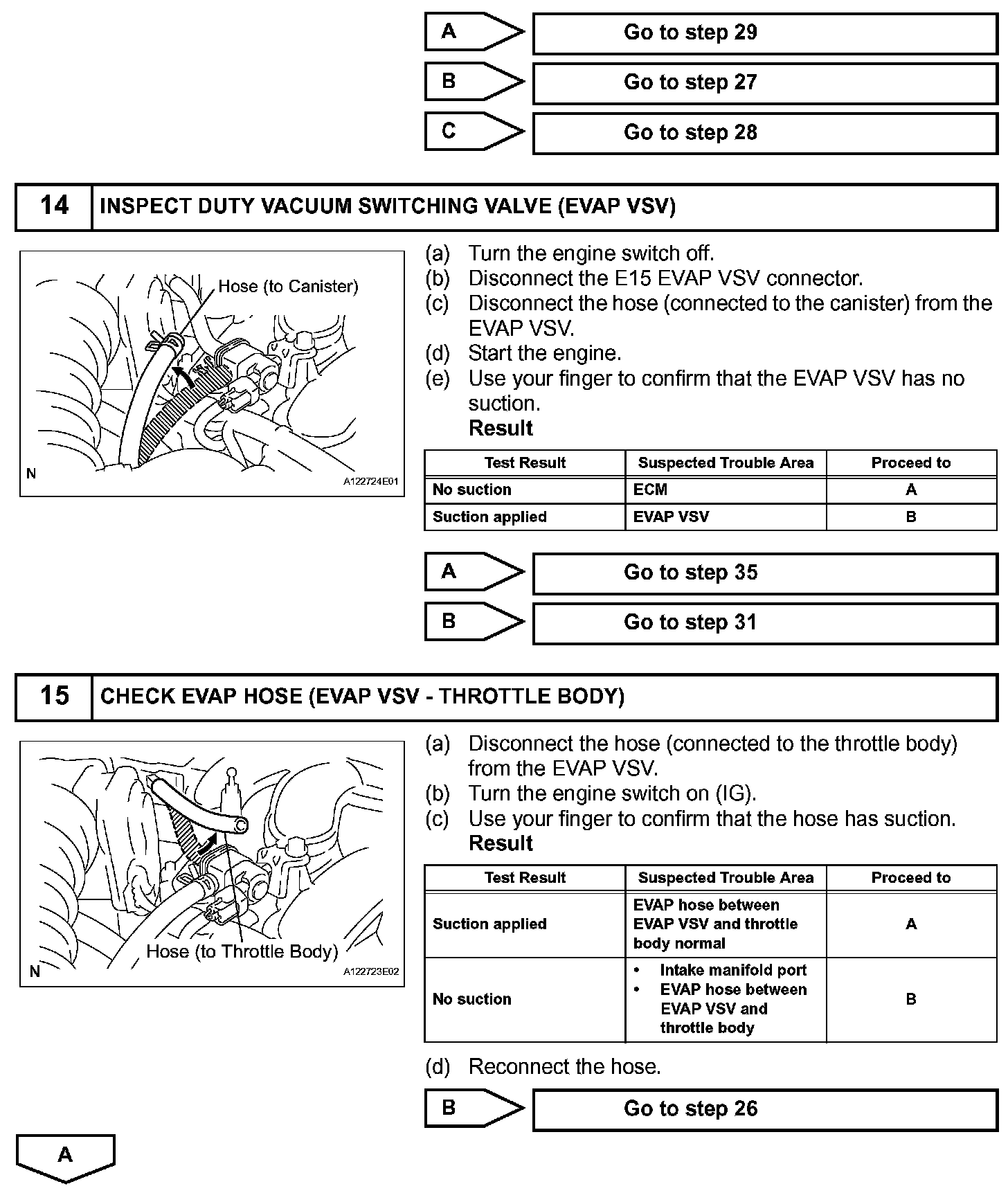

Step 13(Continued)-15:

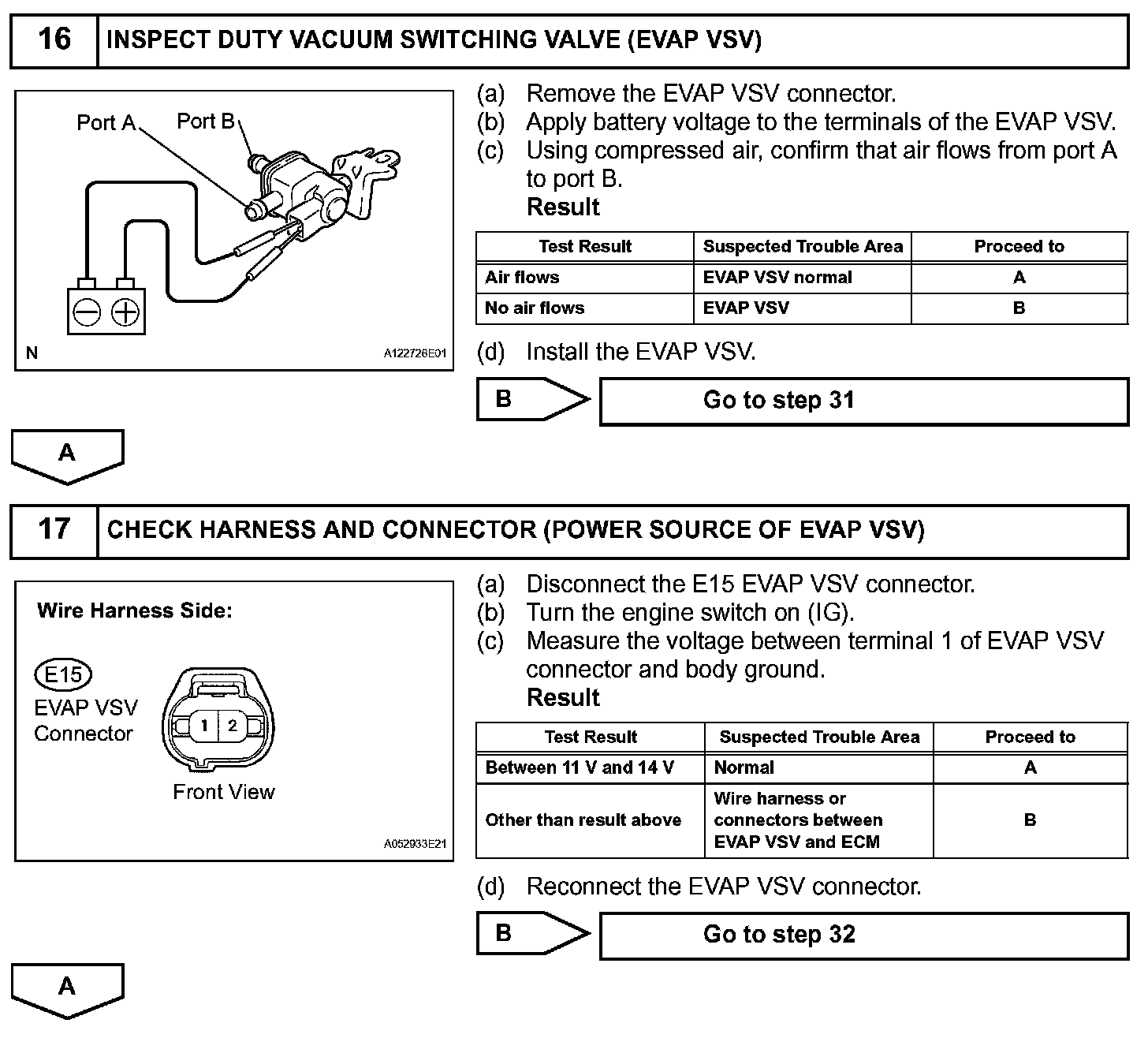

Step 16-17:

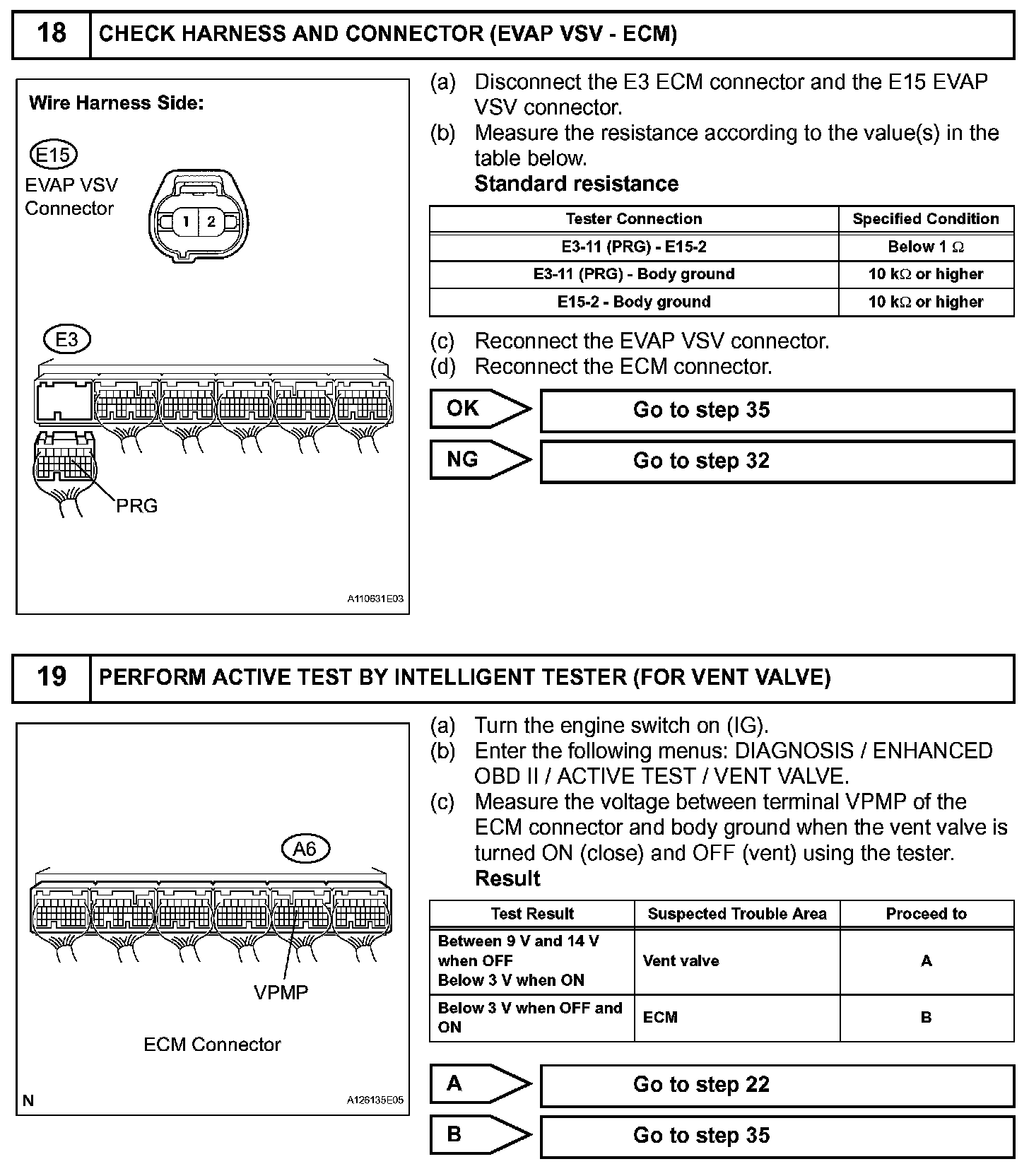

Step 18-19:

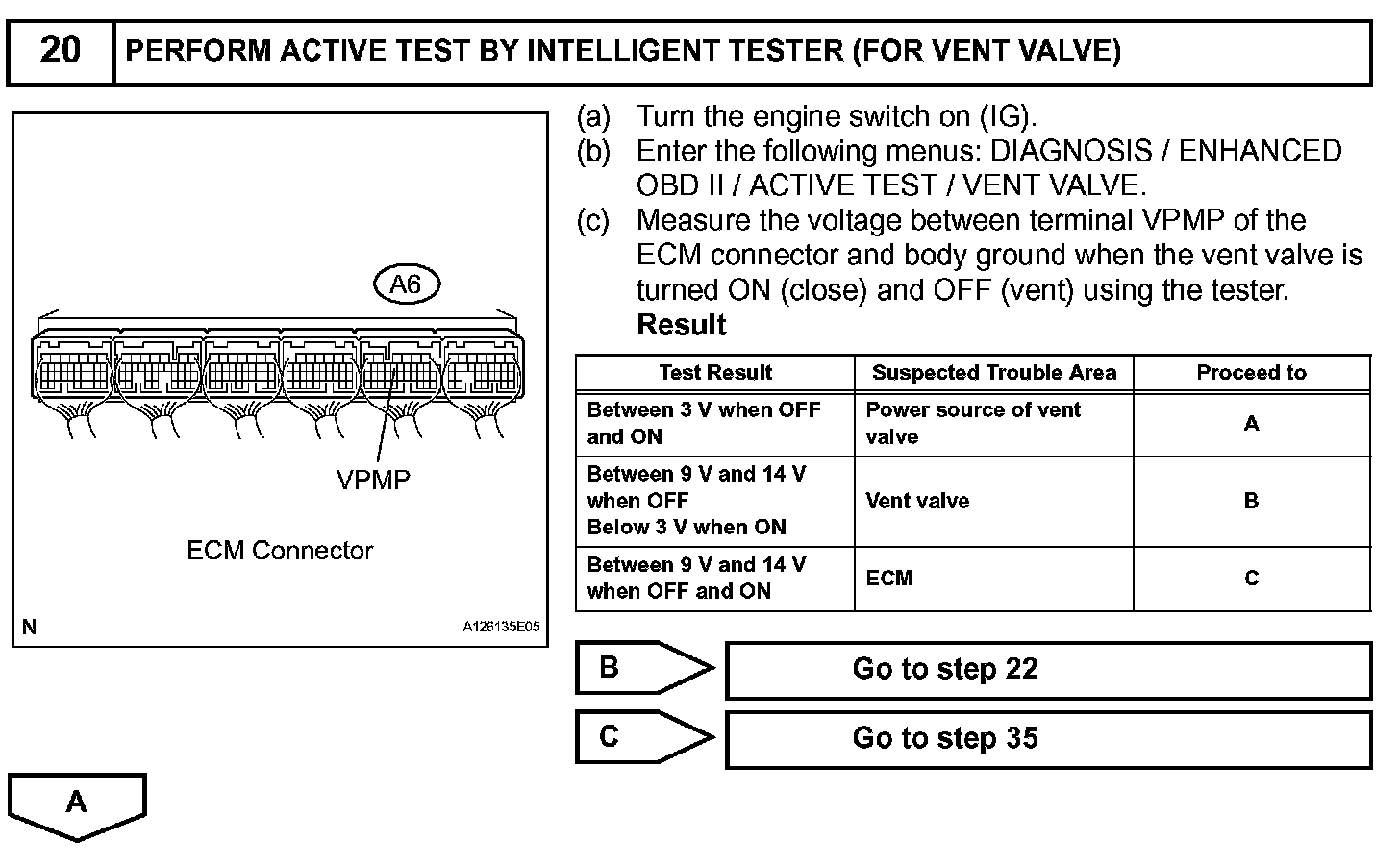

Step 20:

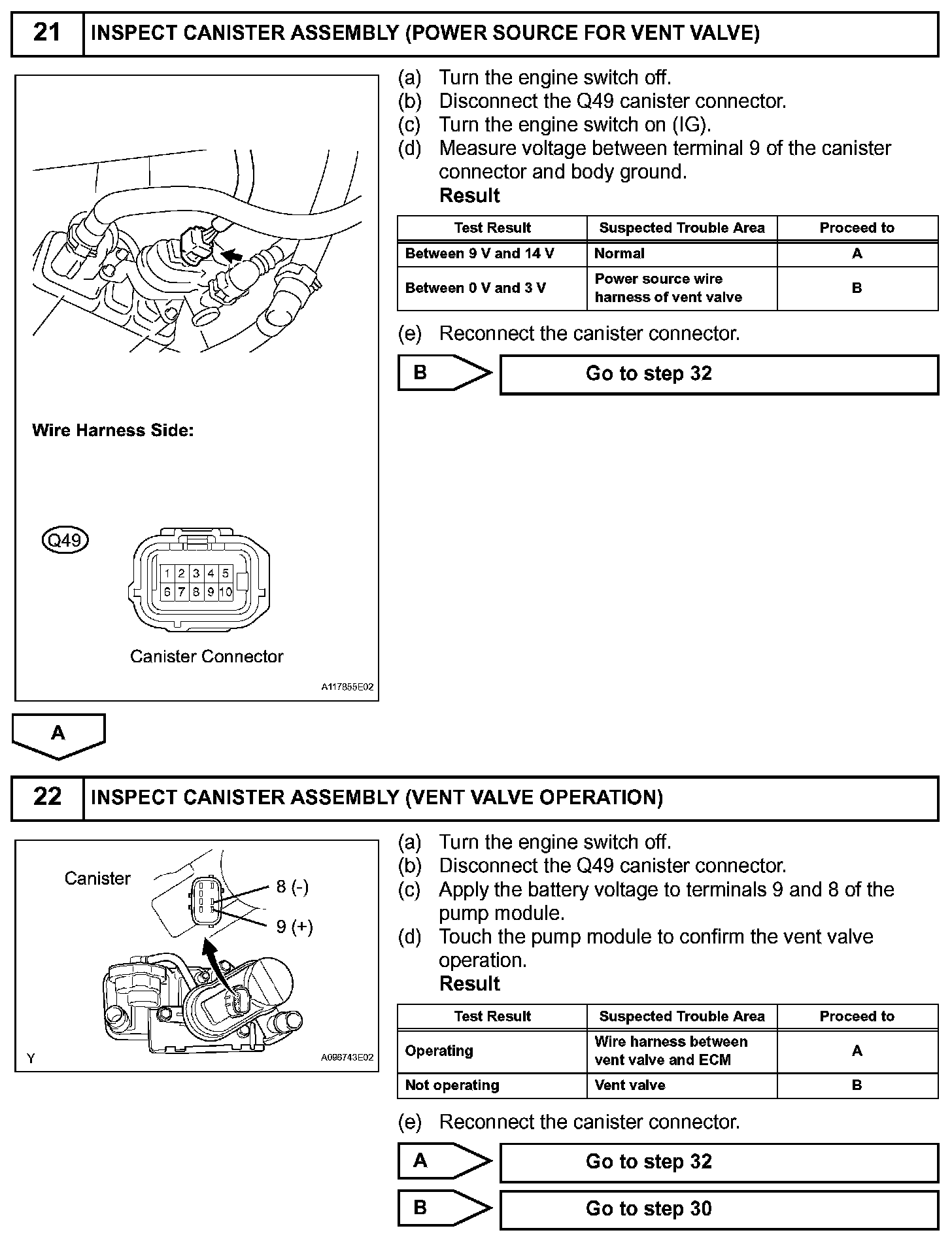

Step 21-22:

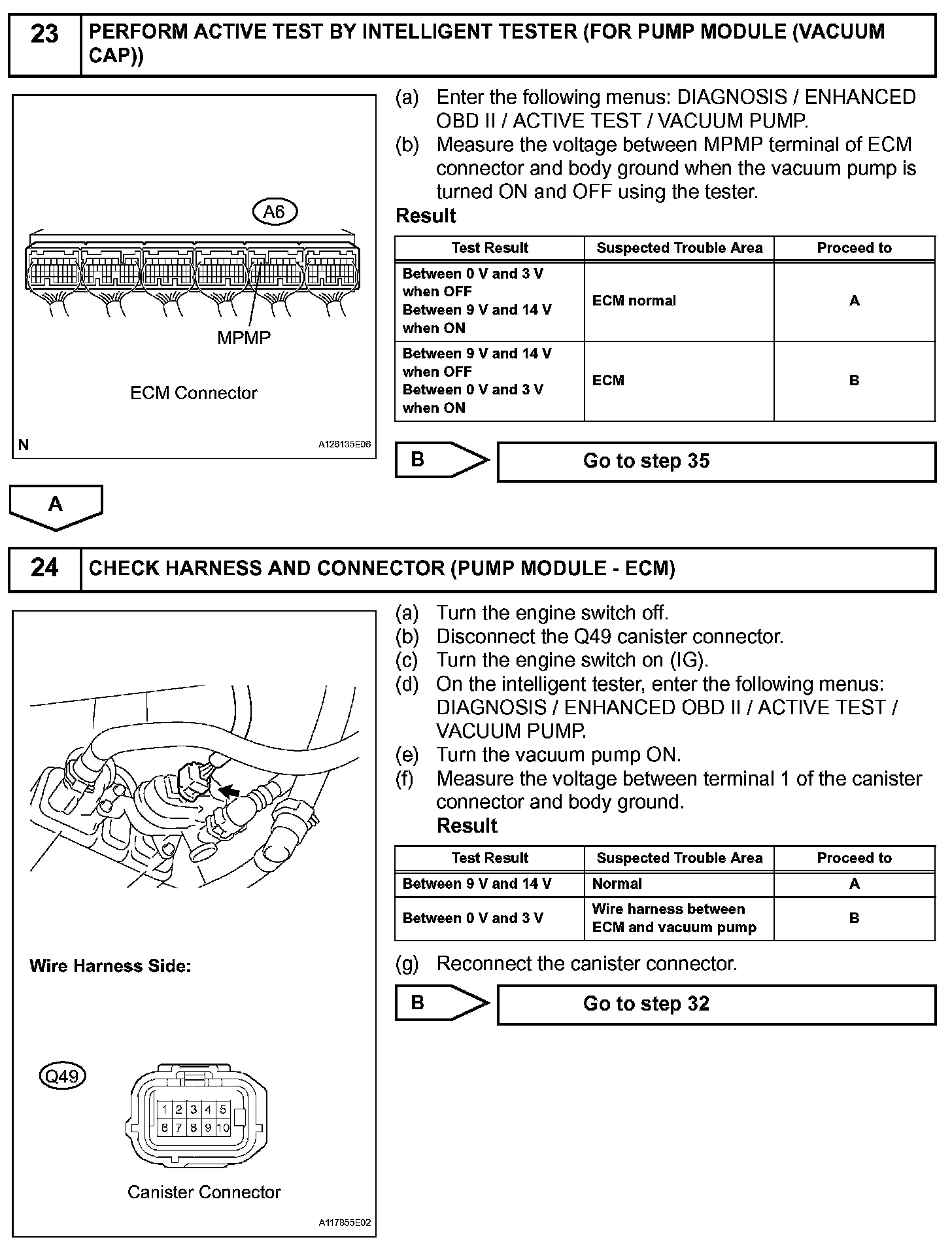

Step 23-24:

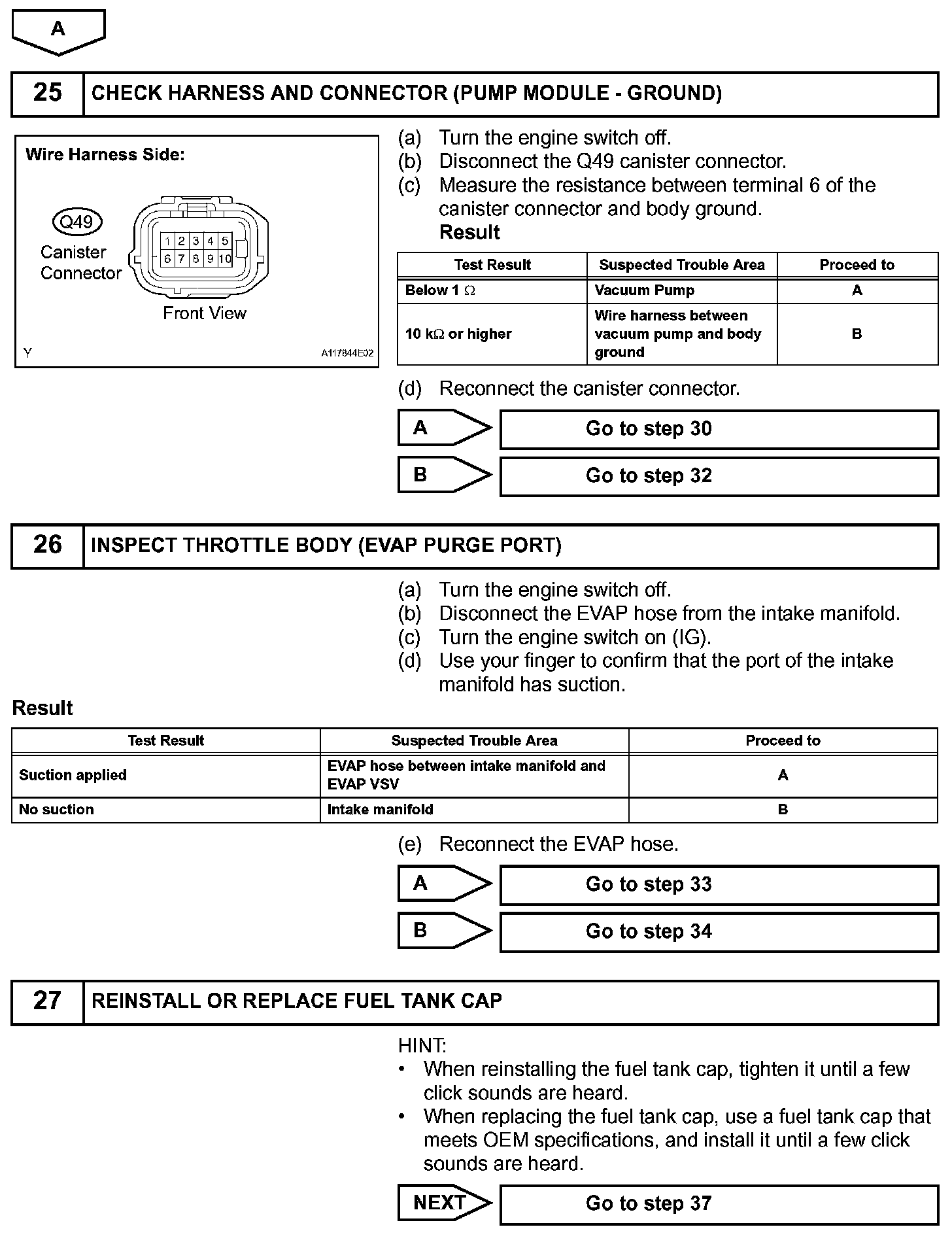

Step 24(Continued)-27:

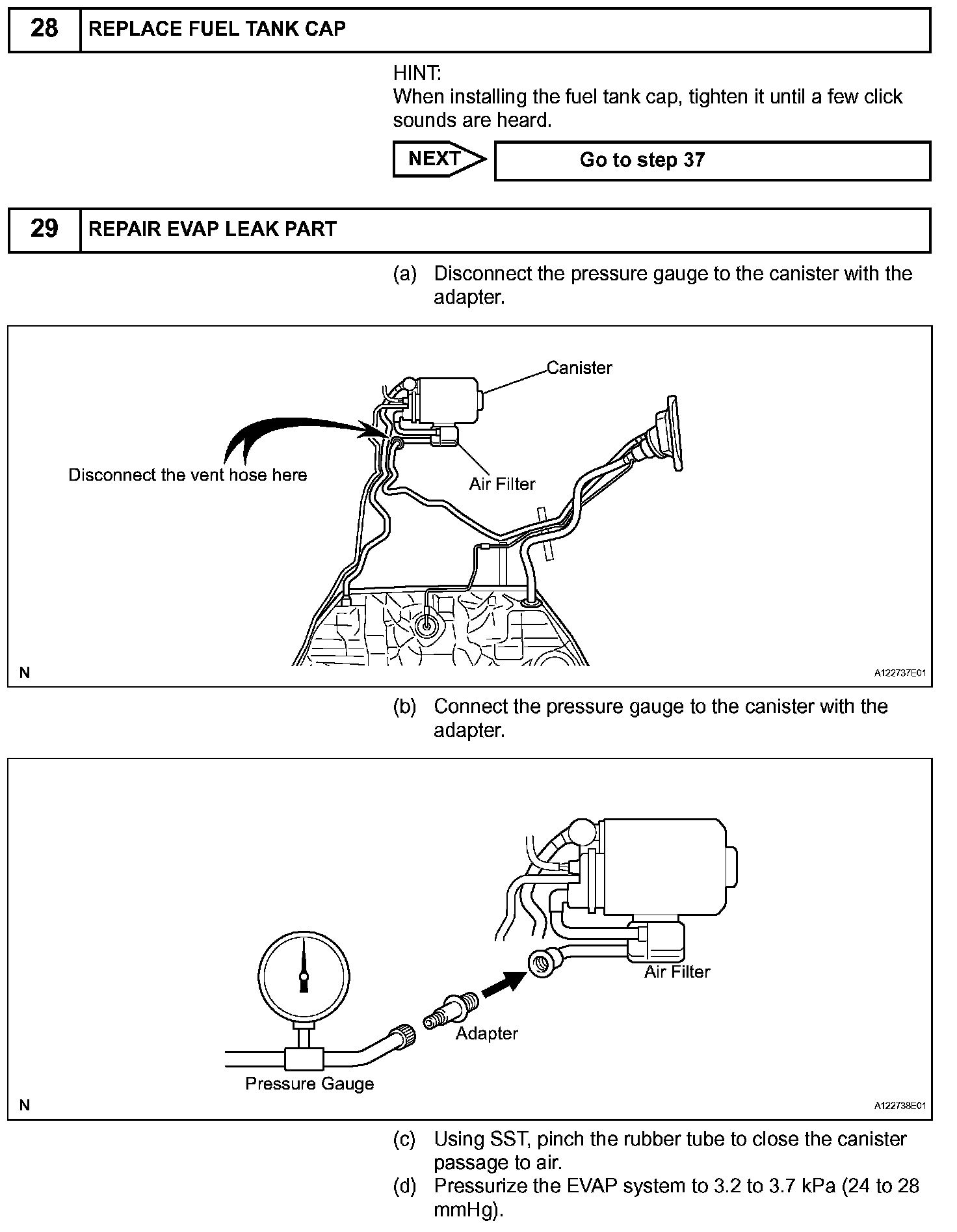

Step 28-29:

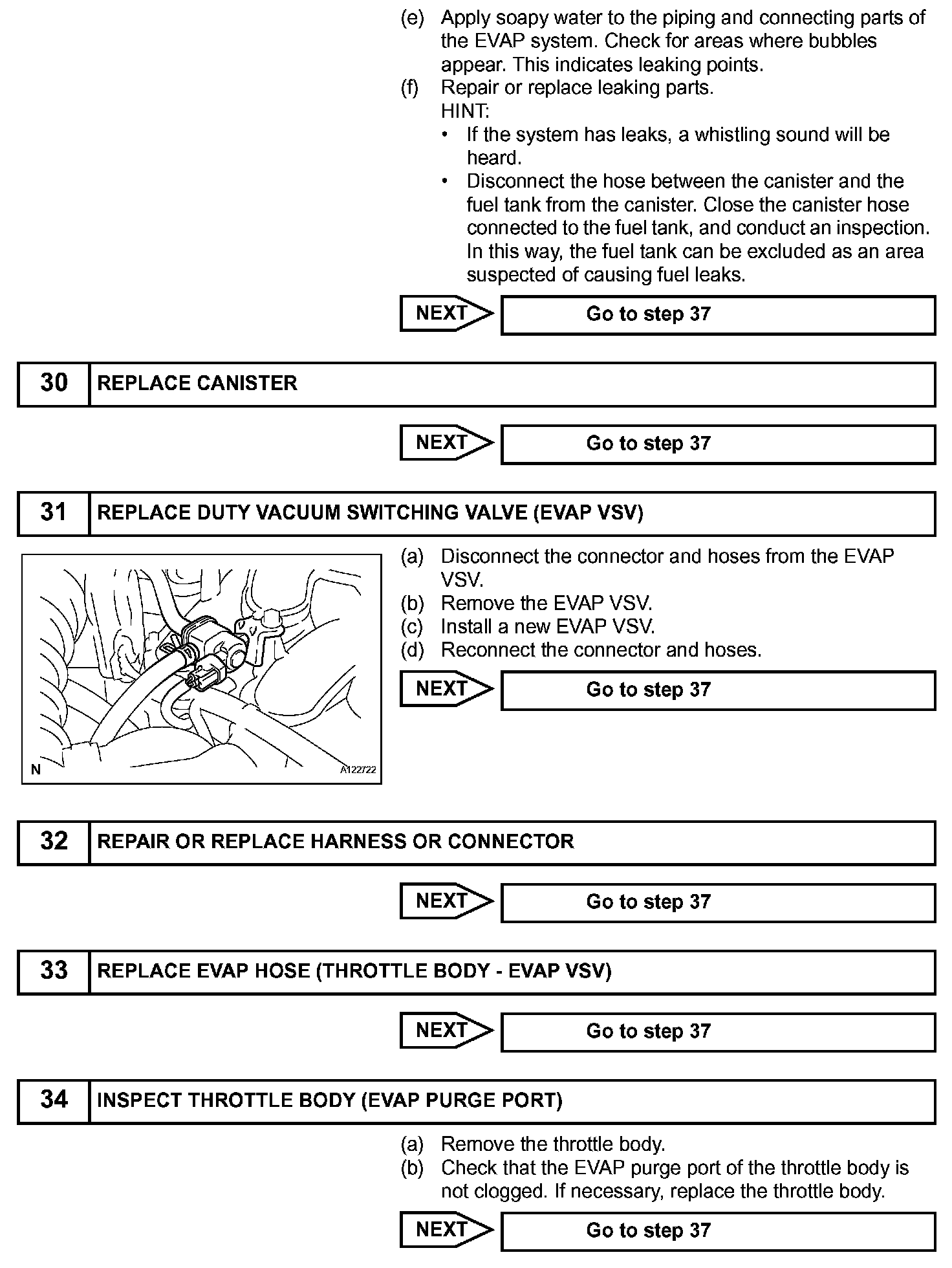

Step 29(Continued)-34:

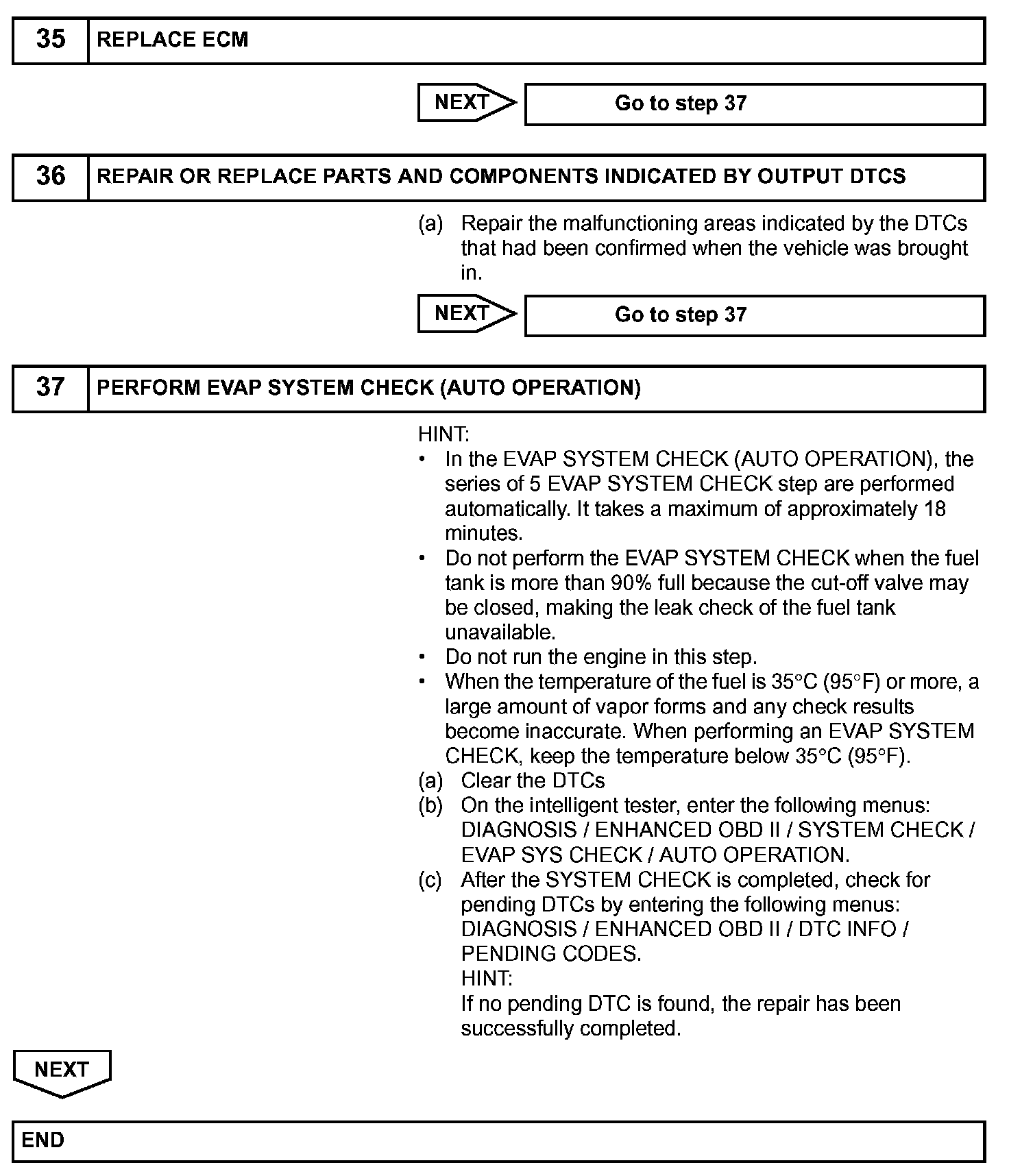

Step 35-37:
INSPECTION PROCEDURE

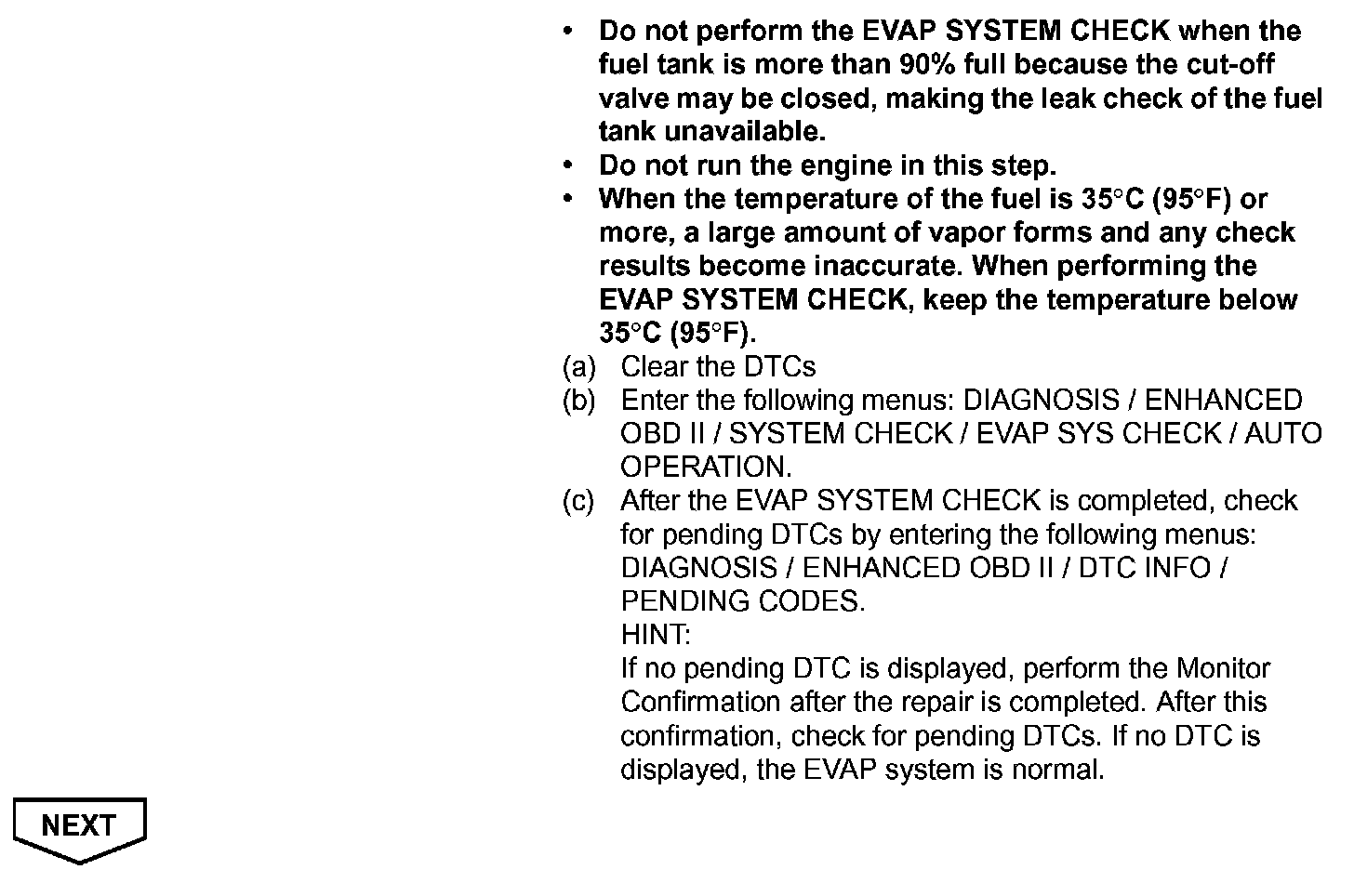

NOTE: The intelligent tester is required to conduct the given diagnostic troubleshooting procedure.
HINT:
- Using the intelligent tester monitor results enable the EVAP system to be confirmed.
- Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
CONFIRMATION DRIVING PATTERN
HINT: After a repair, check Monitor Status by performing the key-off monitor confirmation and purge flow monitor confirmation described below.
1. Key-off monitor confirmation
a. Preconditions The monitor will not run unless:
1. The vehicle has been driven for 10 minutes or more (in a city area or on a free way)
2. The fuel tank is less than 90% full
3. The altitude is less than 8,000 ft (2,400 m)
4. The Engine Coolant Temperature (ECT) is between 4.4 °C and 35 °C (40 °F and 95 °F)
5. The Intake Air Temperature (IAT) is between 4.4 °C and 35 °C (40 °F and 95 °F)
6. The vehicle remains stationary (the vehicle speed is 0 km/h [0 mph])
b. Monitor Conditions
1. Allow the engine to idle for at least 5 minutes.
2. Turn the engine switch off and wait for 6 hours (8 or 10.5 hours).
HINT: Do not turn the engine switch on (IG) until checking MONITOR STATUS. If the engine is started, the steps described must be repeated.
c. Monitor Status
1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
2. Turn the engine switch on (IG).
3. Enter the given menus: DIAGNOSIS / ENHANCED OBD II / MONITOR STATUS.
4. Check the Monitor Status displayed on the tester.
HINT: If INCMP is displayed, the monitor is not completed. Make sure that the preconditions have been met, and perform the Monitor Conditions again.
2. Purge flow monitor confirmation (P0441)
HINT: Perform this monitor confirmation after the key-off monitor confirmation shows COMPL (complete).
a. Preconditions The monitor will not run unless:
1. The vehicle has been driven for 10 minutes or more (in a city area or on a free way)
2. The ECT is between 4.4 °C and 35 °C (40 °F and 95 °F)
3. The IAT is between 4.4 °C to 35 °C (40 °F to 95 °F)
b. Monitor Conditions
1. Release the pressure from the fuel tank by removing and reinstalling the fuel tank cap.
2. Warm the engine up until the ECT reaches more than 75 °C (167 °F).
3. Increase the engine speed to 3,000 rpm once.
4. Allow the engine to idle and turn the A/C ON for 1 minute.
c. Monitor Status
1. Turn the engine switch off (where on (IG) or the engine is running).
2. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
3. Turn the engine switch on (IG).
4. Enter the given menus: DIAGNOSIS / ENHANCED OBD II / MONITOR STATUS.
5. Check the Monitor Status displayed on the tester.
HINT: If INCMP is displayed, the monitor is not completed. Make sure that the preconditions have been met, and perform the Monitor Conditions again.
MONITOR RESULT
Refer to CHECKING MONITOR STATUS. Mode 6 Data
The test value and test limit information are described as shown in the given table. This information is included under MONITOR RESULT in the emissions-related DTC sections:

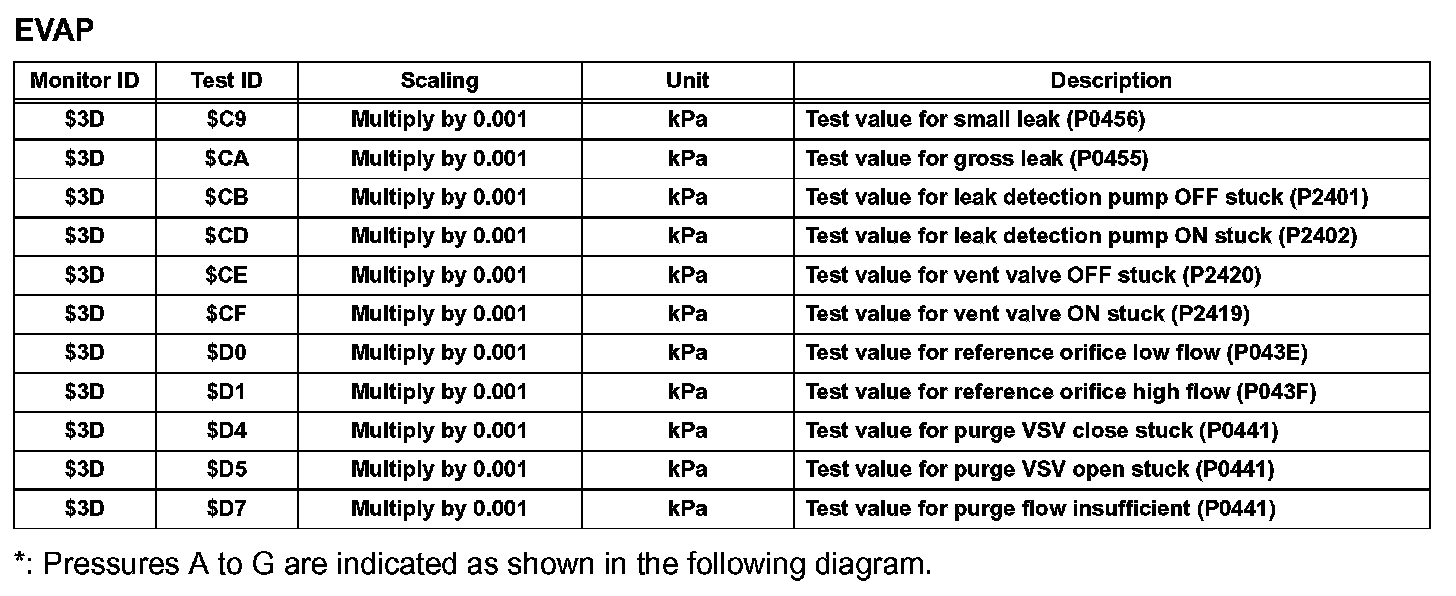

- Monitor Identification Data (MID) is assigned to each emissions-related component.
- Test Identification Data (TID) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.
