Variable Valve Timing Actuator Position Sensor: Service and Repair
REMOVAL1. REMOVE V-BANK COVER SUB-ASSEMBLY

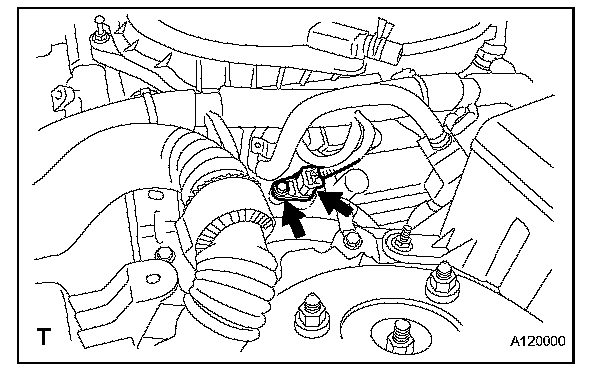

2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.

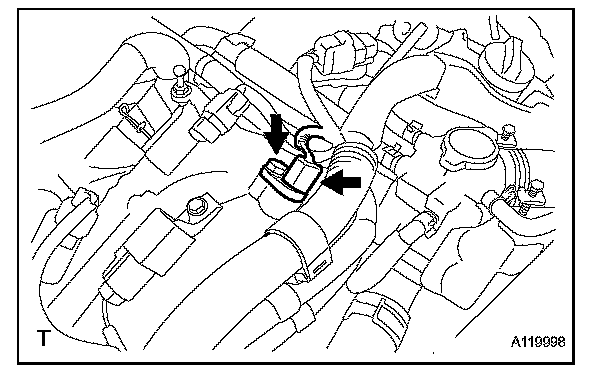

3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.

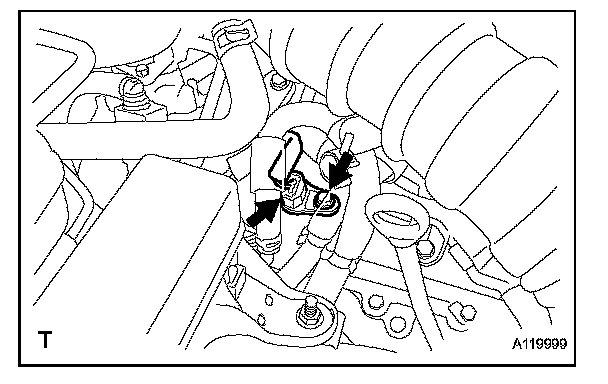

4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.

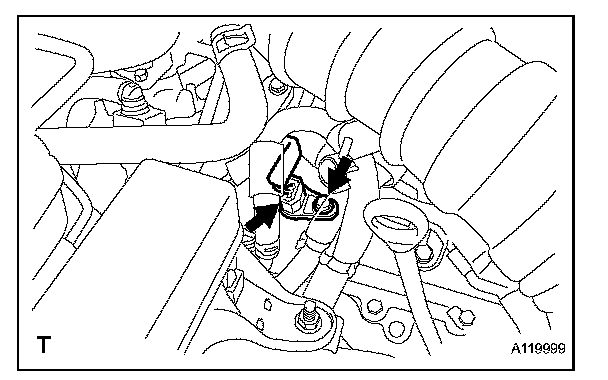

5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.
INSTALLATION

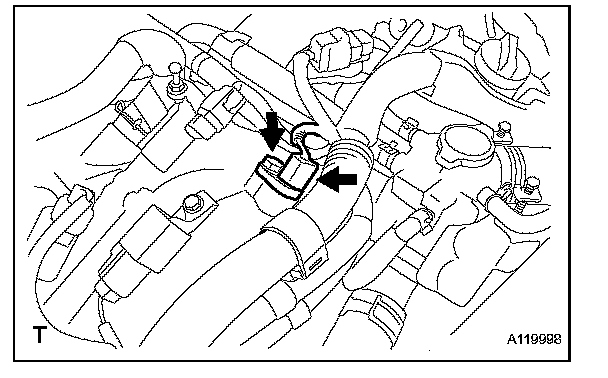

1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2)
a. Install the sensor with the bolt.
Torque:10 N.m (102 kgf.cm,7 ft.lbf)
b. Connect the sensor connector.

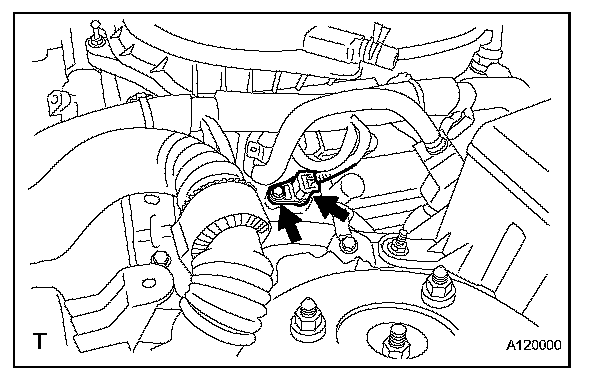

2. INSTALL VVT SENSOR (for Intake Side of Bank 2)
a. Install the sensor with the bolt.
Torque:10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the sensor connector.

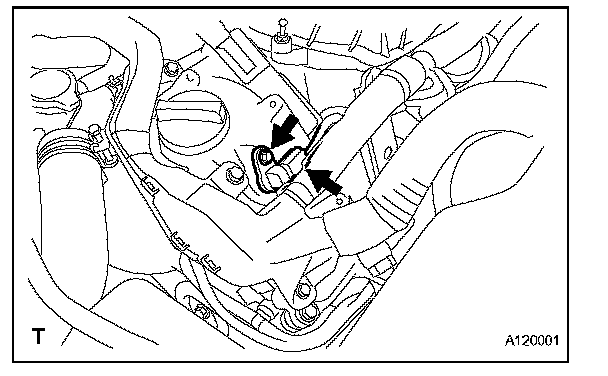

3. INSTALL VVT SENSOR (for Exhaust Side of Bank 1)
a. Install the sensor with the bolt.
Torque:10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the sensor connector.

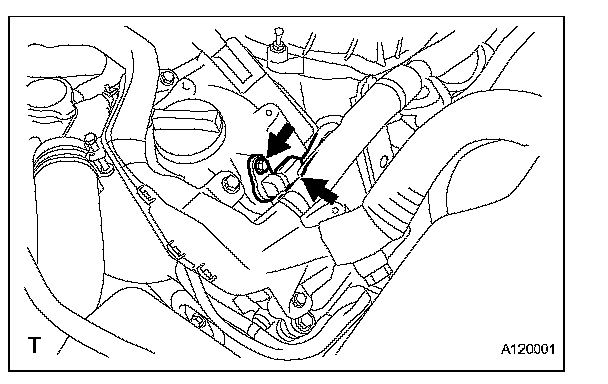

4. INSTALL VVT SENSOR (for Intake Side of Bank 1)
a. Install the sensor with the bolt.
Torque:10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the sensor connector.
5. INSTALL V-BANK COVER SUB-ASSEMBLY
