Transmission Position Sensor/Switch: Testing and Inspection

PARK / NEUTRAL POSITION SWITCH

INSPECTION
1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Park/Neutral Position Switch (Connector Front View):

a) Measure the resistance according to the value(s) in the table.

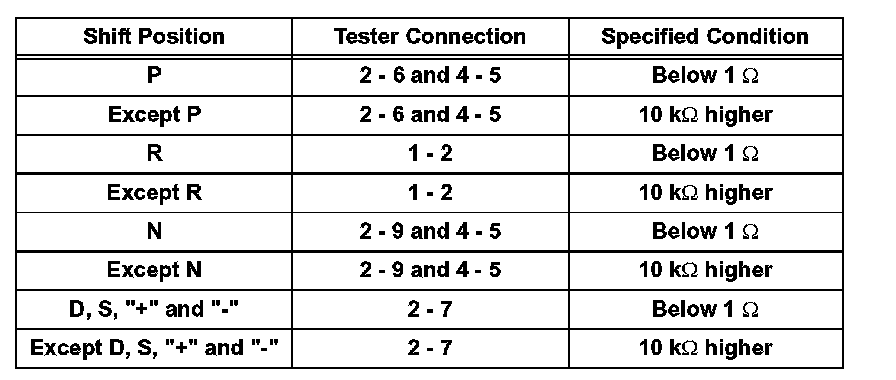

Standard Resistance:

If the resistance value is not as specified, replace the park/neutral position switch assembly.
