Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE ENGINE ROOM SIDE COVER LH
3. REMOVE ENGINE ROOM SIDE COVER RH
4. REMOVE V-BANK COVER SUB-ASSEMBLY
5. REMOVE FRONT FENDER PROTECTOR UPPER LH
6. REMOVE FRONT FENDER PROTECTOR UPPER RH
7. REMOVE ROOF DRIP SIDE FINISH MOULDING LH
8. REMOVE ROOF DRIP SIDE FINISH MOULDING RH
9. REMOVE FRONT WIPER ARM HEAD CAP
10. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
11. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
12. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY
13. DRAIN ENGINE COOLANT
14. DISCONNECT NO. 2 VENTILATION HOSE
15. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
16. REMOVE THROTTLE BODY
17. REMOVE COLD START INJECTOR
18. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
19. REMOVE INTAKE MANIFOLD

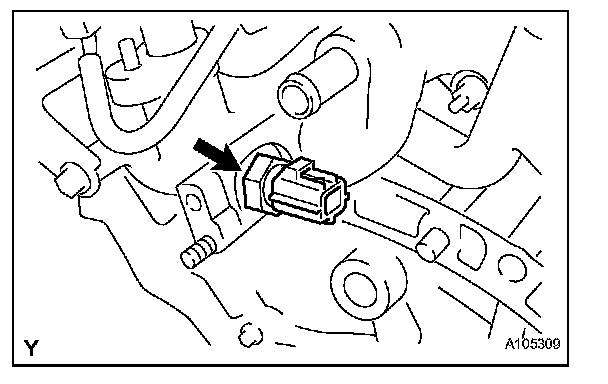

20. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
a. Disconnect the engine coolant temperature sensor connector.
b. Remove the engine coolant temperature sensor.
c. Remove the gasket from the engine coolant temperature sensor.

INSTALLATION

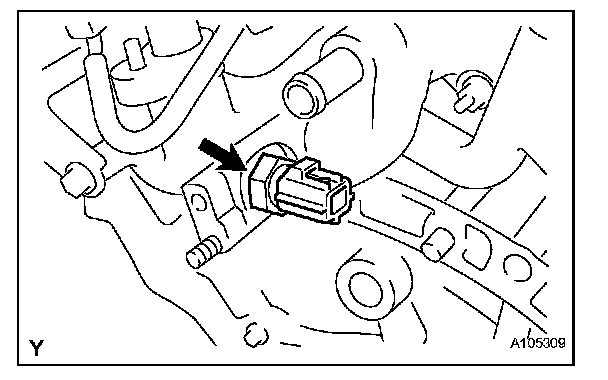

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
a. Install a new gasket to the engine coolant temperature sensor.




b. Install the engine coolant temperature sensor.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

c. Connect the engine coolant temperature sensor connector.

2. INSTALL INTAKE MANIFOLD
3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
4. INSTALL COLD START INJECTOR
5. INSTALL THROTTLE BODY
6. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
7. CONNECT NO. 2 VENTILATION HOSE
8. ADD ENGINE COOLANT
9. CHECK FOR ENGINE COOLANT LEAKS
10. CHECK FOR FUEL LEAKS
11. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
12. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
13. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
14. INSTALL FRONT WIPER ARM HEAD CAP
15. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
16. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
17. INSTALL FRONT FENDER PROTECTOR UPPER RH
18. INSTALL FRONT FENDER PROTECTOR UPPER LH
19. INSTALL V-BANK COVER SUB-ASSEMBLY
20. INSTALL ENGINE ROOM SIDE COVER LH
21. INSTALL ENGINE ROOM SIDE COVER RH
22. INSTALL COOL AIR INTAKE DUCT SEAL
