Air Flow Meter/Sensor: Service and Repair

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE ENGINE ROOM SIDE COVER RH




3. REMOVE MASS AIR FLOW METER

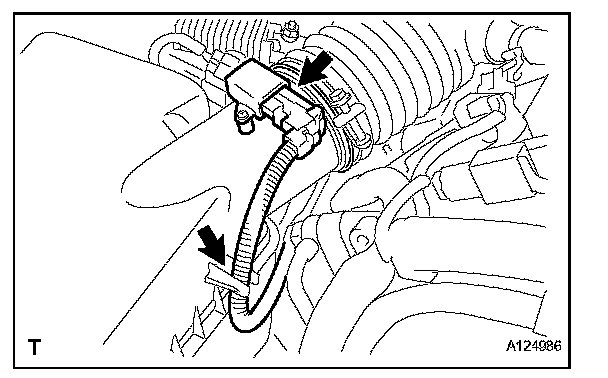

a. Disconnect the MAF meter connector.

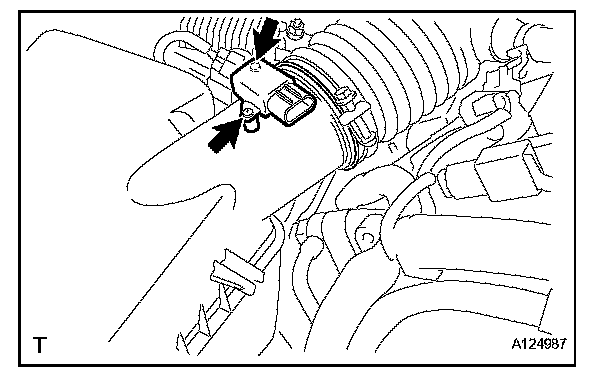

b. Remove the 2 screws and MAF meter.
c. Remove the O-ring from the MAF meter.

INSTALLATION

1. INSTALL MASS AIR FLOW METER
a. Install a new O-ring to the MAF meter.

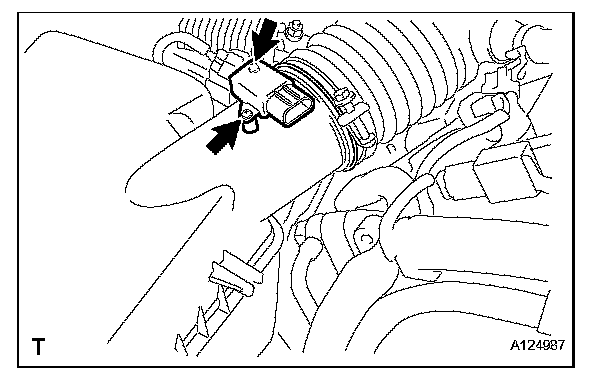

b. Install the MAF meter with the 2 screws.

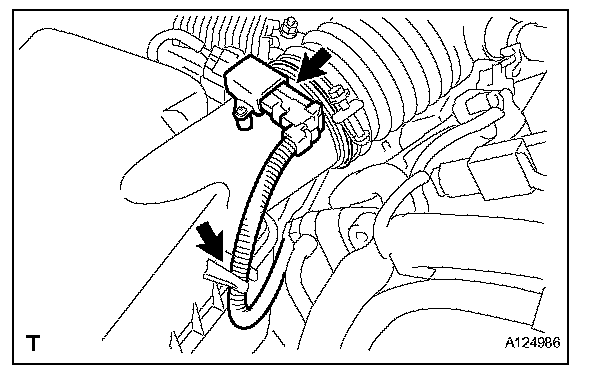

c. Connect the MAF meter connector.
2. INSTALL ENGINE ROOM SIDE COVER RH
3. INSTALL COOL AIR INTAKE DUCT SEAL
