Body Control Module: Locations

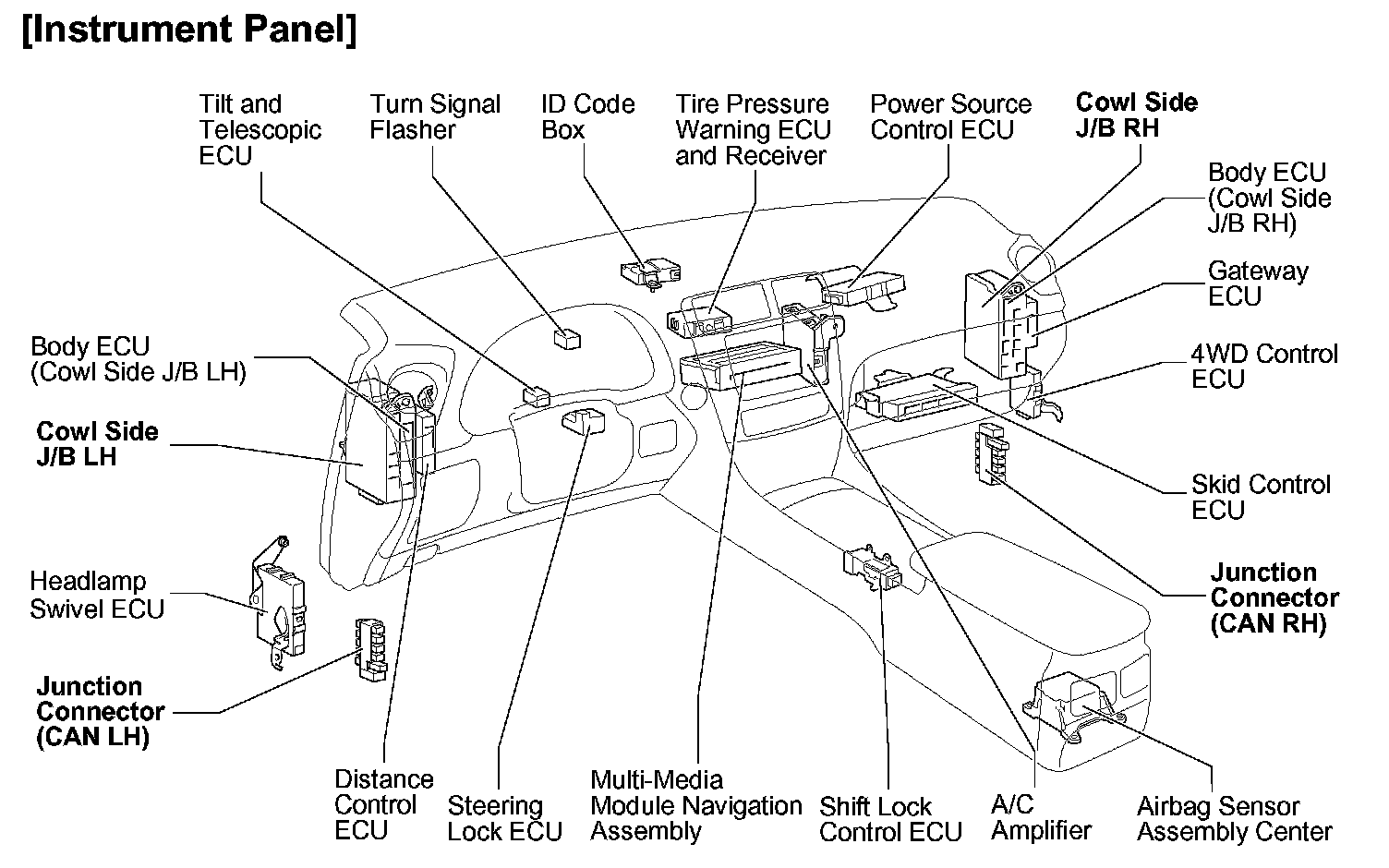

Instrument Panel:

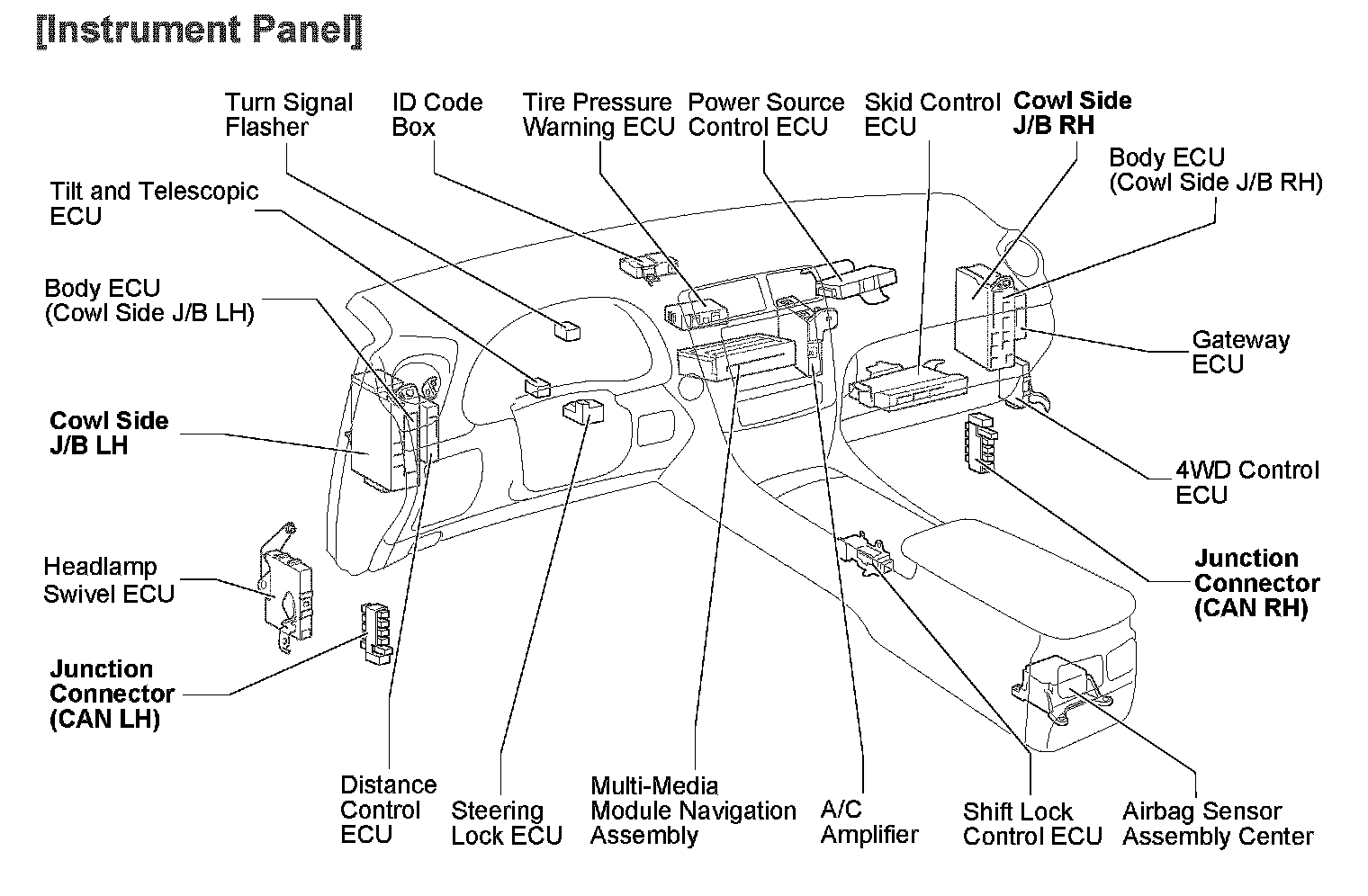

Instrument Panel:

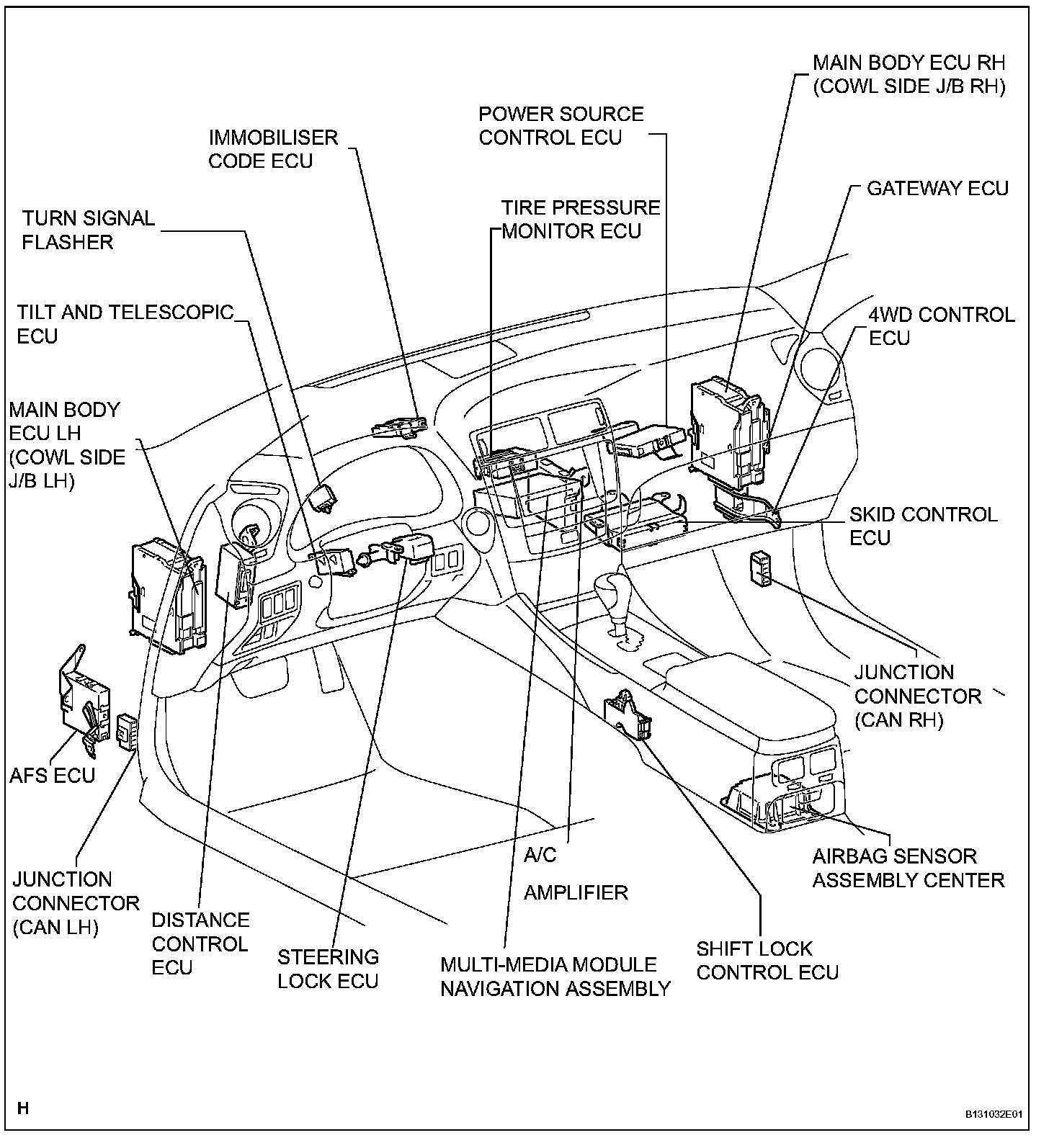

Multiplex Communication System:

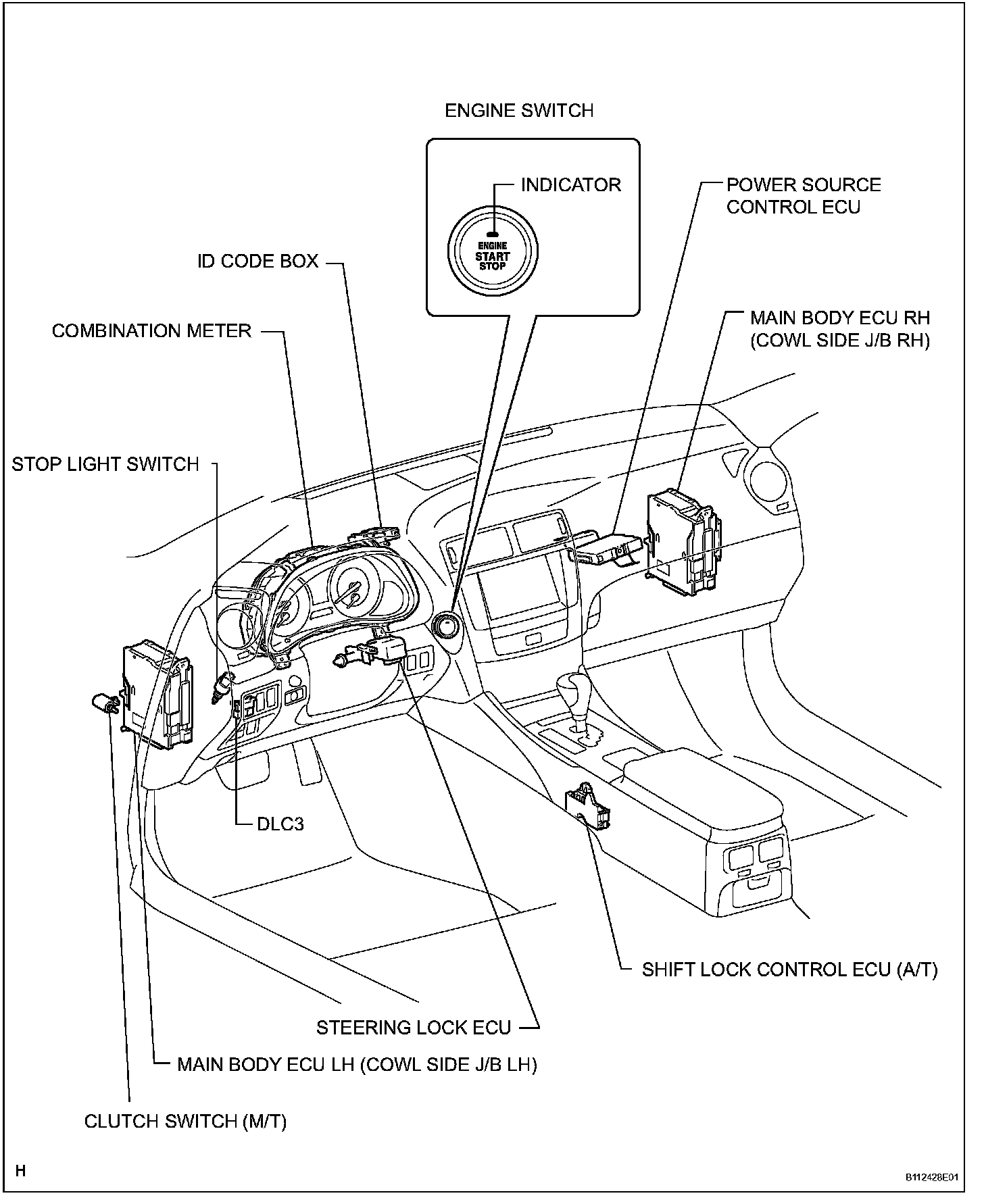

Smart Access System With Push-Button Start:

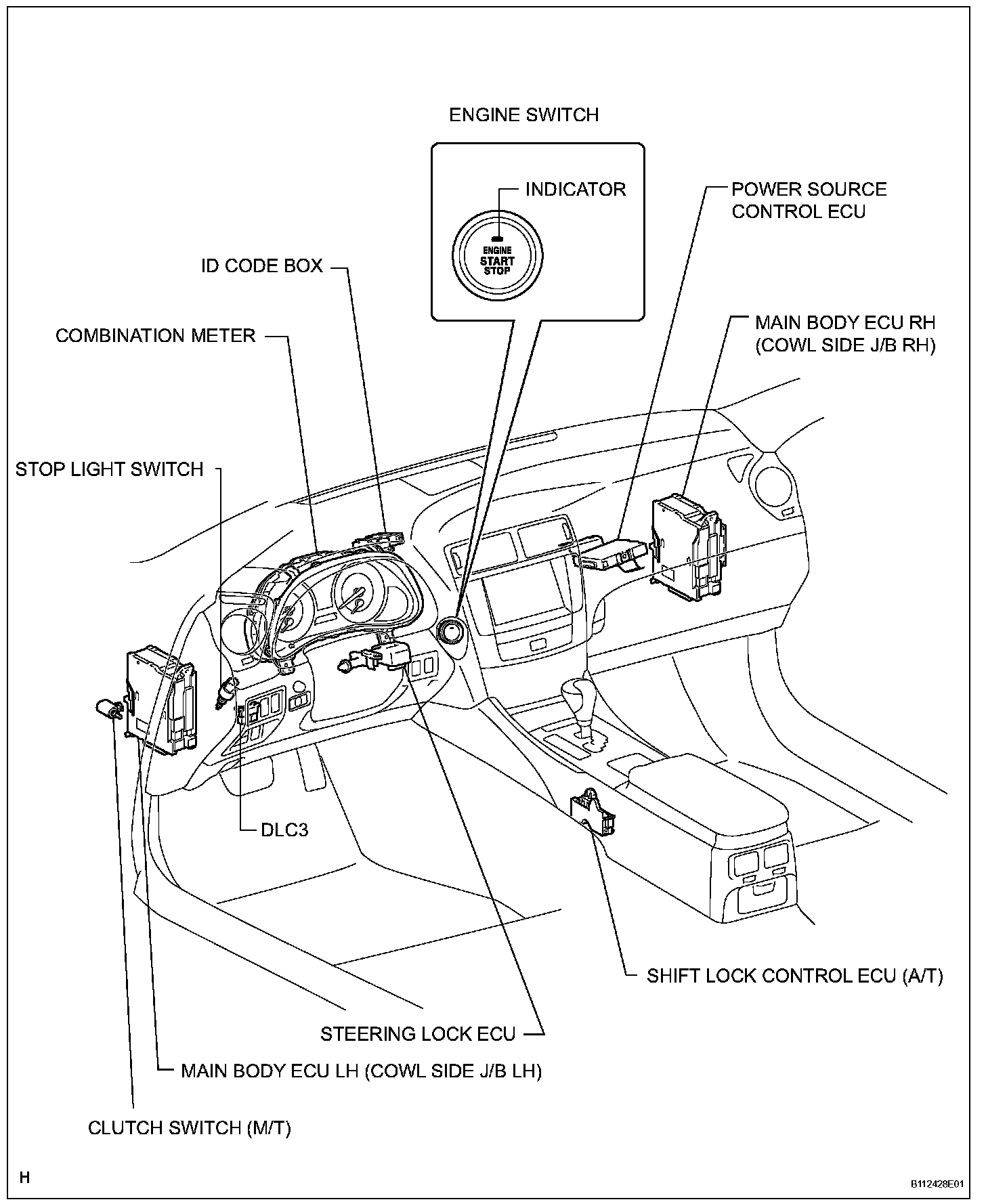

Smart Access System With Push-Button Start:
