CAN Communication System
CAN Communication System

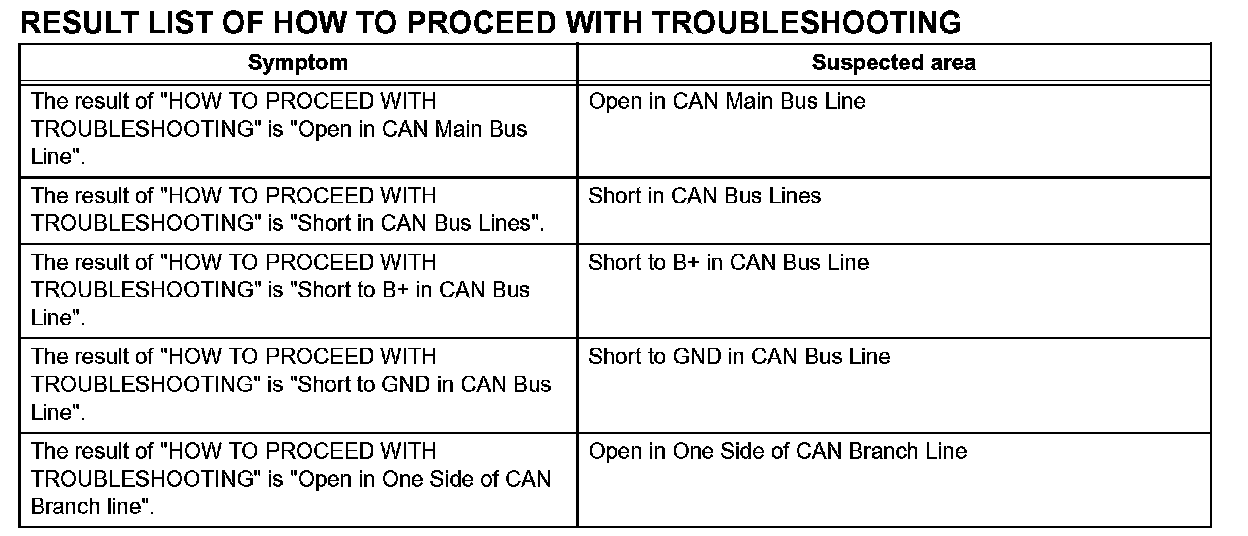

Problem Symptoms Table-Result List Of How To Proceed With Troubleshooting:

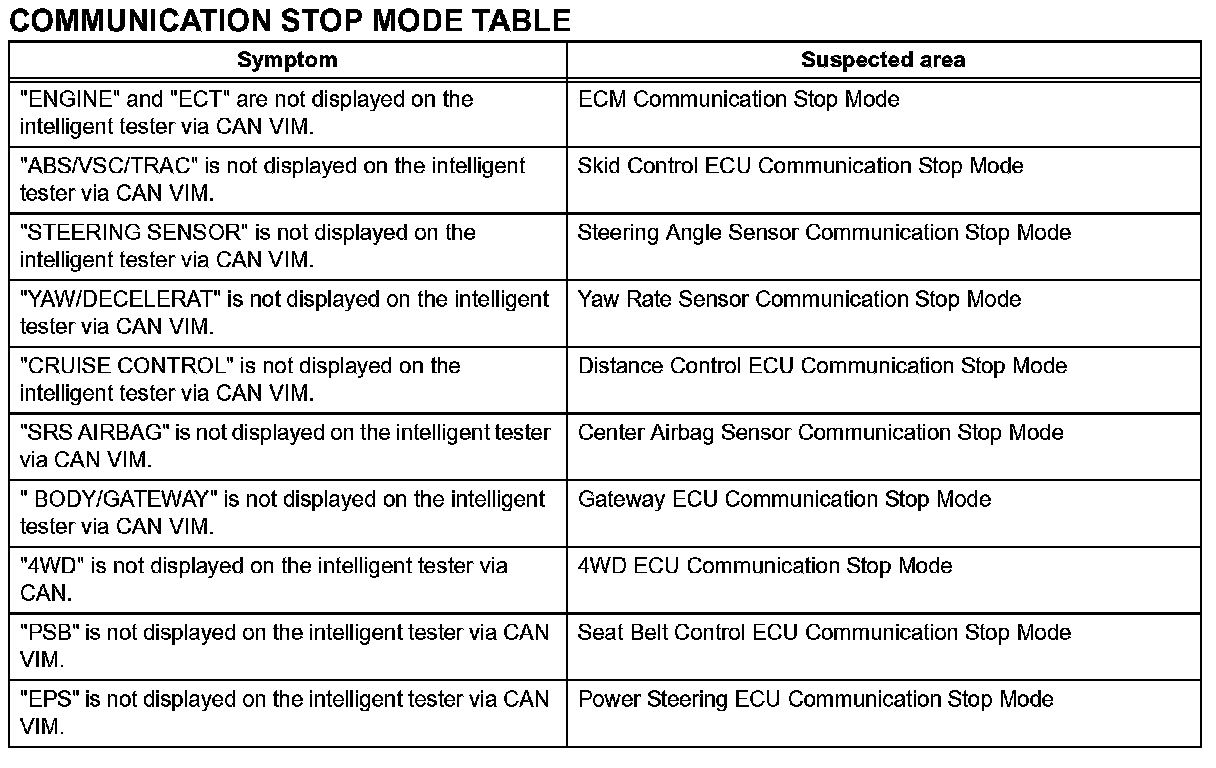

Problem Symptoms Table-Communication Stop Mode Table:
