With Manufacturer's Scan Tool

CHECK DTC

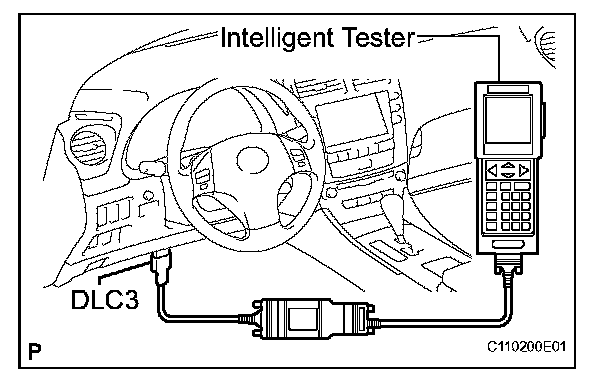

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Enter the menus: DIAGNOSIS/OBD/ MOBD/BODY/DTC INFO.
d. Check the DTCs on the tester screen.

HINT: Refer to the intelligent tester operator's manual for further details.
