Yaw Rate Sensor Communication Stop Mode

Yaw Rate Sensor Communication Stop Mode

DESCRIPTION

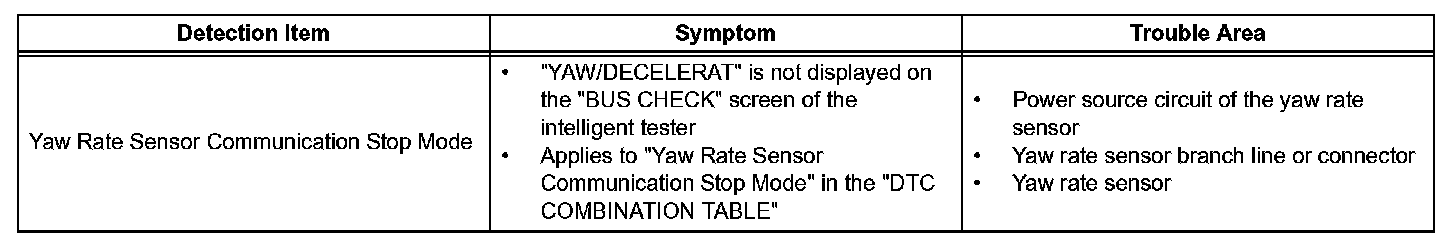

Detection Item:

HINT: "YAW/DECELERAT" refers to the circuit that includes the yaw rate sensor.

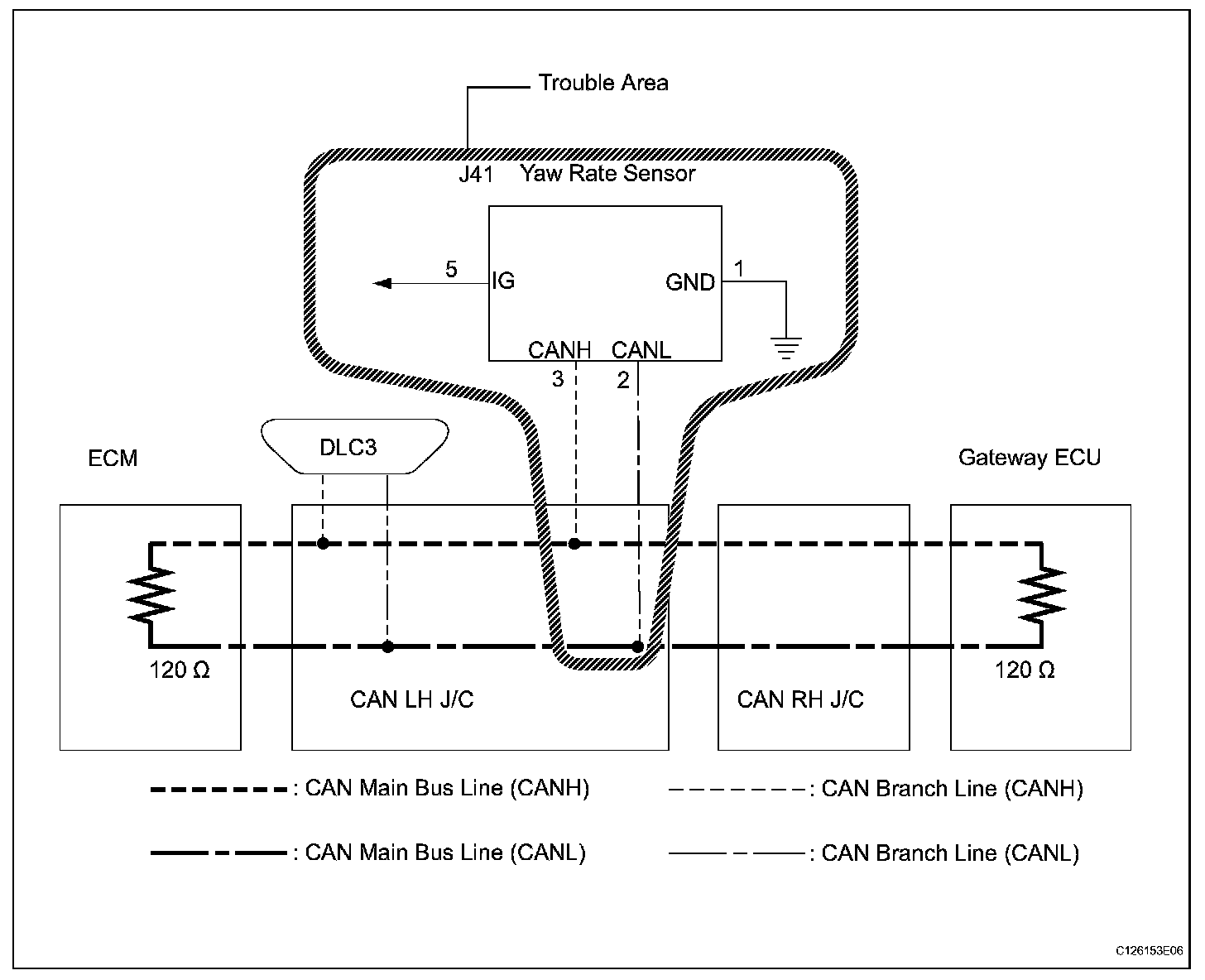

Wiring Diagram:

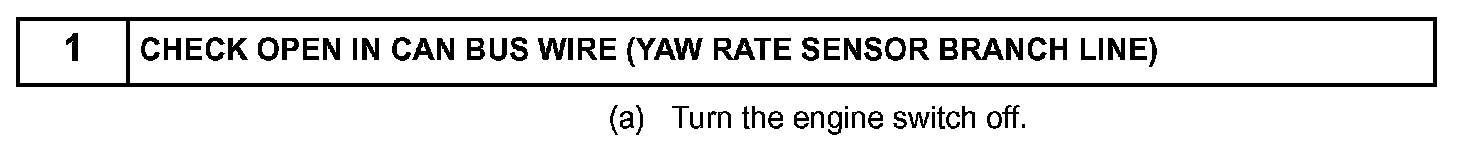

Step 1:

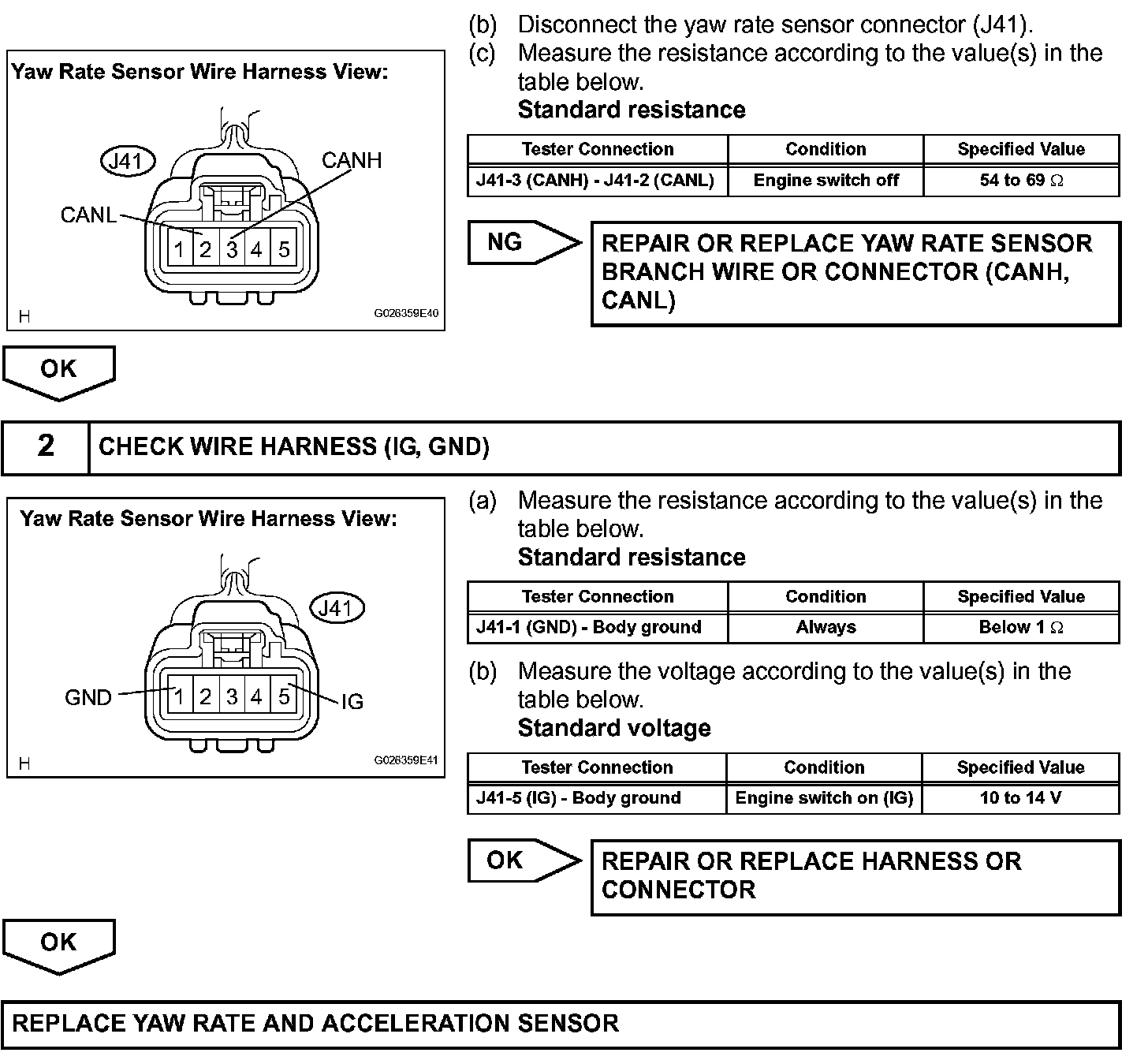

Step 1 (Continued)-2:

INSPECTION PROCEDURE
