Steering Angle Sensor Communication Stop Mode
Steering Angle Sensor Communication Stop ModeDESCRIPTION

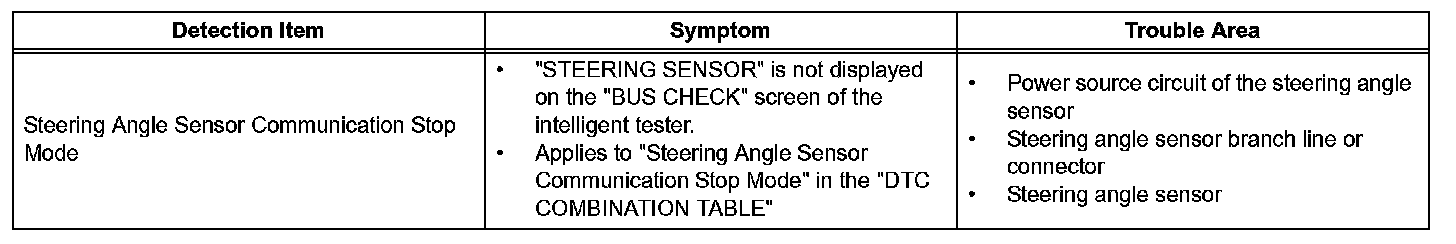

Detection Item:
HINT: "STEERING SENSOR" refers to the circuit that includes the steering angle sensor.

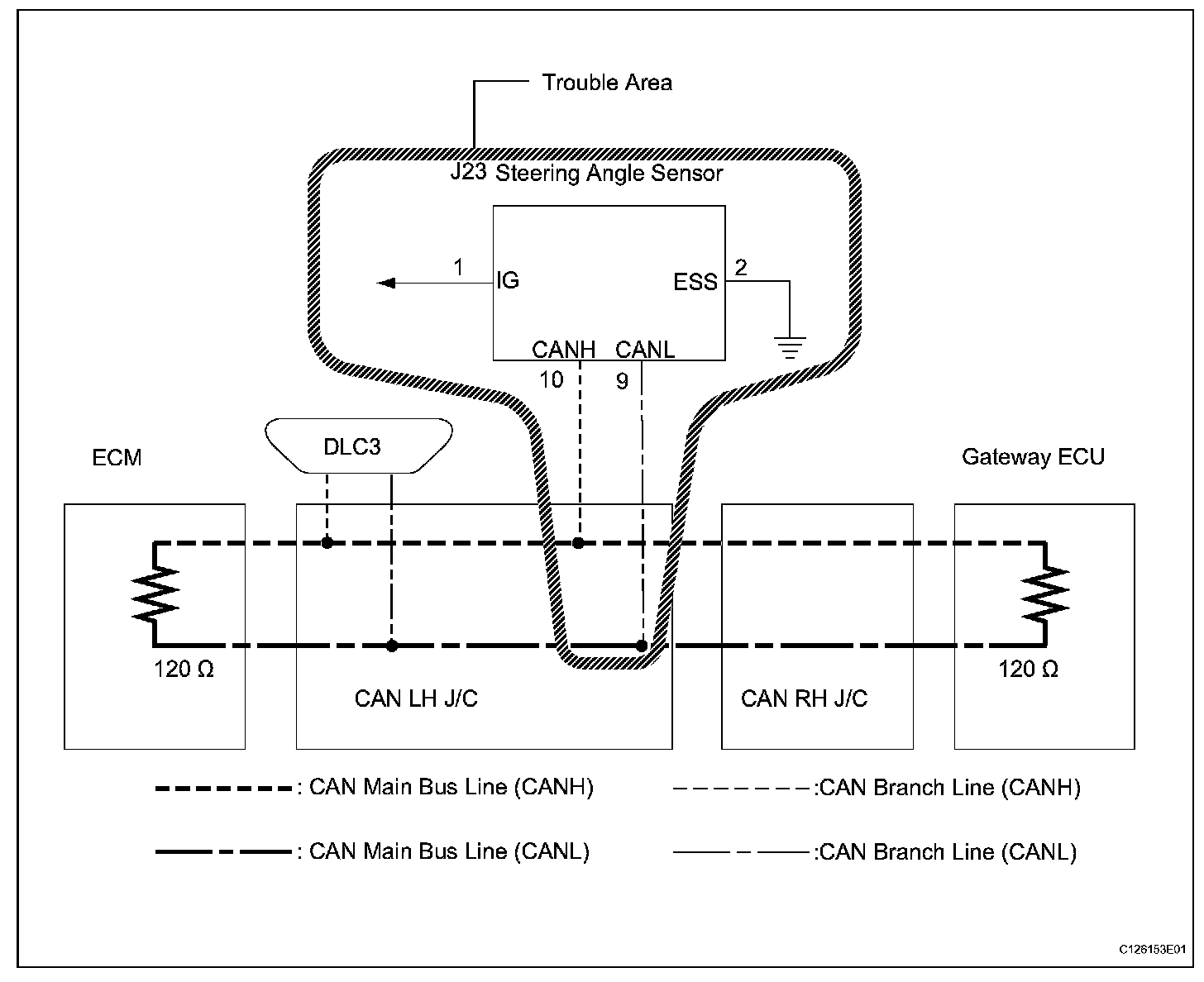

Wiring Diagram:
Step 1-2:

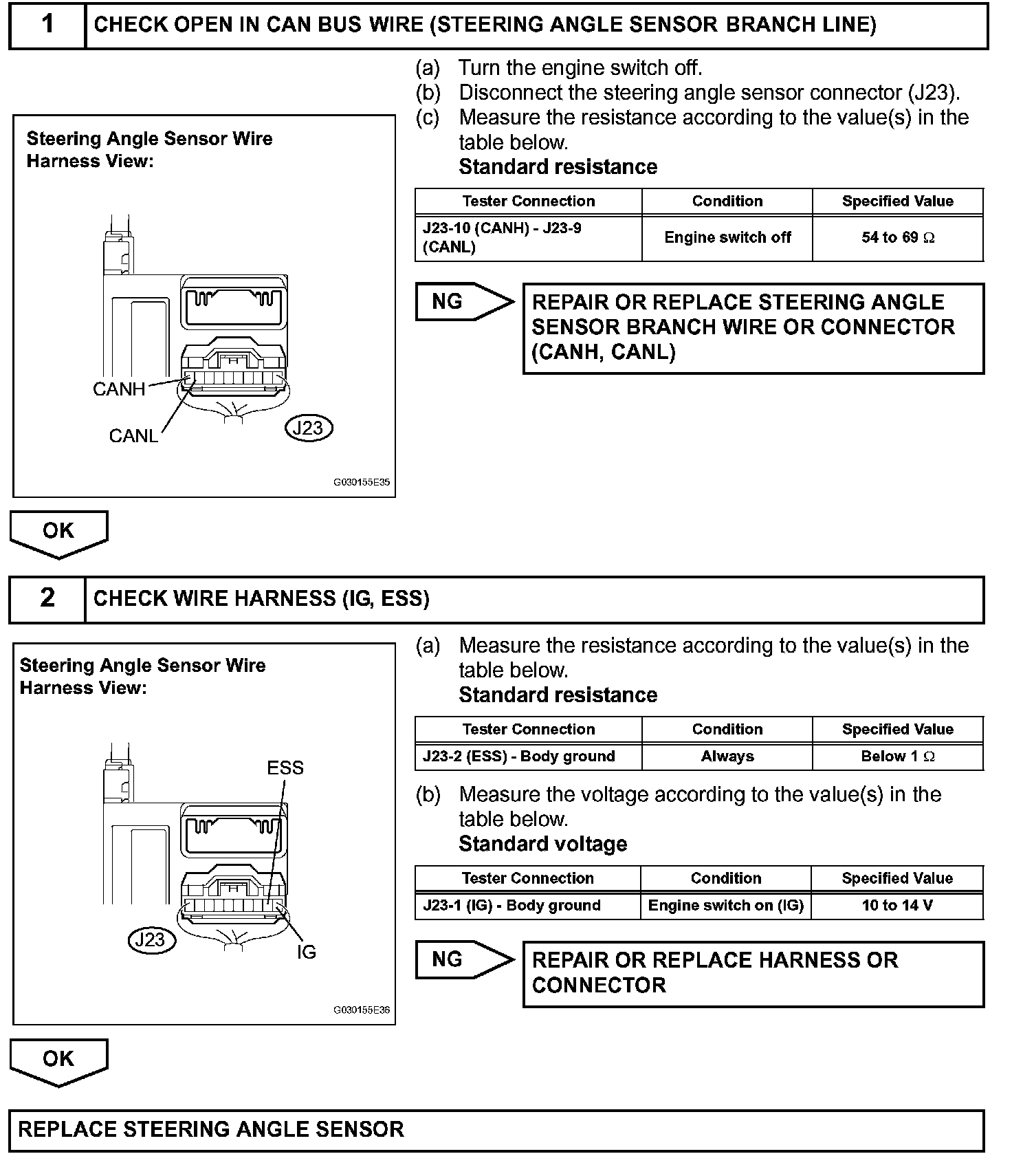

INSPECTION PROCEDURE
