Skid Control ECU Communication Stop Mode
Skid Control ECU Communication Stop ModeDESCRIPTION
Detection Item:
HINT: "ABS/VSC/TRAC" refers to the circuit that includes the skid control ECU.

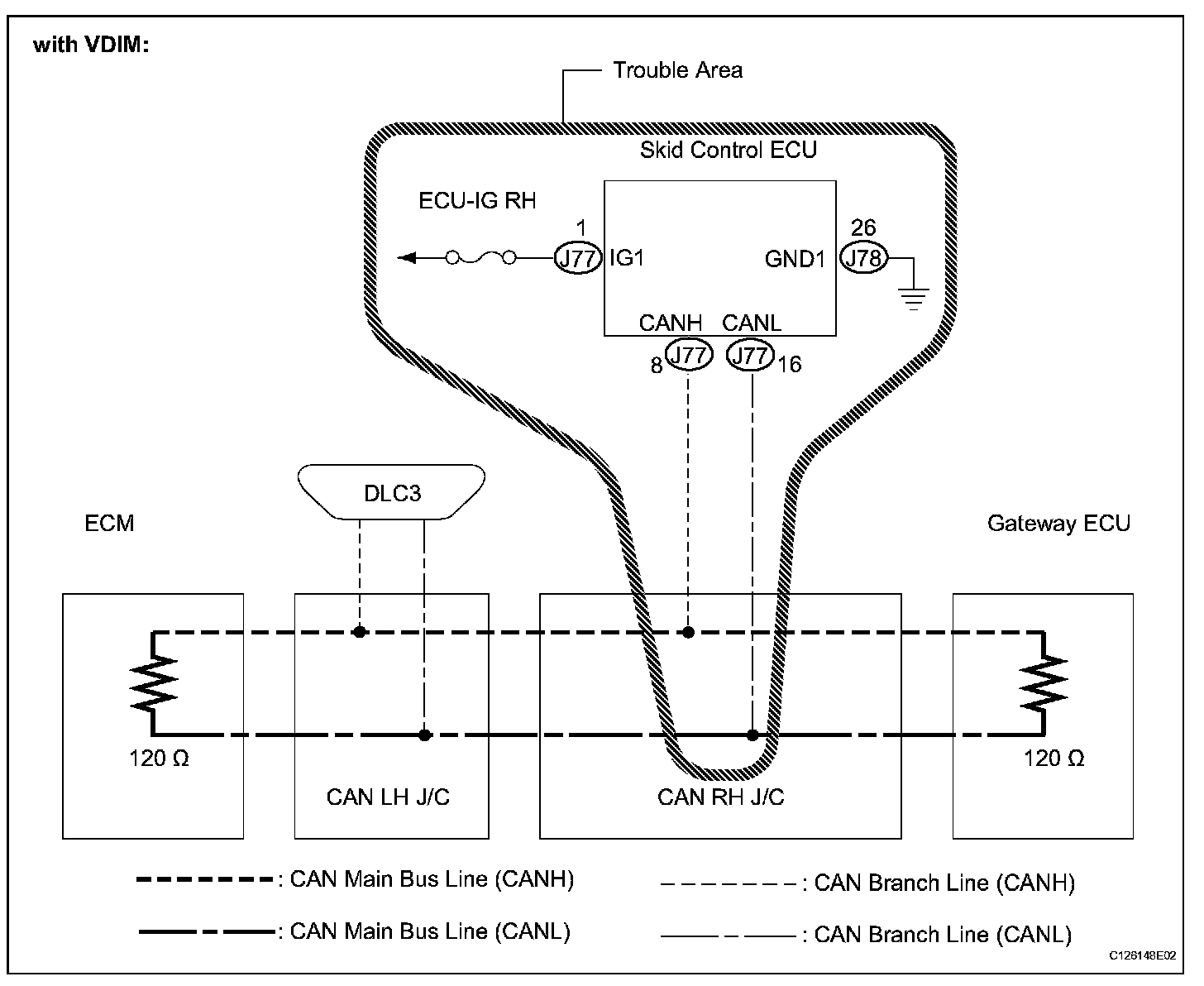

Wiring Diagram (Part 1):

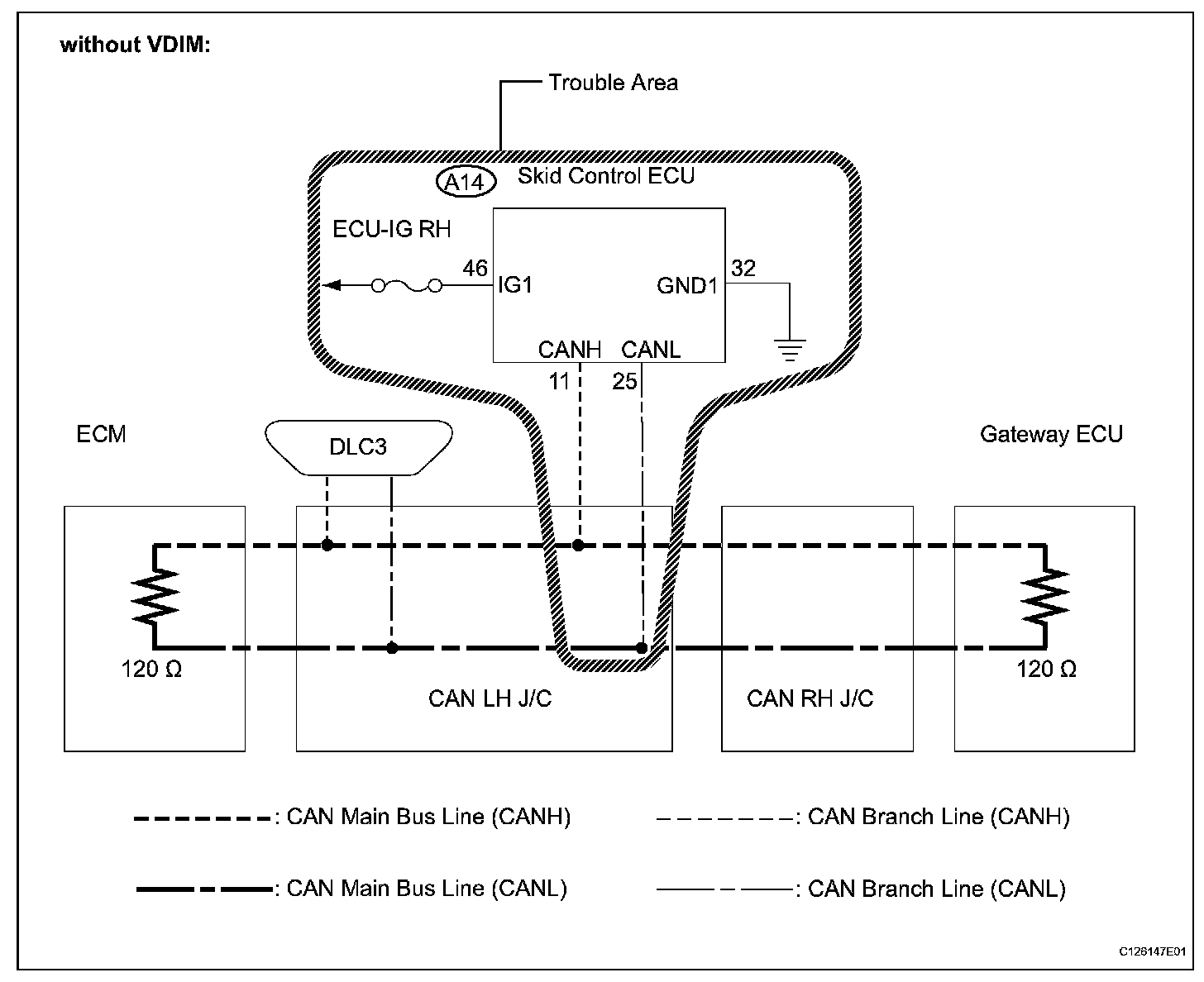

Wiring Diagram (Part 2):

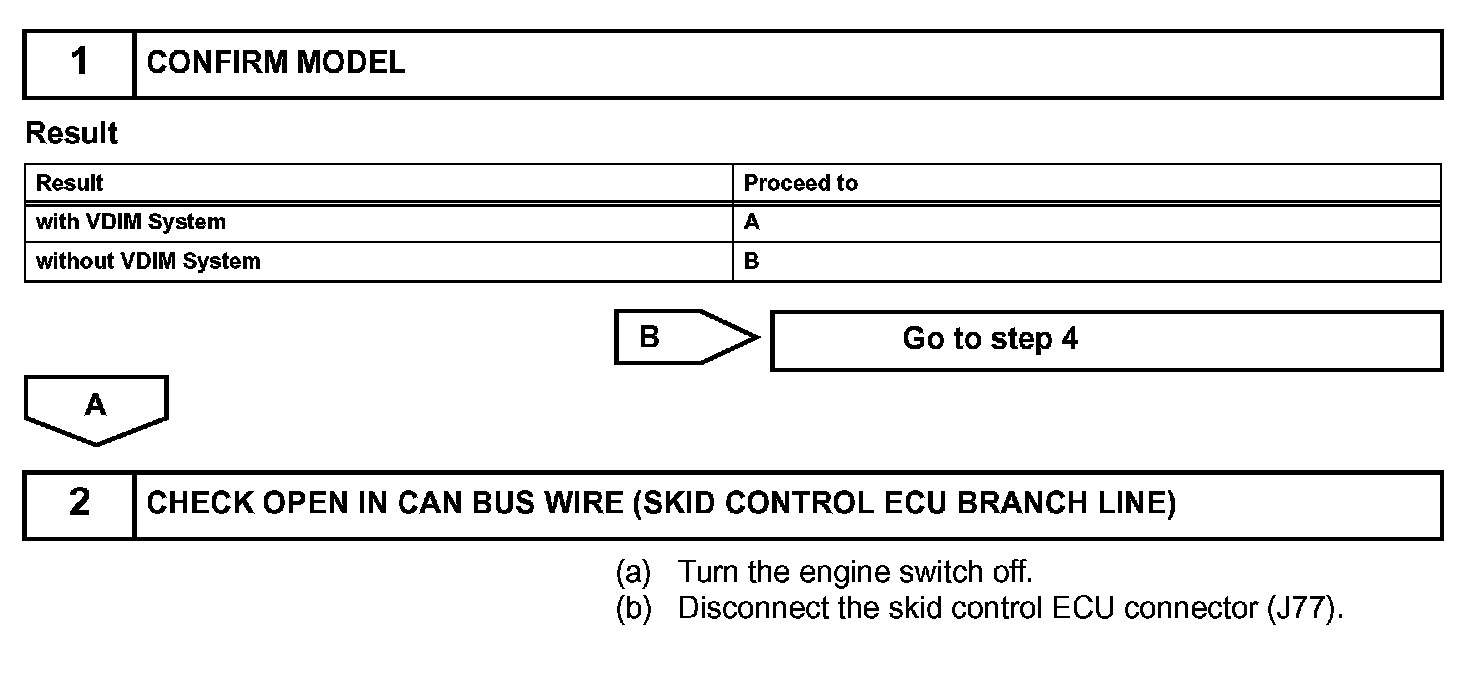

Step 1-2:

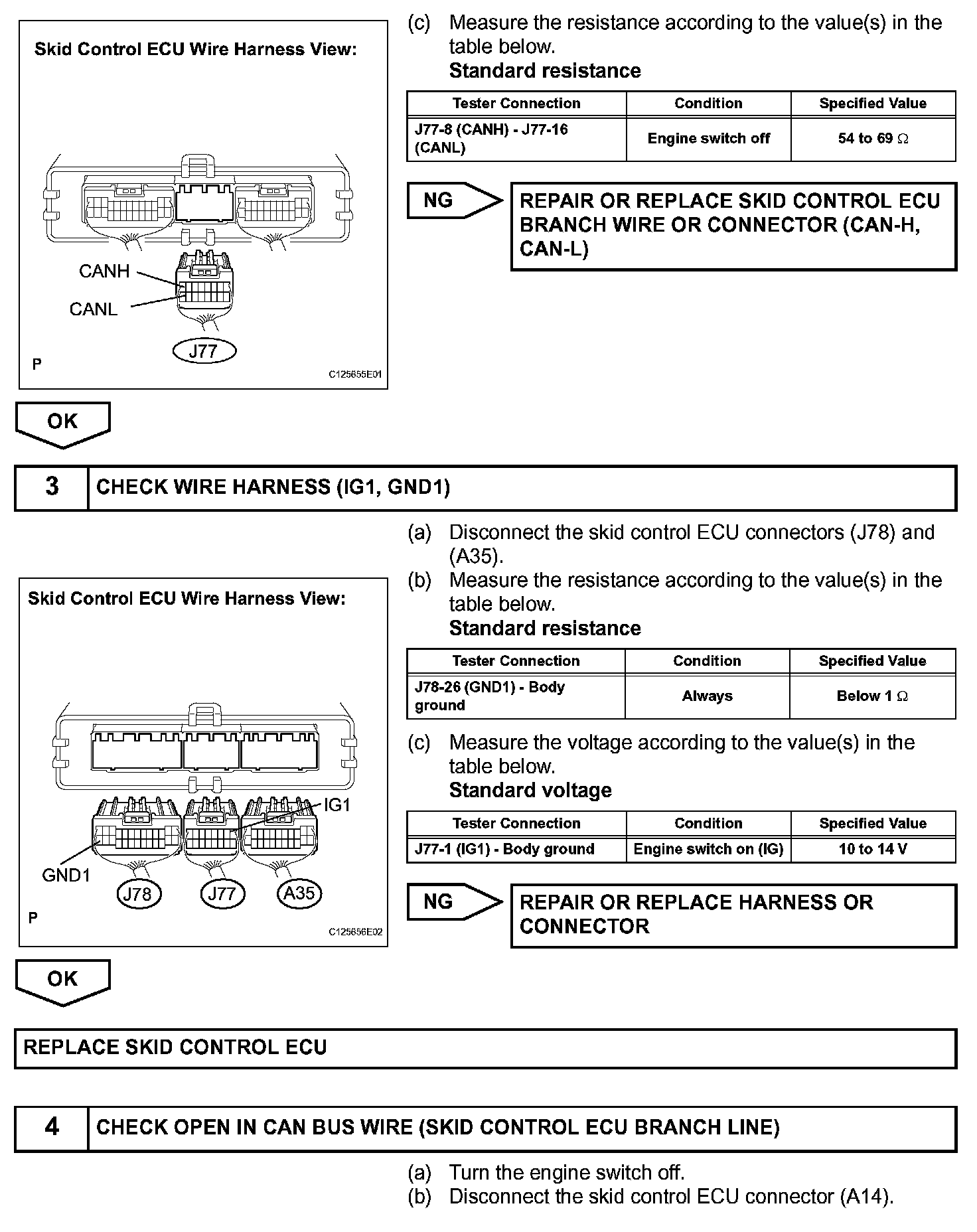

Step 2 (Continued)-4:

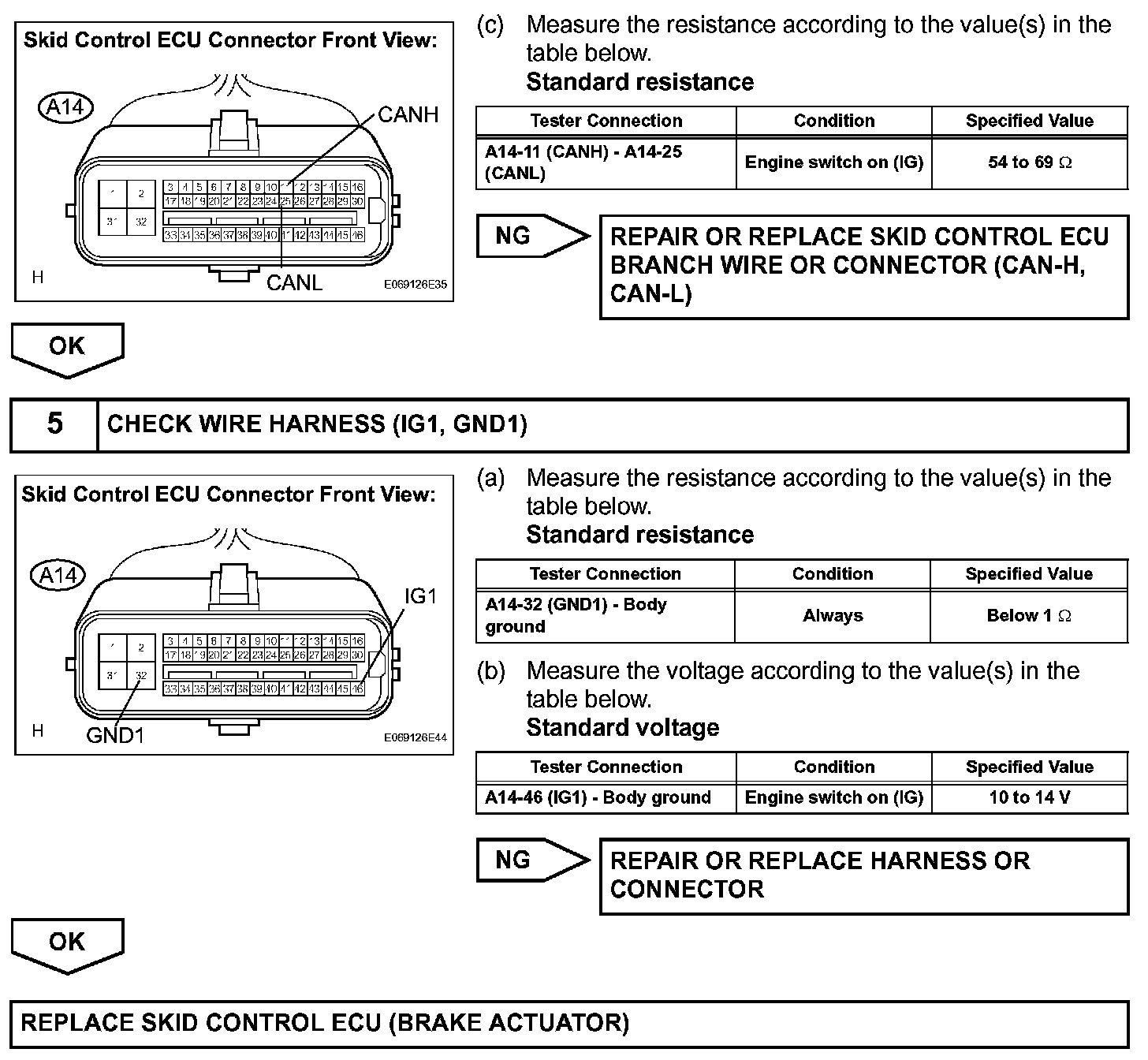

Step 4 (Continued)-5:
INSPECTION PROCEDURE
