Short to GND in CAN Bus Line
Short to GND in CAN Bus LineDESCRIPTION

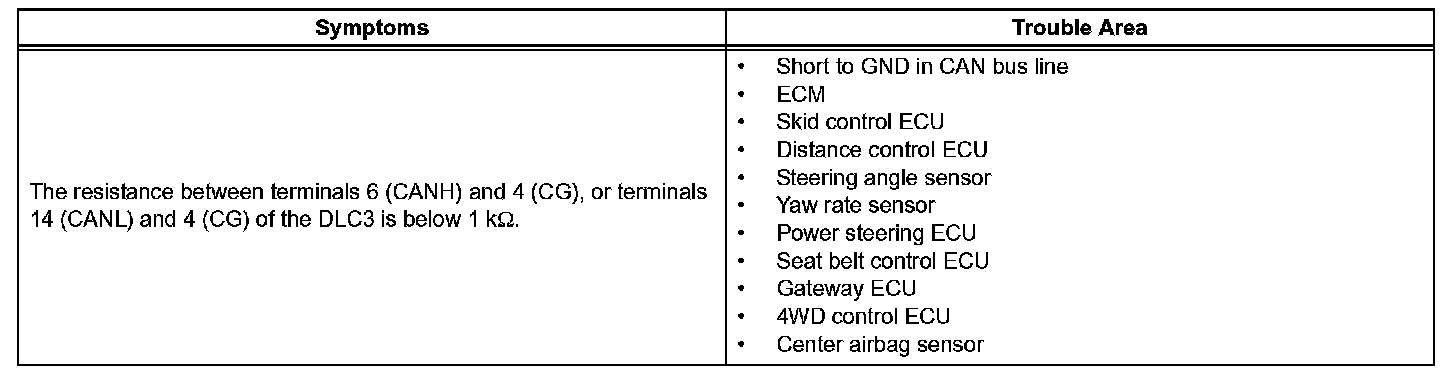

Symptom:
A short to GND is suspected in the CAN bus line when the resistance between terminals 4 (CG) and 6 (CANH), or terminals 4 (CG) and 14 (CANL) of the DLC3 is below 1 kOhm.

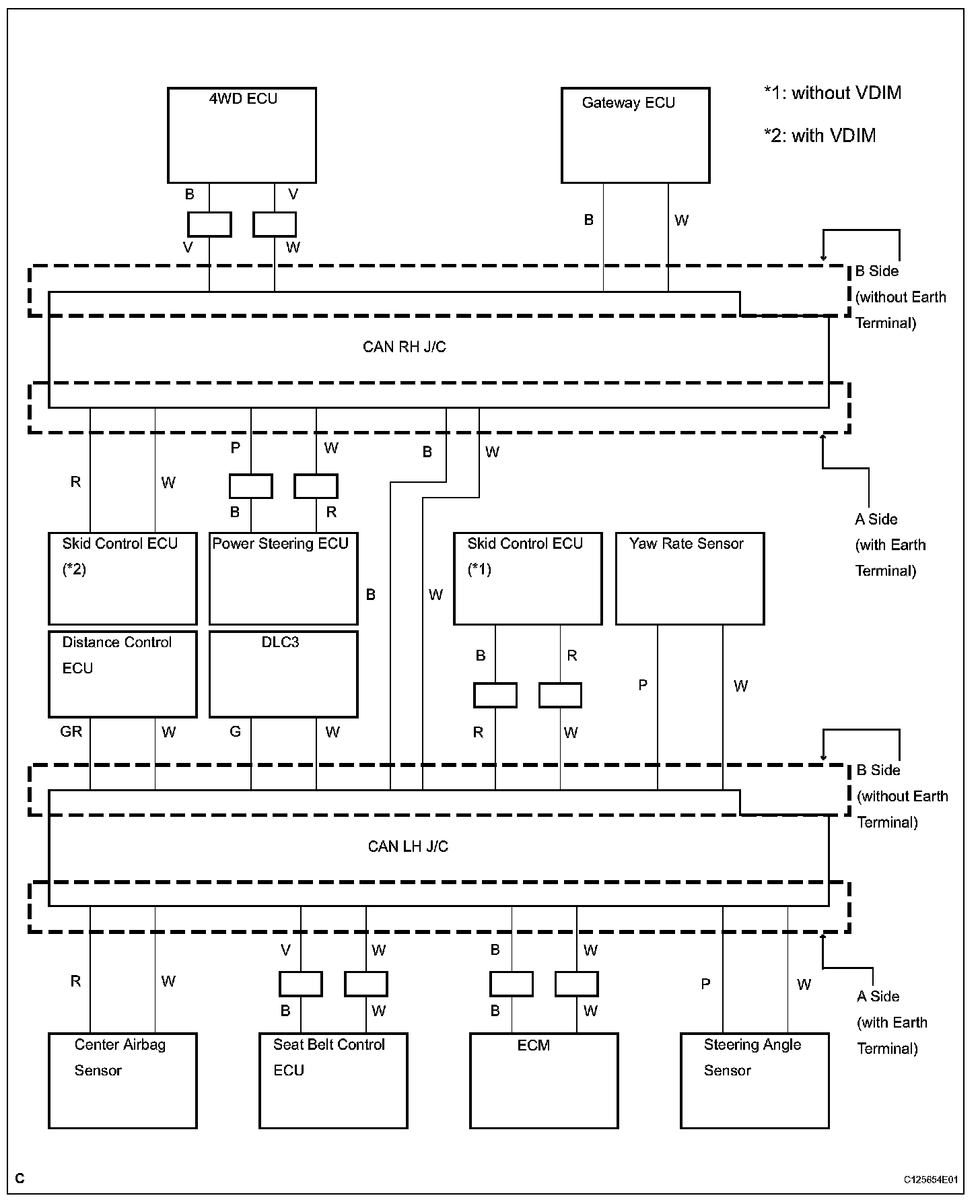

Wiring Diagram (Part 1):

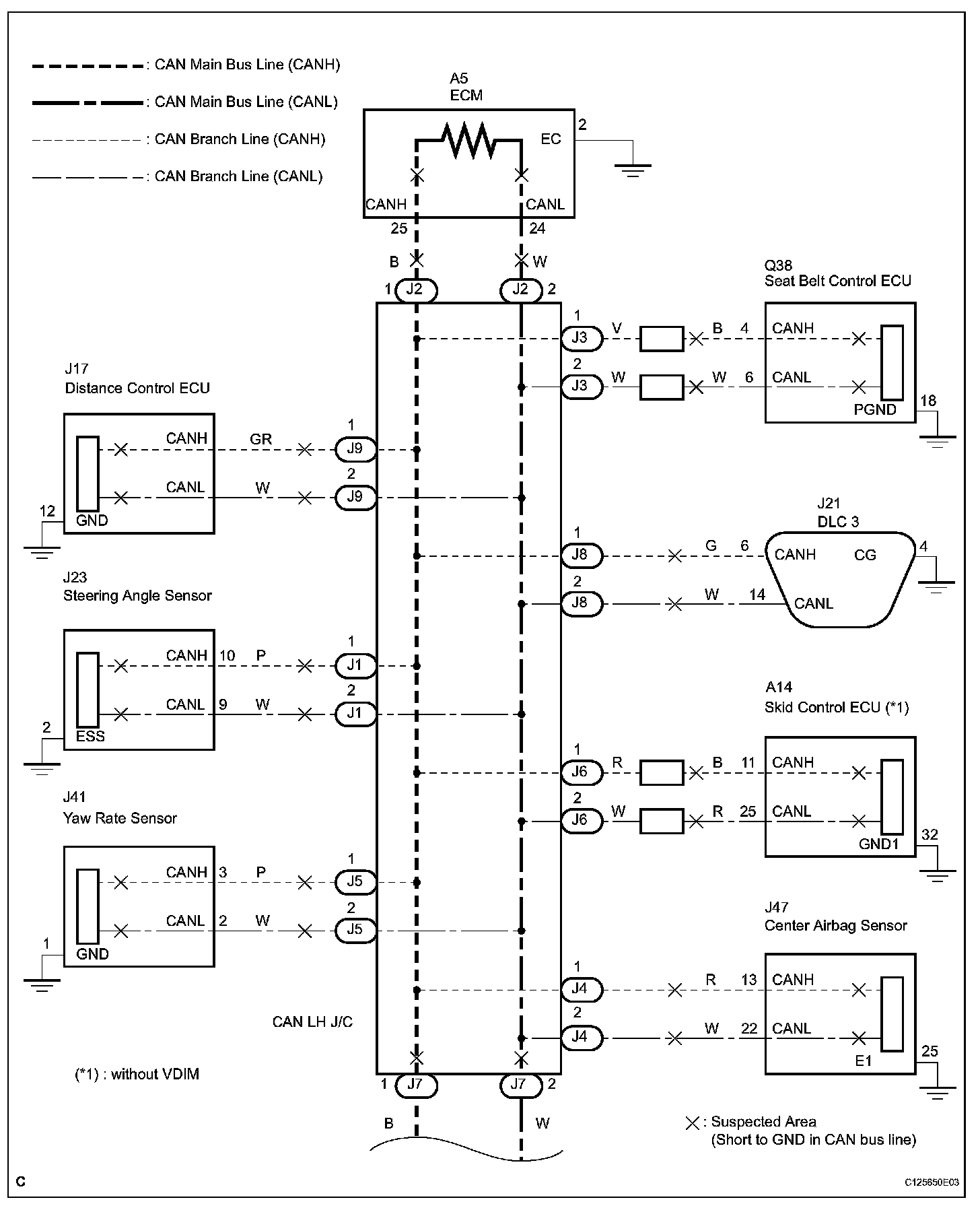

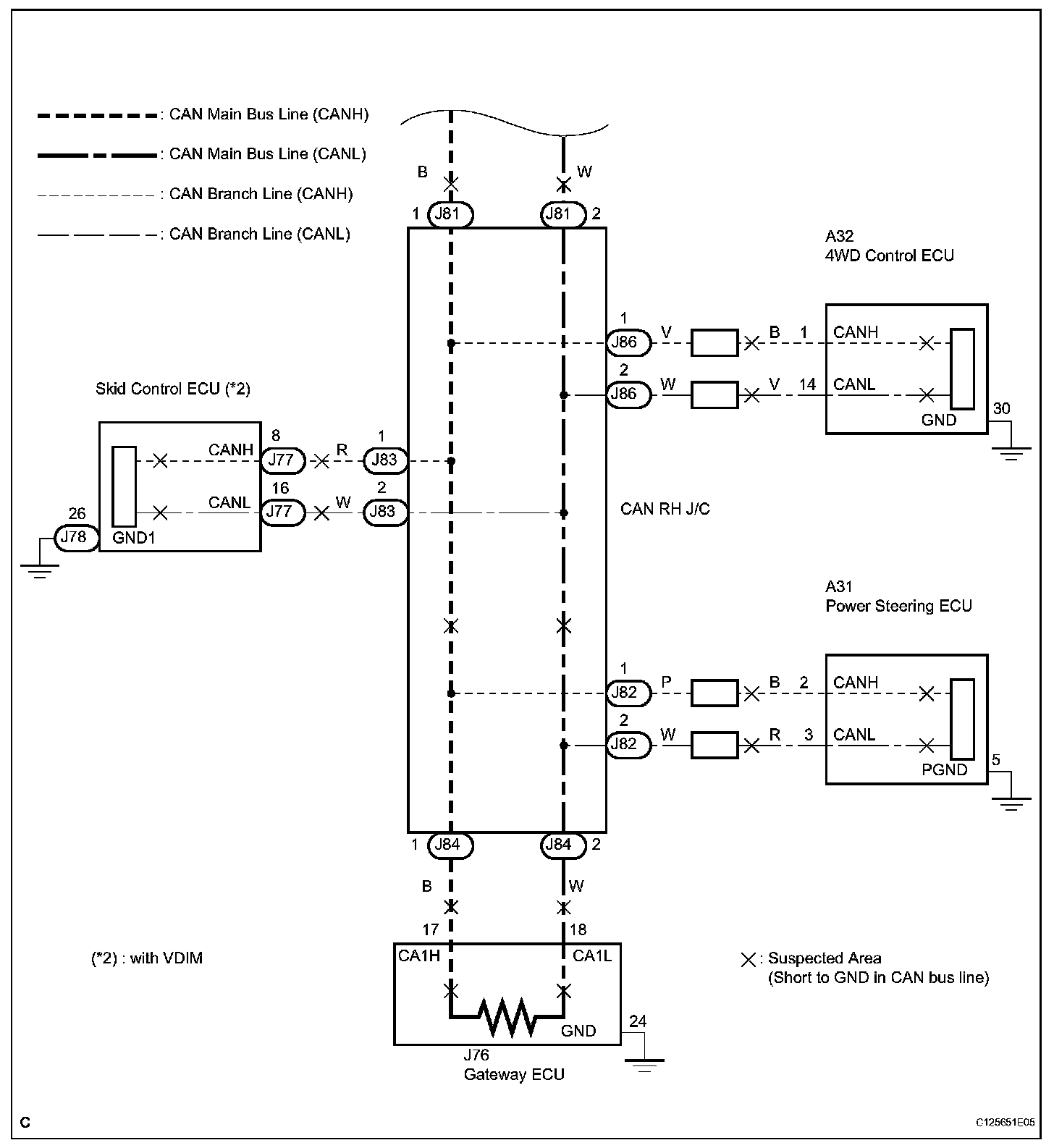

Wiring Diagram (Part 2):

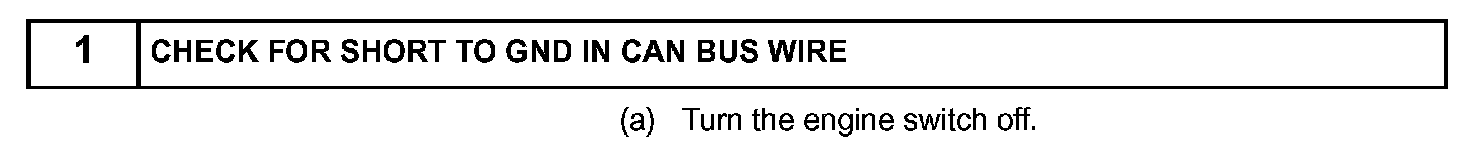

Step 1:
Step 1 (Continued)-3:

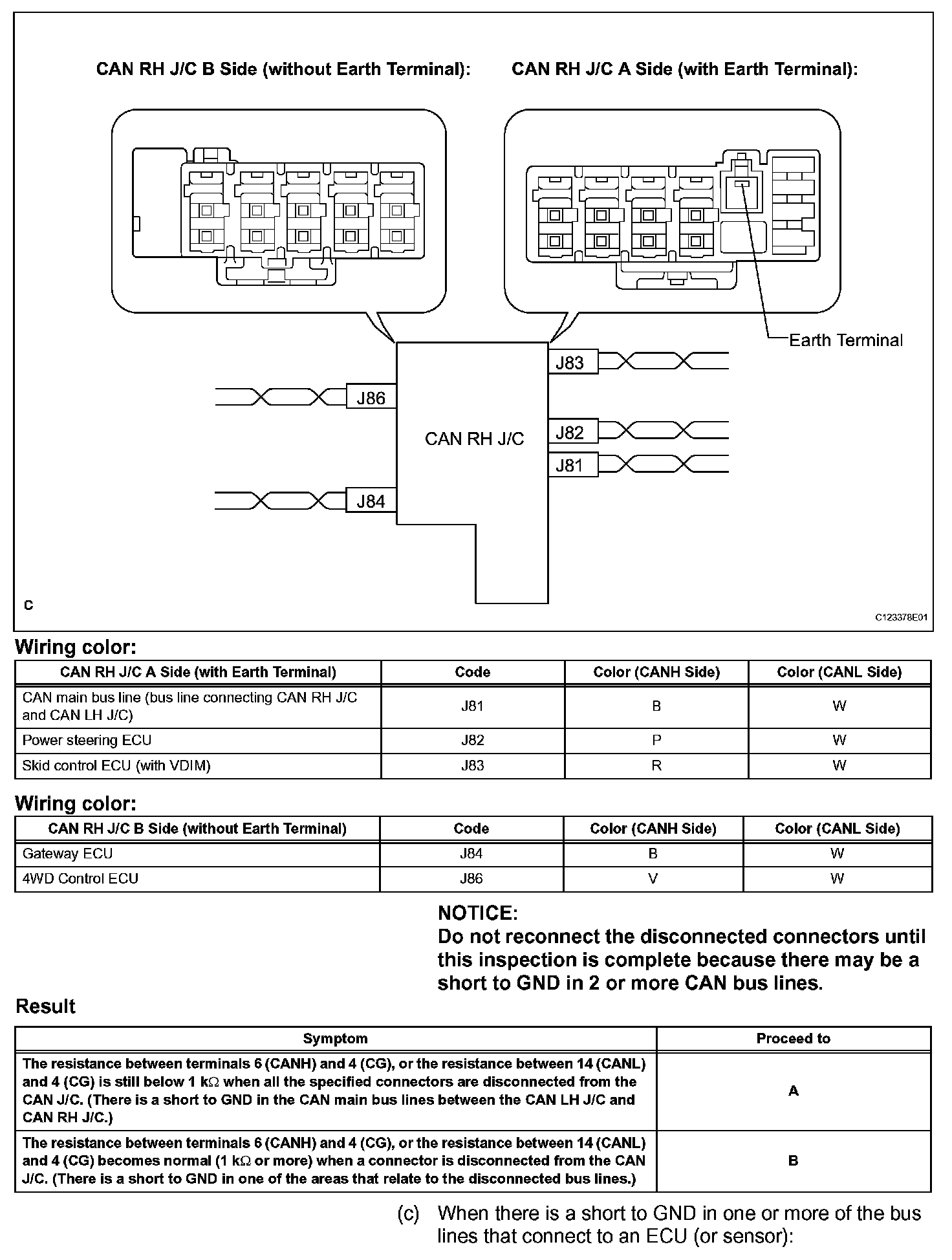

Step 3 (Continued):

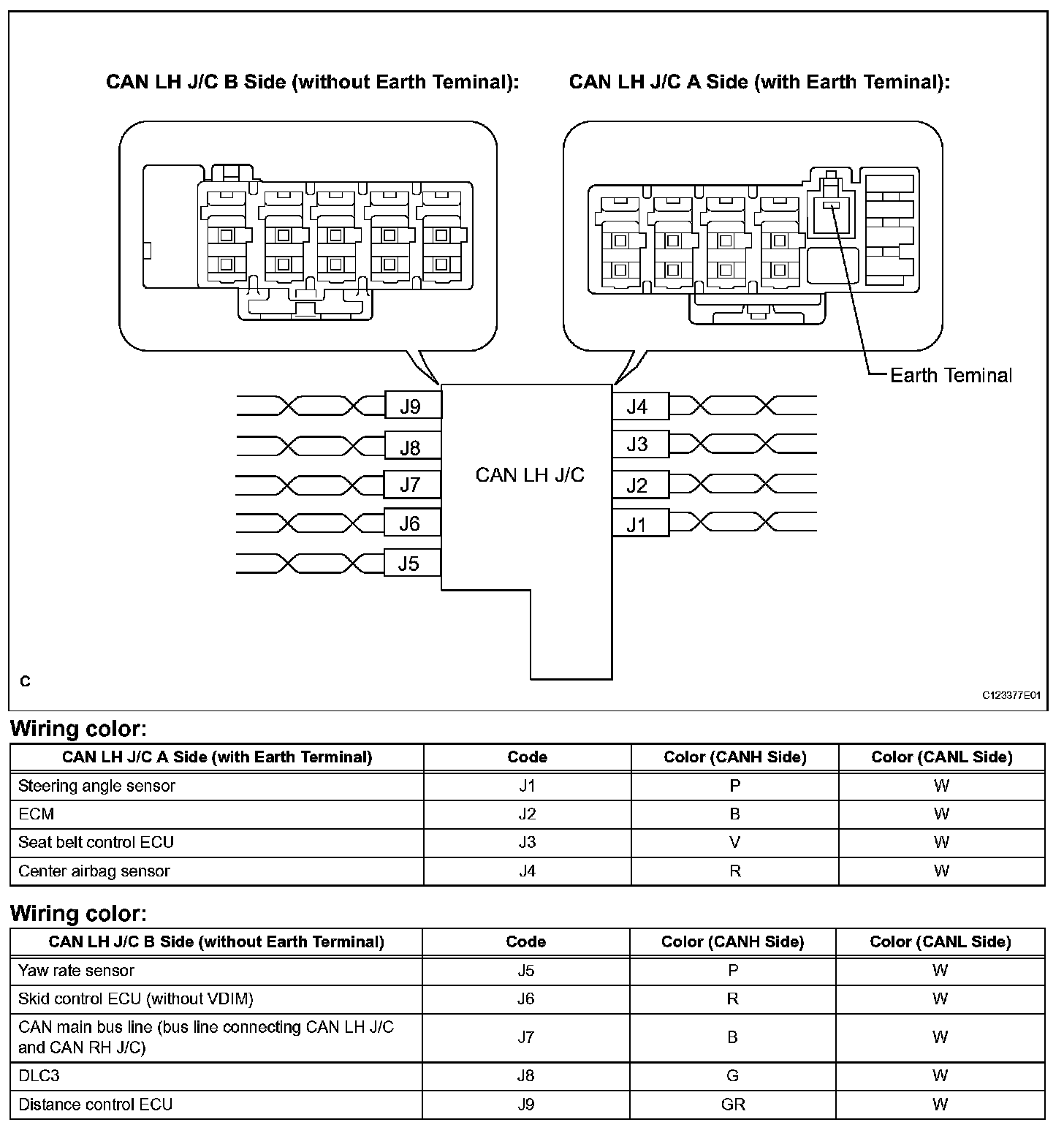

Step 3 (Continued):
Step 3 (Continued):

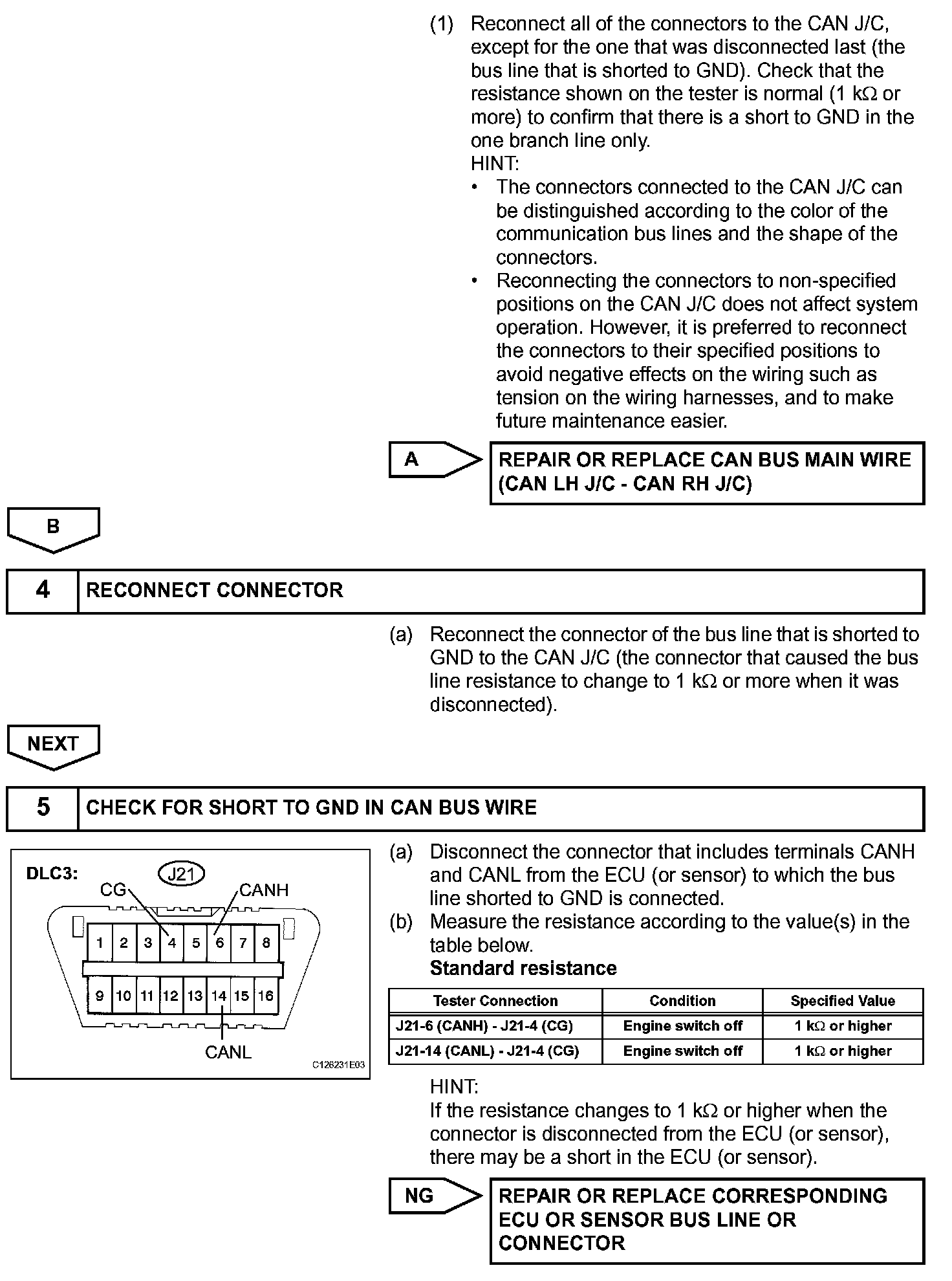

Step 3 (Continued)-5:

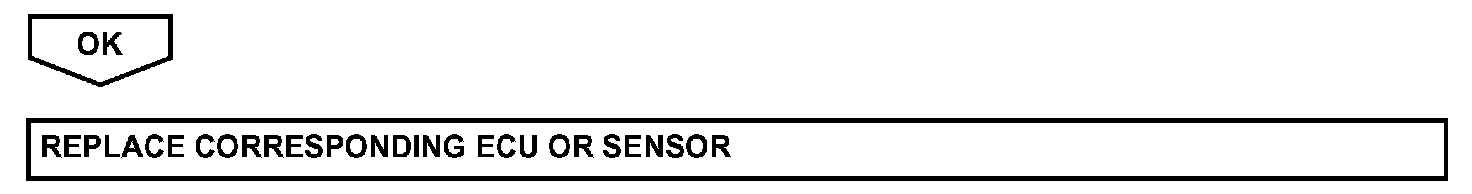

Step 5 (Continued):
INSPECTION PROCEDURE
