Short to B+ in CAN Bus Line
Short to B+ in CAN Bus LineDESCRIPTION

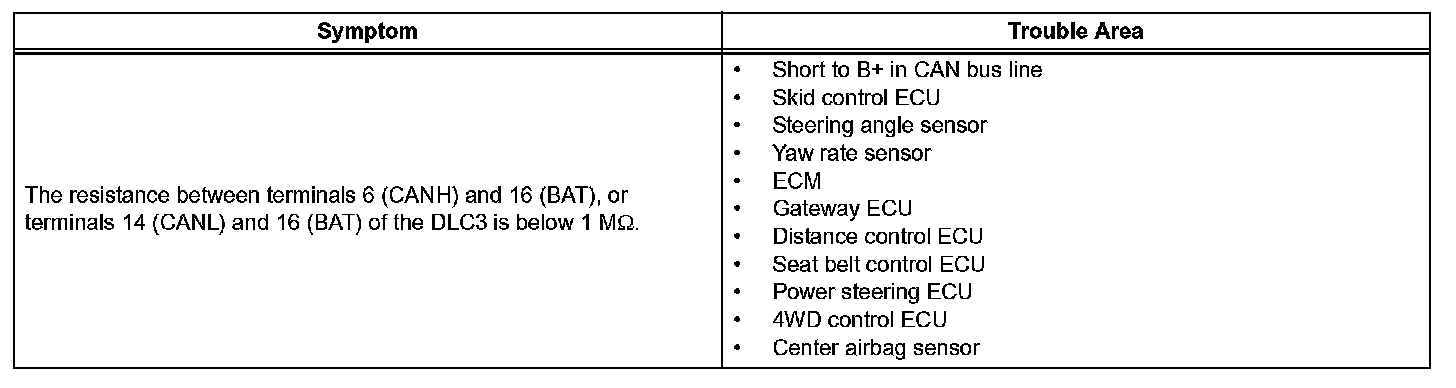

Symptom:
A short to B+ is suspected in the CAN bus line when the resistance between terminals 6 (CANH) and 16 (BAT), or terminals 14 (CANL) and 16 (BAT) of the DLC3 is below 1 MOhm.

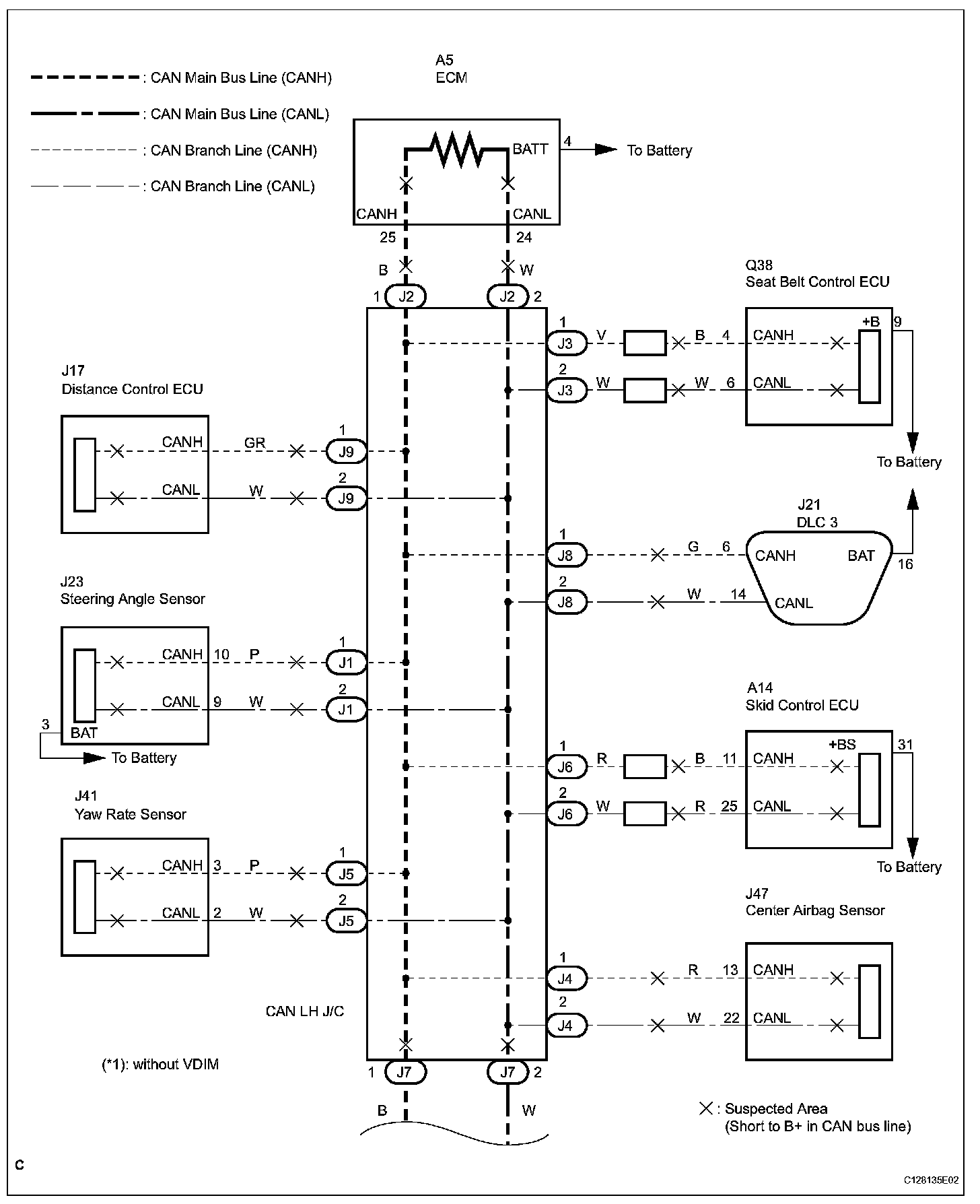

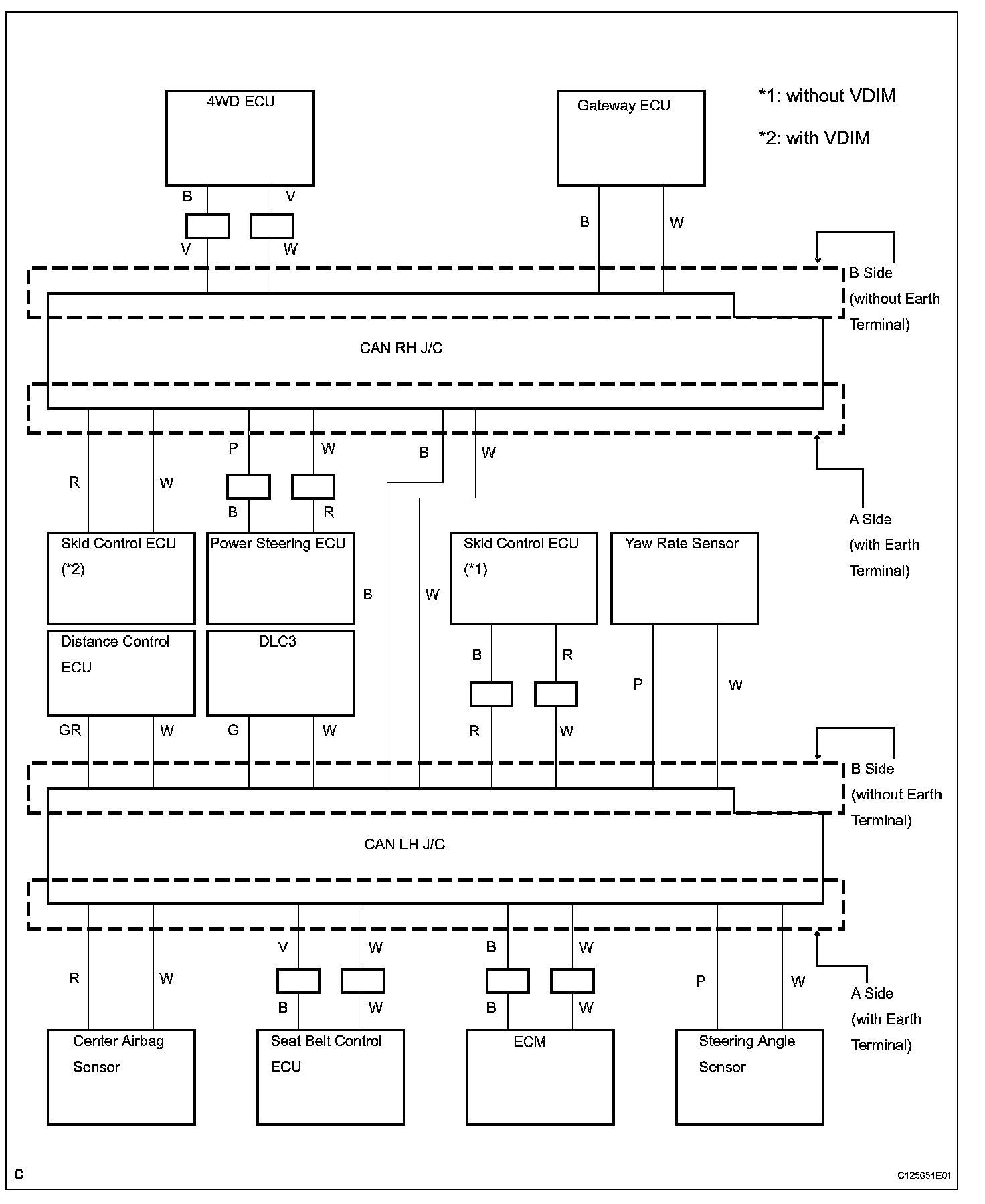

Wiring Diagram (Part 1):

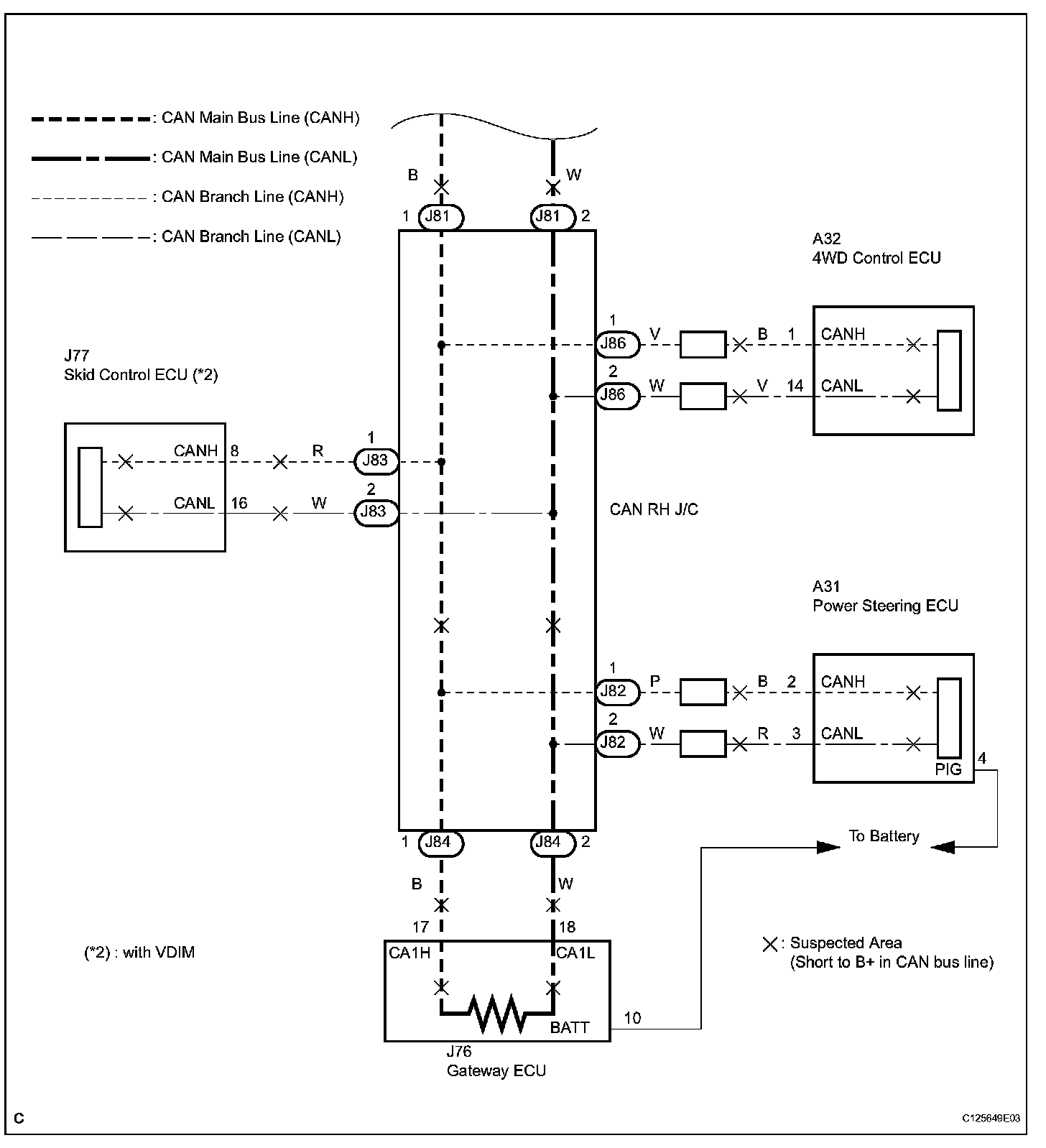

Wiring Diagram (Part 2):

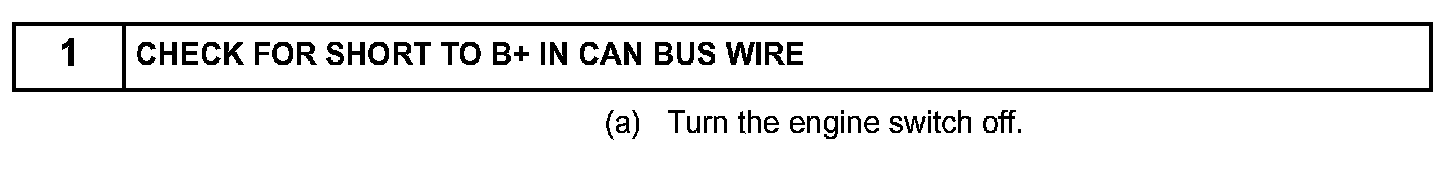

Step 1:

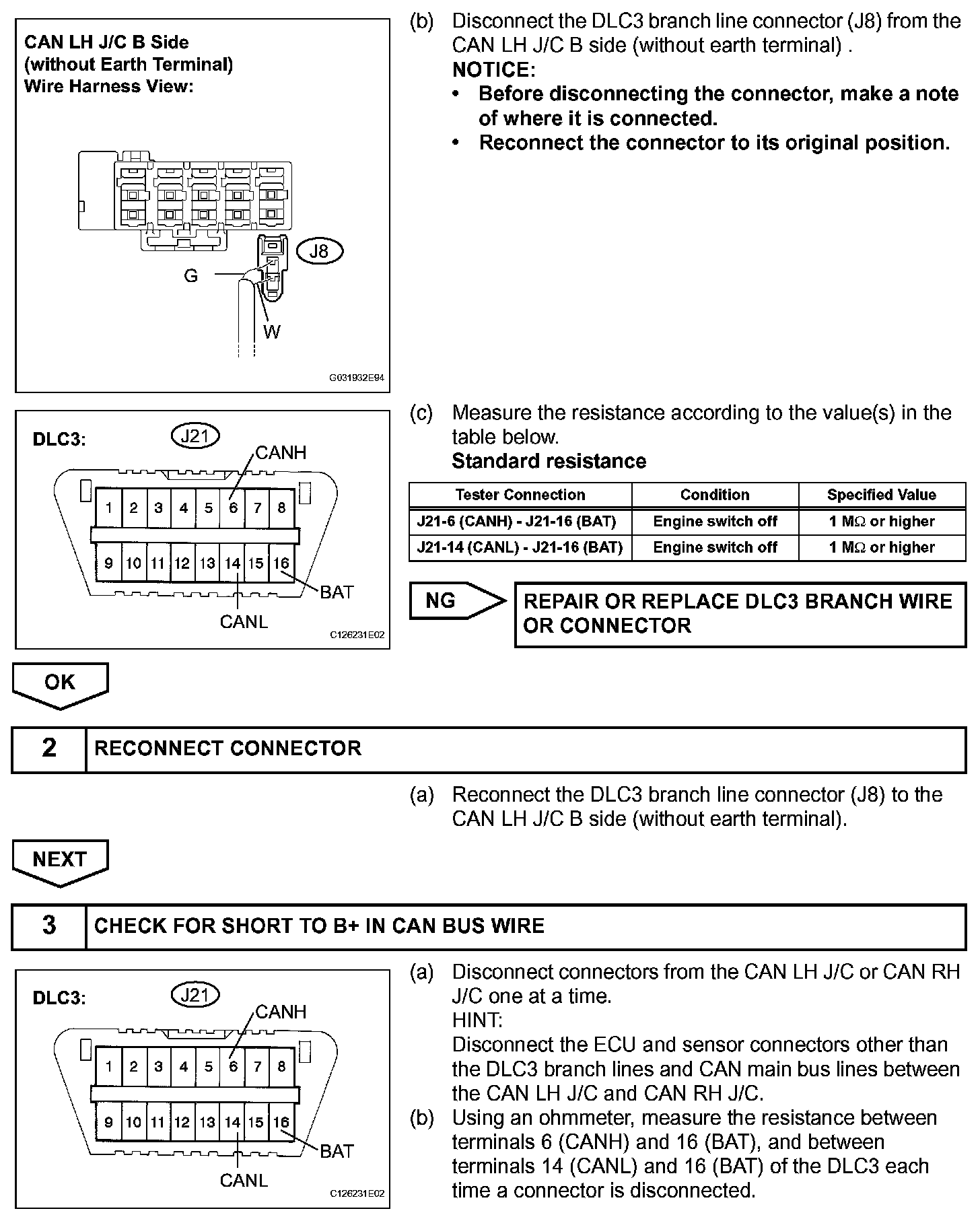

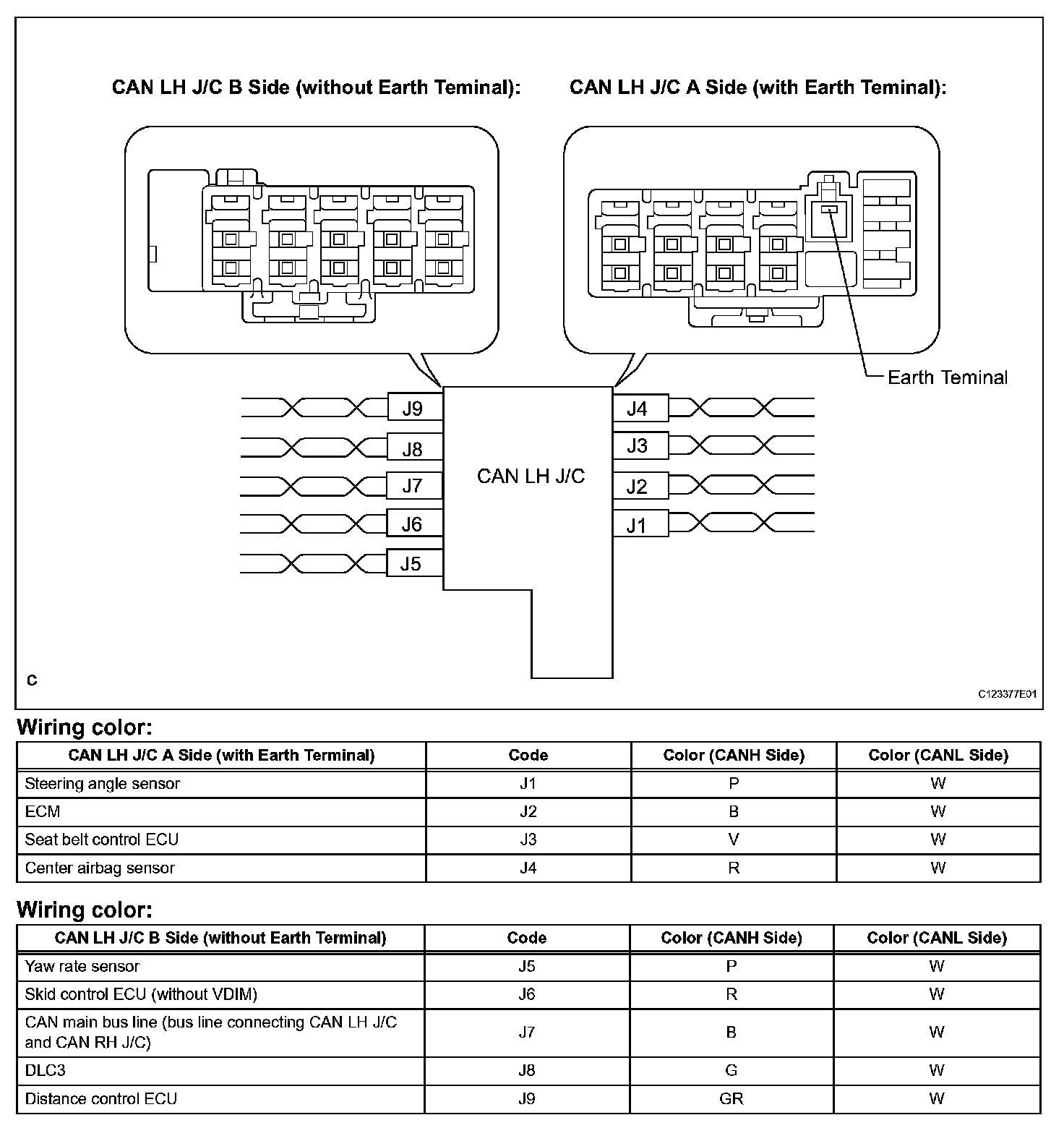

Step 1 (Continued)-3:

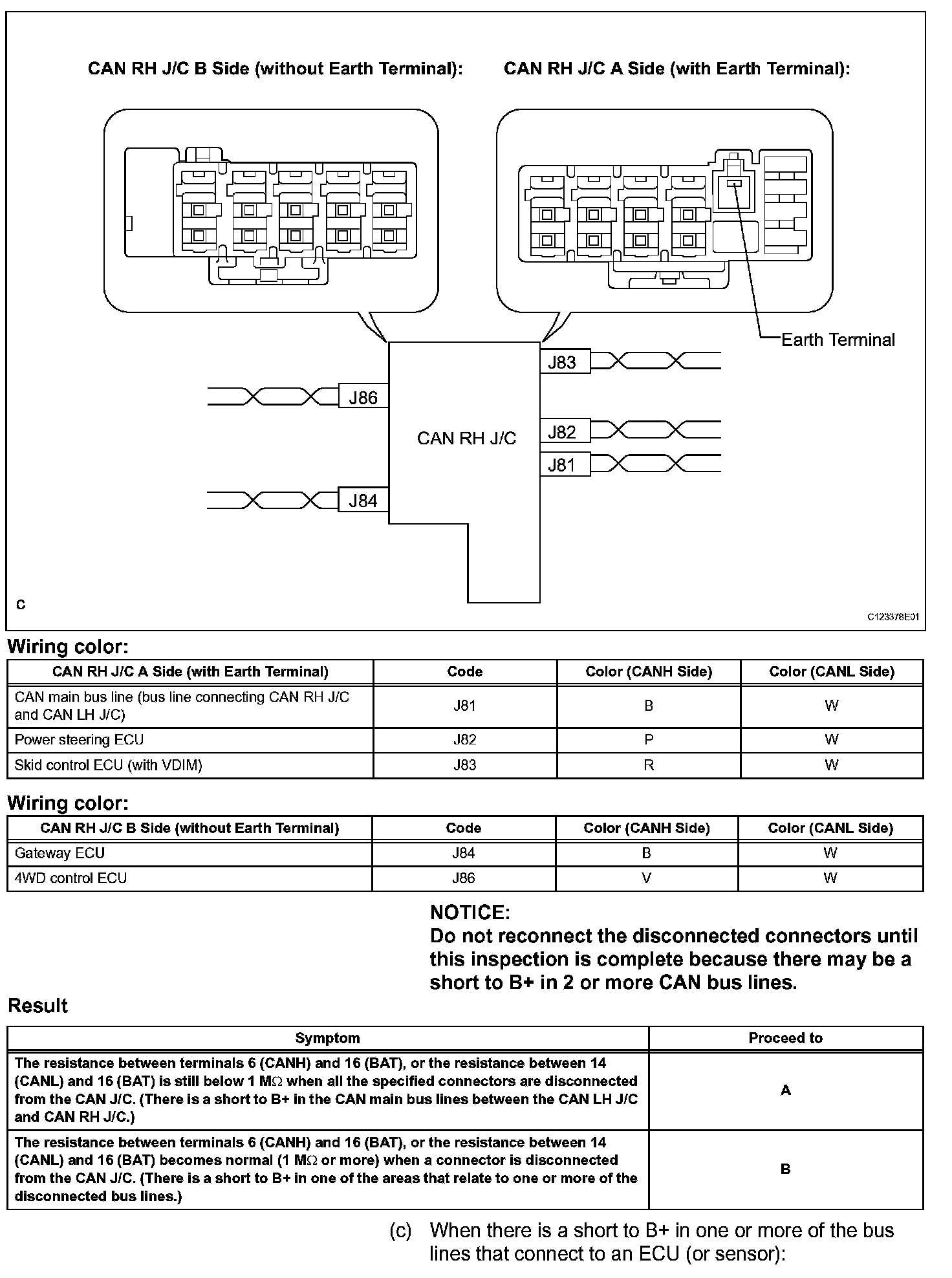

Step 3 (Continued):
Step 3 (Continued):
Step 3 (Continued):

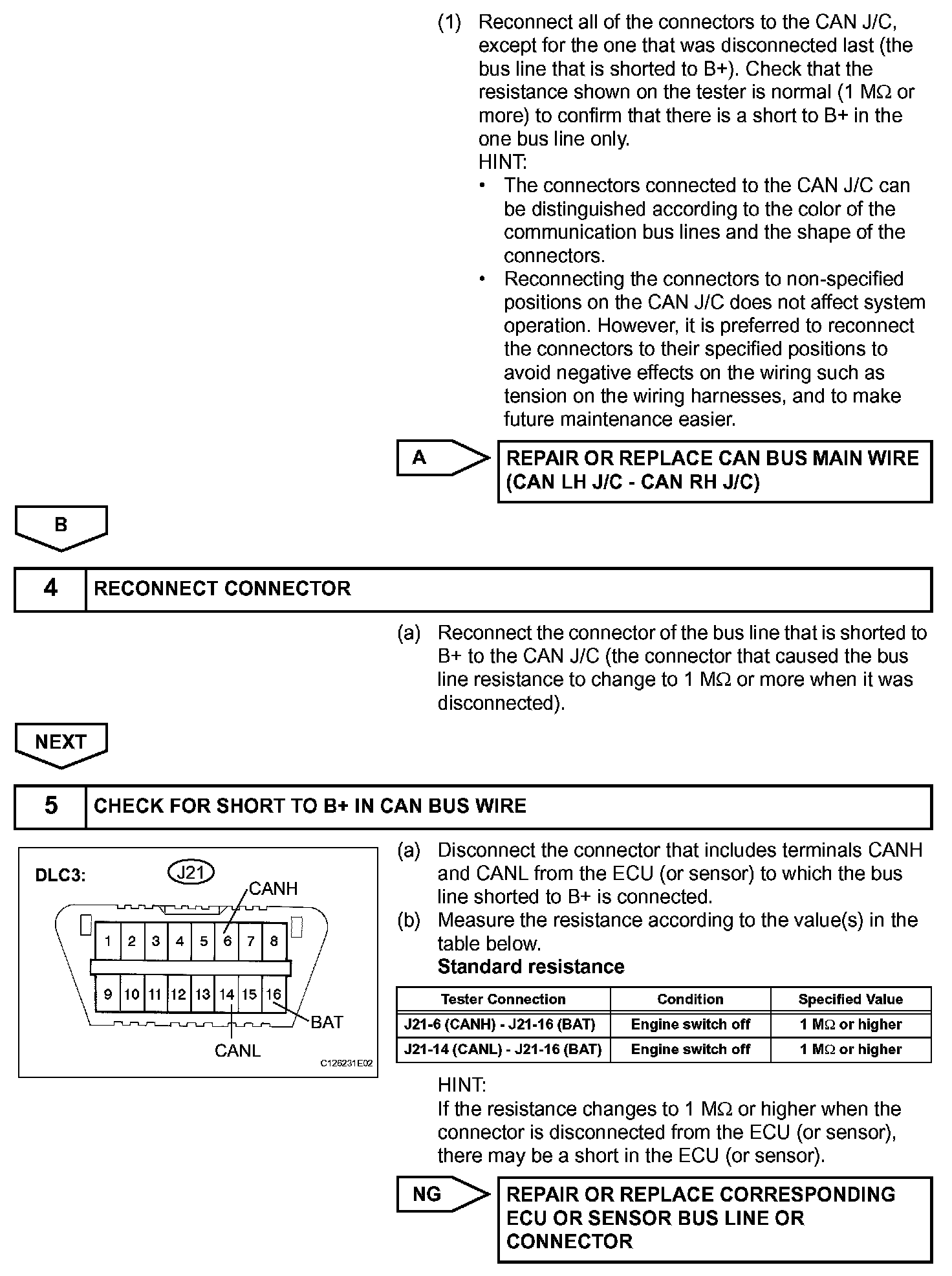

Step 3 (Continued)-5:

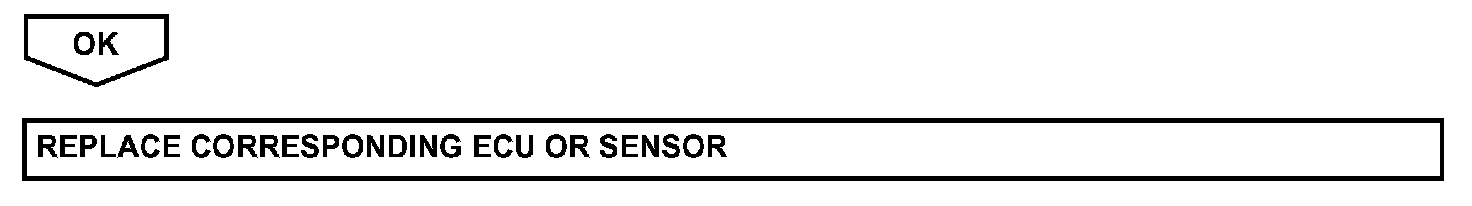

Step 5 (Continued):
INSPECTION PROCEDURE
