Short in CAN Bus Lines

Short in CAN Bus Lines

DESCRIPTION

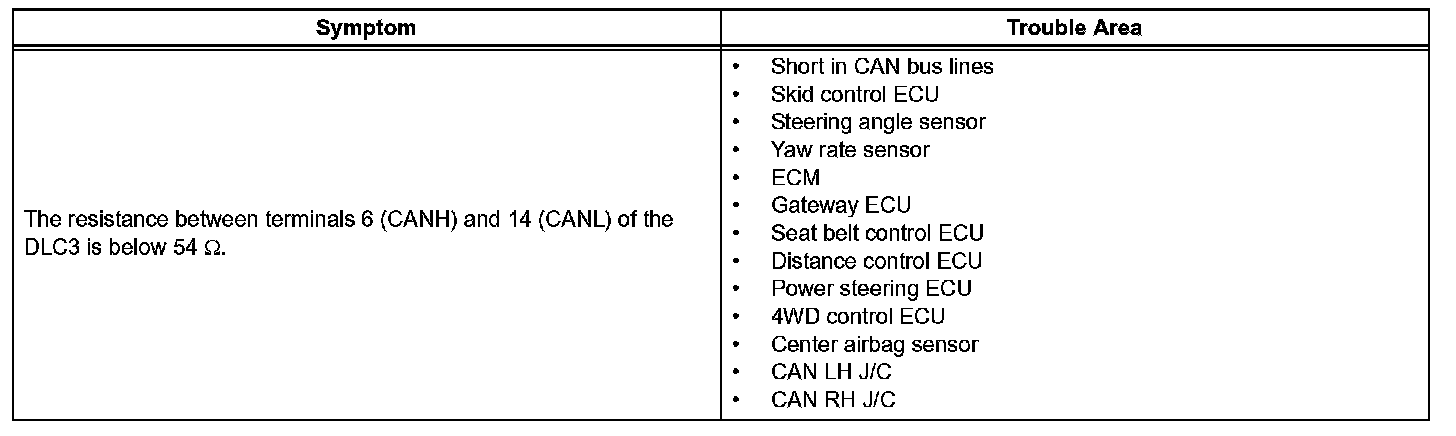

Symptom:

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

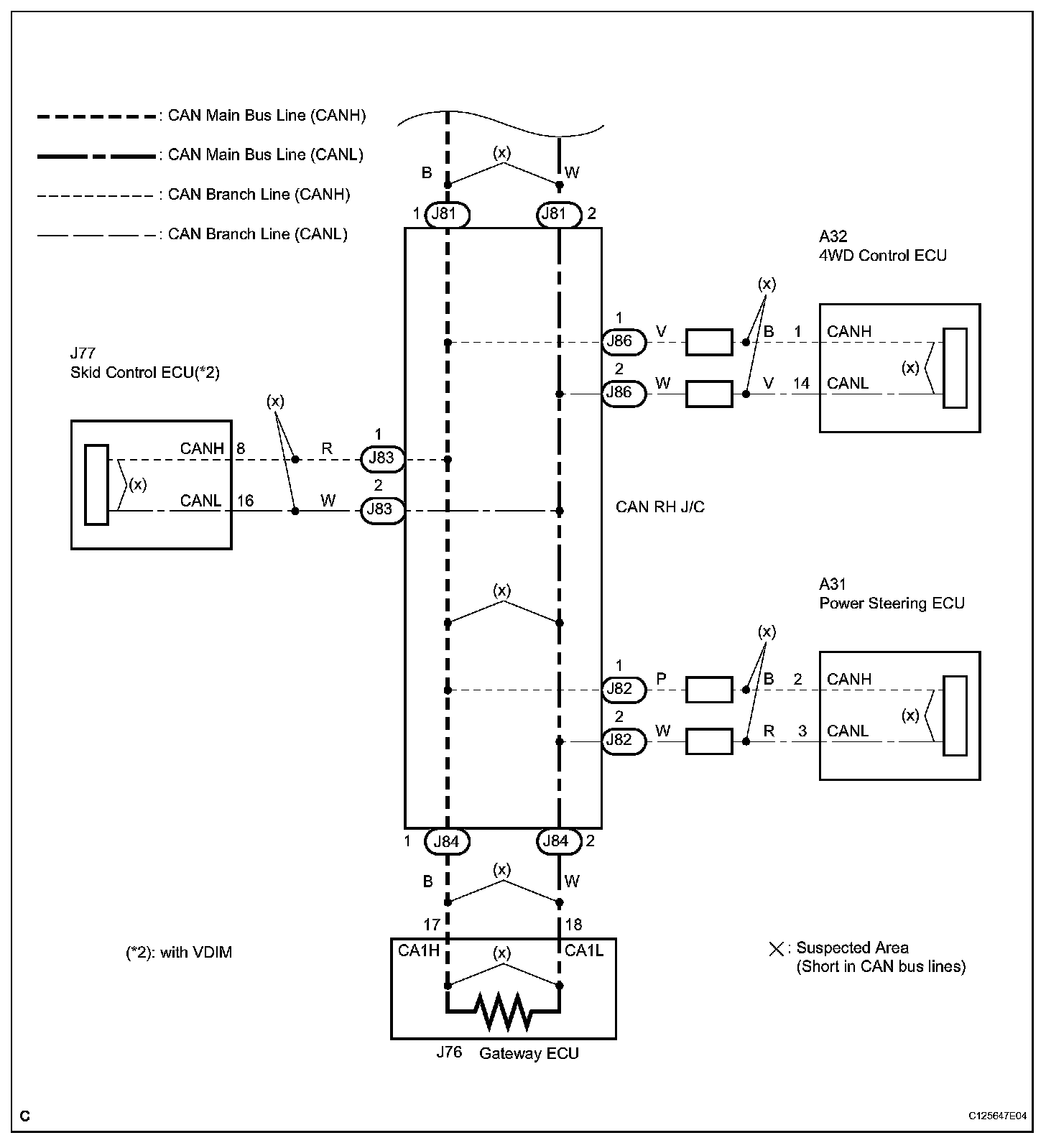

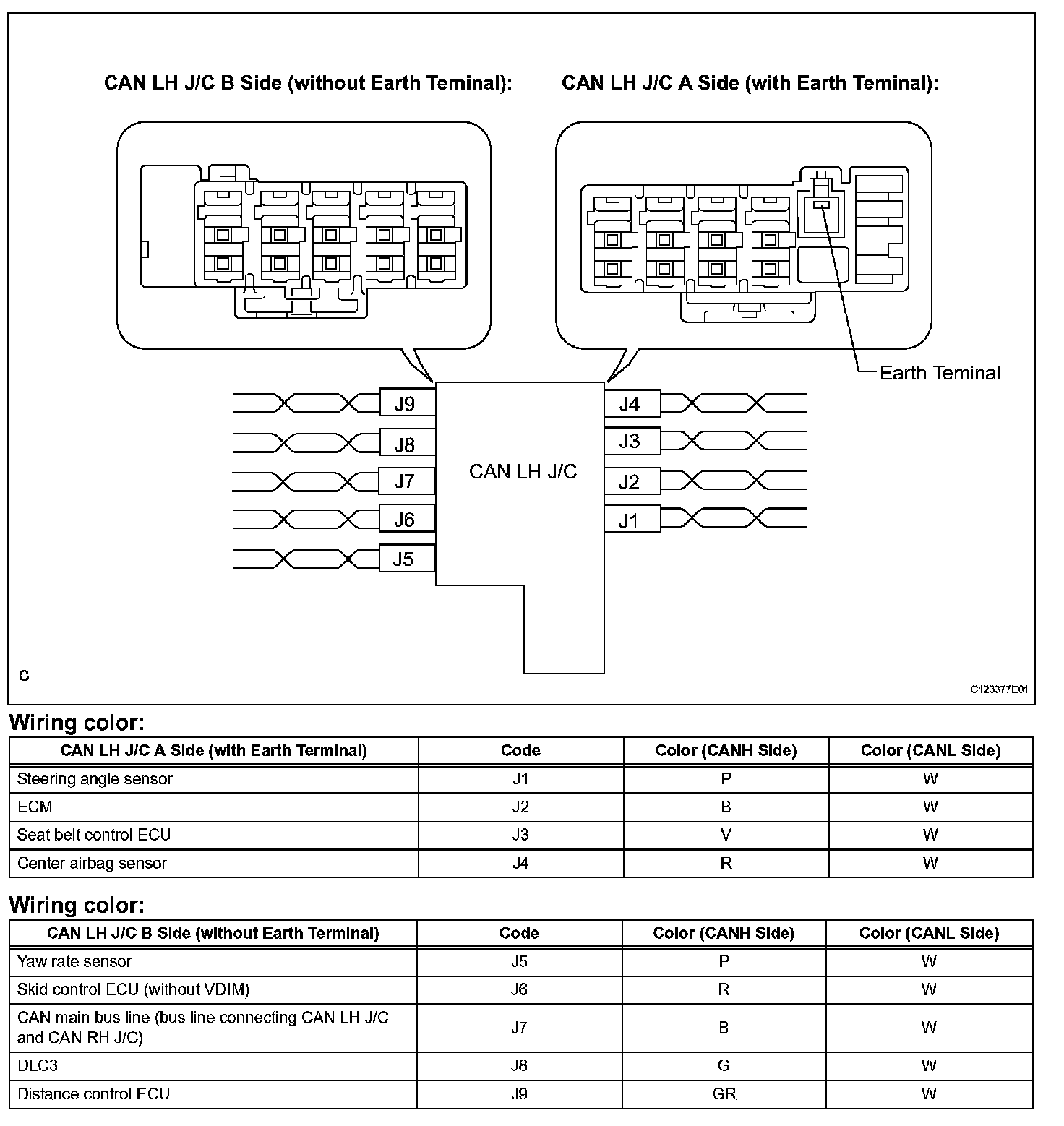

Wiring Diagram (Part 1):

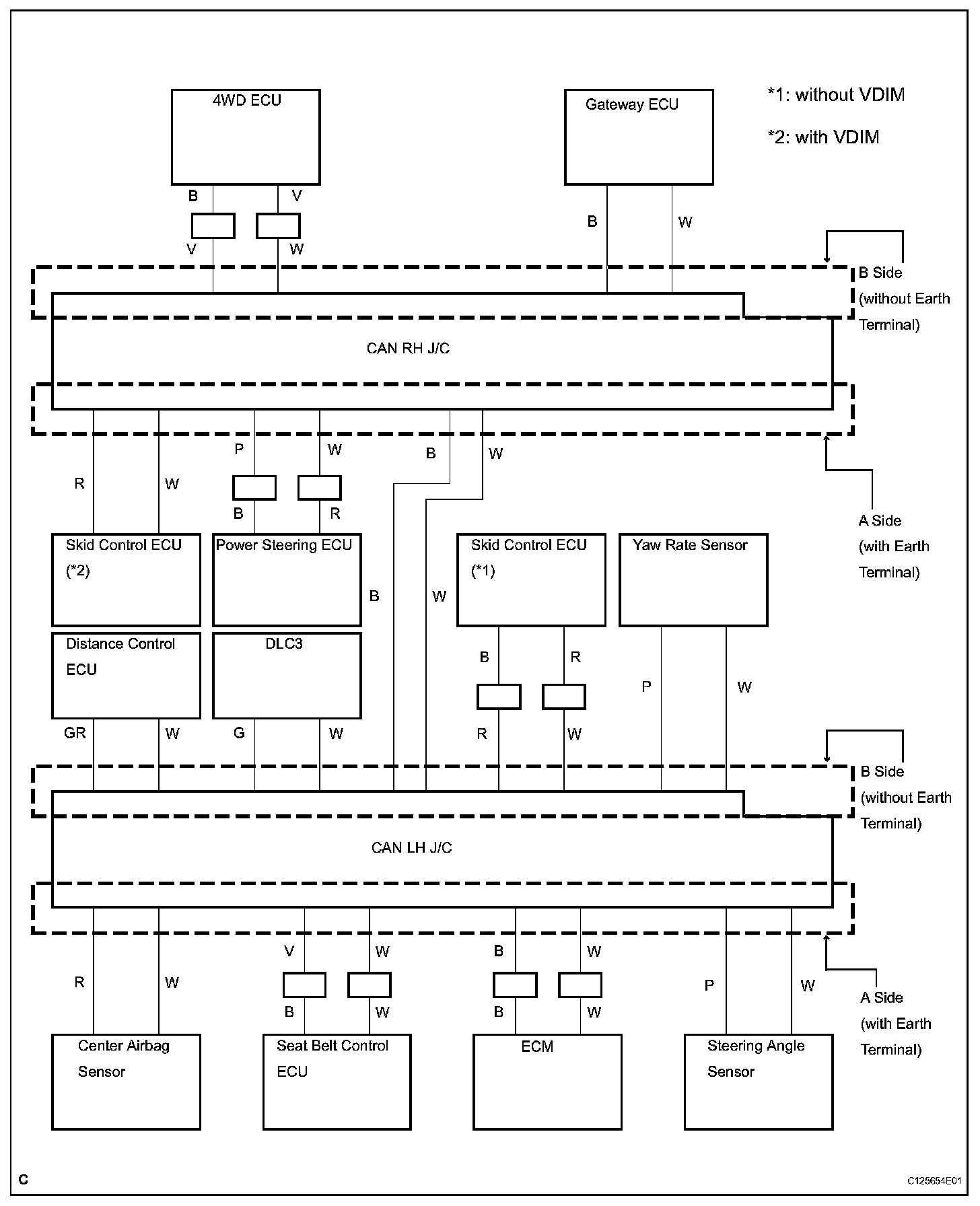

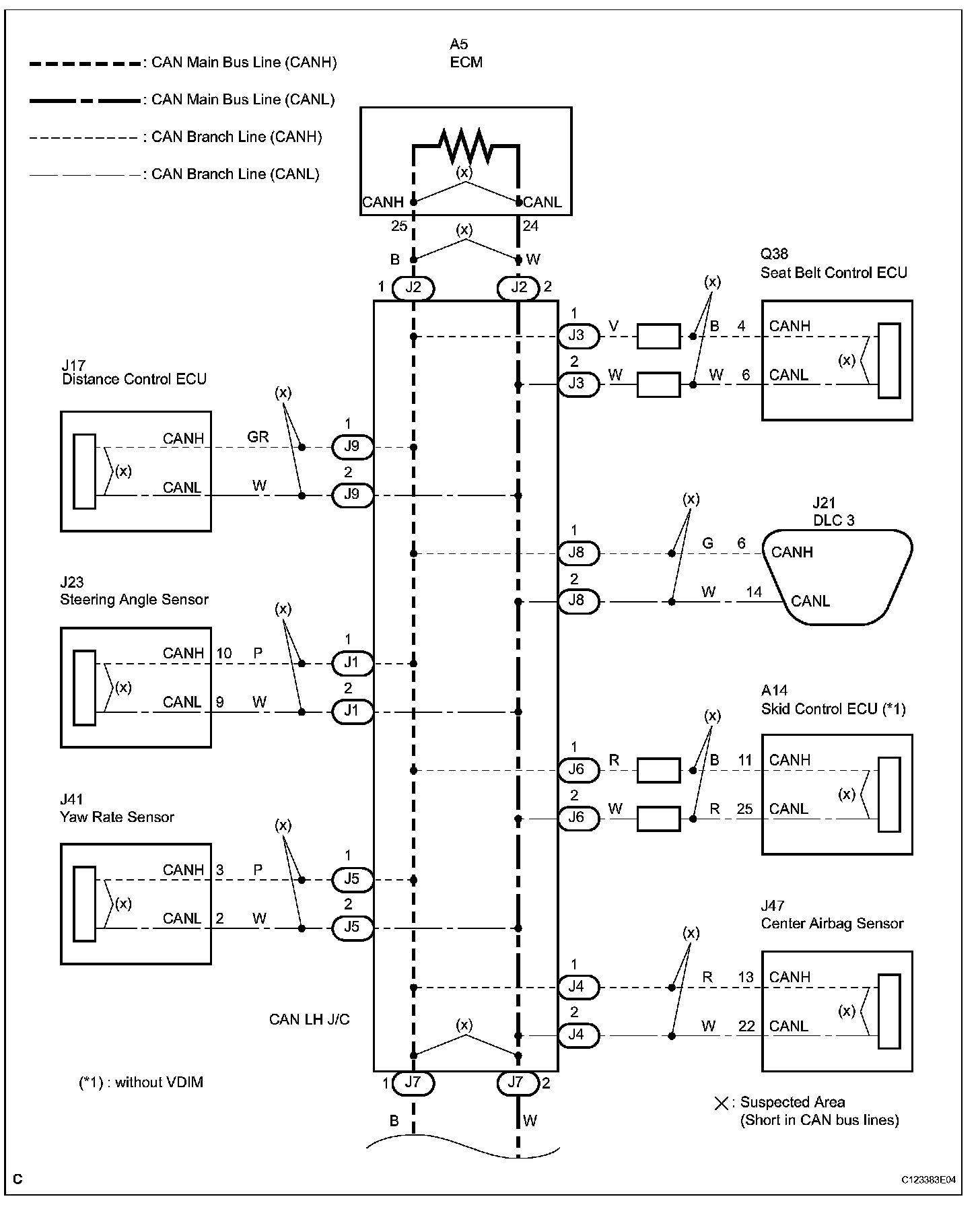

Wiring Diagram (Part 2):

Step 1:

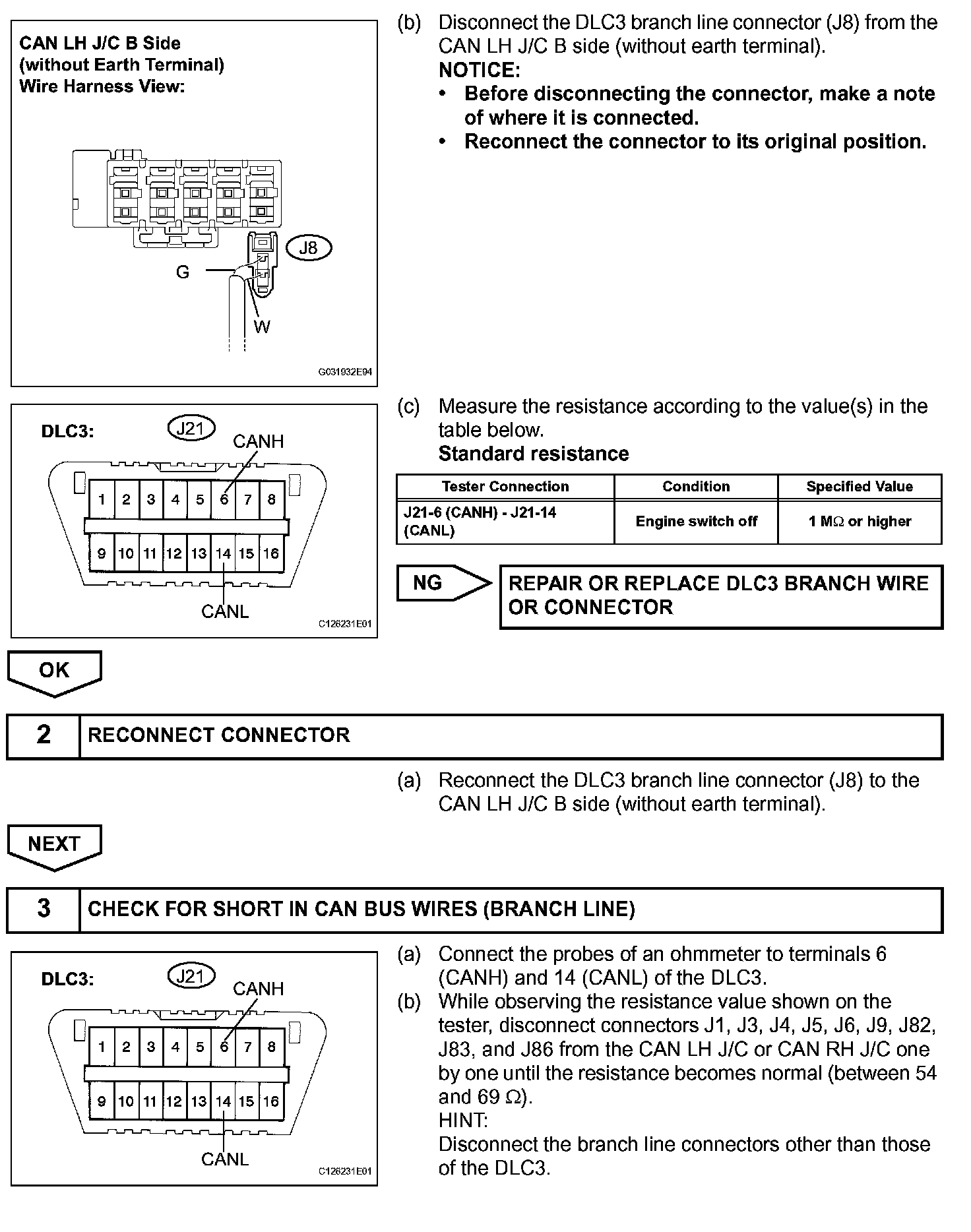

Step 1 (Continued)-3:

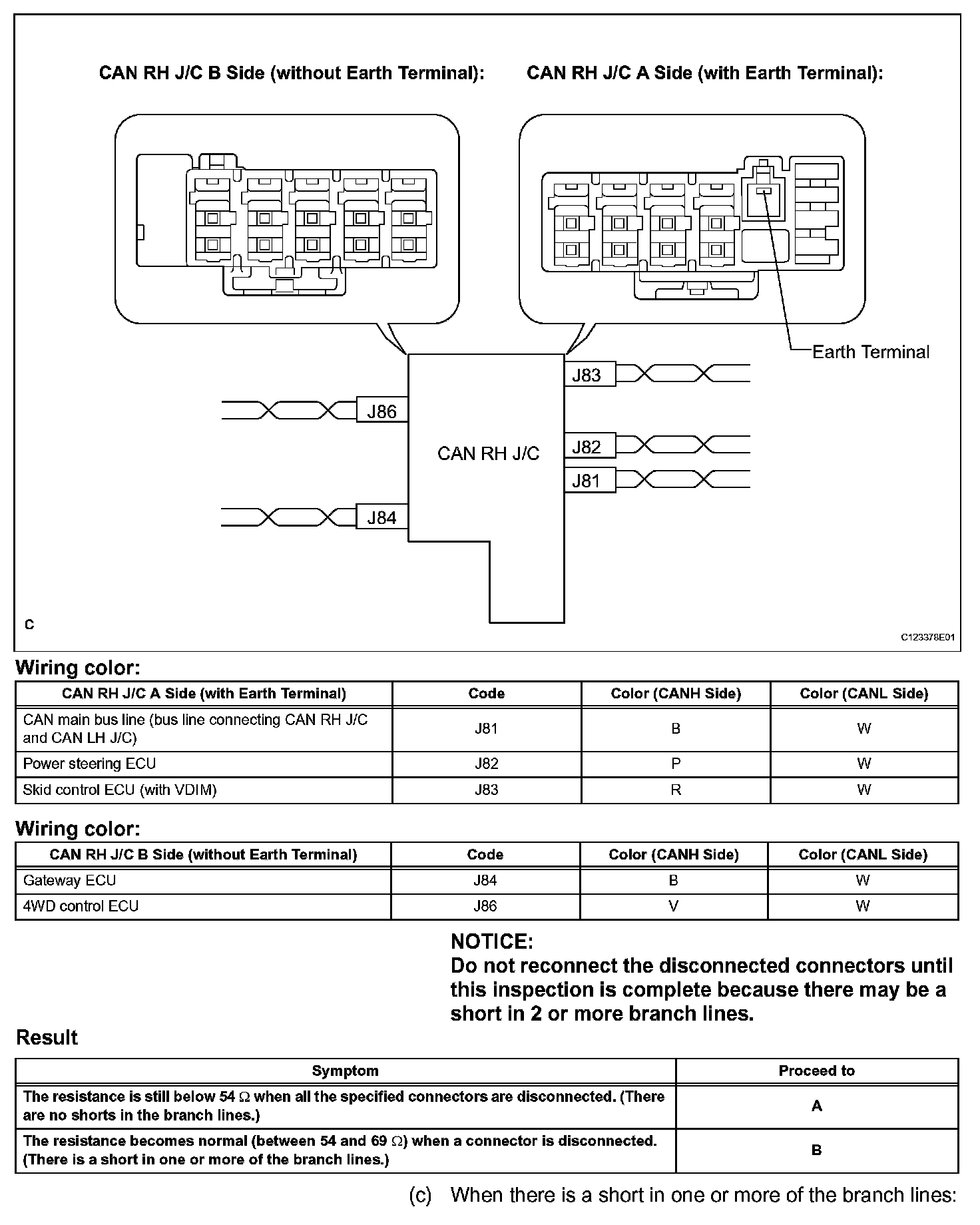

Step 3 (Continued):

Step 3 (Continued):

Step 3 (Continued):

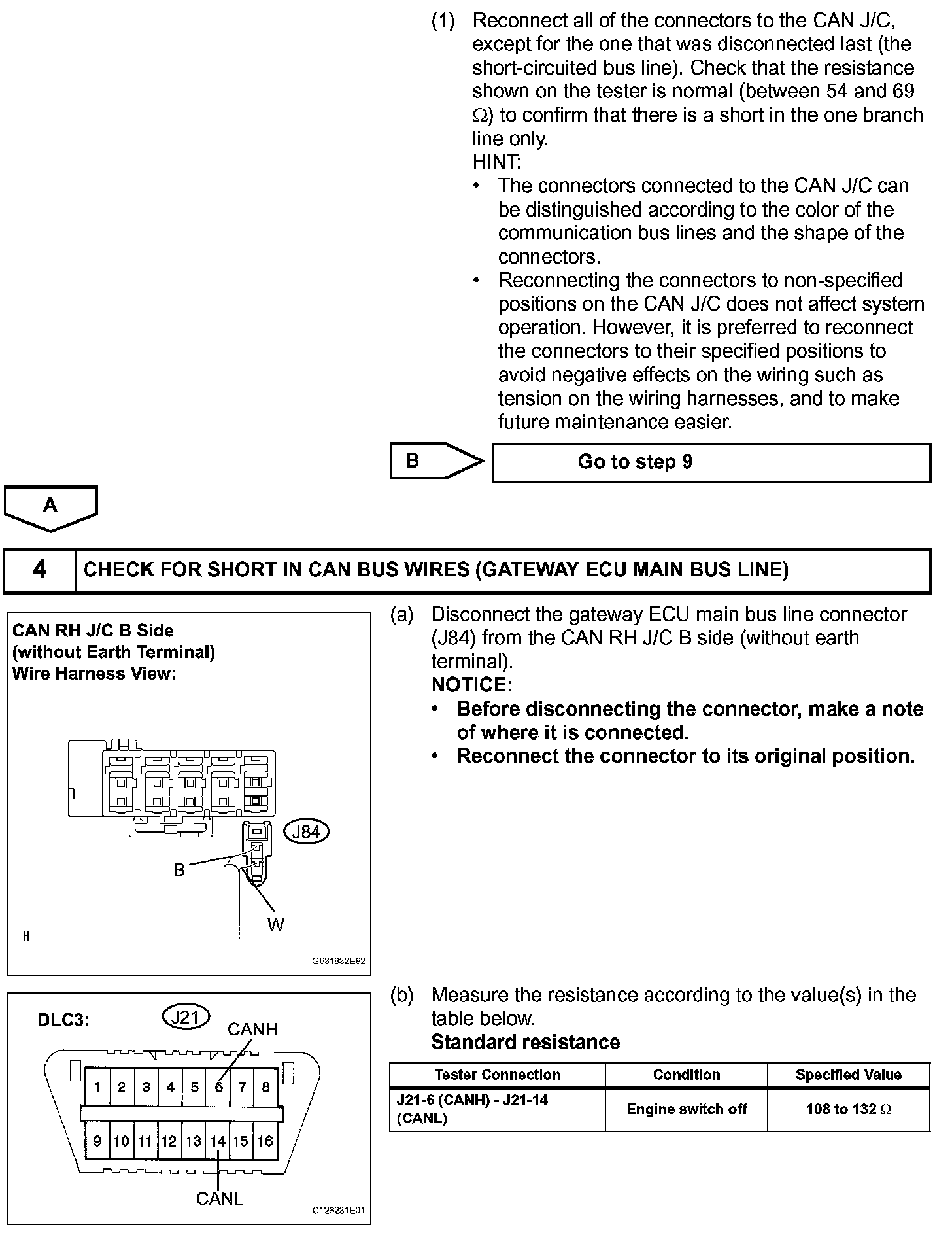

Step 3 (Continued)-4:

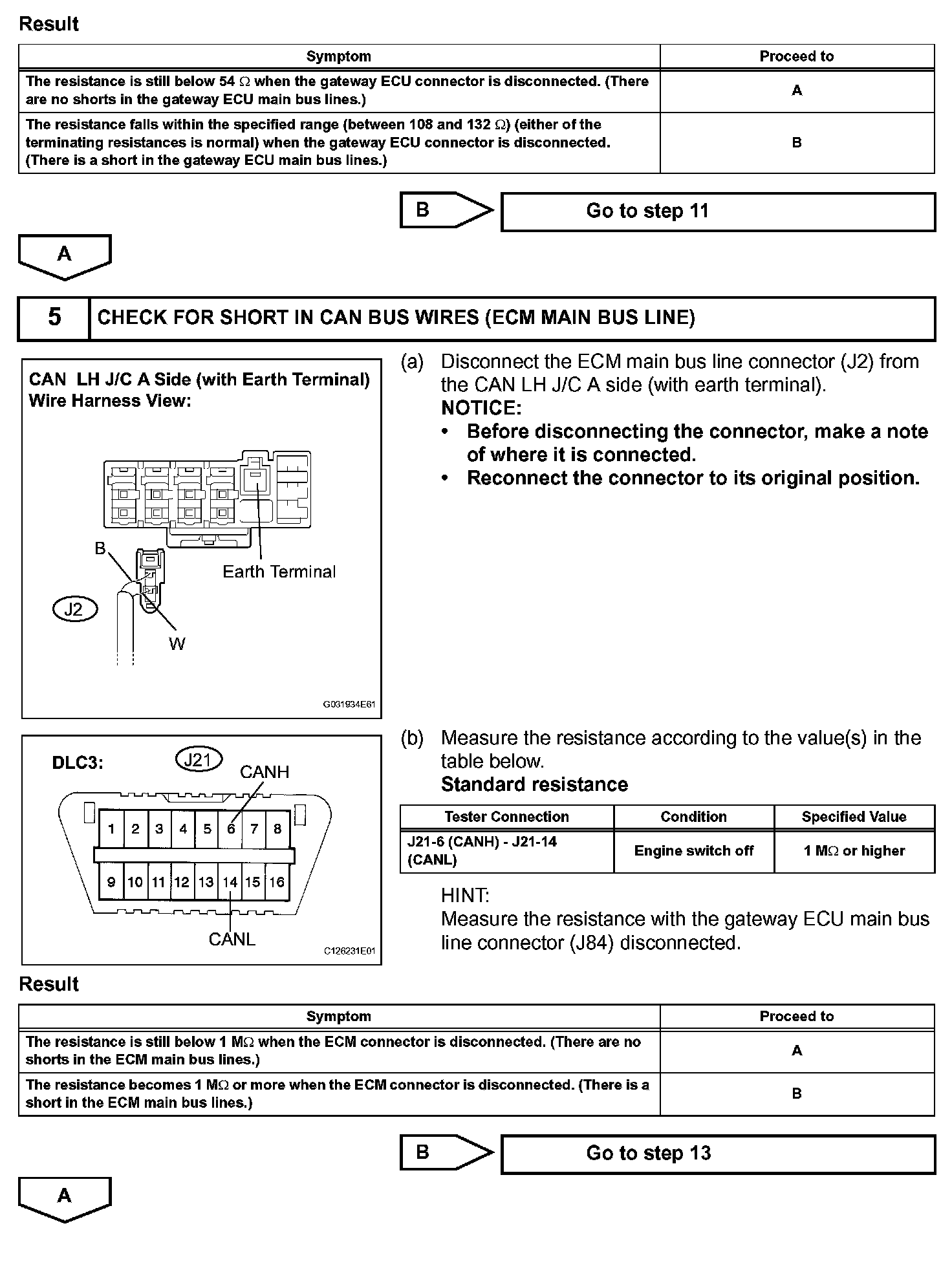

Step 4 (Continued)-5:

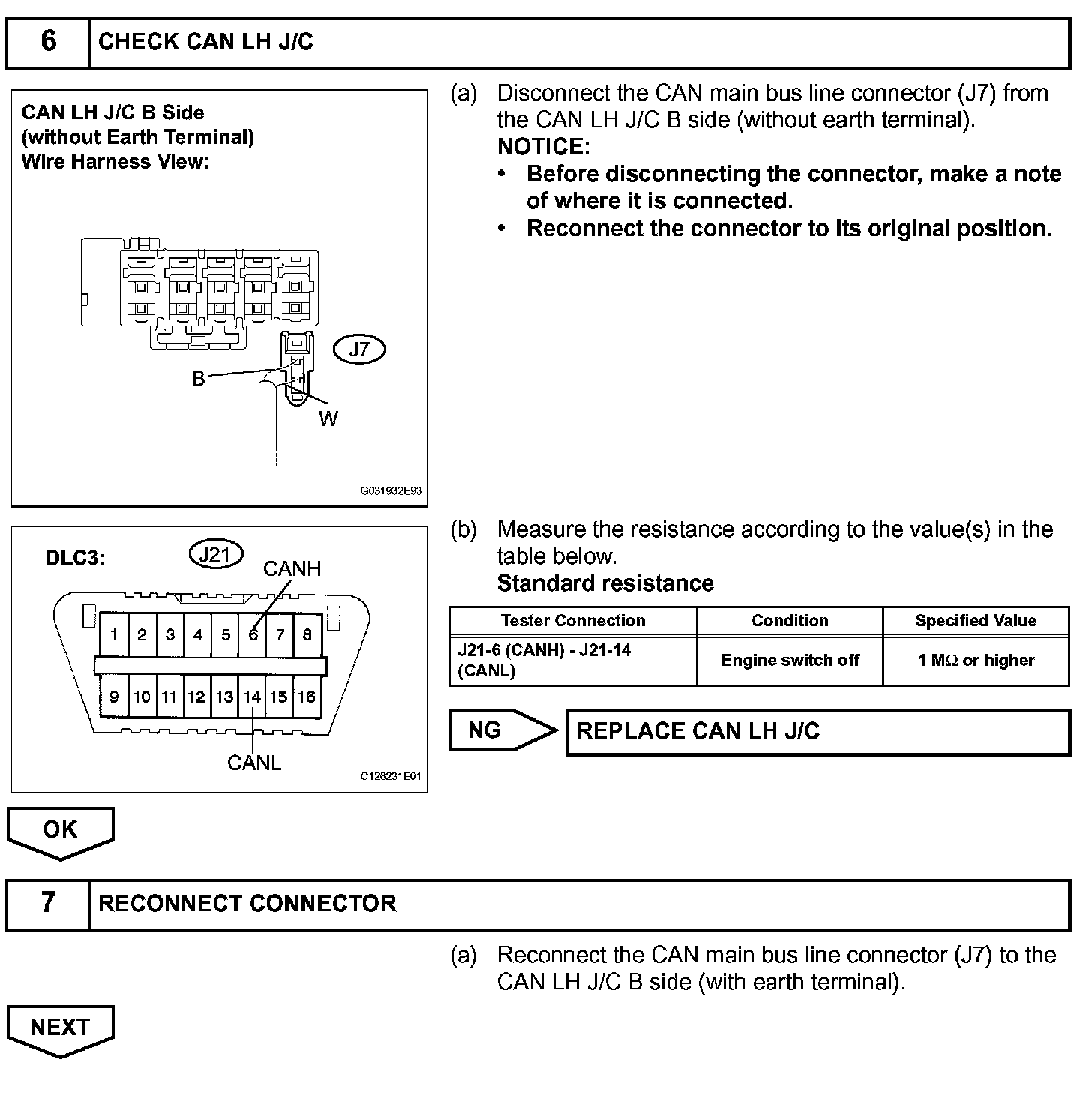

Step 6-7:

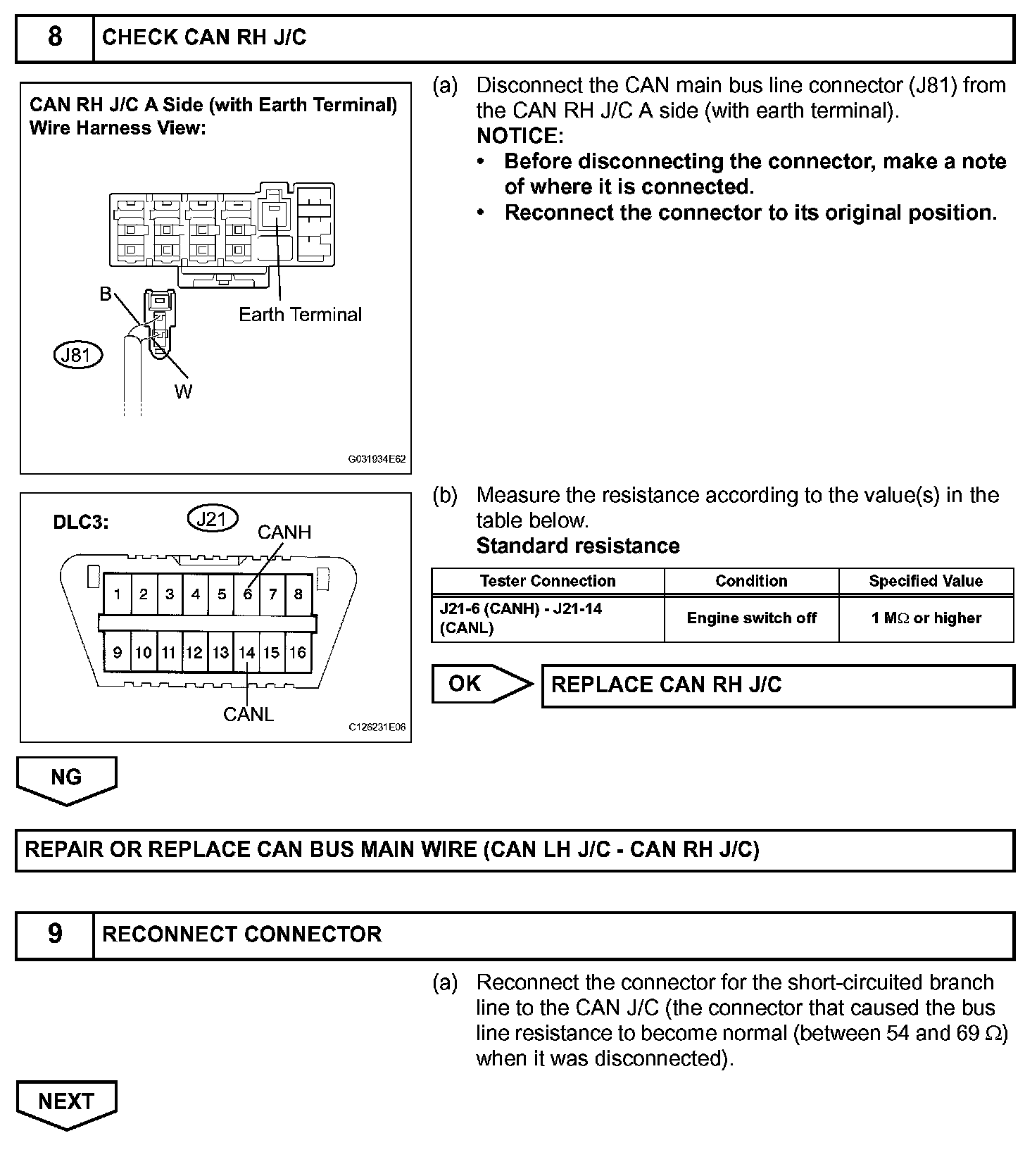

Step 8-9:

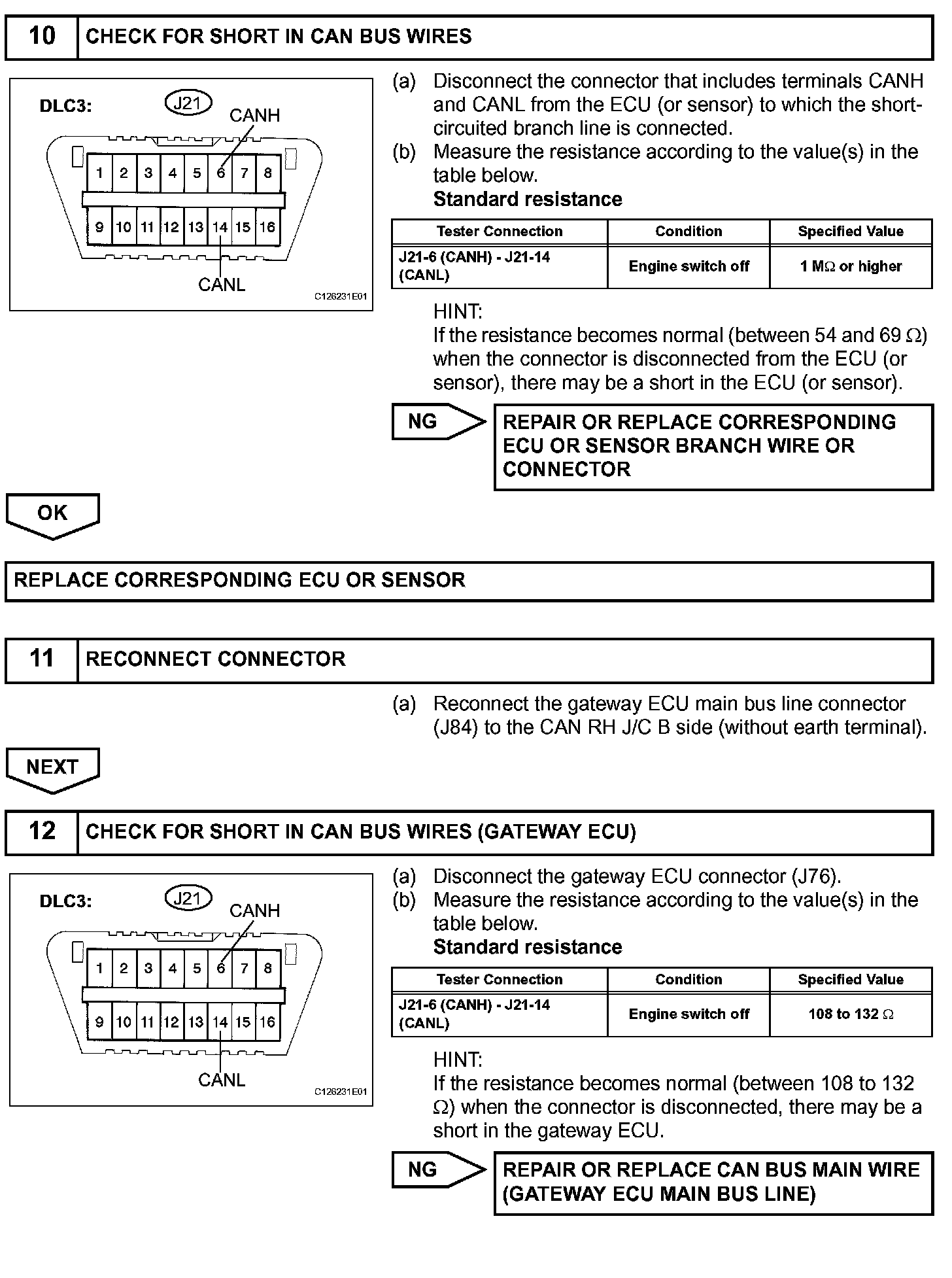

Step 10-12:

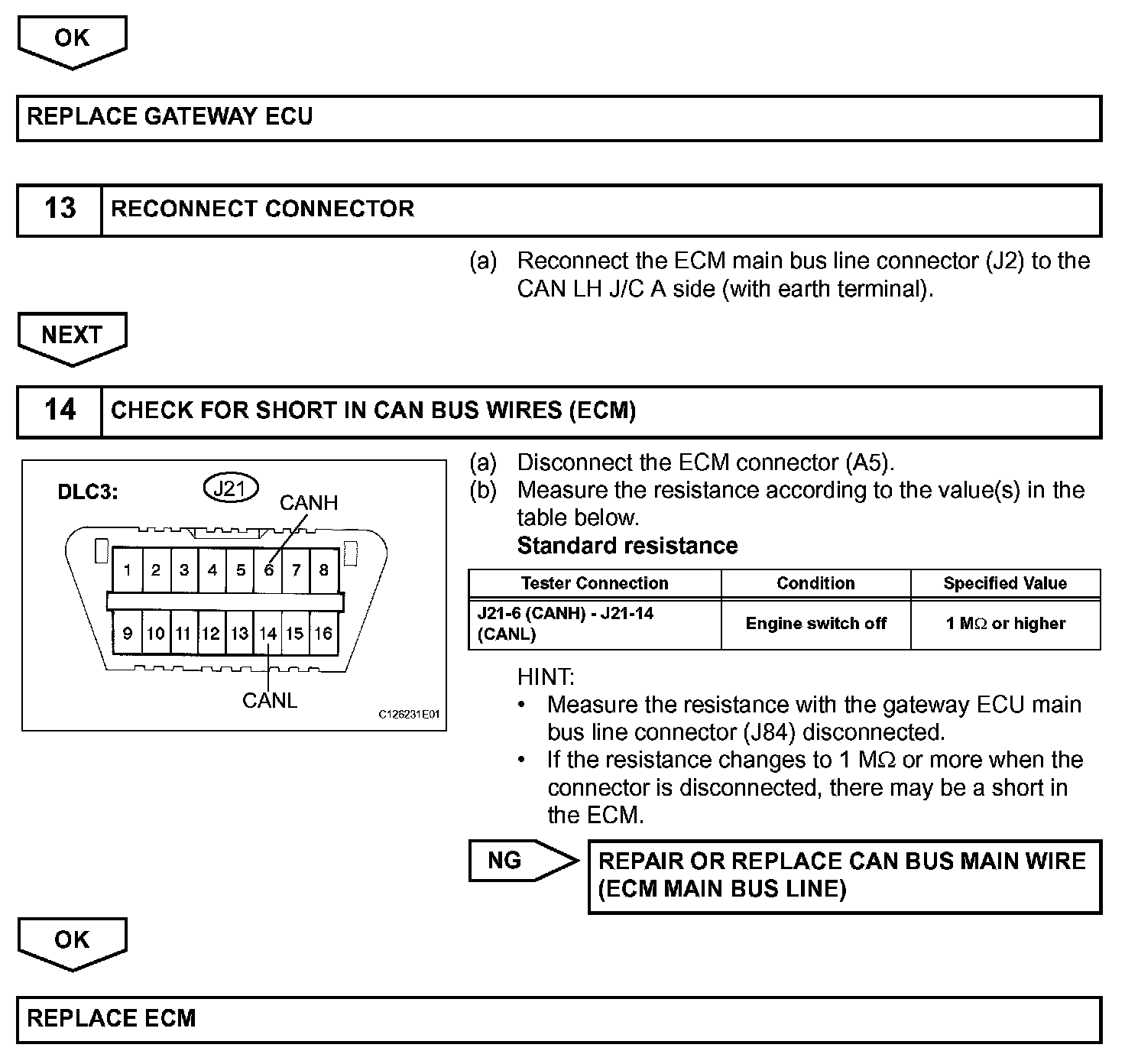

Step 12 (Continued)-14:

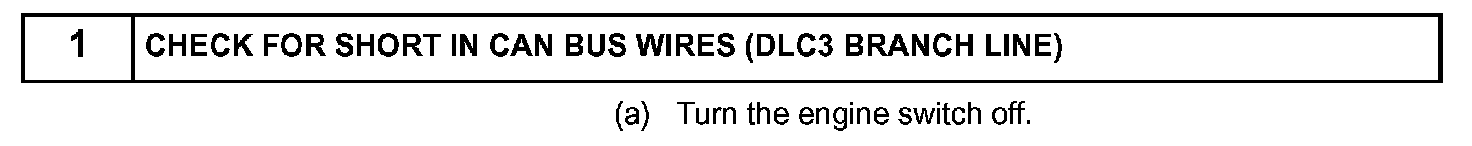

INSPECTION PROCEDURE
