Gateway ECU Communication Stop Mode

Gateway ECU Communication Stop Mode

DESCRIPTION

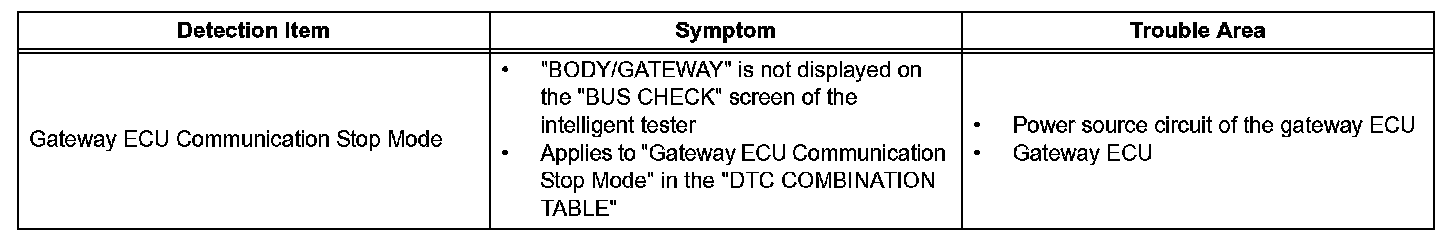

Detection Item:






HINT: "BODY/GATEWAY" refers to the circuit that includes the gateway ECU.

Wiring Diagram:

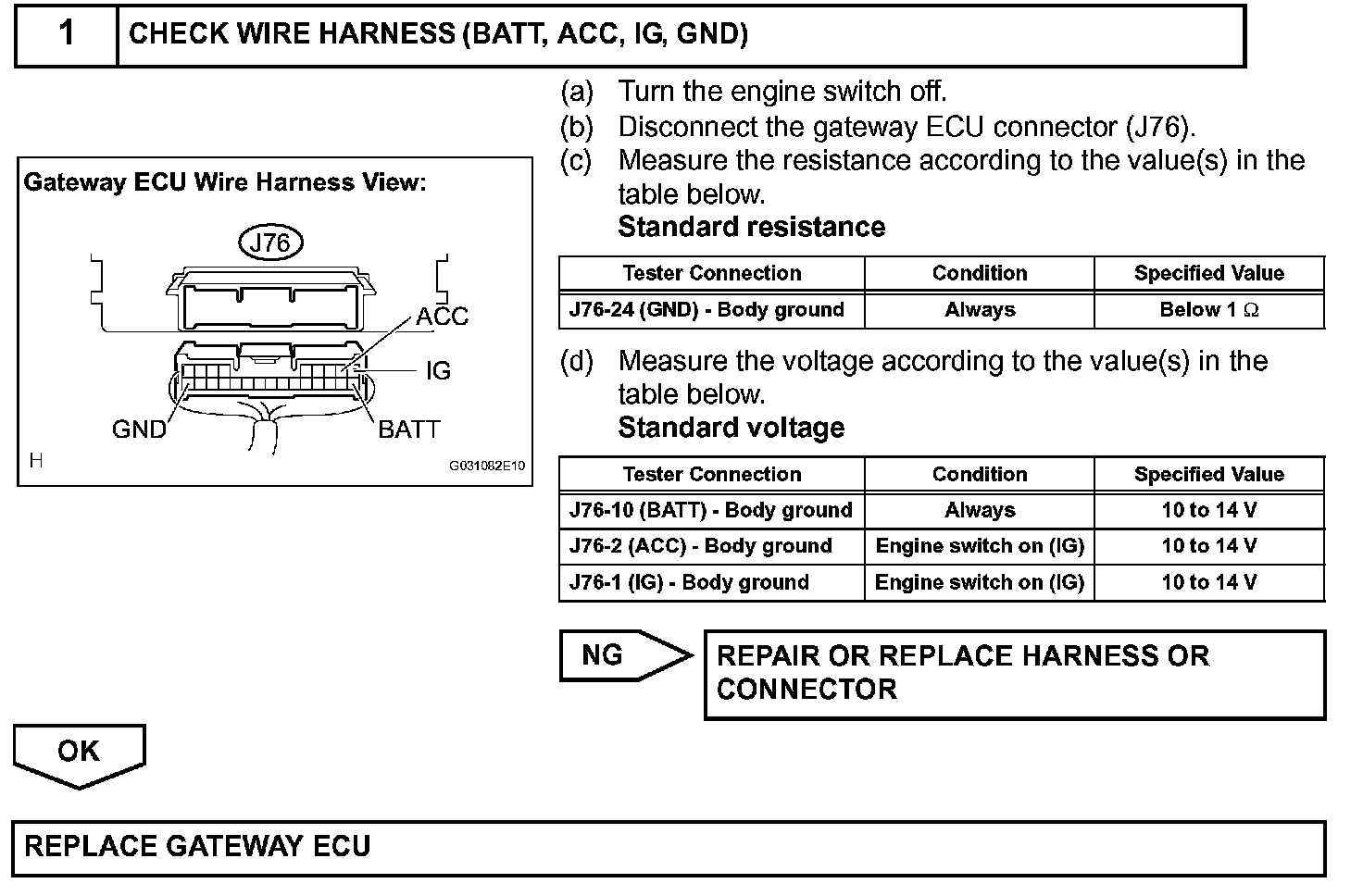

Step 1:




INSPECTION PROCEDURE
