Center Airbag Sensor Communication Stop Mode

Center Airbag Sensor Communication Stop Mode

DESCRIPTION

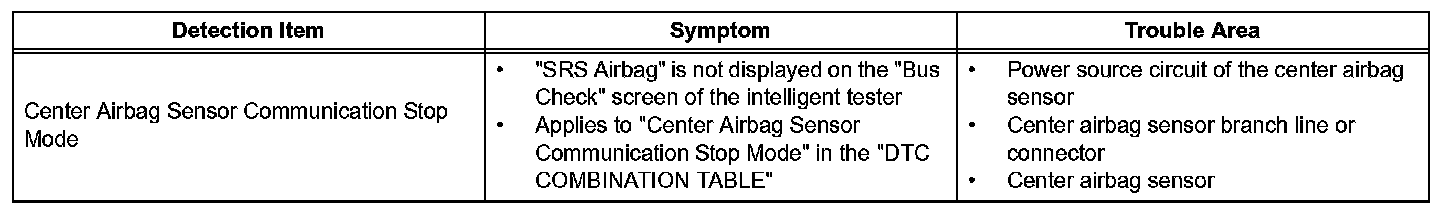

Detection Item:

HINT: "SRS AIRBAG" refers to the circuit that includes the center airbag sensor.

Wiring Diagram:

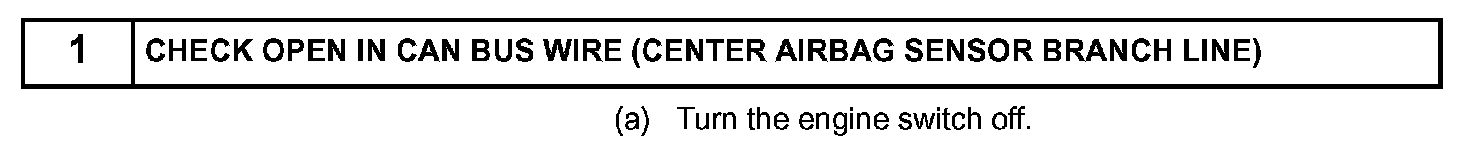

Step 1:

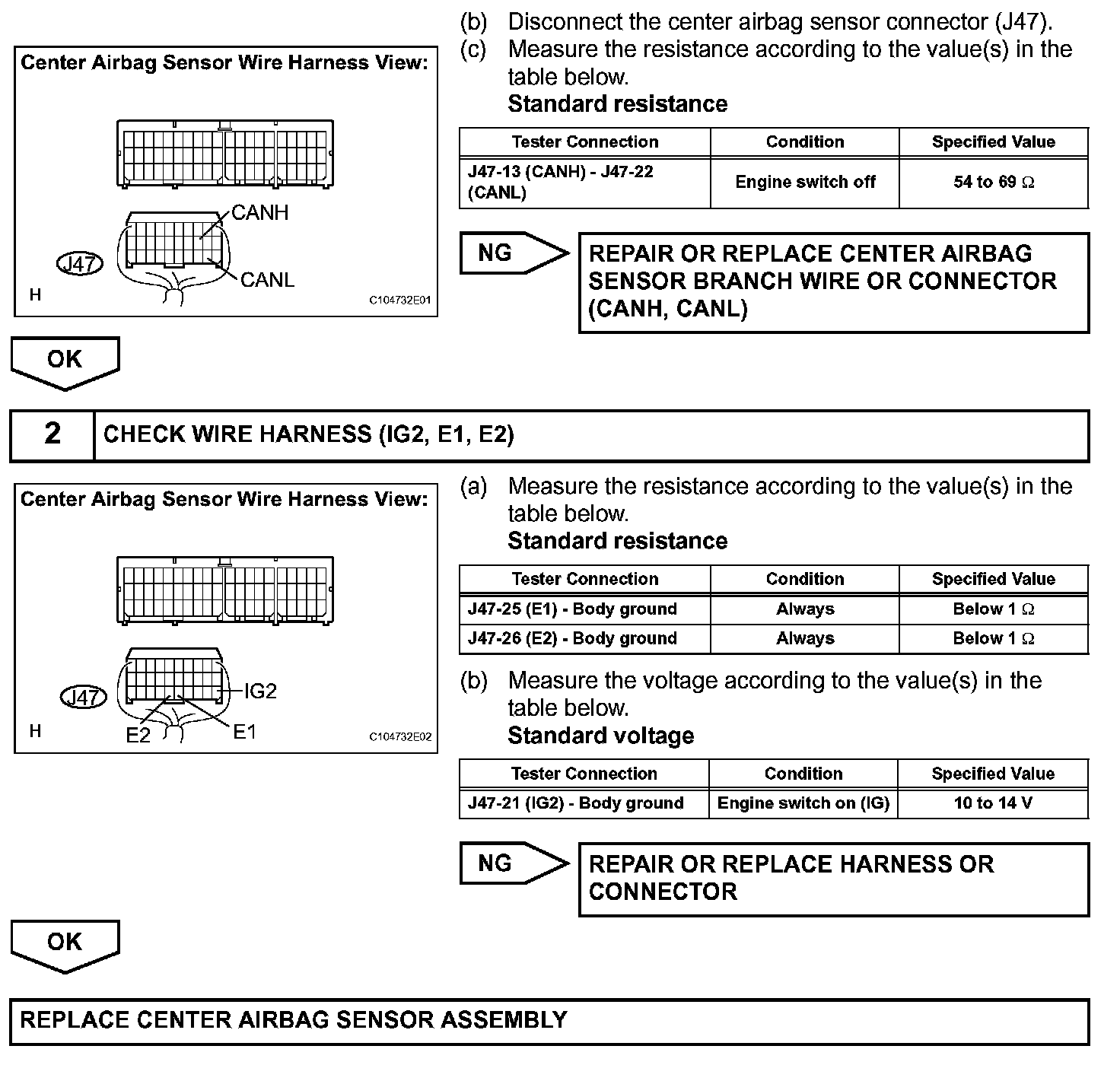

Step 1 (Continued)-2:

INSPECTION PROCEDURE
