Turn Signal Flasher: Service and Repair

Turn Signal Flasher Assembly:

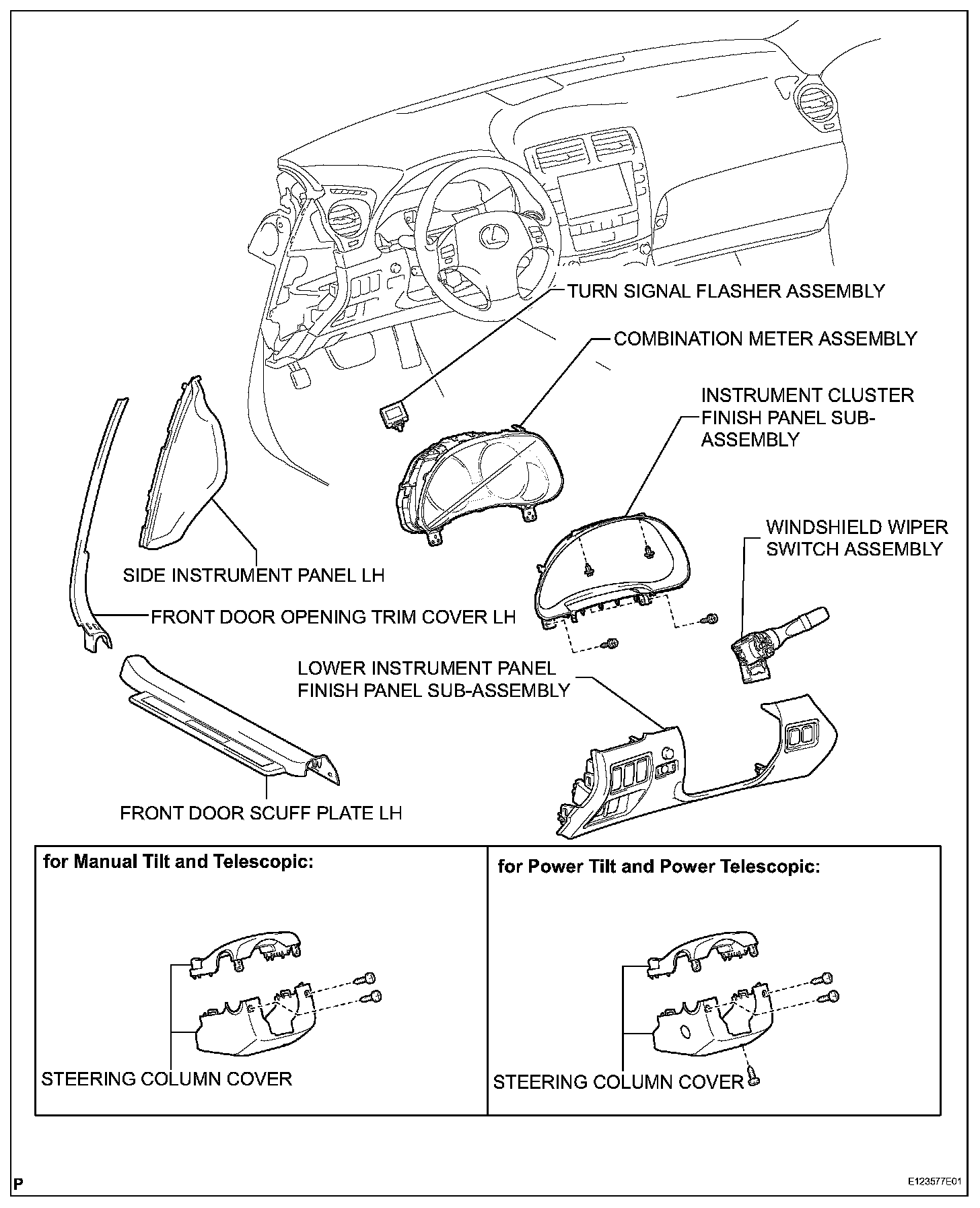

TURN SIGNAL FLASHER ASSEMBLY

REMOVAL

1. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)
2. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
3. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
4. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
5. REMOVE FRONT DOOR OPENING TRIM COVER LH
6. REMOVE SIDE INSTRUMENT PANEL LH
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
8. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
9. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
10. REMOVE COMBINATION METER ASSEMBLY

11. REMOVE TURN SIGNAL FLASHER ASSEMBLY
a. Disconnect the connector.
b. Disengage the clamp and remove the turn signal flasher assembly.

INSTALLATION

1. INSTALL TURN SIGNAL FLASHER ASSEMBLY
a. Install the turn signal flasher assembly with the clamp.
b. Connect the connector.

2. INSTALL COMBINATION METER ASSEMBLY
3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
6. INSTALL SIDE INSTRUMENT PANEL LH
7. INSTALL FRONT DOOR OPENING TRIM COVER LH
8. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
9. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
10. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
11. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)
