Pinout Values and Diagnostic Parameters

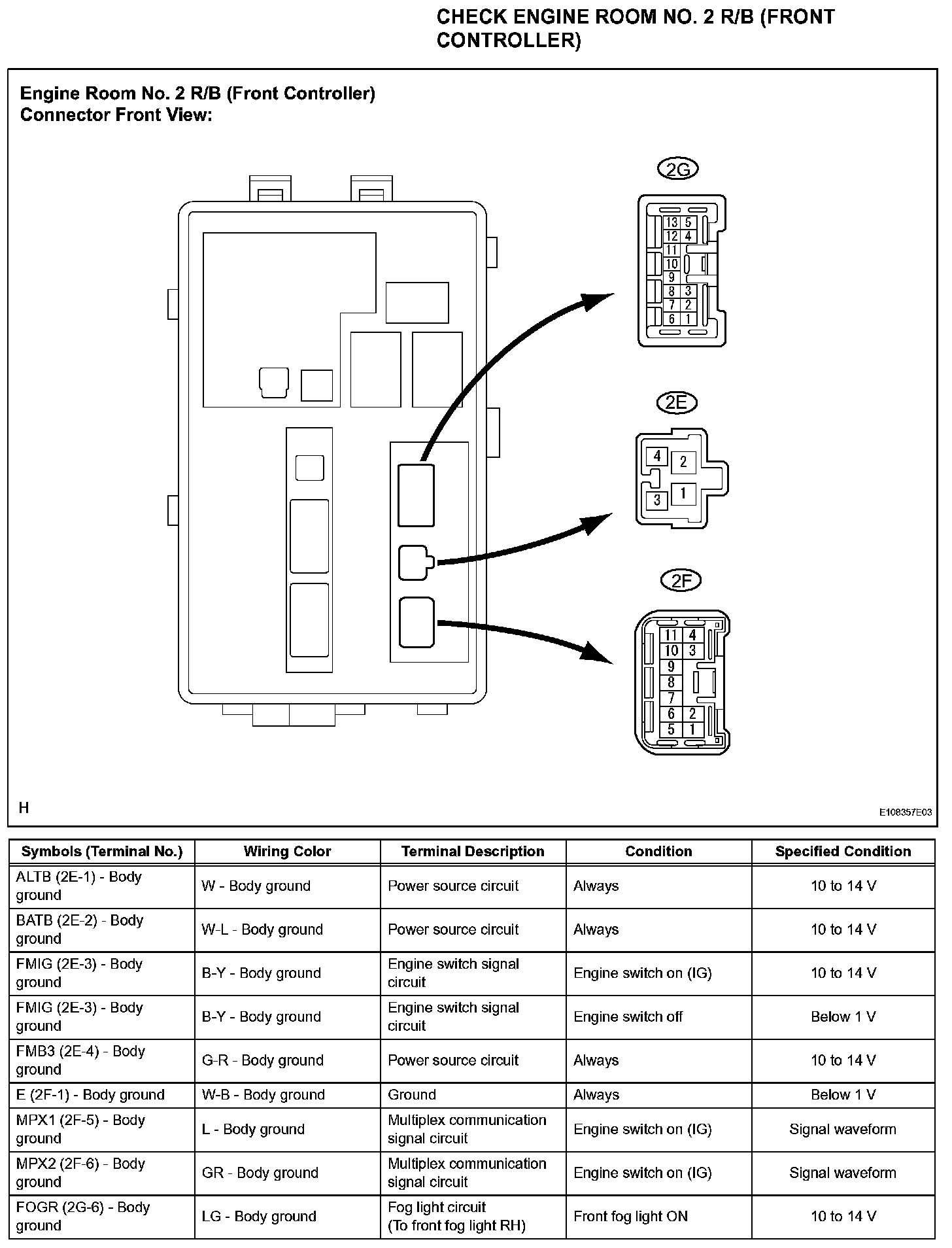

Terminals Of Control Module/Pinouts - Check Engine Room No.2 R/B (Front Controller) (Part 1):

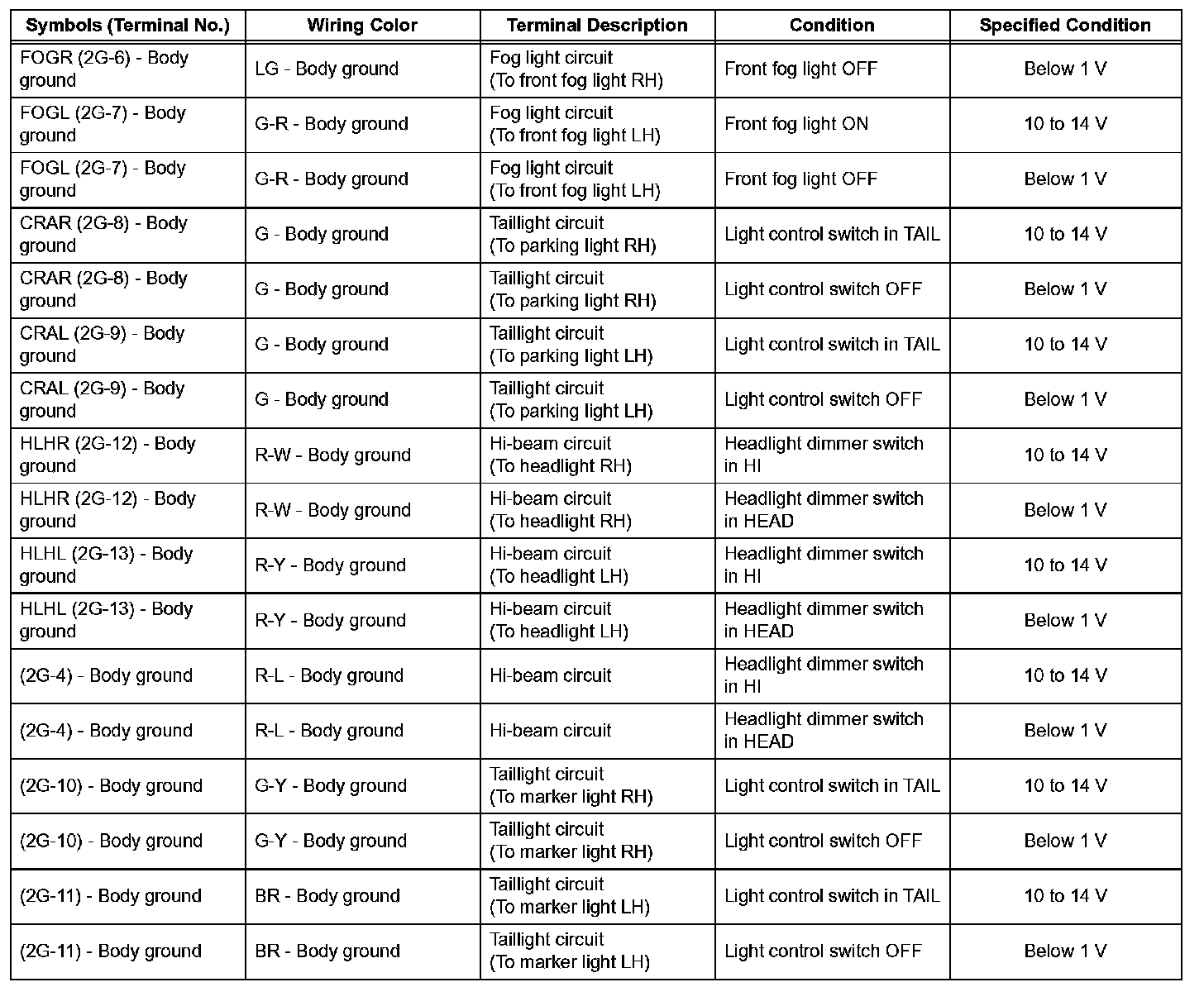

Terminals Of Control Module/Pinouts - Check Engine Room No.2 R/B (Front Controller) (Part 2):

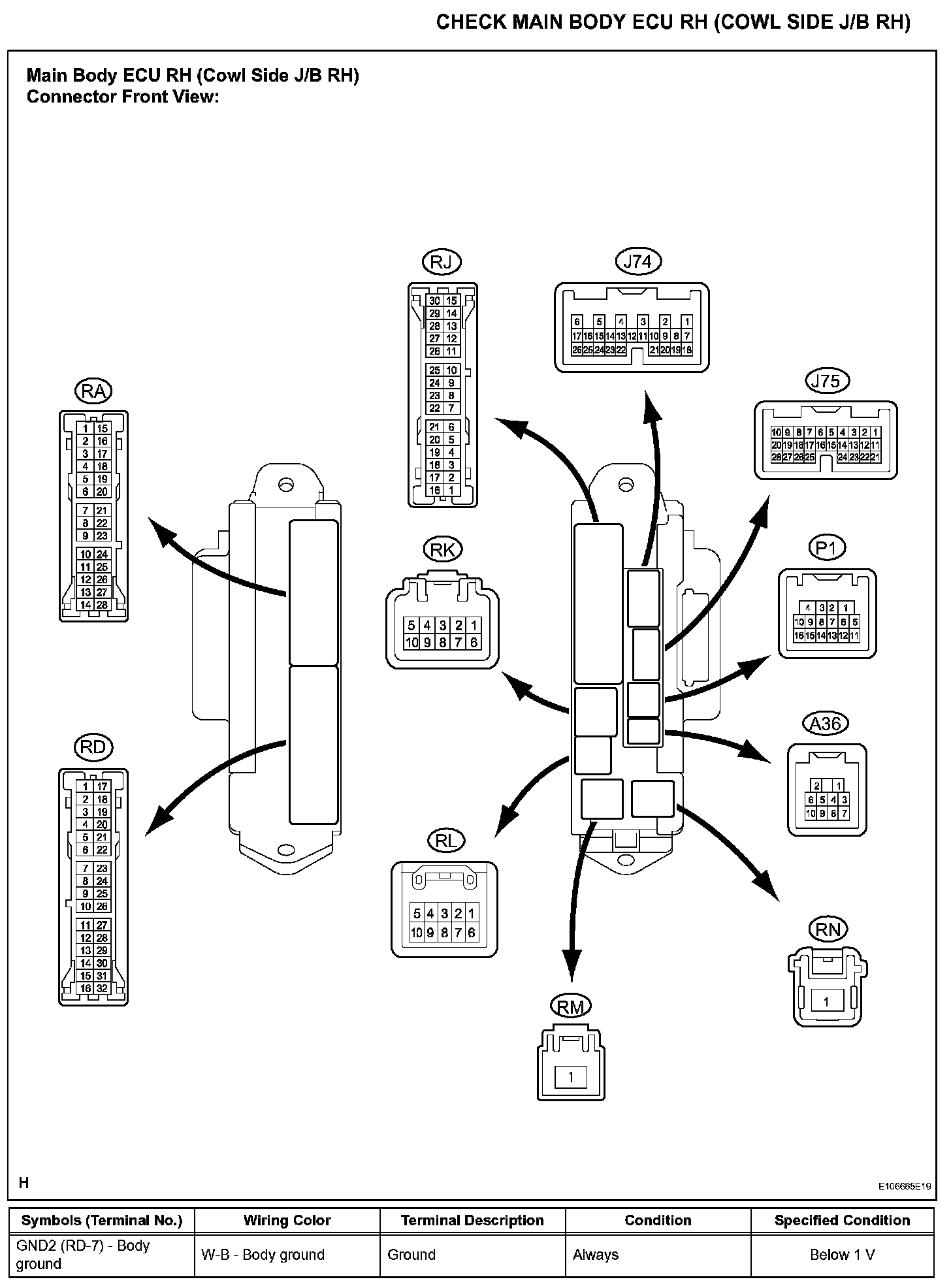

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 1):

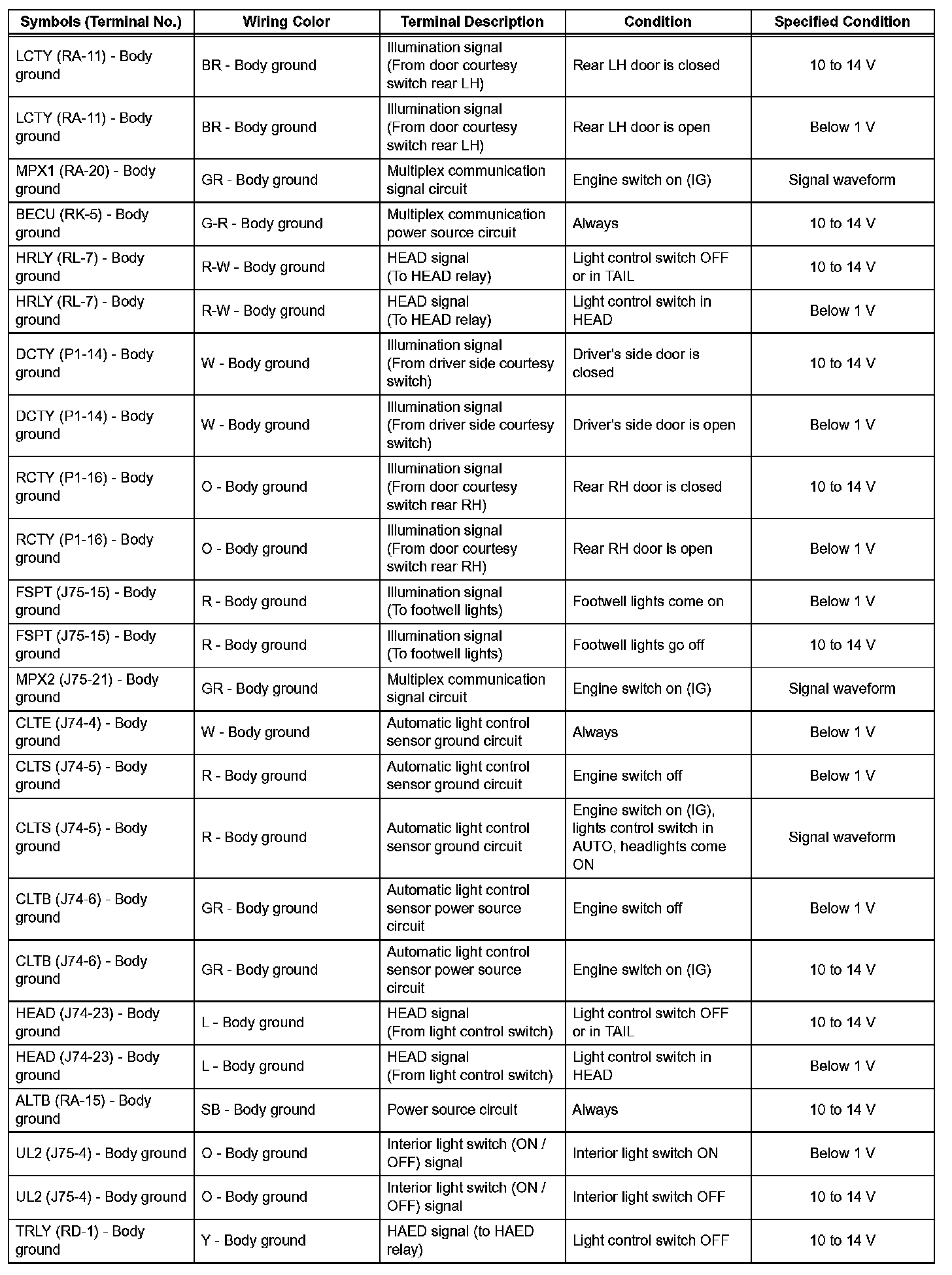

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 2):

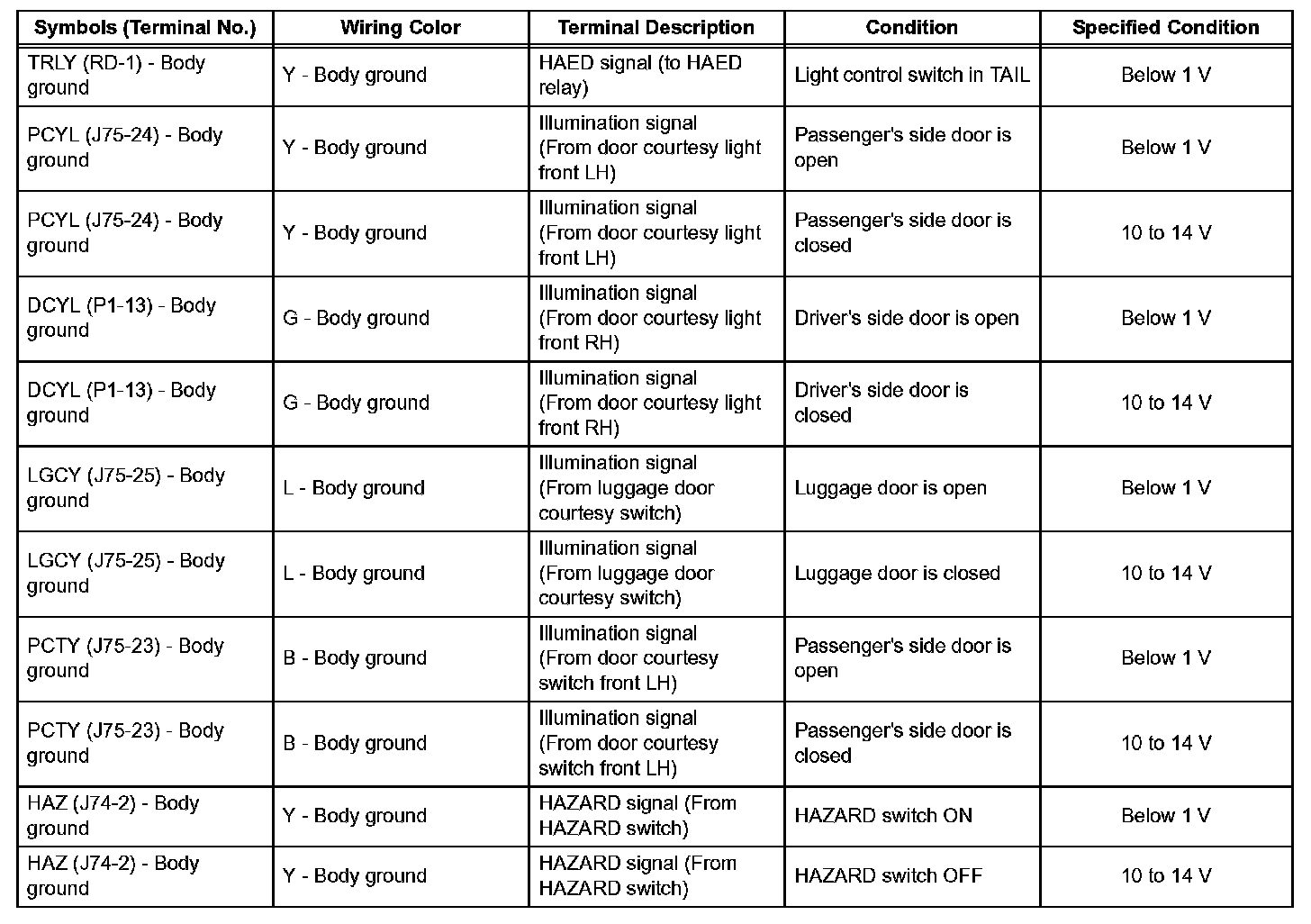

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 3):

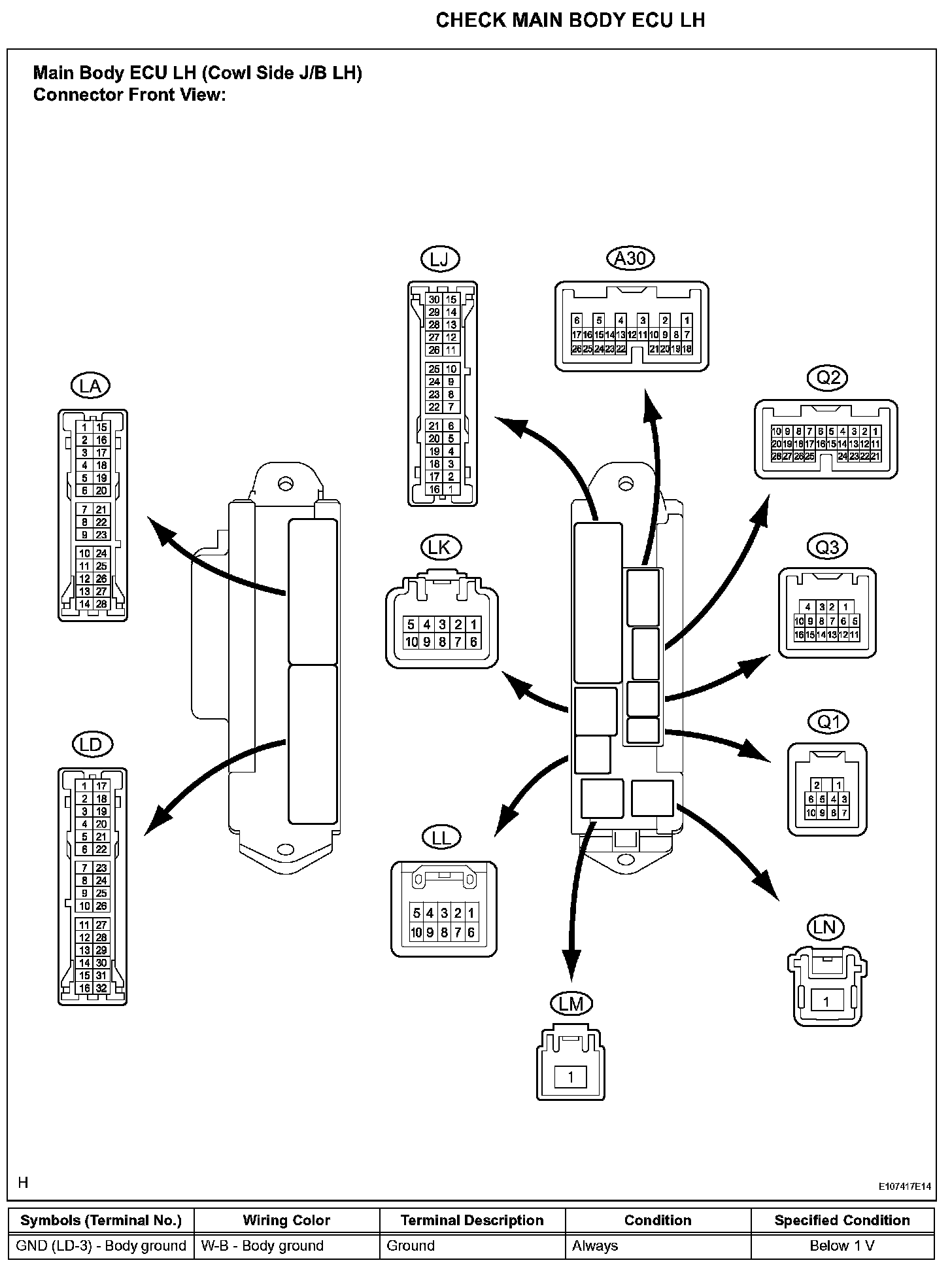

Terminals Of Control Module/Pinouts - Check Main Body ECU LH (Part 1):

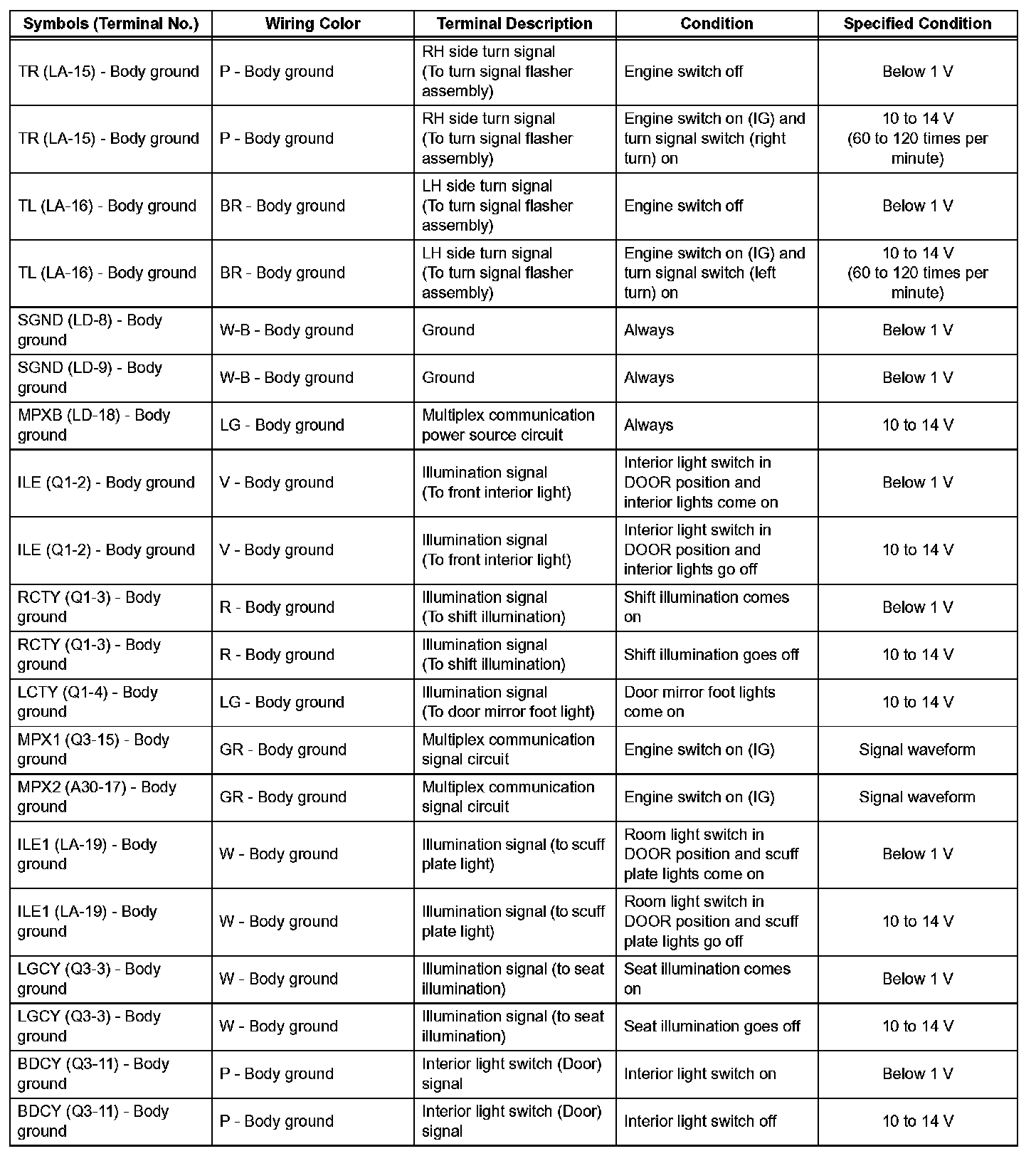

Terminals Of Control Module/Pinouts - Check Main Body ECU LH (Part 2):

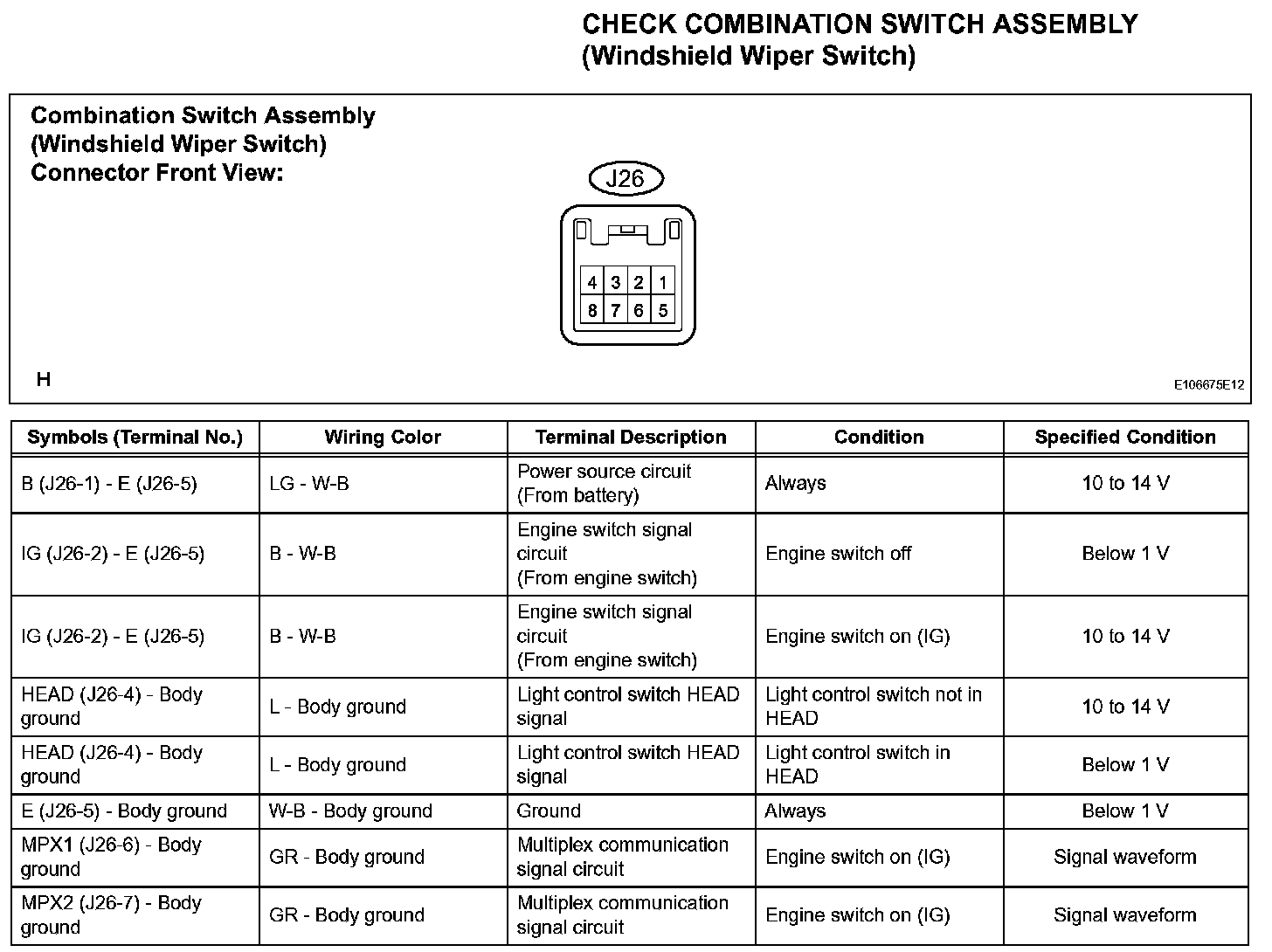

Terminals Of Control Module/Pinouts - Check Combination Switch Assembly (Windshield Wiper Switch):

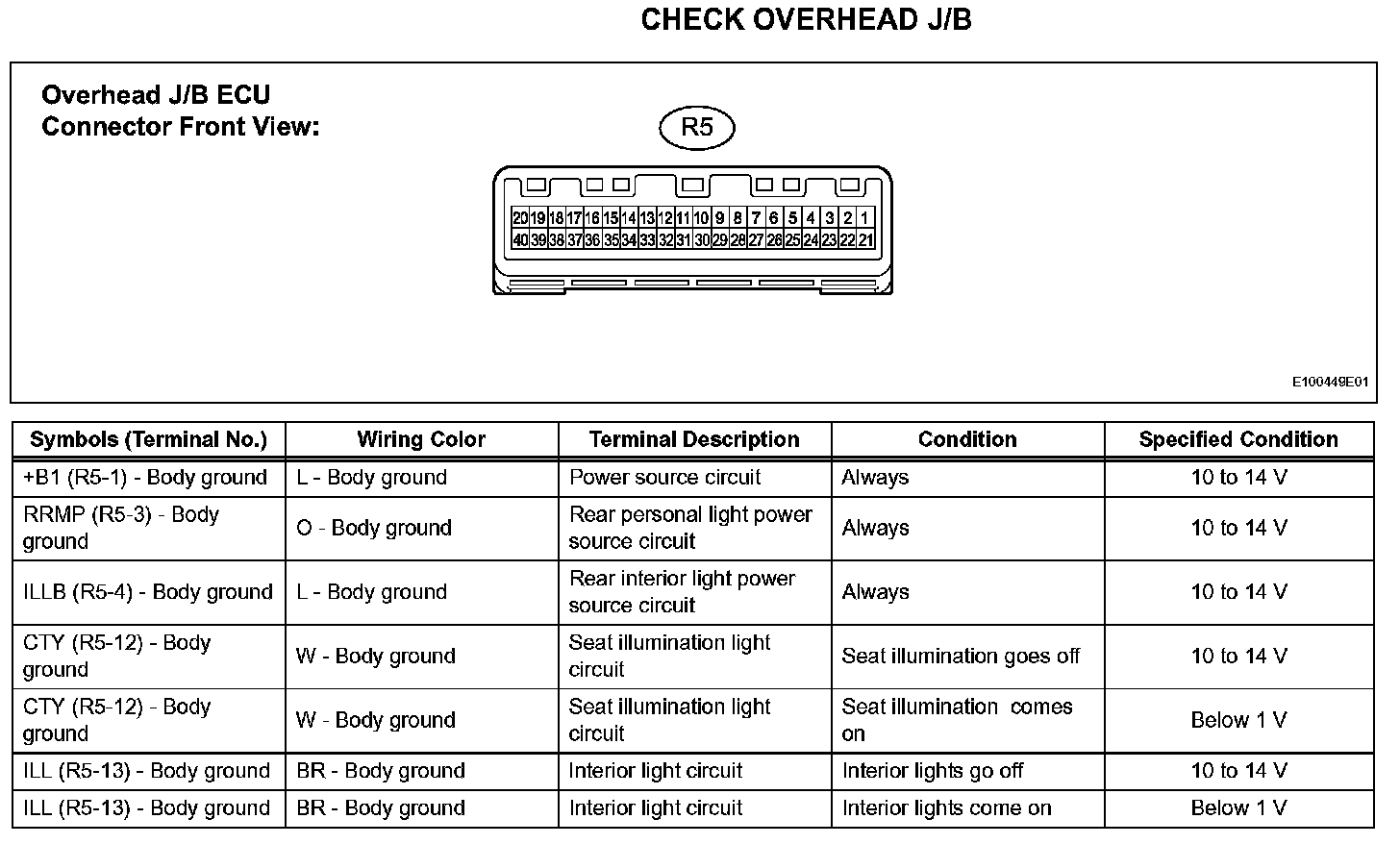

Terminals Of Control Module/Pinouts - Check Overhead J/B (Part 1):

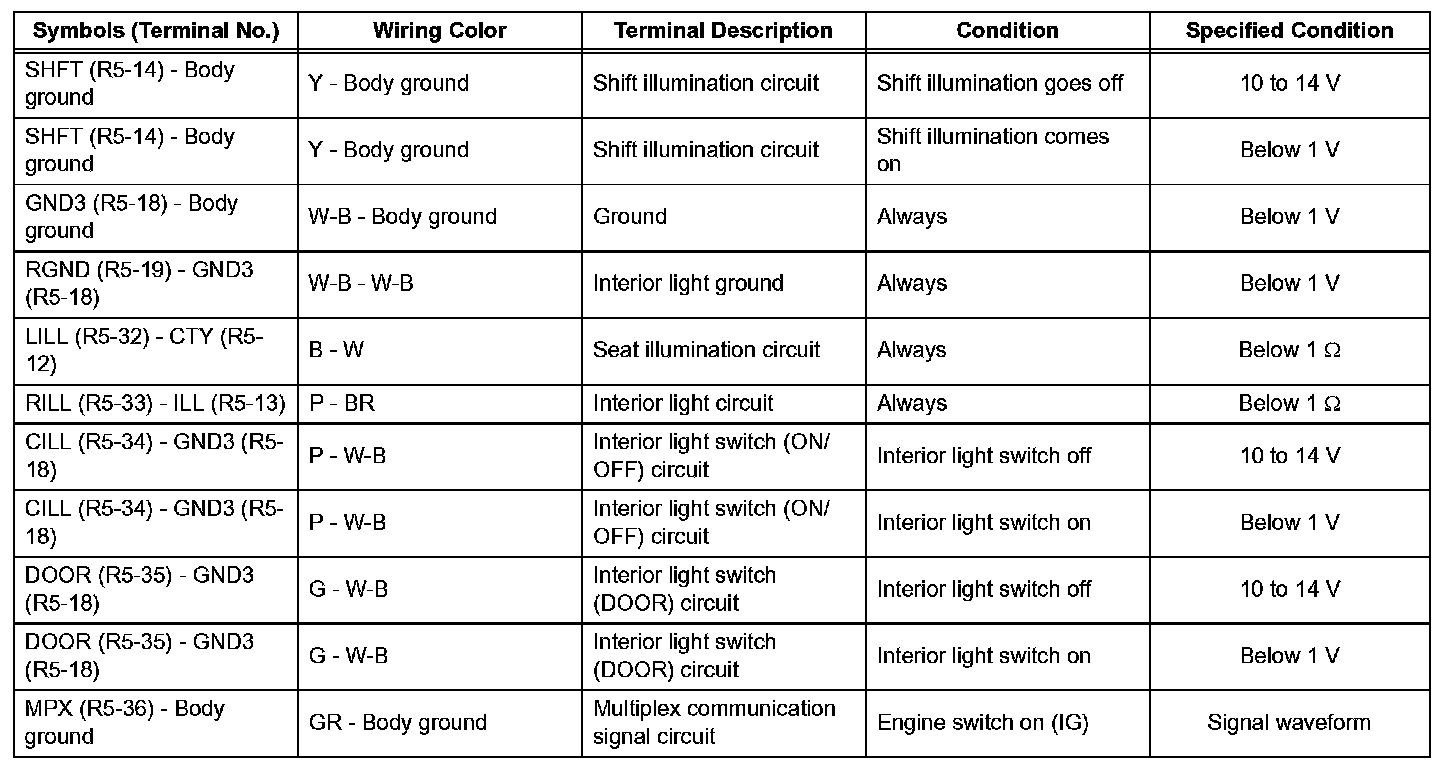

Terminals Of Control Module/Pinouts - Check Overhead J/B (Part 2):

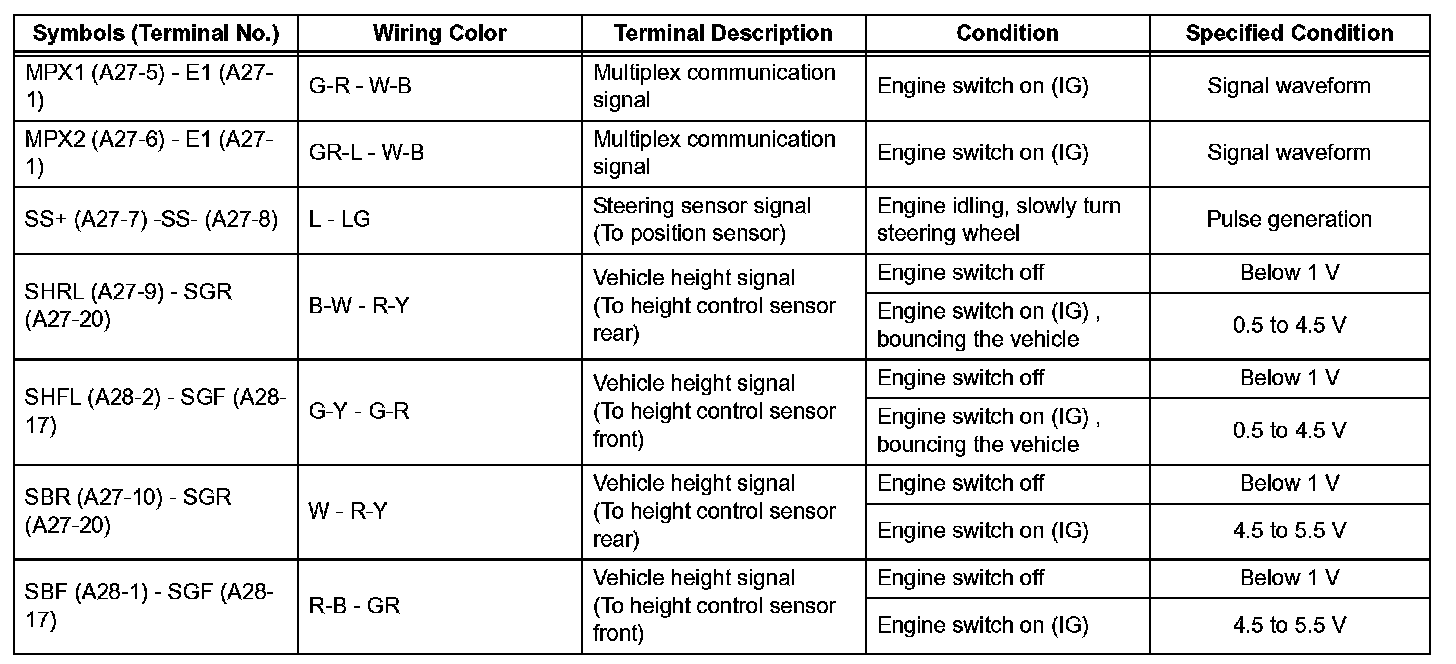

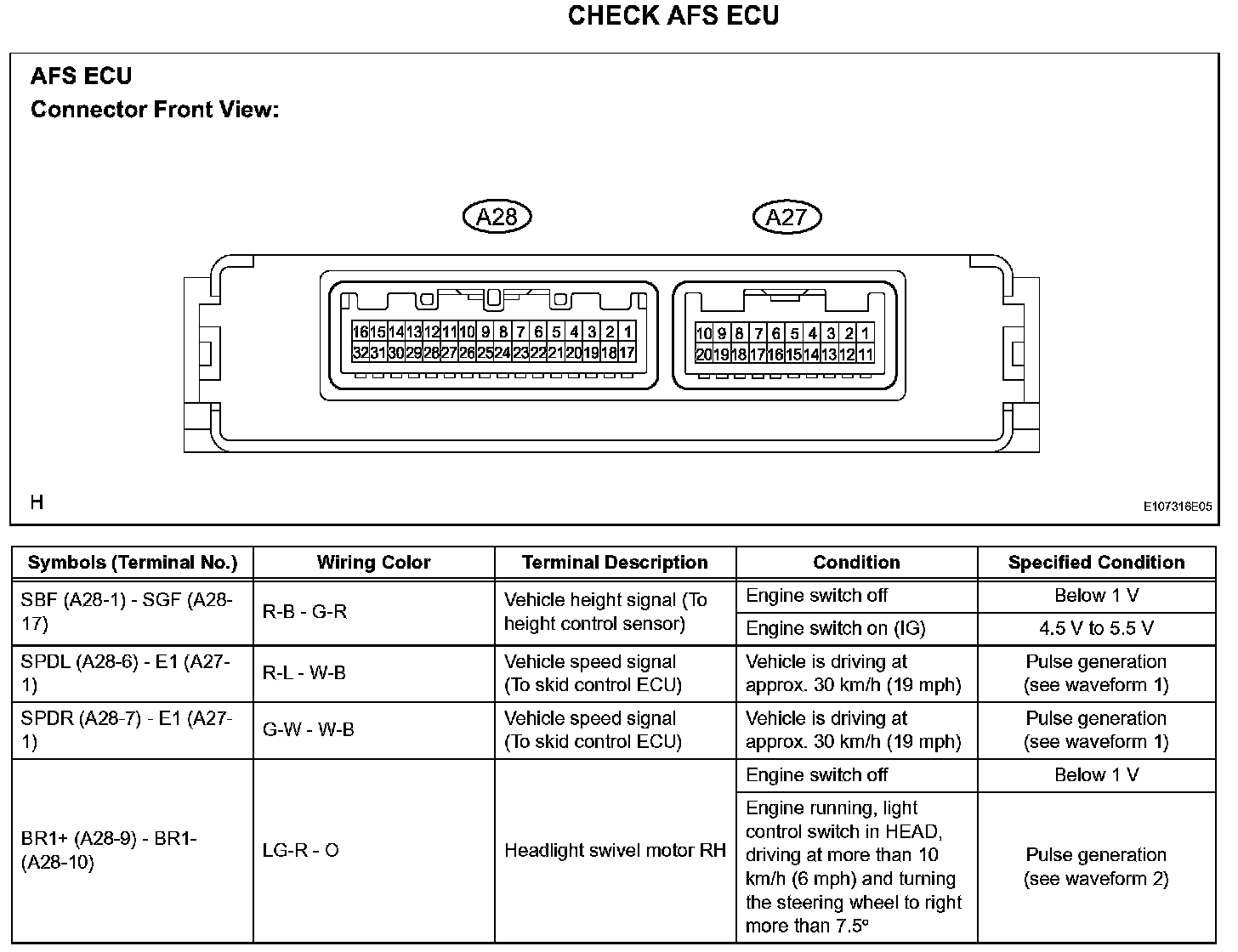

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 1):

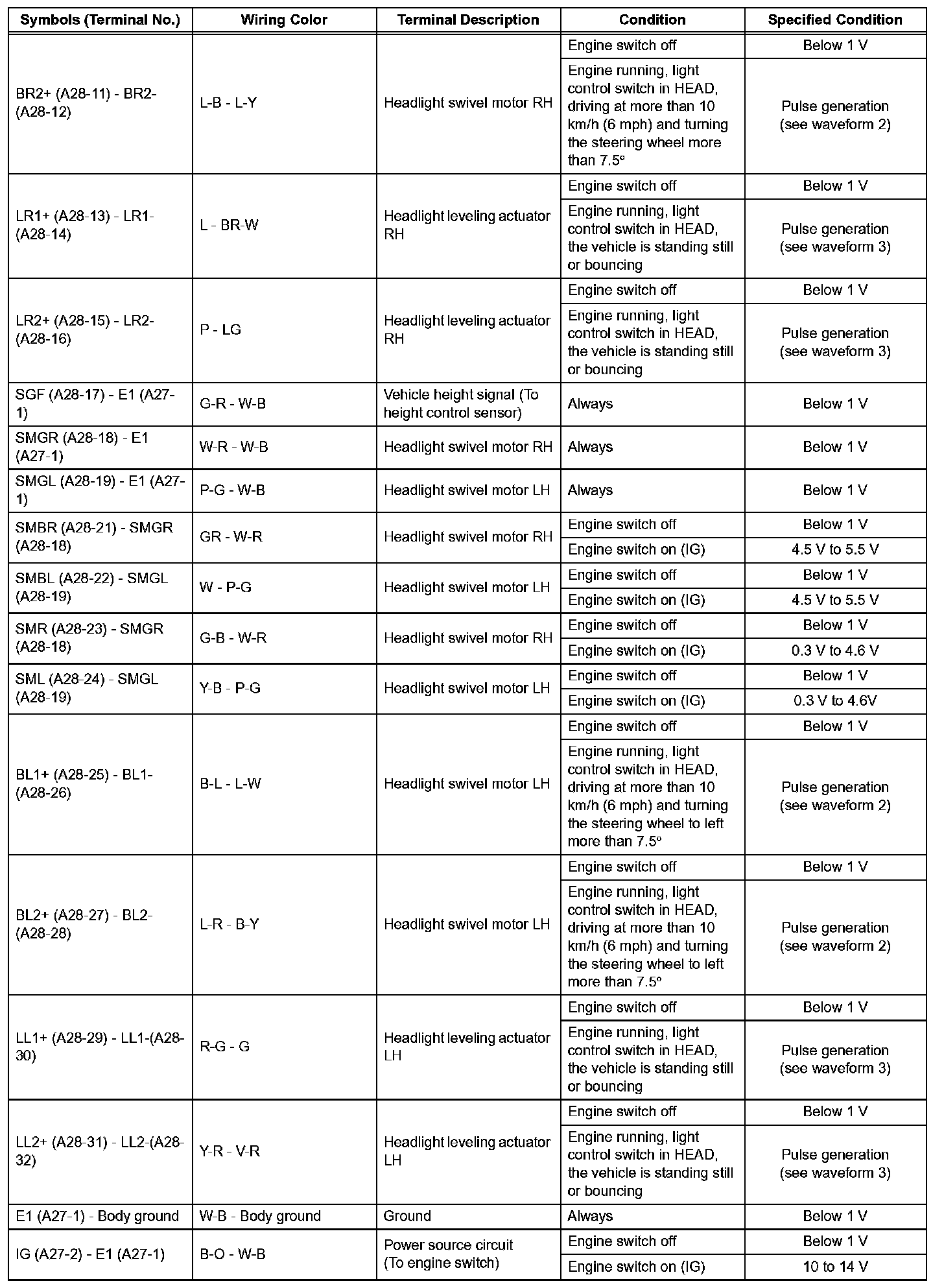

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 2):

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 3):

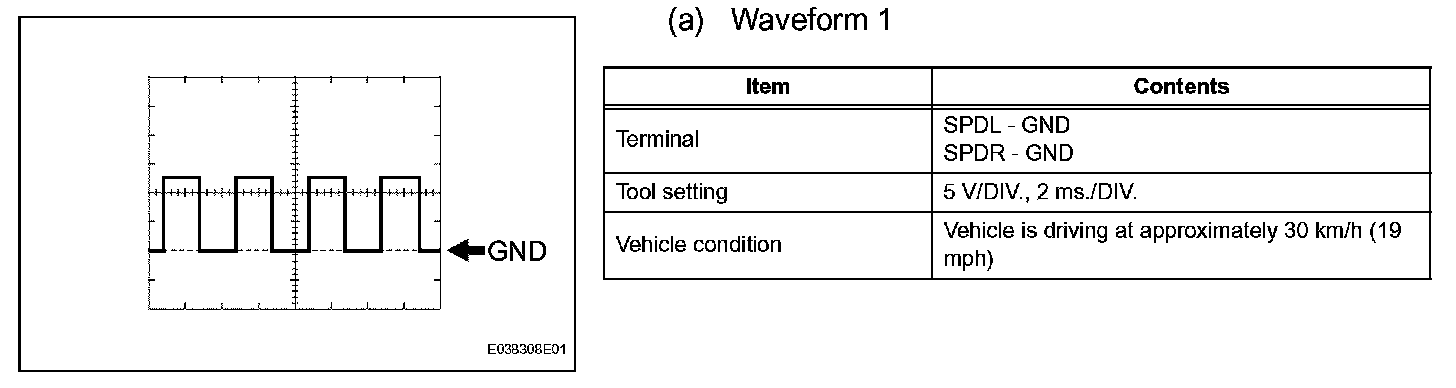

Oscilloscope Waveform:

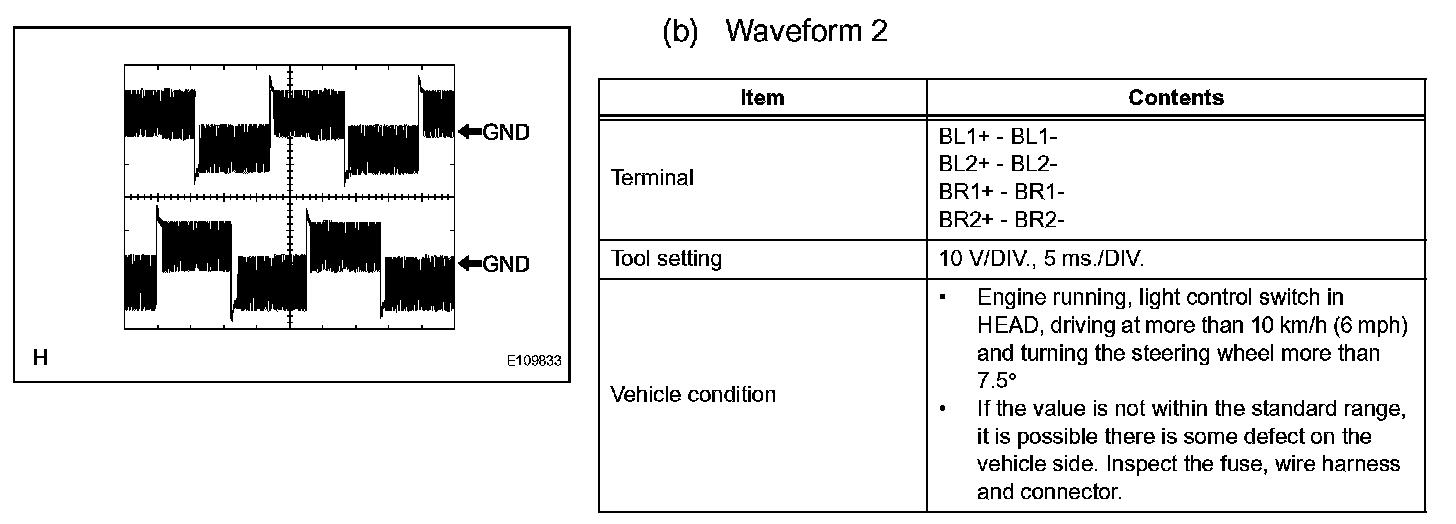

Oscilloscope Waveform:

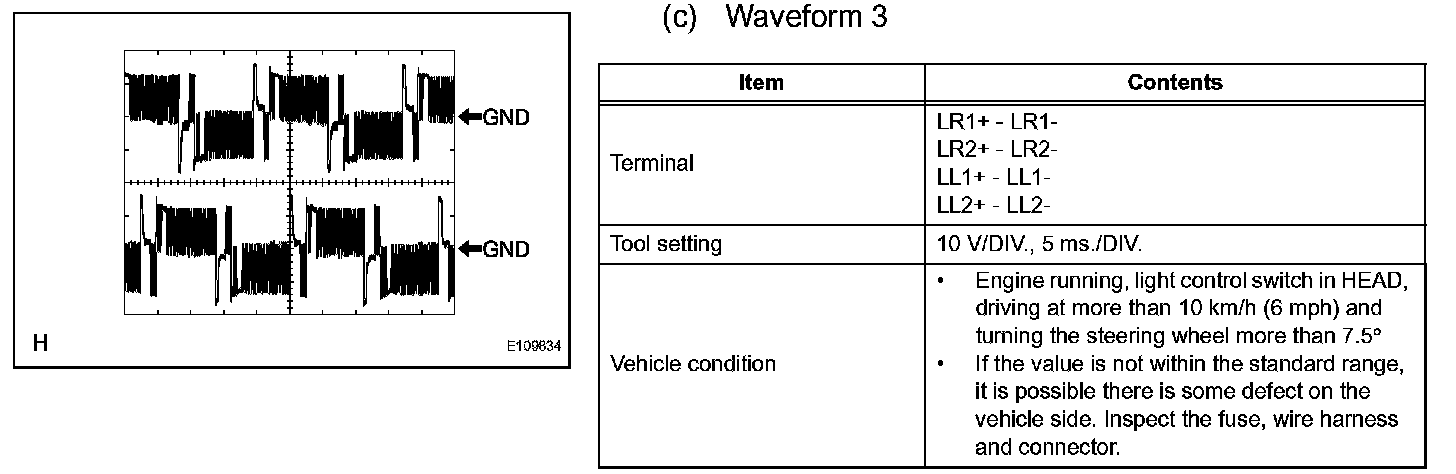

Oscilloscope Waveform:
