Headlight Signal Circuit

Headlight Signal Circuit

DESCRIPTION
The main body ECU RH receives a HEAD position signal from the combination switch as a backup link. It also receives a signal from the combination switch via the multiplex communication system.

If this link is grounded, the headlights will illuminate.

Wiring Diagram:

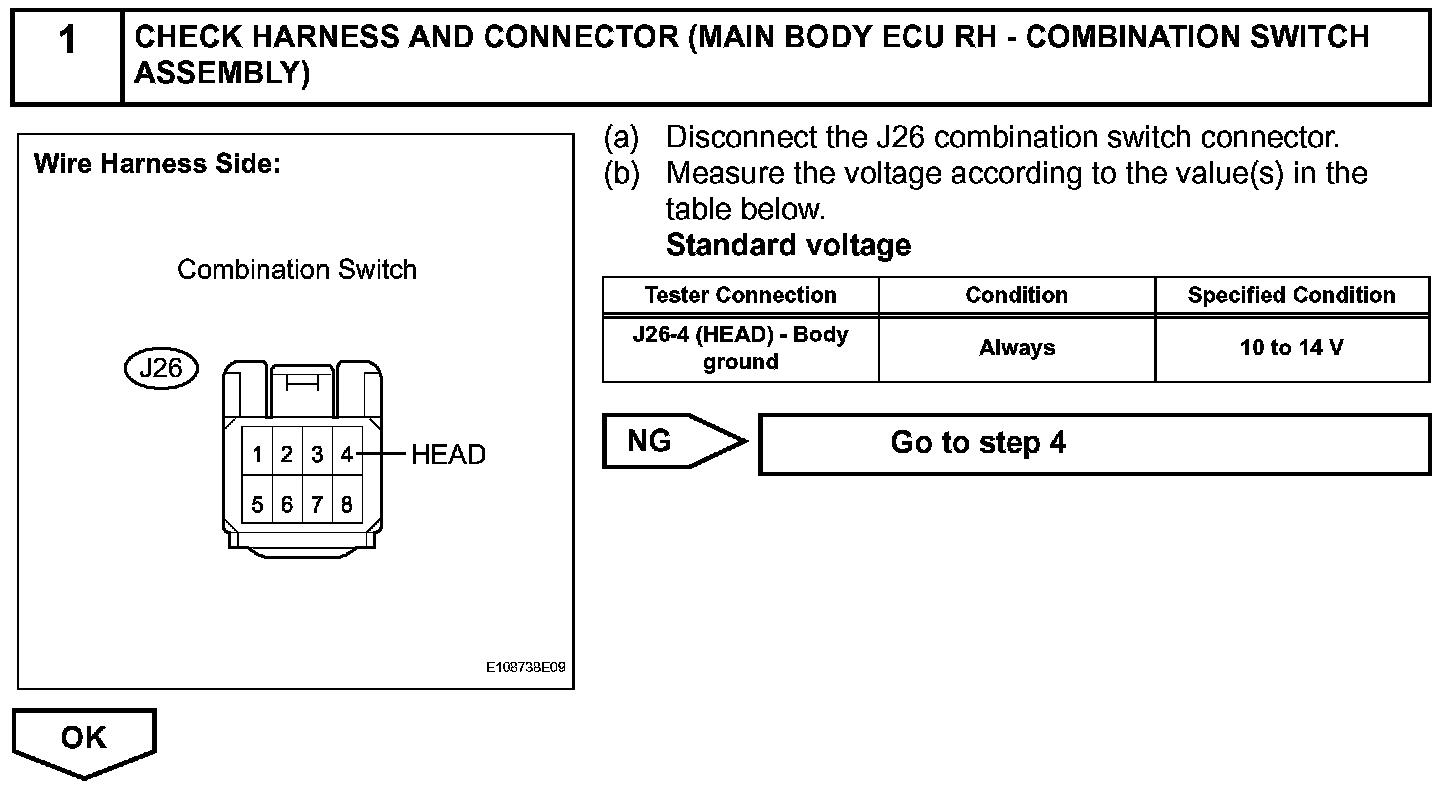

Step 1:

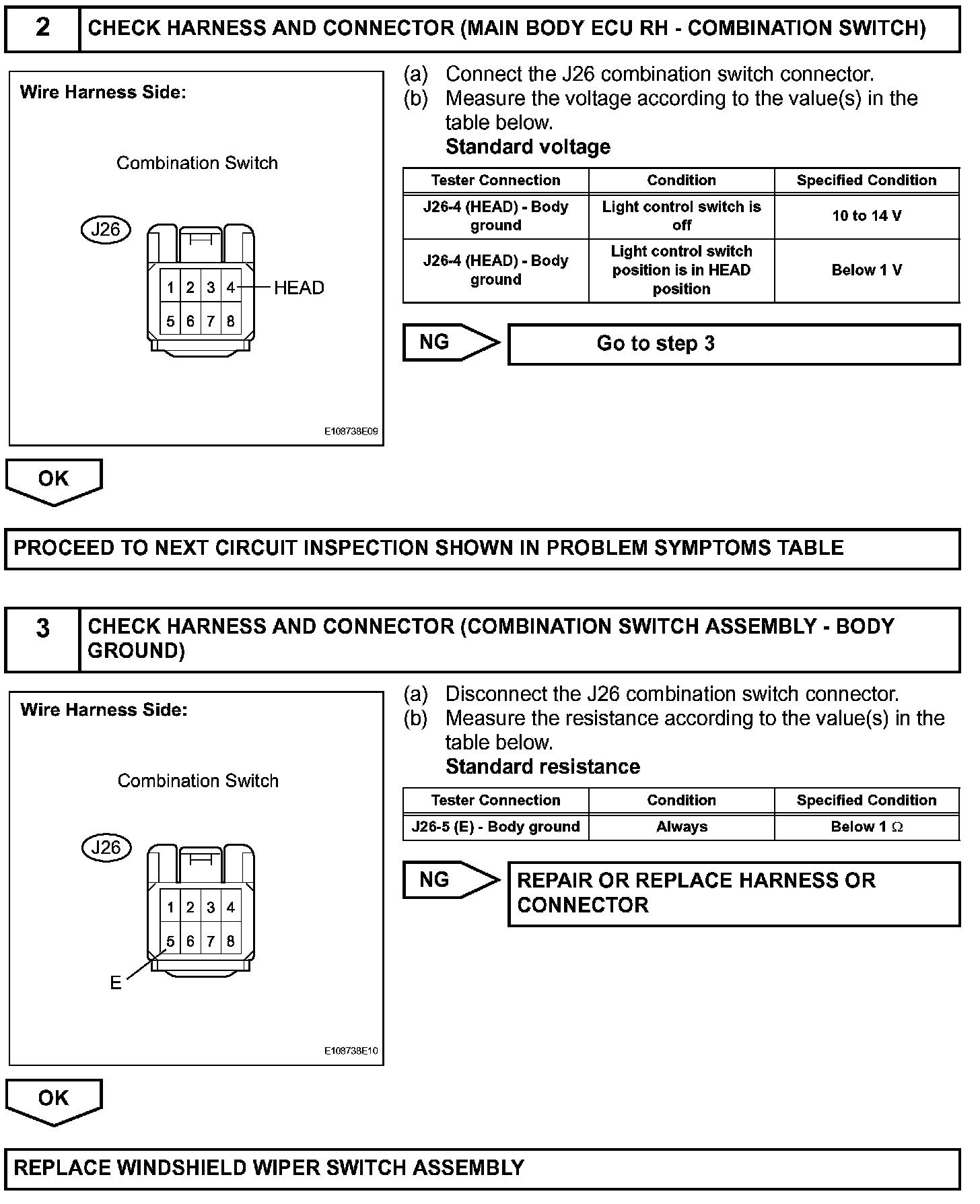

Step 2-3:

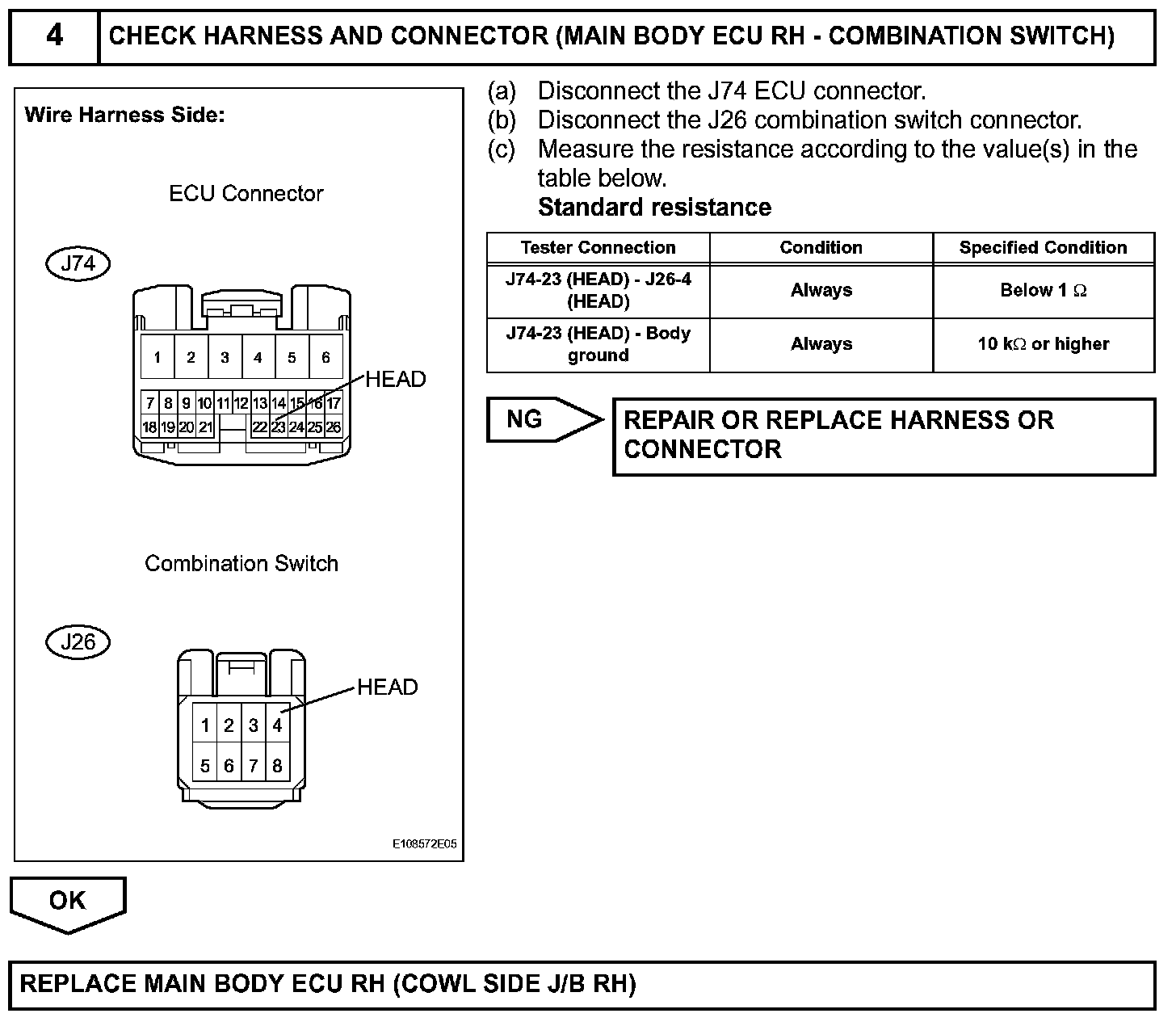

Step 4:

INSPECTION PROCEDURE
