Front Fog Lamp Circuit

Front Fog Light Circuit

DESCRIPTION
The front controller receives fog light switch information from the combination switch, and turns on the fog light.

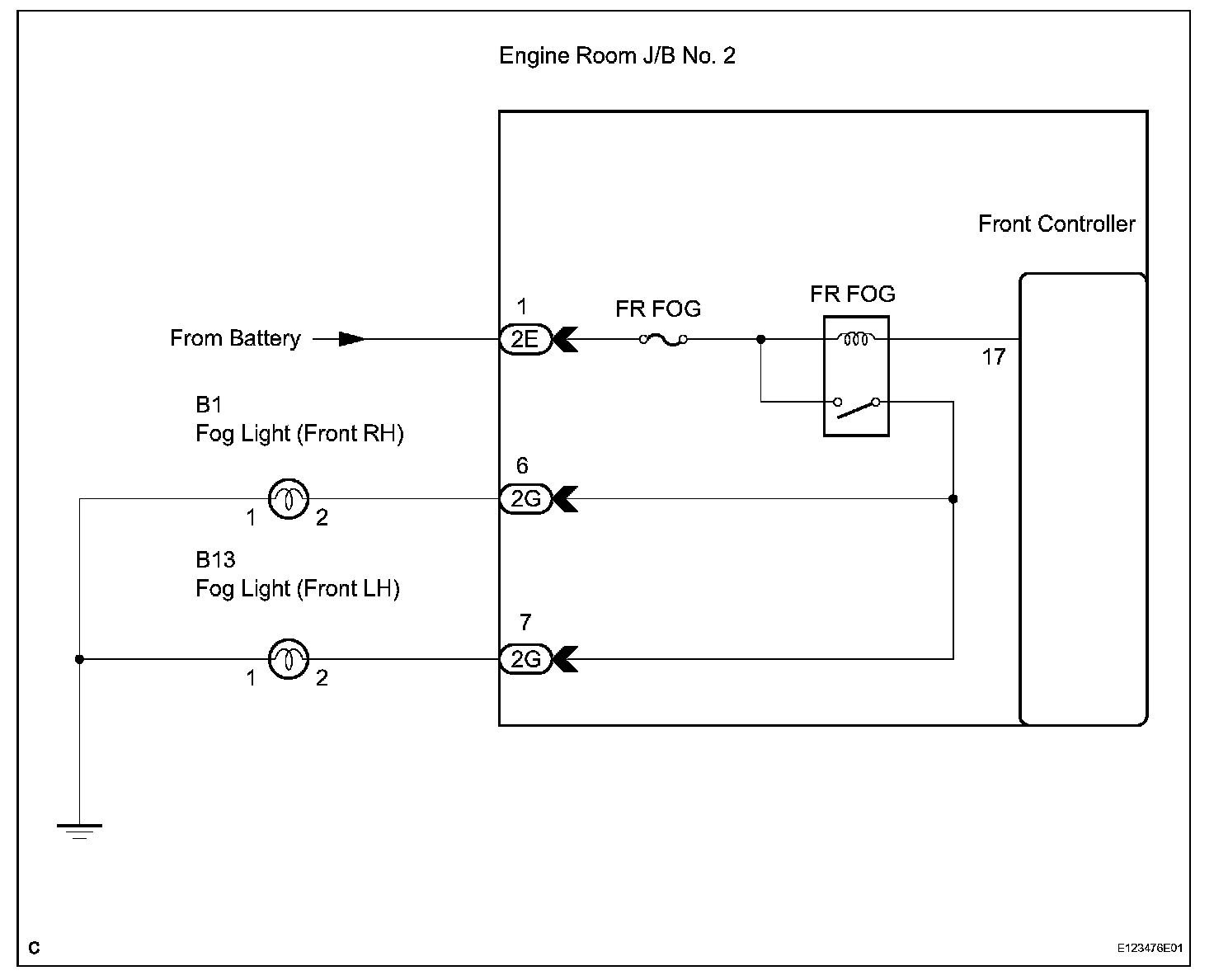

Wiring Diagram:

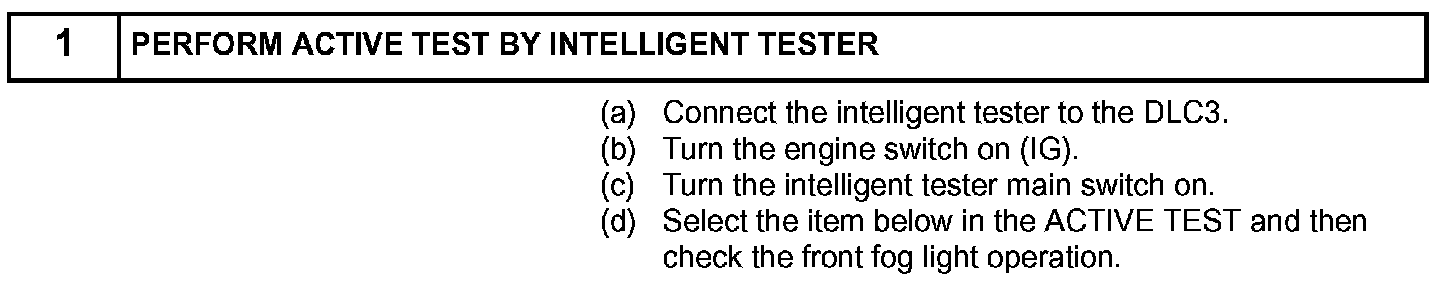

Step 1:

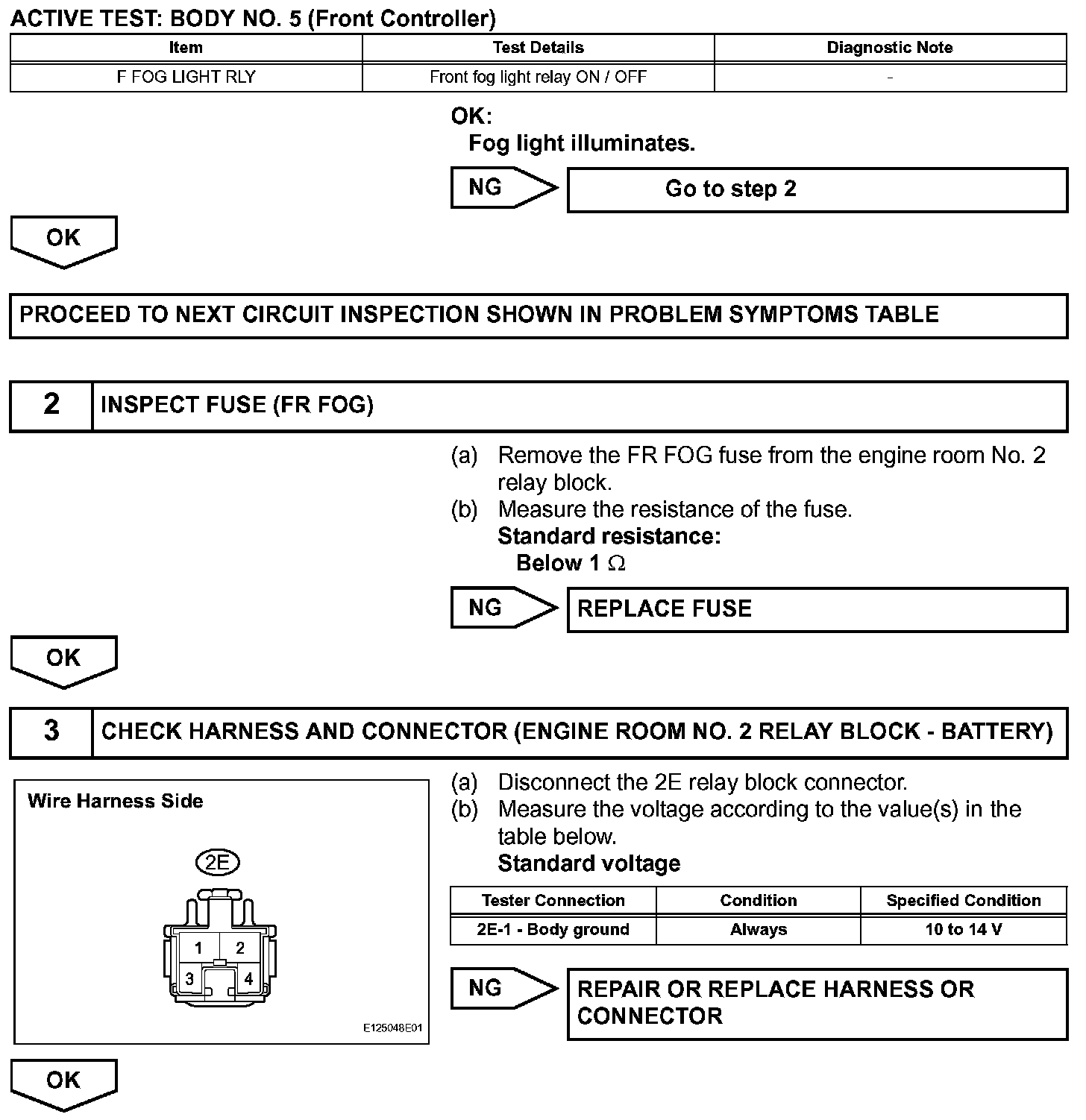

Step 1 (Continued)-3:

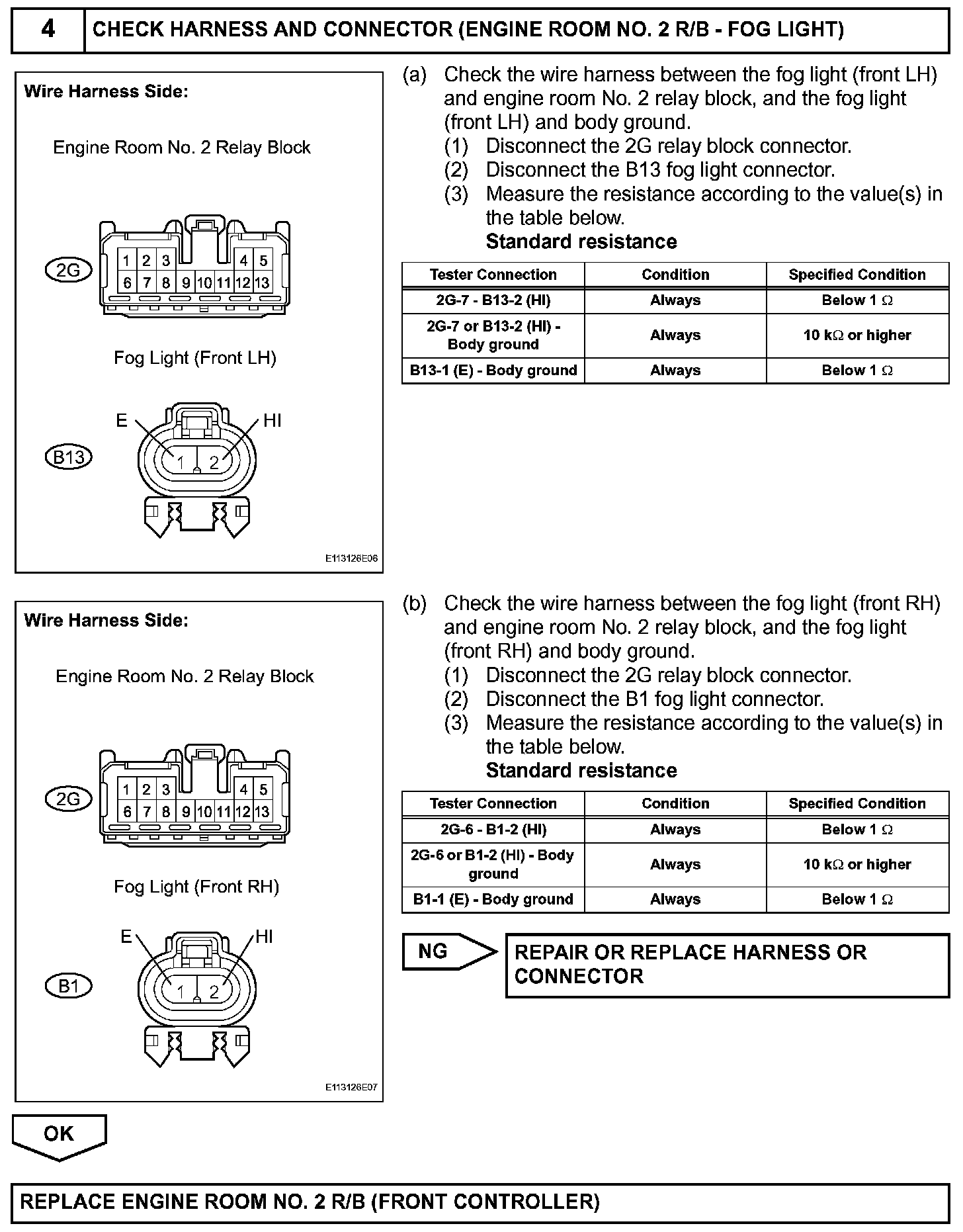

Step 4:

INSPECTION PROCEDURE
