Footwell Light Circuit
Footwell Light CircuitDESCRIPTION
The main body ECU RH receives information regarding the door lock position switches, door courtesy switches, and engine switch, and turns on each footwell light.
This illumination setting can be canceled using the light control rheostat.

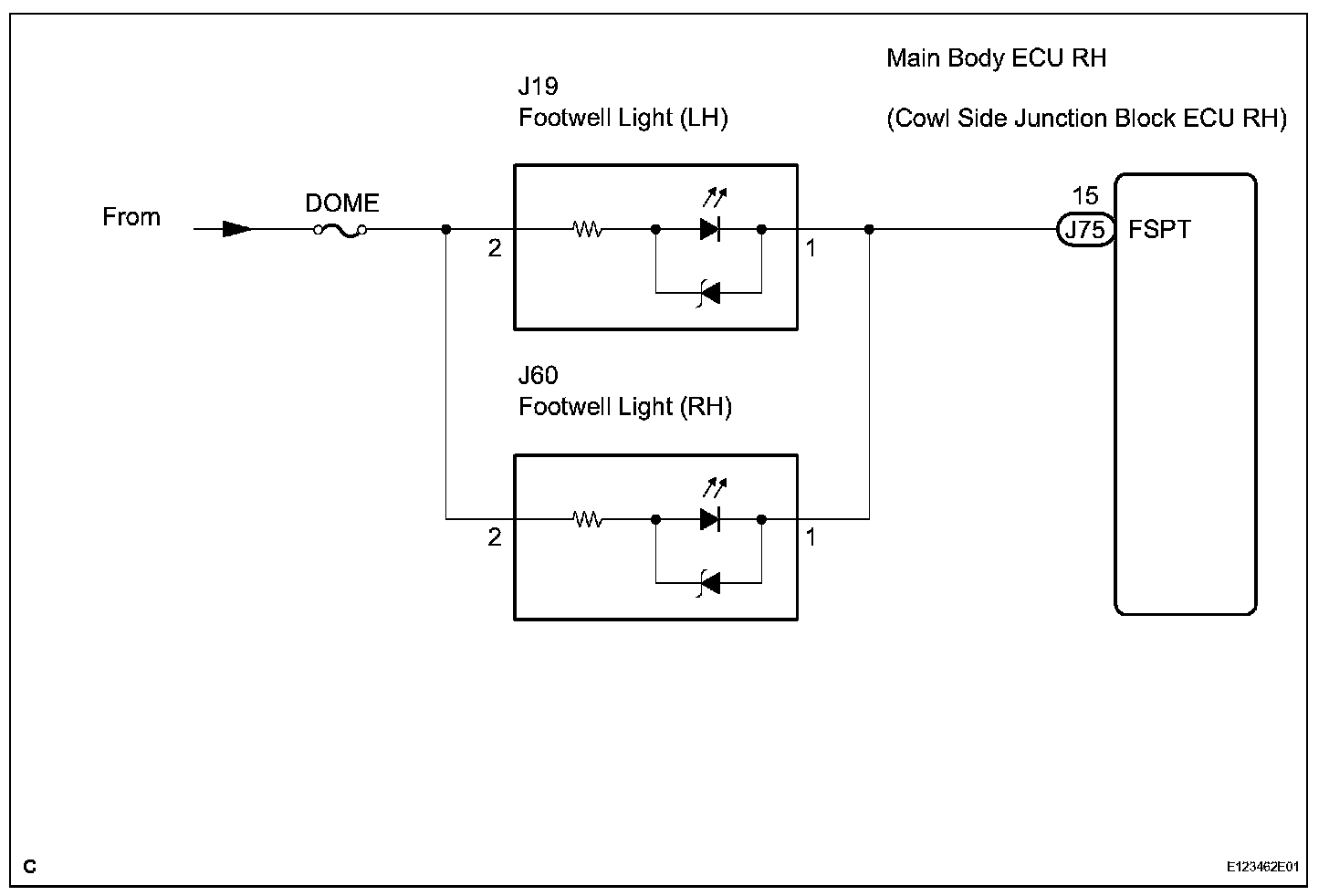

Wiring Diagram:

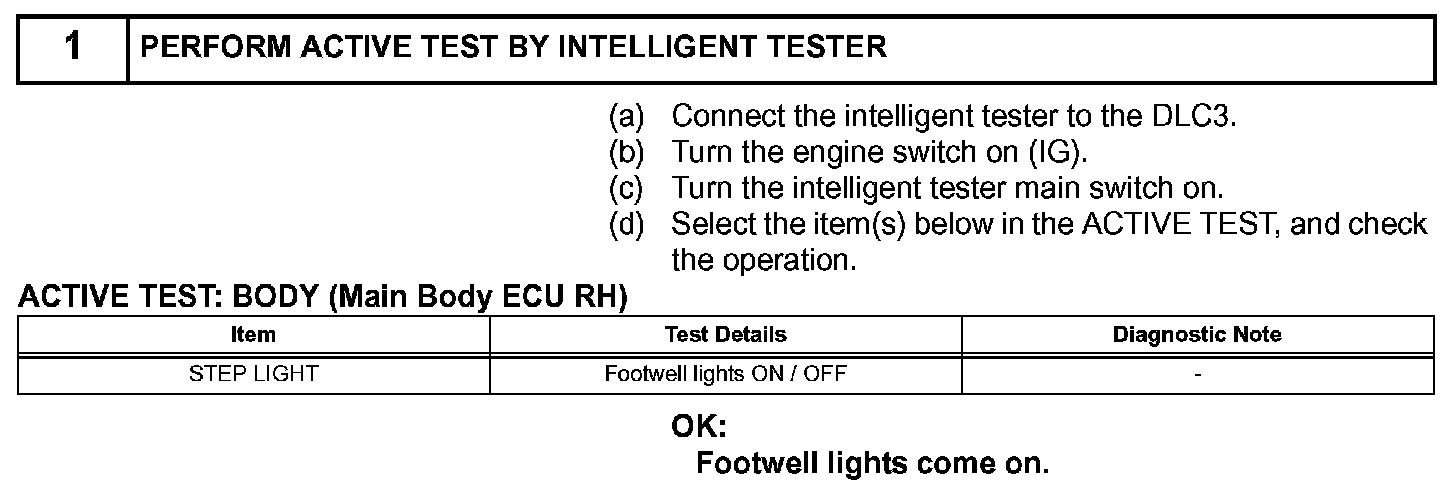

Step 1:

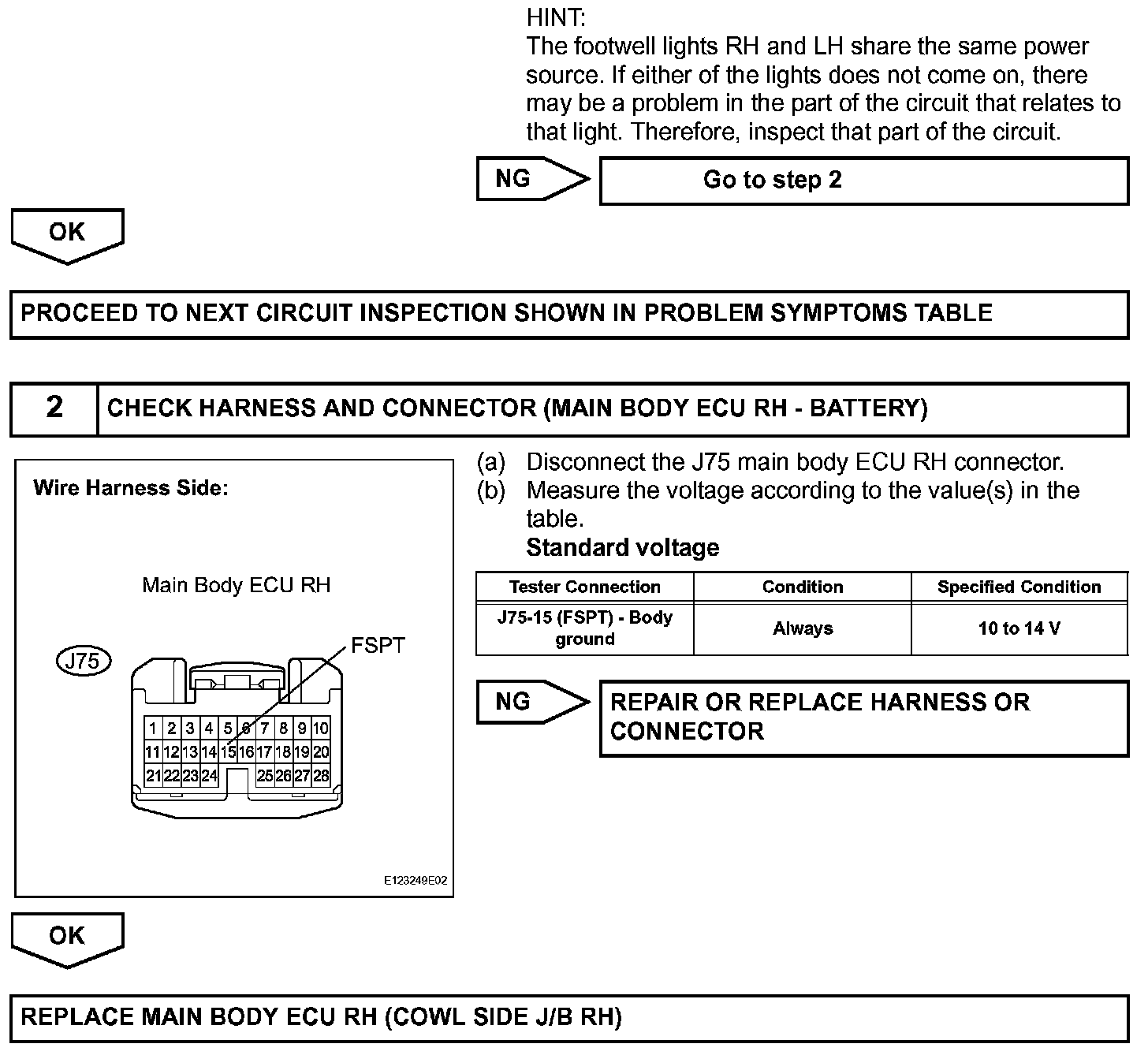

Step 1 (Continued)-2:
INSPECTION PROCEDURE
