On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. INSPECT REAR OUTER COMBINATION LIGHT ASSEMBLY

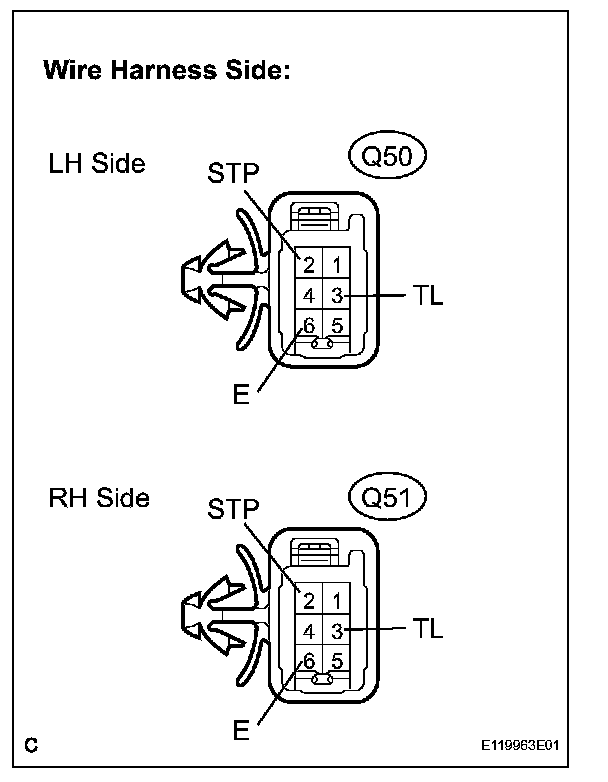

a. Disconnect the connector from the rear outer combination light.

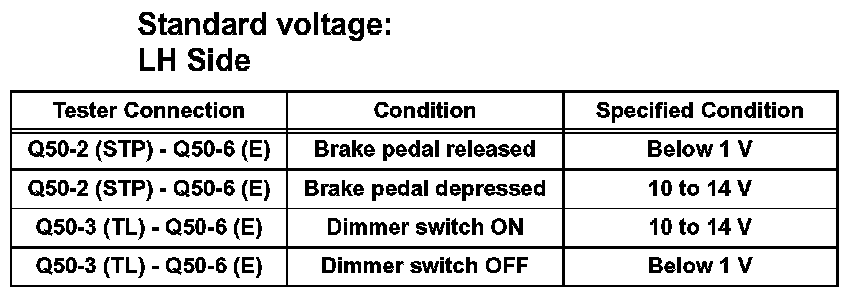

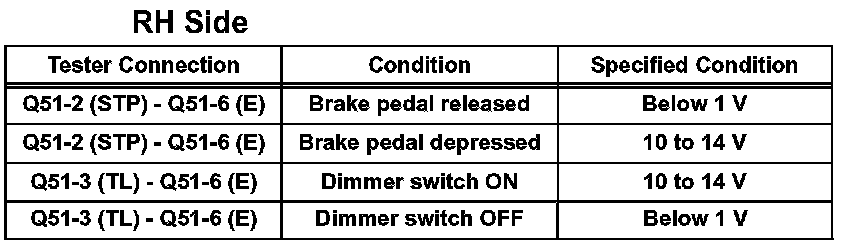

b. Measure the voltage according to the value(s) in the table given.

If the result is not as specified, repair or replace the wire harness or connector.




2. INSPECT REAR INNER COMBINATION LIGHT ASSEMBLY

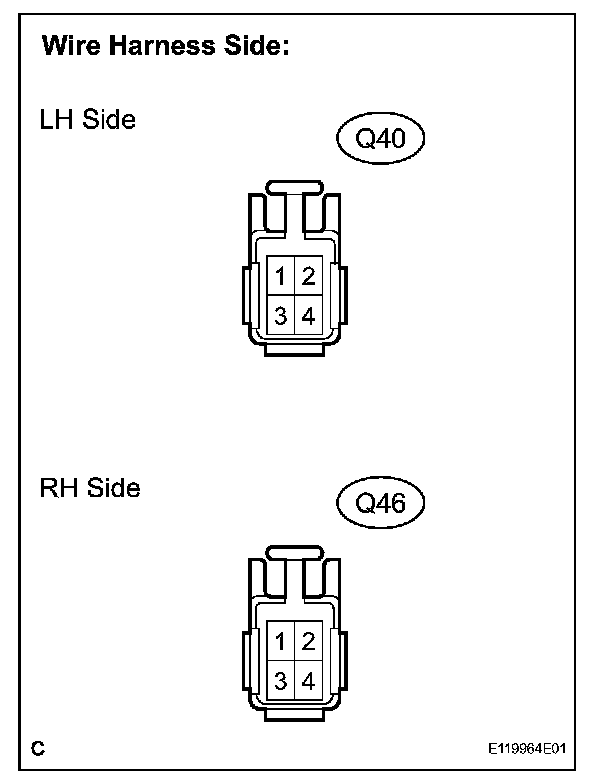

a. Disconnect the connector from the rear inner combination light.

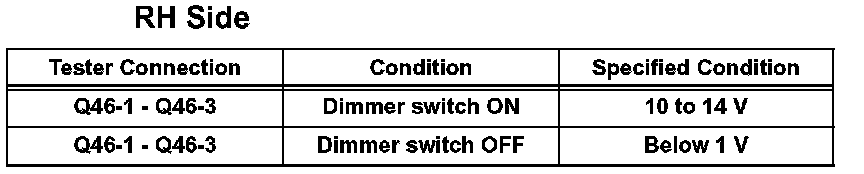

b. Measure the voltage according to the value(s) in the table given.

If the result is not as specified, repair or replace the wire harness or connector.
