Removal and Replacement

Rear Combination Light Assembly:

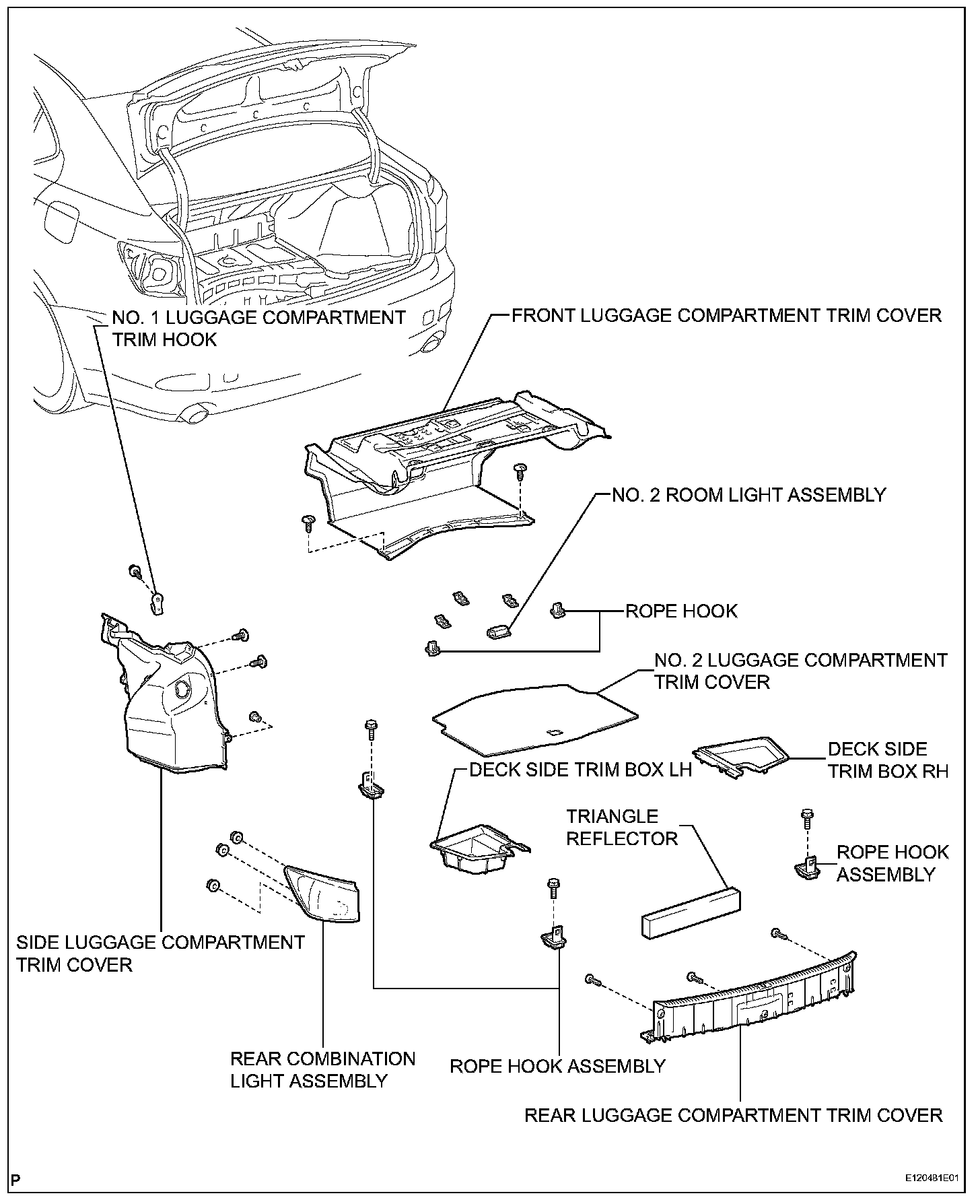

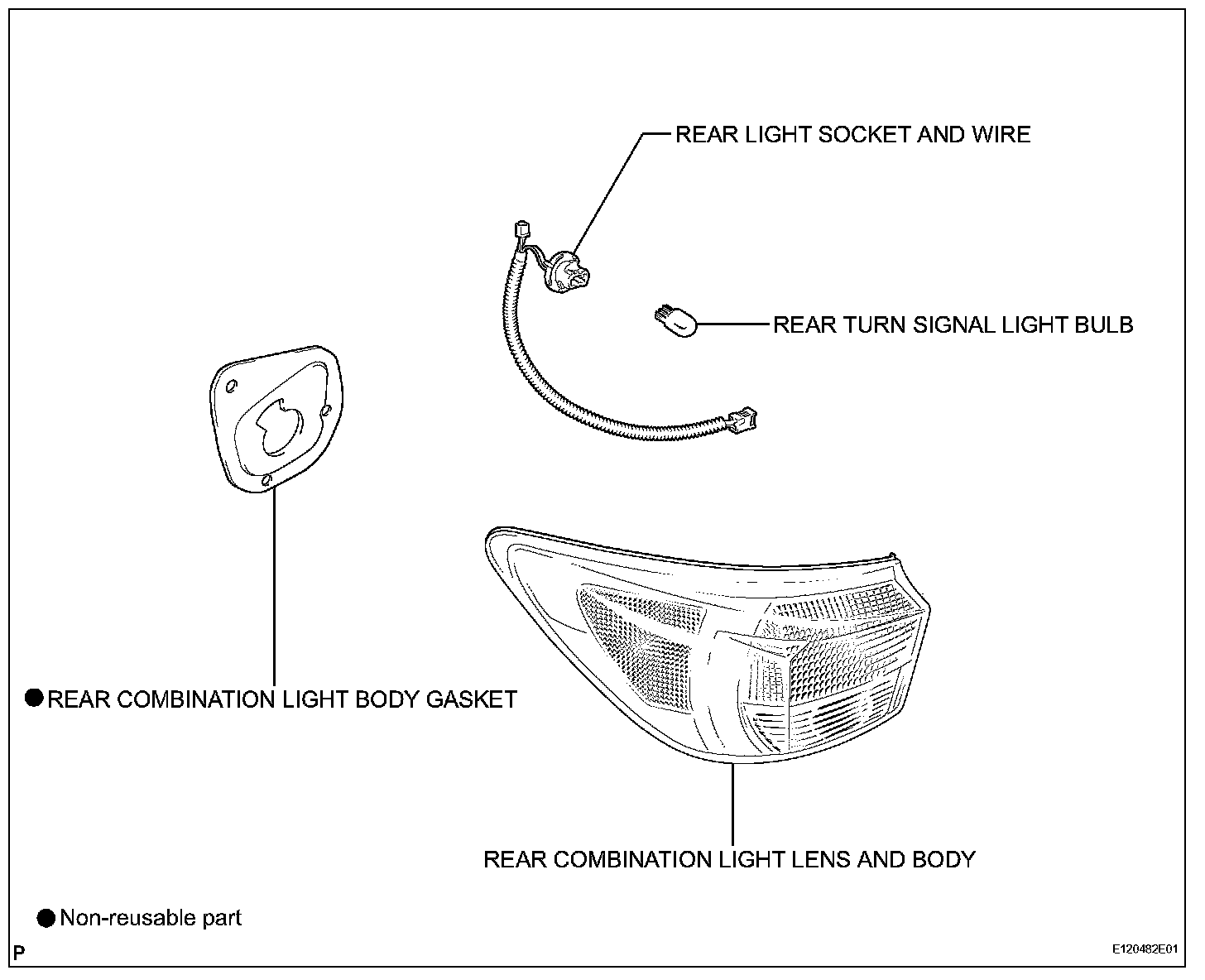

REAR COMBINATION LIGHT ASSEMBLY

REMOVAL

1. REMOVE NO.2 LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE DECK SIDE TRIM BOX LH
3. REMOVE DECK SIDE TRIM BOX RH
4. REMOVE ROPE HOOK ASSEMBLY
5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
6. REMOVE NO.2 ROOM LIGHT ASSEMBLY
7. REMOVE ROPE HOOK
8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
9. REMOVE NO.1 LUGGAGE COMPARTMENT TRIM HOOK
10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER

11. REMOVE REAR COMBINATION LIGHT ASSEMBLY

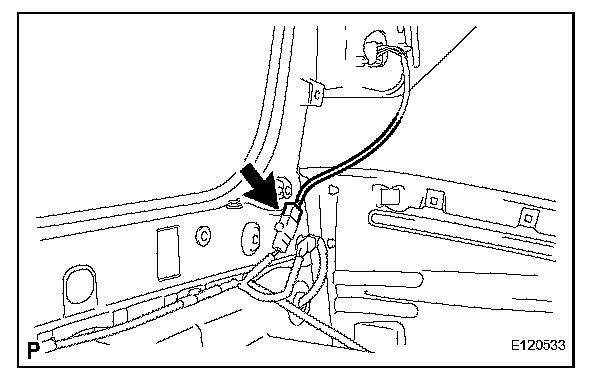

a. Disconnect the connector.

b. Remove the 3 nuts.

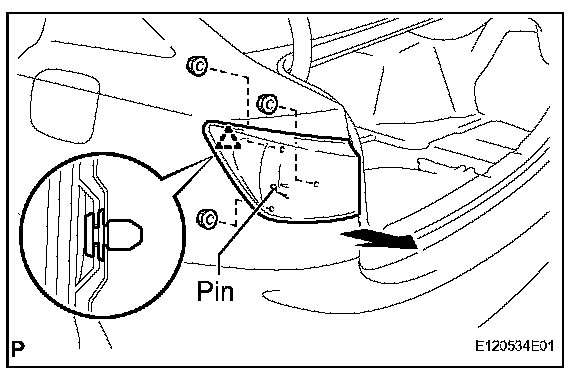

c. Disengage the clip and pin, and remove the rear combination light assembly as shown in the illustration.

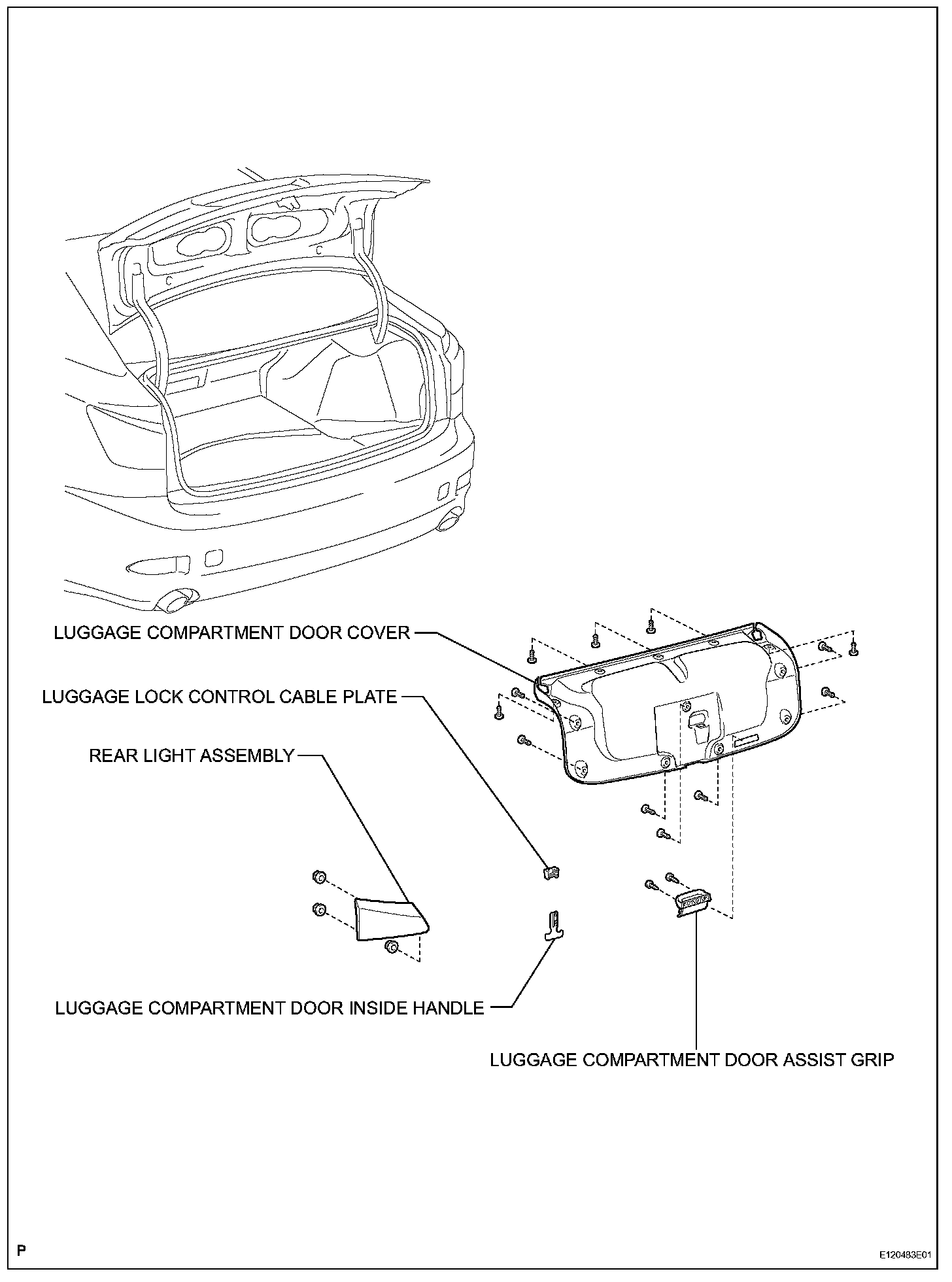

12. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
13. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
14. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
15. REMOVE LUGGAGE COMPARTMENT DOOR COVER

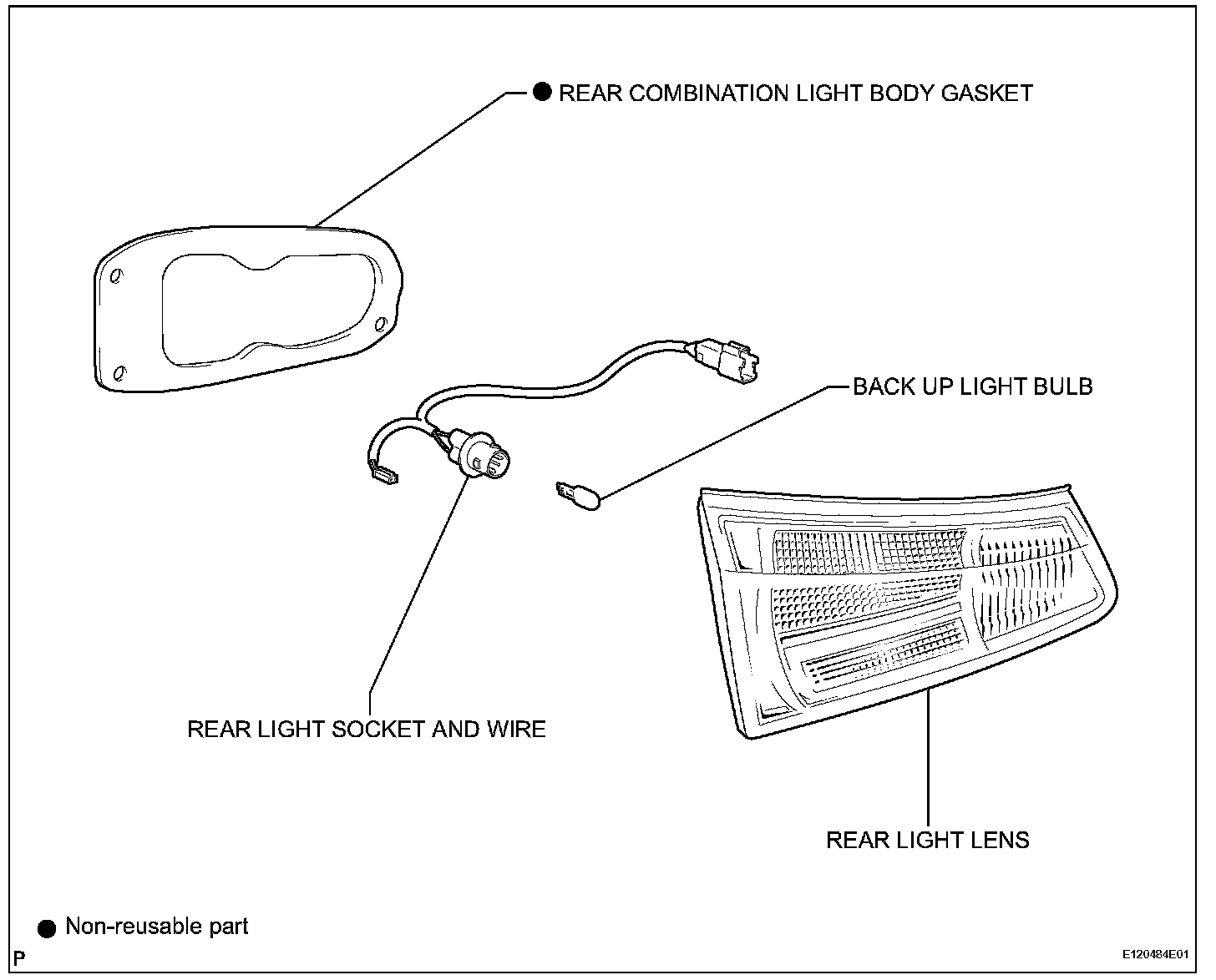

16. REMOVE REAR LIGHT ASSEMBLY
a. Disconnect the connector.

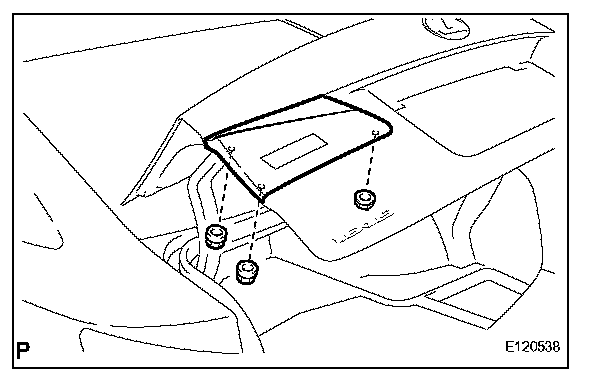

b. Remove the 3 nuts and rear light assembly.

INSTALLATION

1. INSTALL REAR LIGHT ASSEMBLY

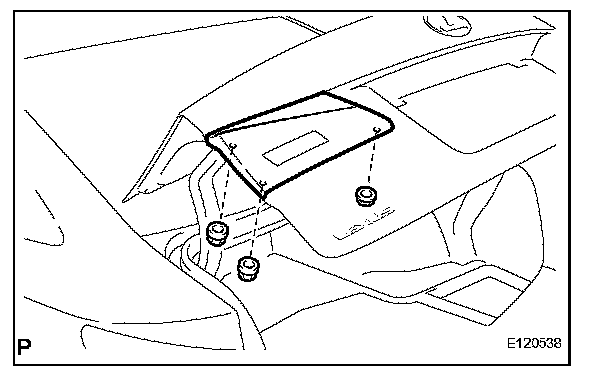

a. Install the rear light assembly with the 3 nuts.
b. Connect the connector.

2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
3. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
4. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

6. INSTALL REAR COMBINATION LIGHT ASSEMBLY
a. Install the rear combination light assembly with the clip and pin.
b. Install the 3 nuts.

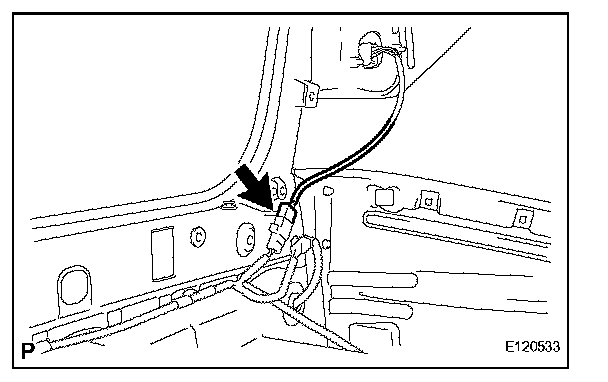

c. Connect the connector.

7. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
8. INSTALL NO.1 LUGGAGE COMPARTMENT TRIM HOOK
9. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
10. INSTALL ROPE HOOK
11. INSTALL NO.2 ROOM LIGHT ASSEMBLY
12. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
13. INSTALL ROPE HOOK ASSEMBLY
14. INSTALL DECK SIDE TRIM BOX RH
15. INSTALL DECK SIDE TRIM BOX LH
16. INSTALL NO.2 LUGGAGE COMPARTMENT TRIM COVER
