High Pitched Horn
High Pitched Horn
INSPECTION
1.
INSPECT HIGH PITCHED
HORN
a.

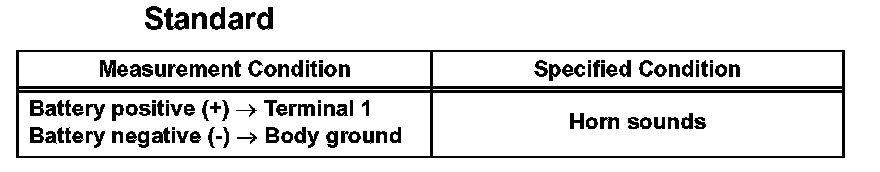

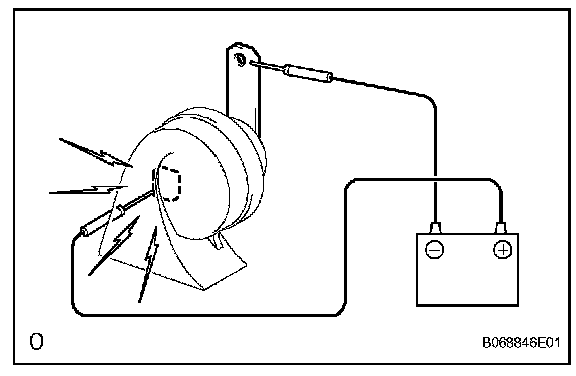

Apply battery voltage and check operation of the
horn
, as shown in the table.
