Removal and Replacement

Fog Light Assembly:

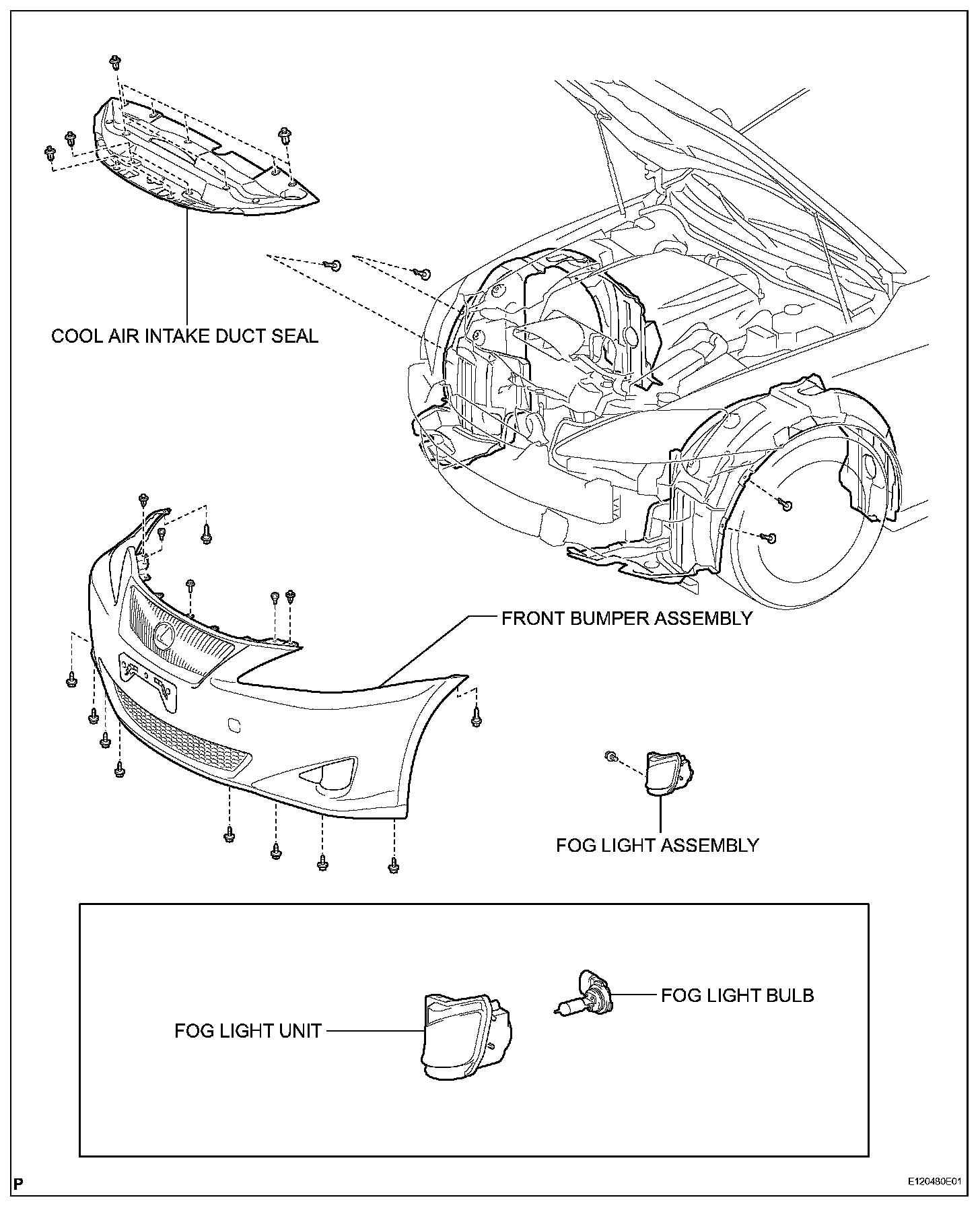

FOG LIGHT ASSEMBLY

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE FRONT BUMPER ASSEMBLY




3. REMOVE FOG LIGHT ASSEMBLY

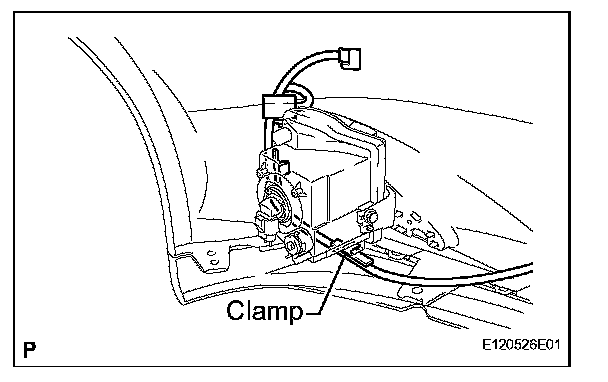

a. Disengage the clamp.

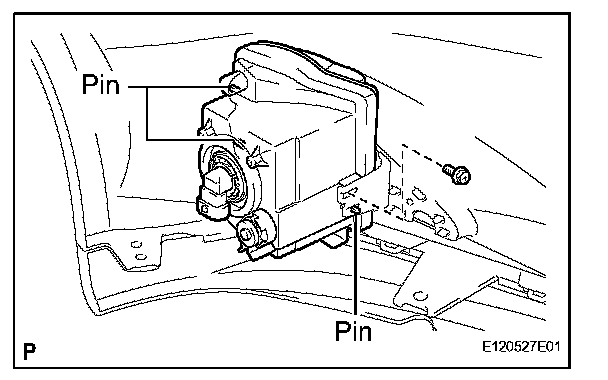

b. Disengage the 3 pins and remove the bolt and fog light assembly.

INSTALLATION




1. INSTALL FOG LIGHT ASSEMBLY

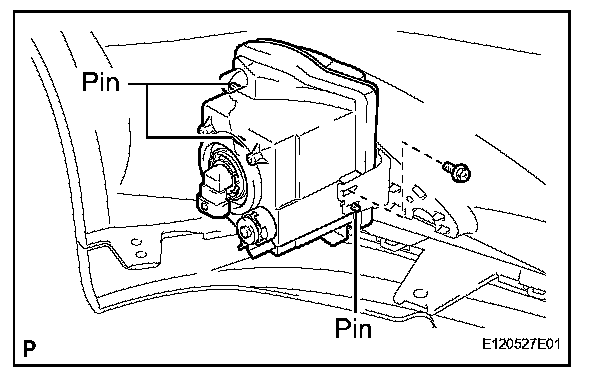

a. Install the fog light assembly with the bolt and 3 pins.

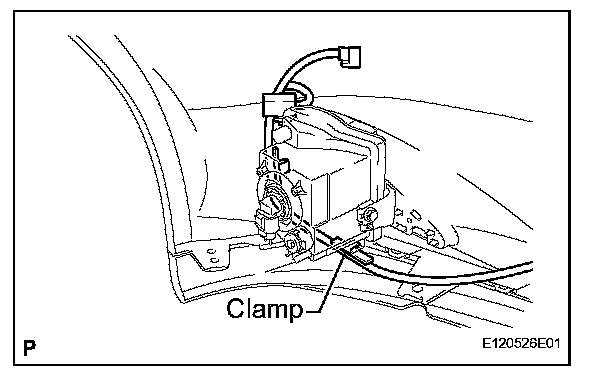

b. Install the clamp.

2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. VEHICLE PREPARATION FOR FOG LIGHT AIM
5. PREPARATION FOR FOG LIGHT AIMING
6. FOG LIGHT AIMING INSPECTION
7. FOG LIGHT AIMING ADJUSTMENT
