Overhaul

DISASSEMBLY




1. REMOVE FOG LIGHT BULB

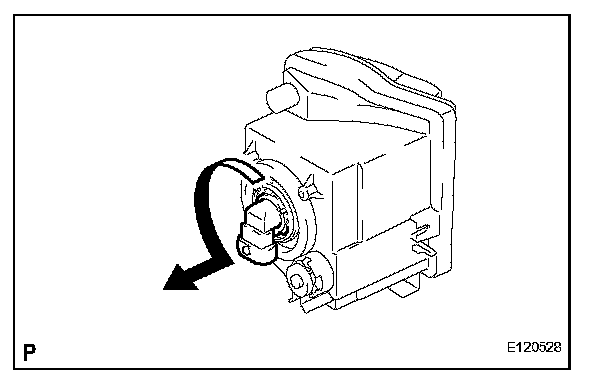

a. Remove the fog light bulb as shown in the illustration.

REASSEMBLY

1. INSTALL FOG LIGHT BULB
a. Install the fog light bulb.
