Footwell Light

INSPECTION




1. INSPECT FOOTWELL LIGHT

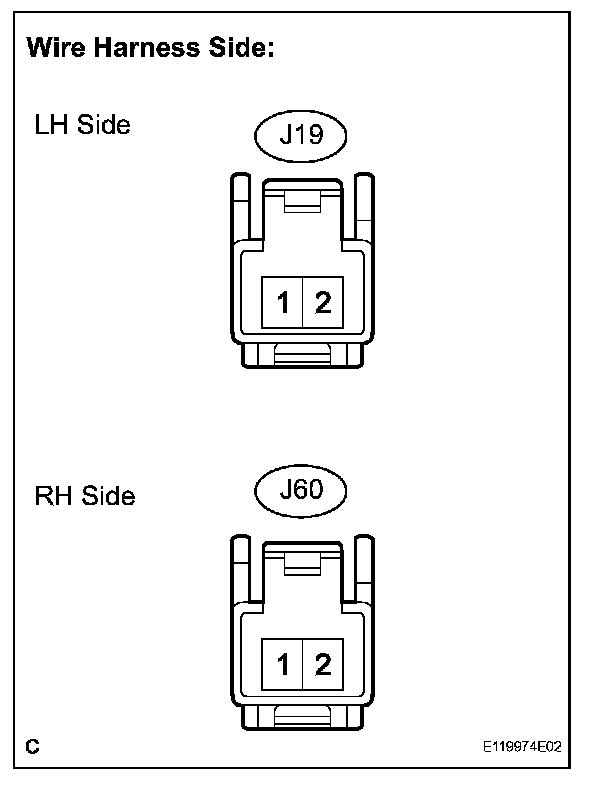

a. Disconnect the connector from the footwell light.

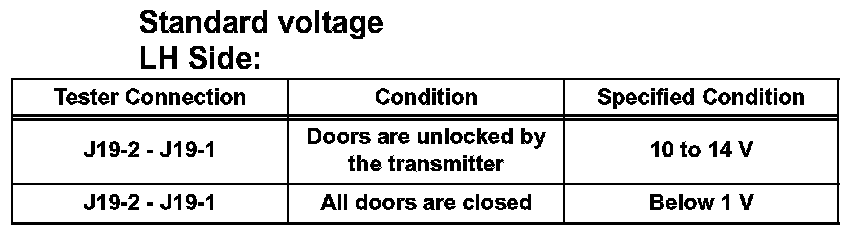

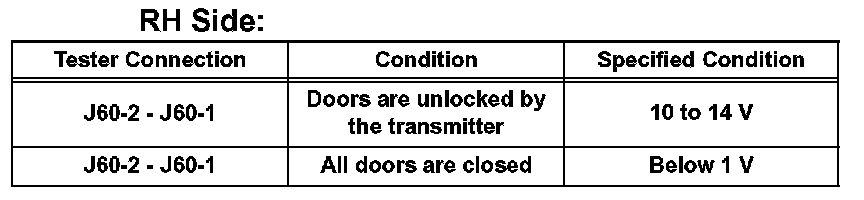

b. Measure the voltage according to the value(s) in the tables given.

If the result is not as specified, repair or replace the wire harness or connector.

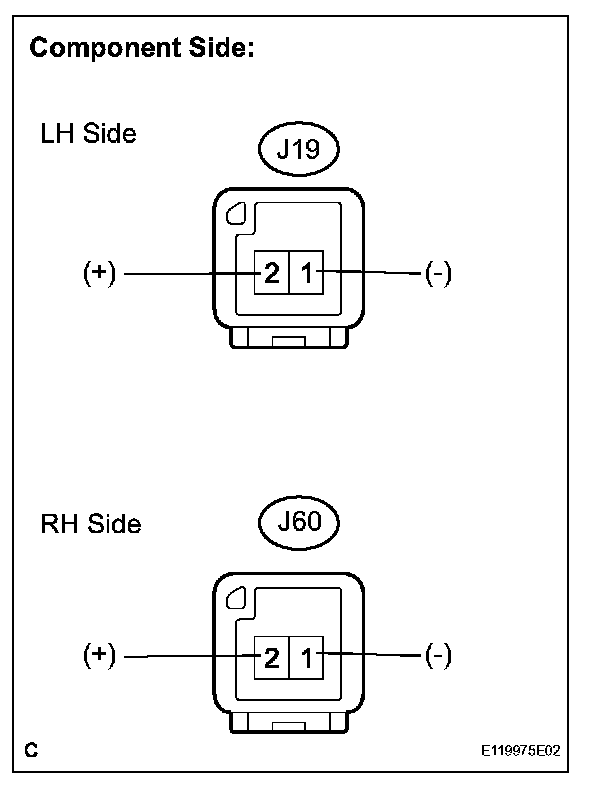

c. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
d. Check that the footwell light comes on.

OK: Comes on

If the result is not as specified, replace the footwell light.
